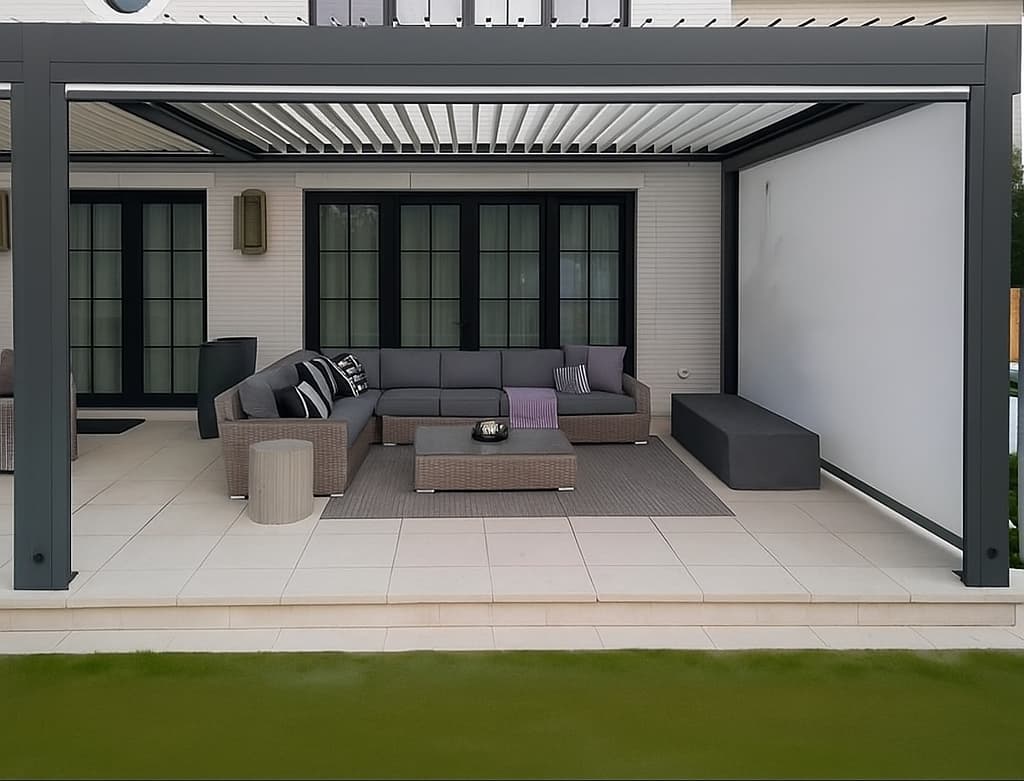

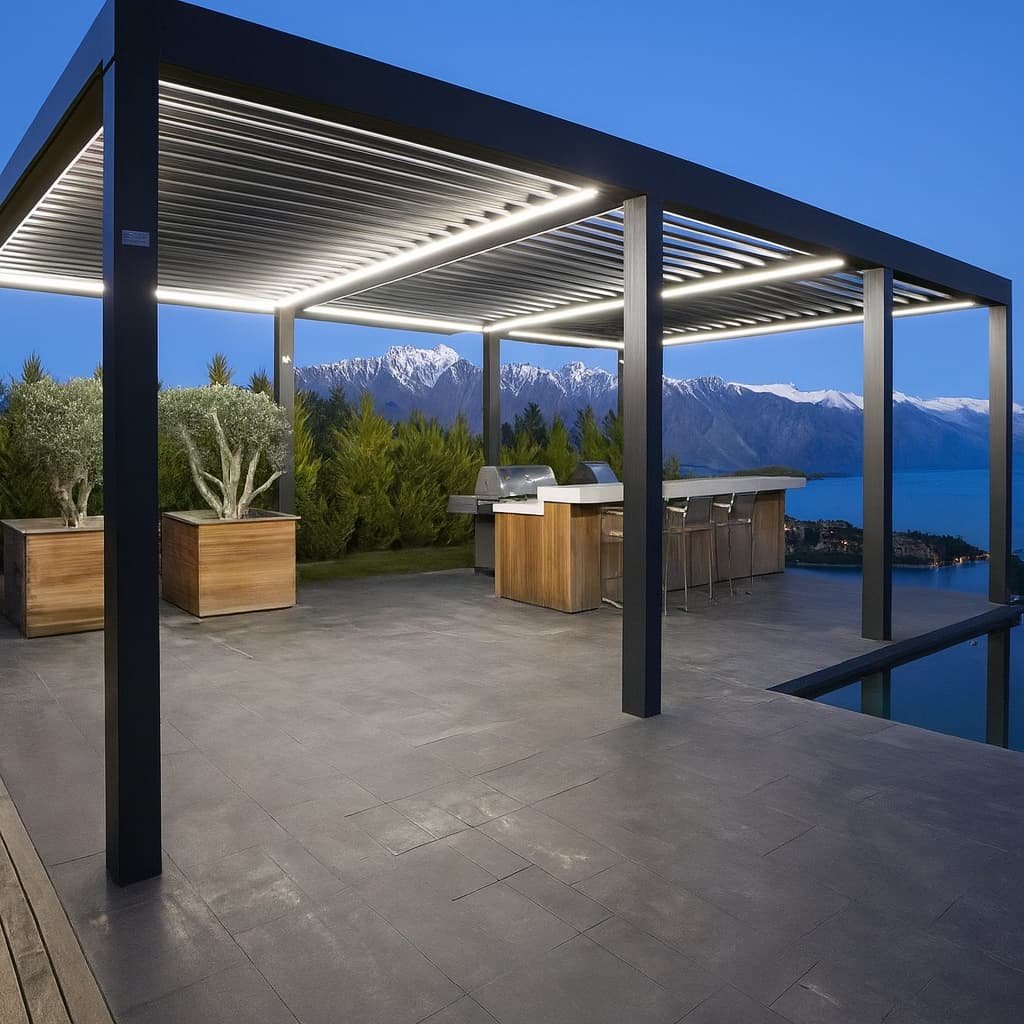

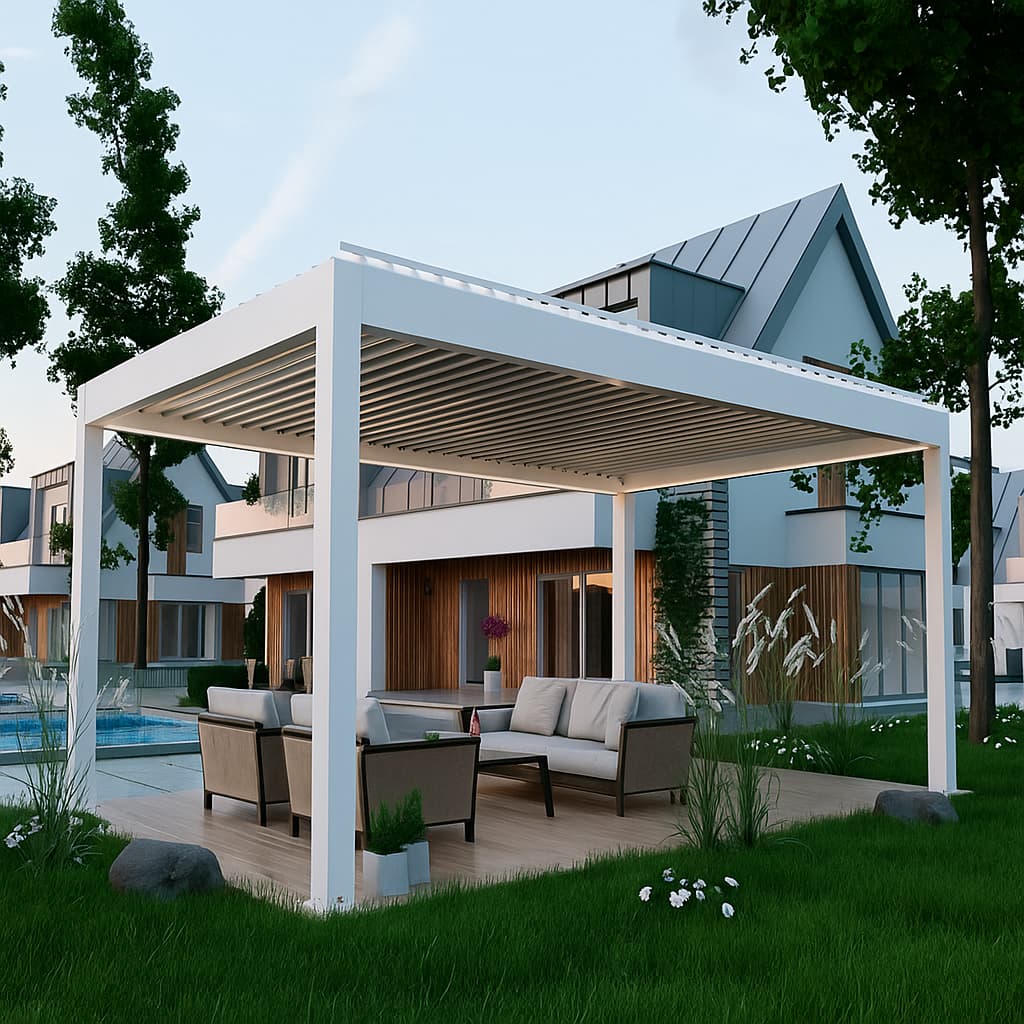

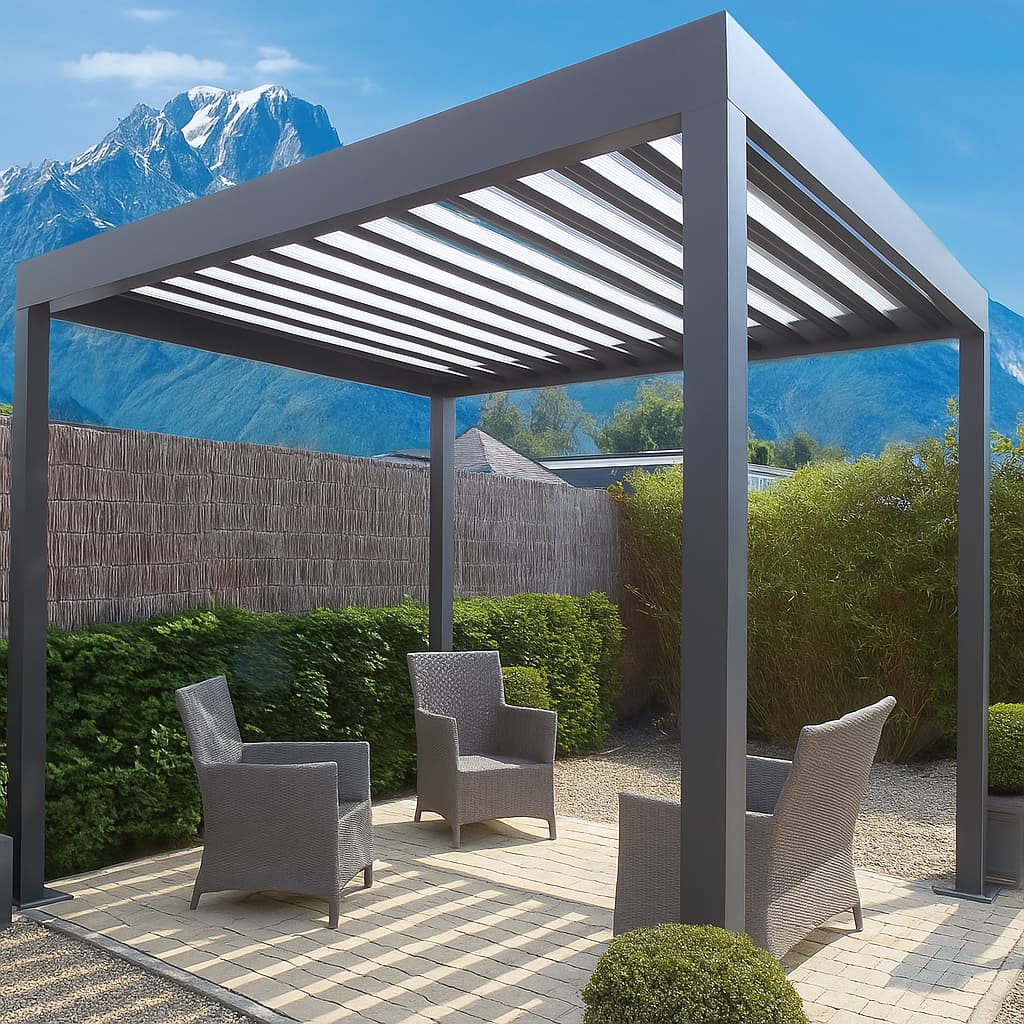

Cerberus Plus Louvre Roof System – Premium-Grade Kitsets Across New Zealand
The Cerberus Plus Louvre Roof System from Apollo NZ is the ultimate premium-grade kitset solution for modern outdoor living — now available with advanced smart weather sensors for motorised models.
Whether you’re enhancing a patio, garden, bach, or commercial space, the Cerberus Plus offers:
Modern aesthetics
Strong, corrosion-resistant design
Flexible upgrade options — all at an exceptional price point
🌧 Built Tough for NZ Conditions
Every Cerberus Plus pergola is engineered from 6063-T6 aluminium, a high-strength architectural alloy designed for New Zealand’s demanding climate.
Combined with powder-coated finishes and 304 stainless-steel fixings, it delivers lasting durability across coastal and inland environments.
⚙️ Key Specifications
| Component | Specification |
|---|---|
| Height | 2.5 m (Standard), adjustable 2.4 – 2.6 m (surcharge) |
| Beam | 120 × 45 × 1.6 mm |
| Column | 100 × 100 × 1.6 mm |
| Blade | 150 × 30 × 0.8 mm |
| Frame Material | 6063-T6 Aluminium, powder-coated |
| Fixings | 304 Stainless Steel / 316 upgrade (surcharge) |
Precision-built for clean lines, strength, and all-season reliability.

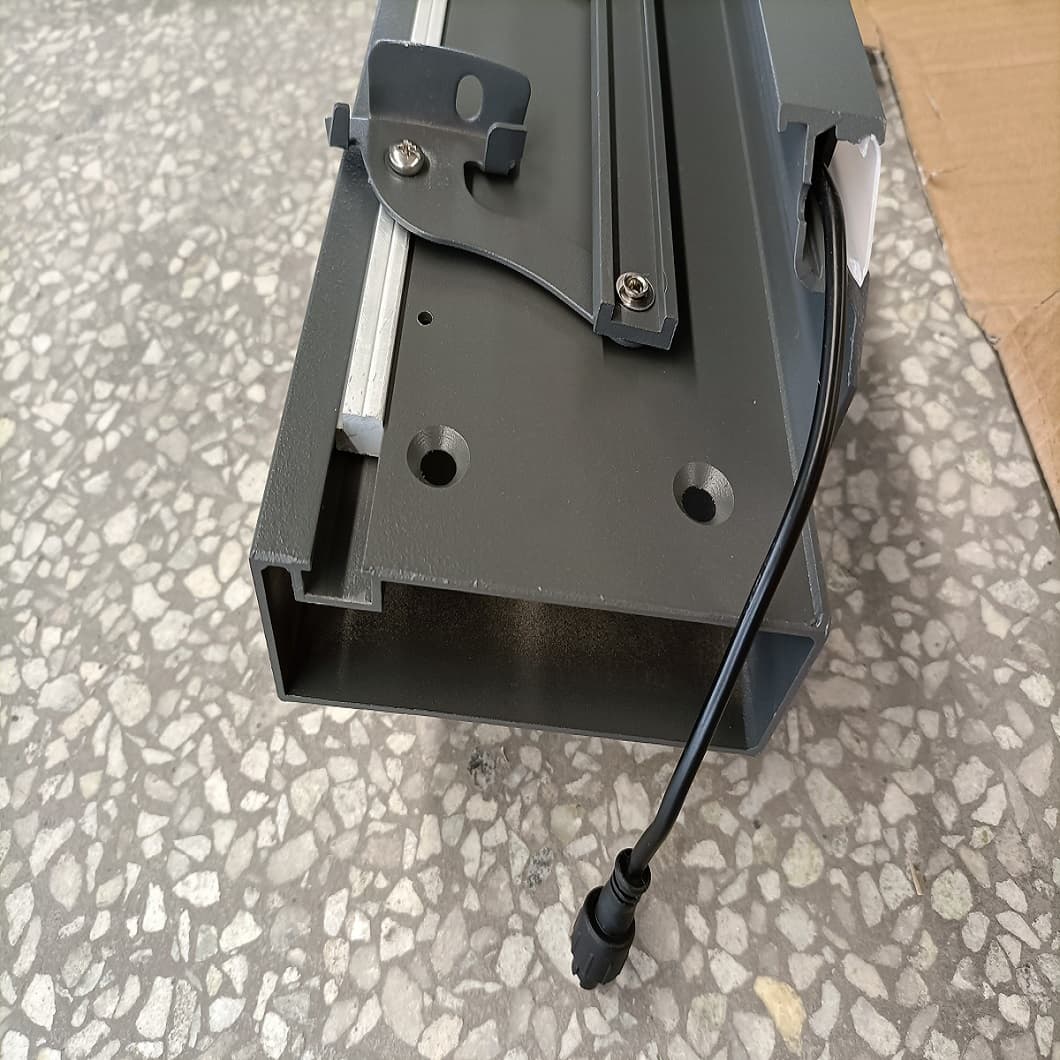

💧 Integrated Beams & Gutters
Enjoy a streamlined architectural profile with:
Hidden internal drainage
No bulky external gutters
Reliable water management even in heavy rain
🎨 Colour Options
Standard Colours
| Colour | RAL Code | Finish | Surface |
|---|---|---|---|
| Anthracite Grey | RAL 7016 | Matt | Smooth |
| Aluminium Grey | RAL 9006 | Matt | Smooth |
| White | RAL 9016 | Gloss | Smooth |
| Black | RAL 9005 | Matt | Smooth |
Optional Custom Colours (Surcharge Applies)

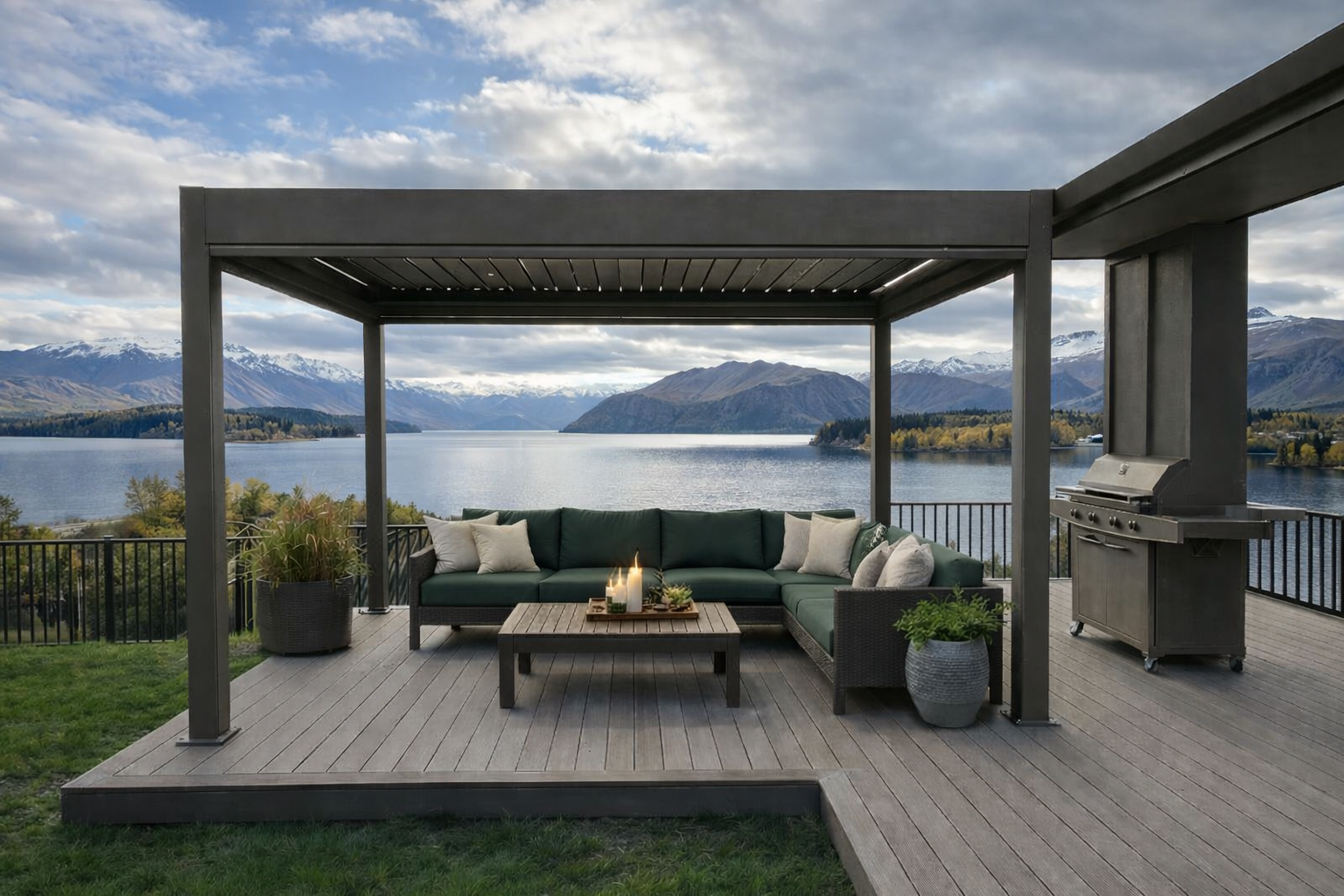

Flaxpod: deep modern tone for coastal or contemporary builds
Ironsand: warm earthy hue ideal for residential or commercial projects
Full RAL Spectrum: 1600 + colour options (1000–9023 range)
🧱 Premium Post Upgrade (Optional)
Upgrade to the Cerberus Plus Premium Post for architectural precision:
Stainless-steel base plate (flush install)
Larger side drain for high-flow capacity
PVC debris cover
Optional bottom drainage — ideal for deck installations
☀️ More Light with Polycarbonate or Glass Roof Sections
Add transparent sections for light-filled outdoor areas — ideal for BBQ zones, outdoor kitchens, or poolside shelters.
Available Materials
Polycarbonate: 4 – 10 mm (clear, bronze, grey)
Glass: 10.76 mm laminated (clear, smoke grey, frosted)
Max Panel Depth: 500 mm
Benefits
Brightens shaded areas
Maintains weather protection
UV-stable for long-term clarity

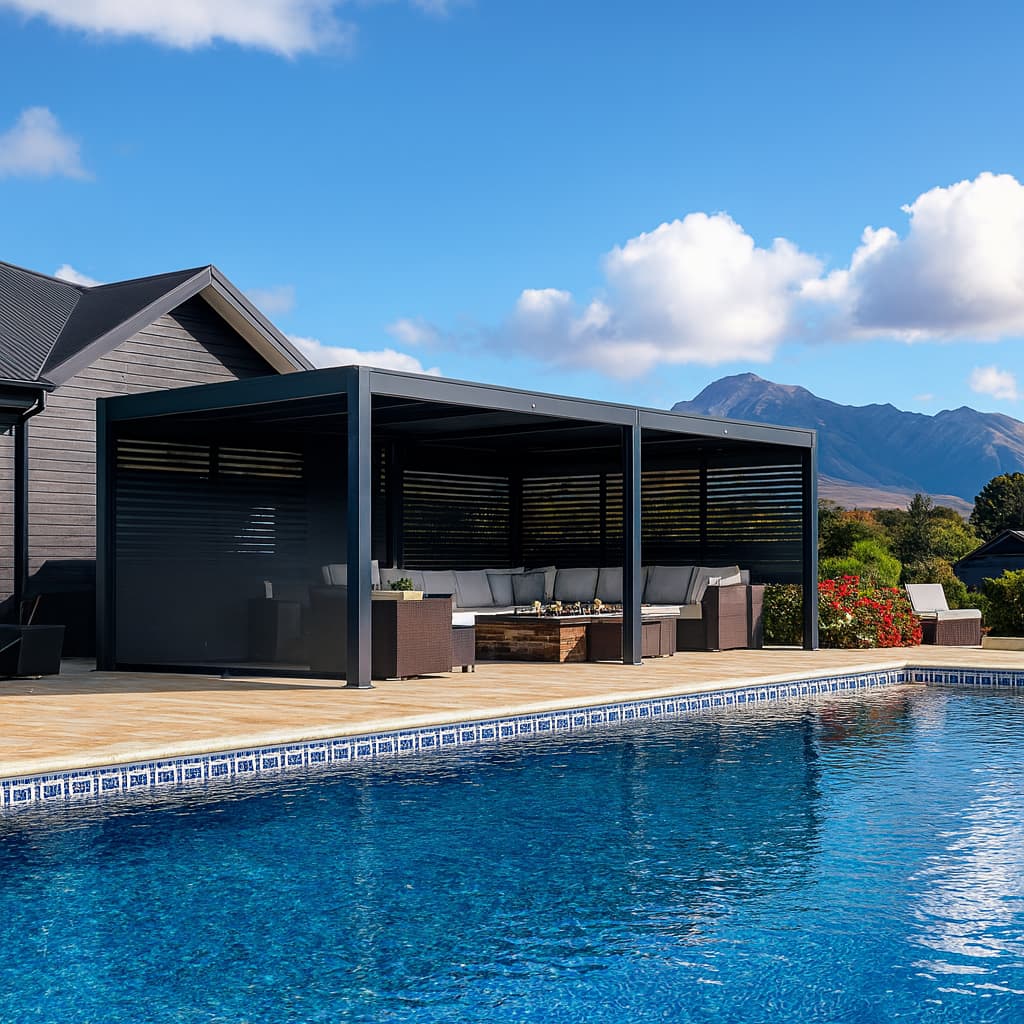

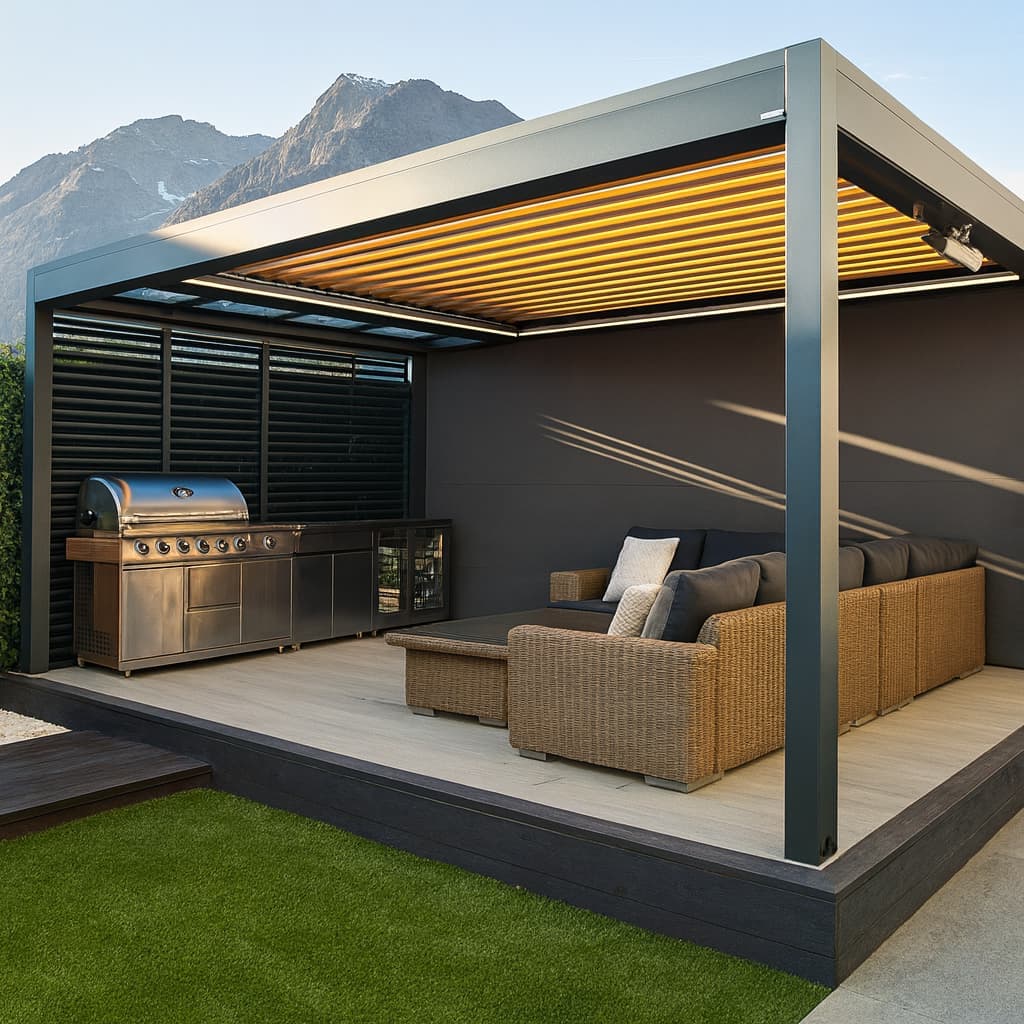

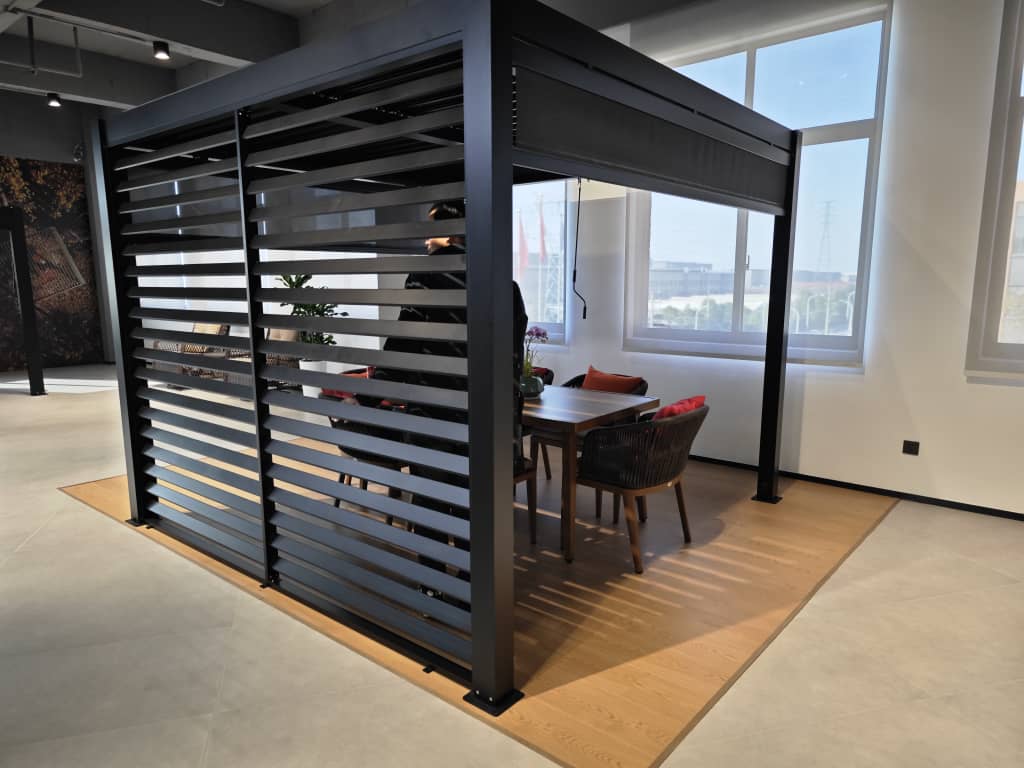

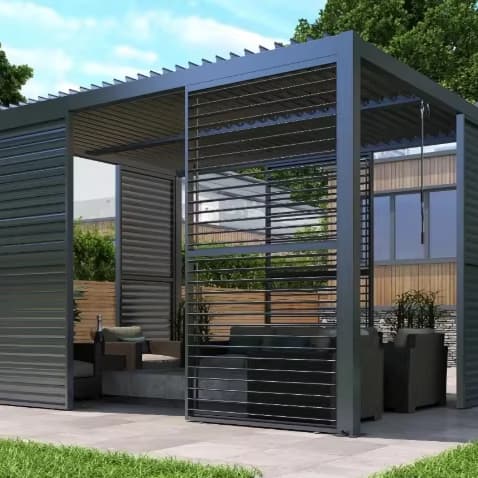

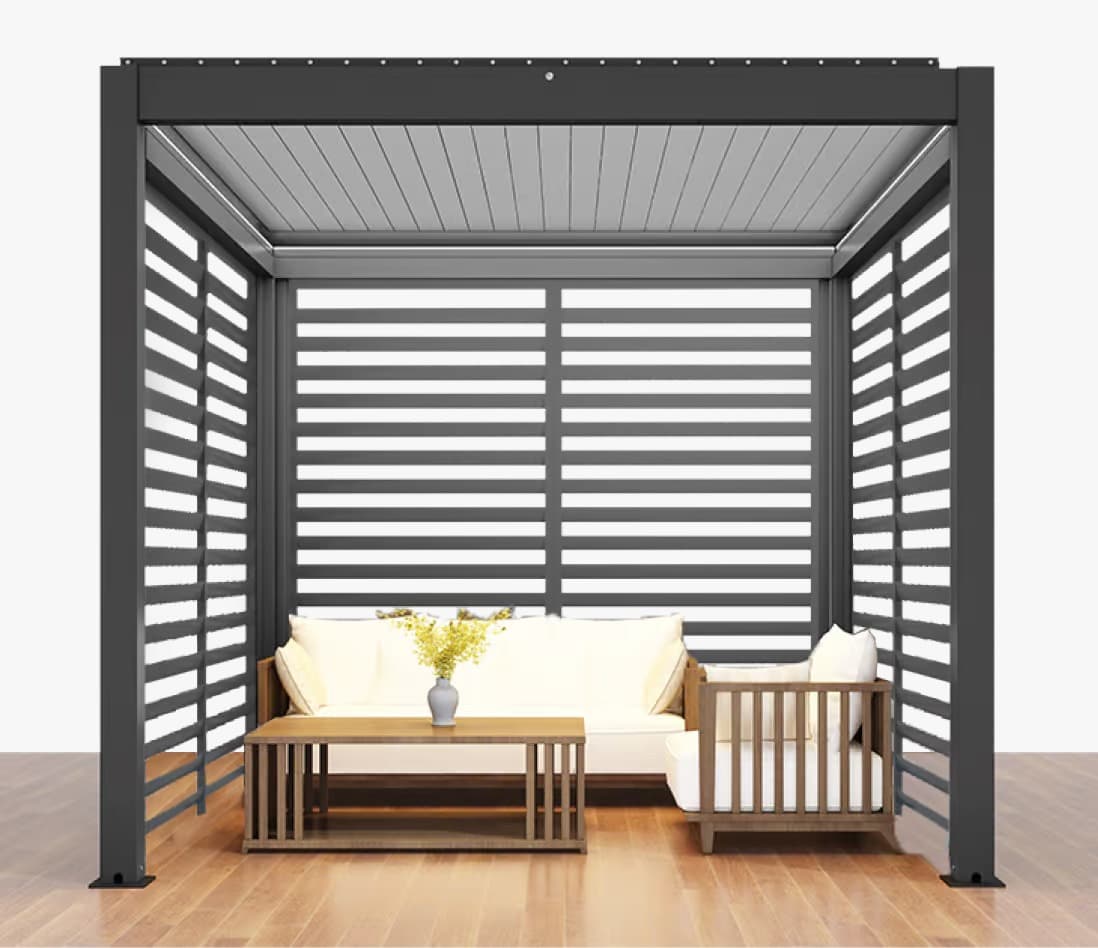

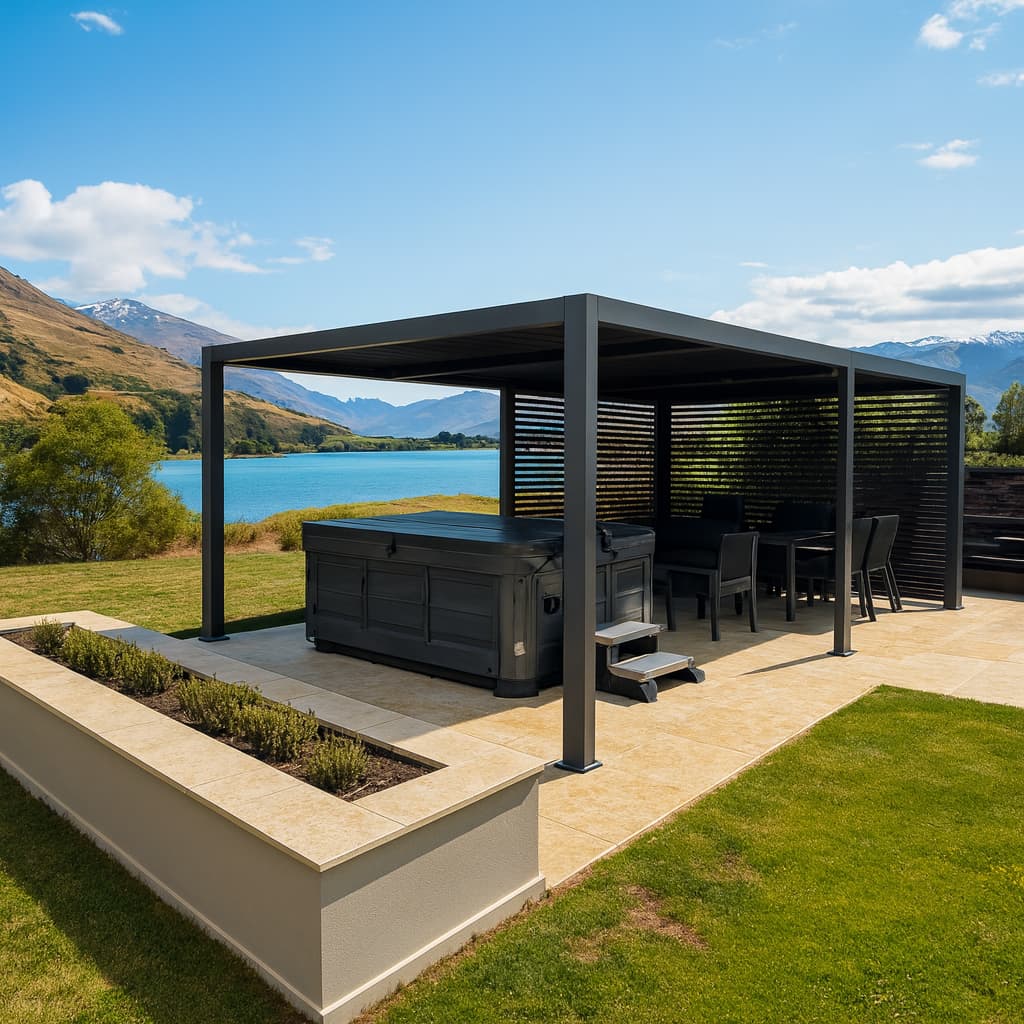

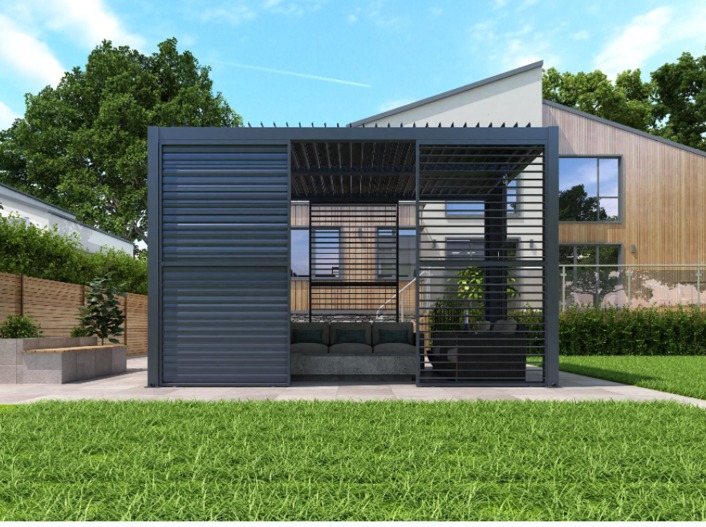

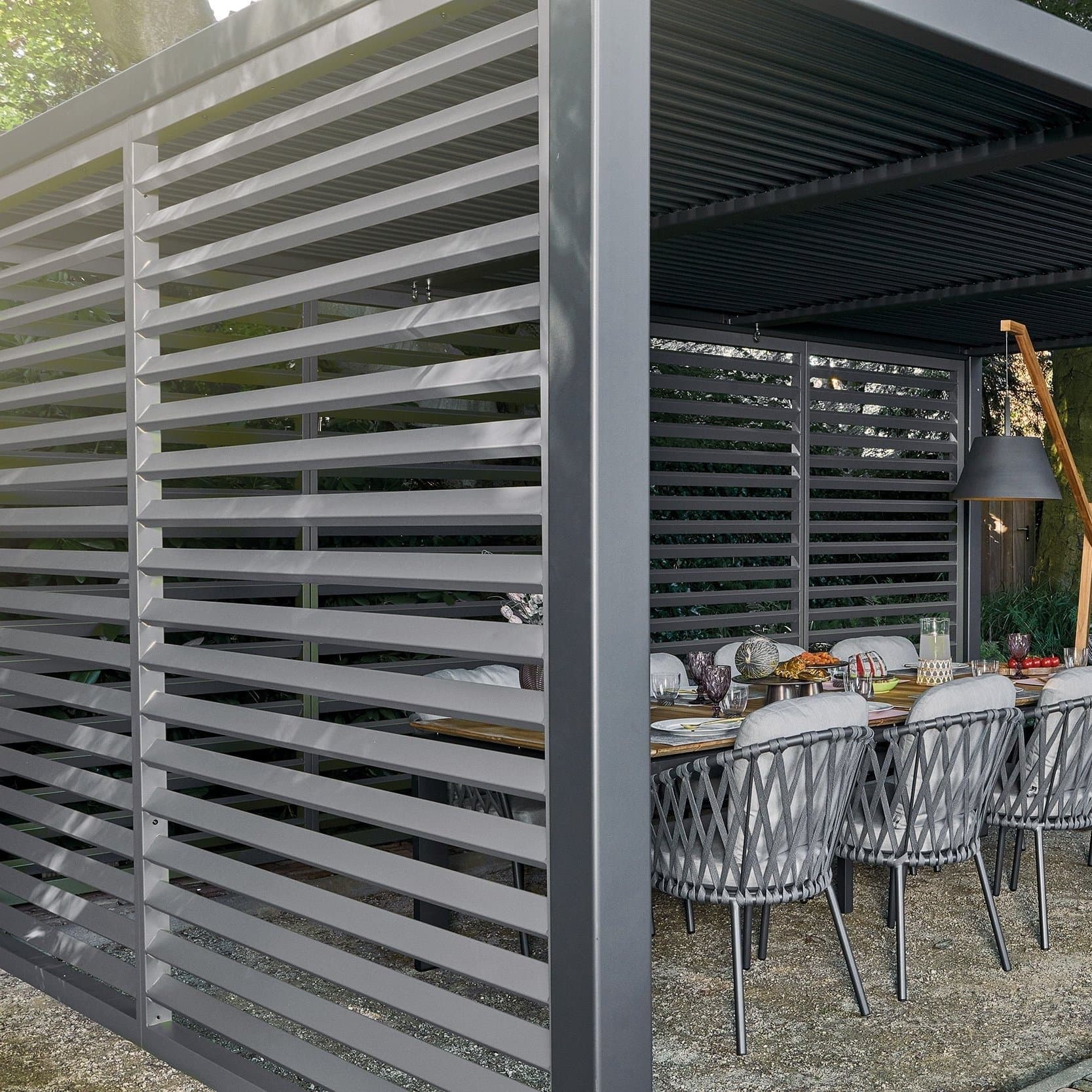

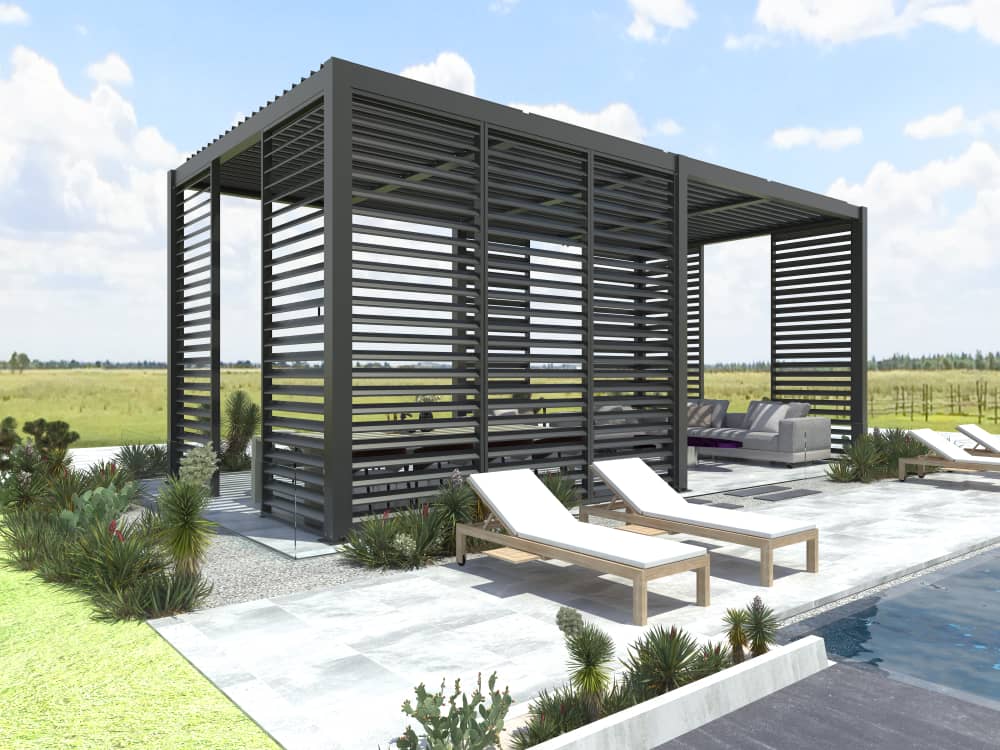

🧩 Solid Aluminium Wall Panels
Create enclosed or semi-private areas for kitchens, spas, or pool zones.
Matches pergola frame finish
Durable and low-maintenance
Ideal for wind or privacy control
💡 Smart Weather Sensor Integration (for Motorised Systems)
The motorised Cerberus Standard and Plus Systems are compatible with Apollo NZ’s Cerberus Smart Weather Sensors, providing full automation and weather protection.

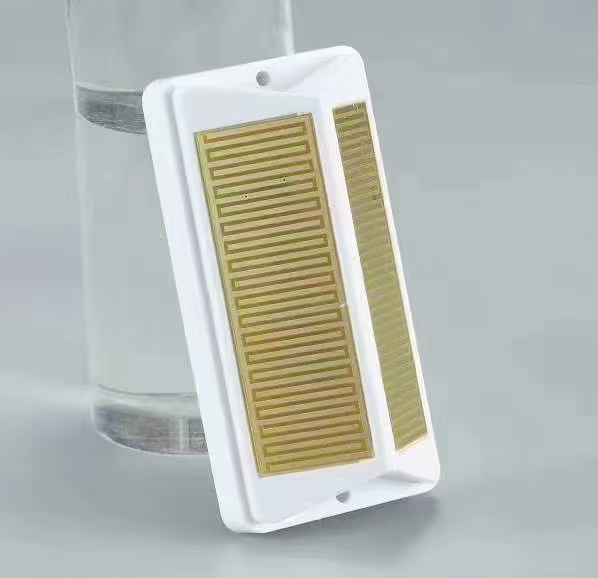

🌧 Wired Rain Sensor
Sensitive detection for instant louvre closure during rainfall
Anti-UV, weather-resistant housing
Power Supply: DC 5 – 24 V
Temperature Range: –20 °C to +65 °C
Multiple smart-switch compatibility

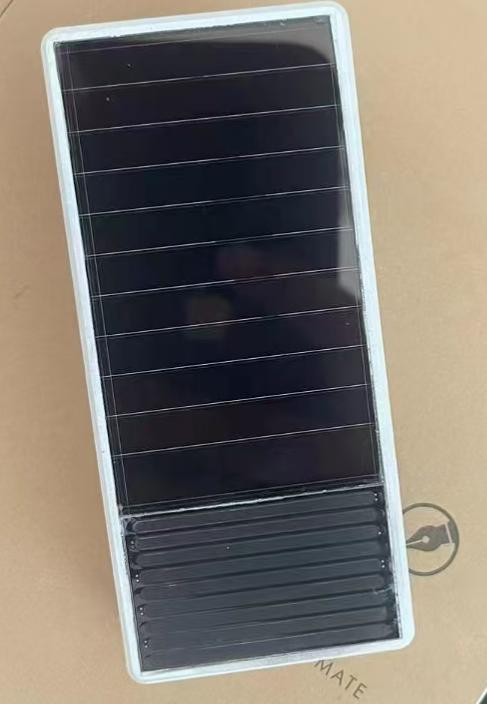

☀️ Solar Rain Sensor (HC-PRO8)
Solar-powered with built-in lithium battery
Wireless operation (868.35 MHz frequency)
IP67 waterproof protection
Maintenance-free and eco-friendly

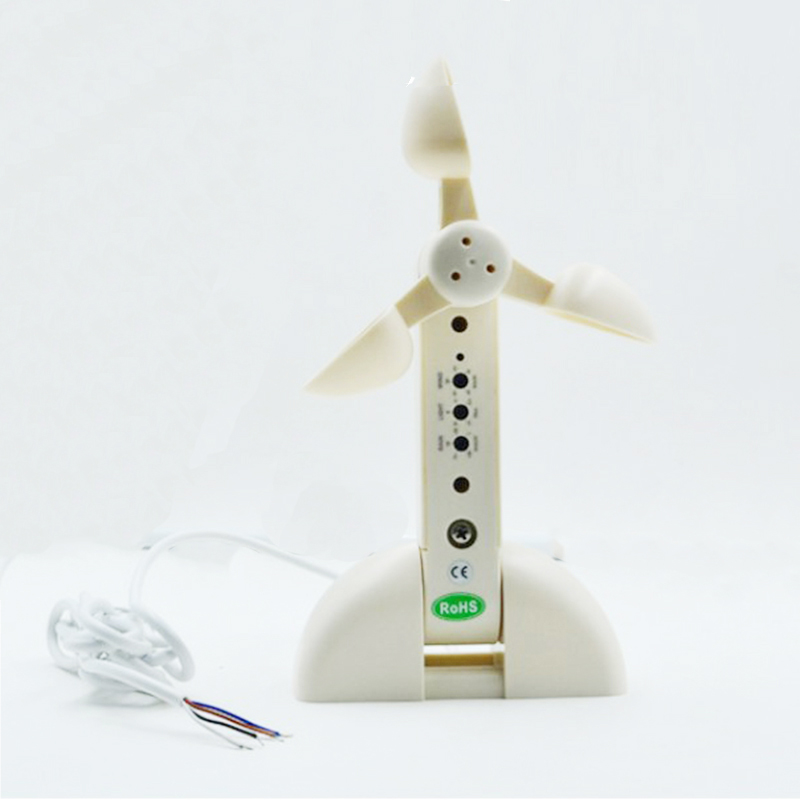

💨 Wind Sensor
Adjustable wind intensity (Level 0 – 6)
Adjustable rain intensity (0 – 5 mm/h)
Dual-bearing design for accurate wind response
Rain-proof structure, IP55 rating
Compatible with multiple motors and actuators
These sensors ensure your pergola responds automatically to rain or wind, closing louvres to safeguard your space and outdoor furniture.

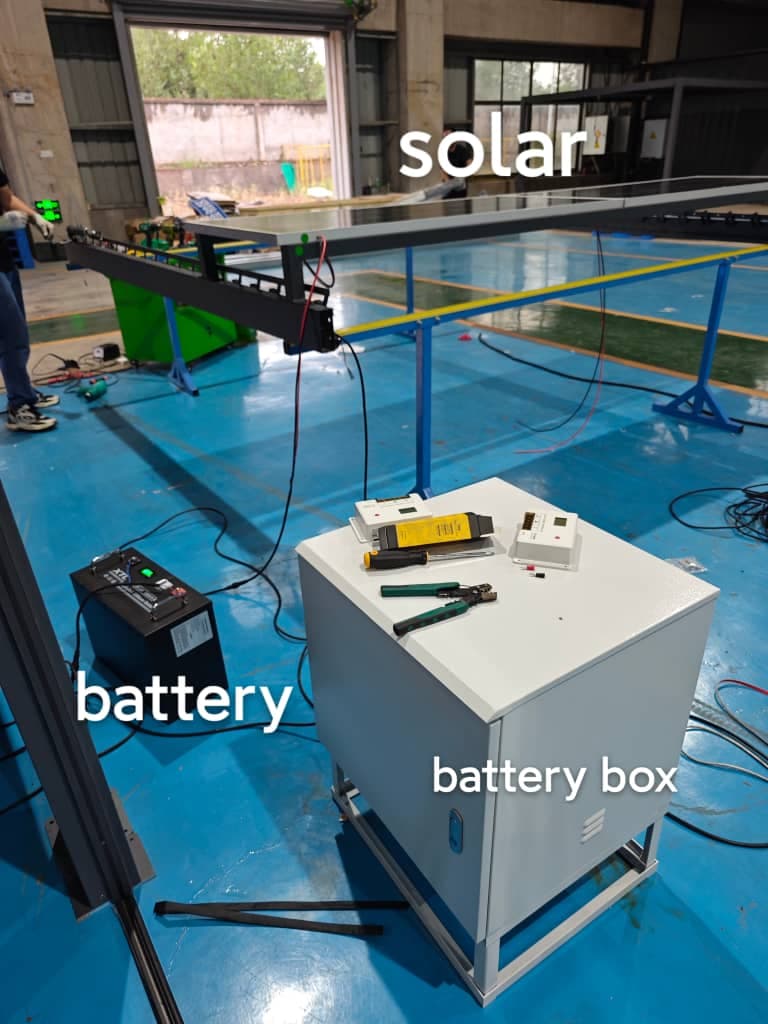

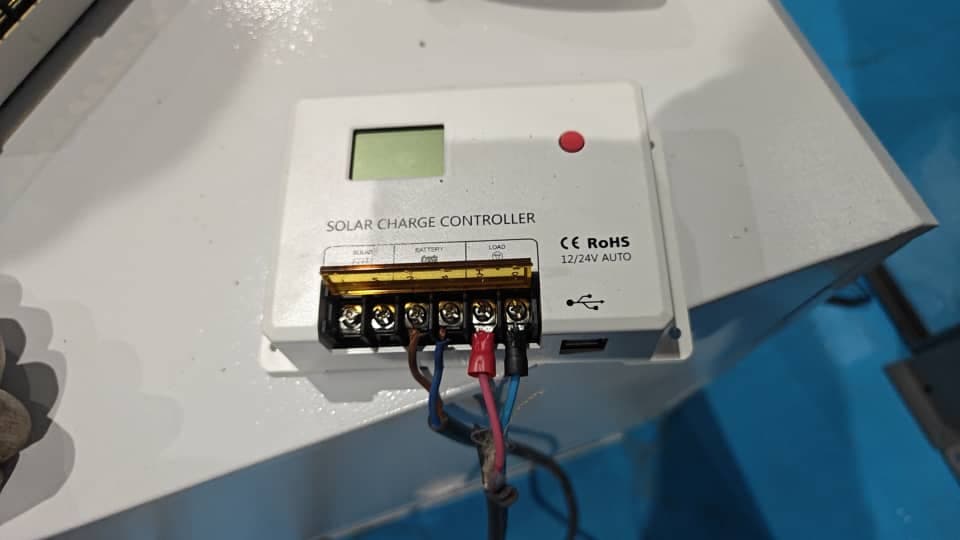

🌞 Cerberus Plus Solar System
Apollo NZ introduces the Cerberus Plus Solar System — a fully integrated, off-grid solar upgrade for pergolas up to 4 × 4 m.
| Component | Specification |
|---|---|
| Battery Type | Lithium Battery |
| Rated Capacity | 25.6 V / 100 Ah / 2.56 kWh |
| Power Duration | Up to 5 hours continuous use |
| Compatibility | Pergolas ≤ 4 × 4 m |
| Weight | Approx. 28.9 kg |
Benefits
Off-grid operation — ideal for baches & rural sites
Zero emission, renewable energy
Continuous charging via daylight
Compact, discreet integration

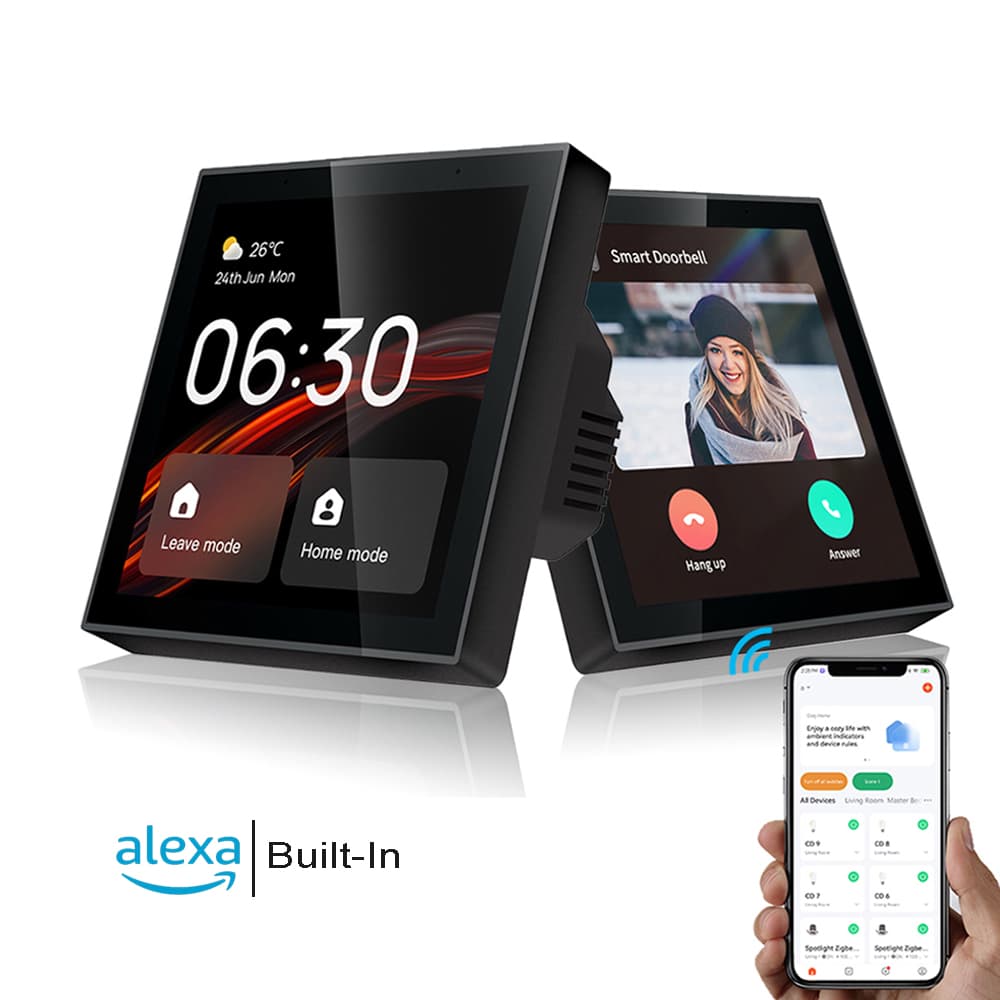

📱 Smart Control Integration
Upgrade to Tuya Smart Control for motorised roof and blind motors:
Control via smartphone app
Set schedules & timers
Works with Alexa and Google Assistant

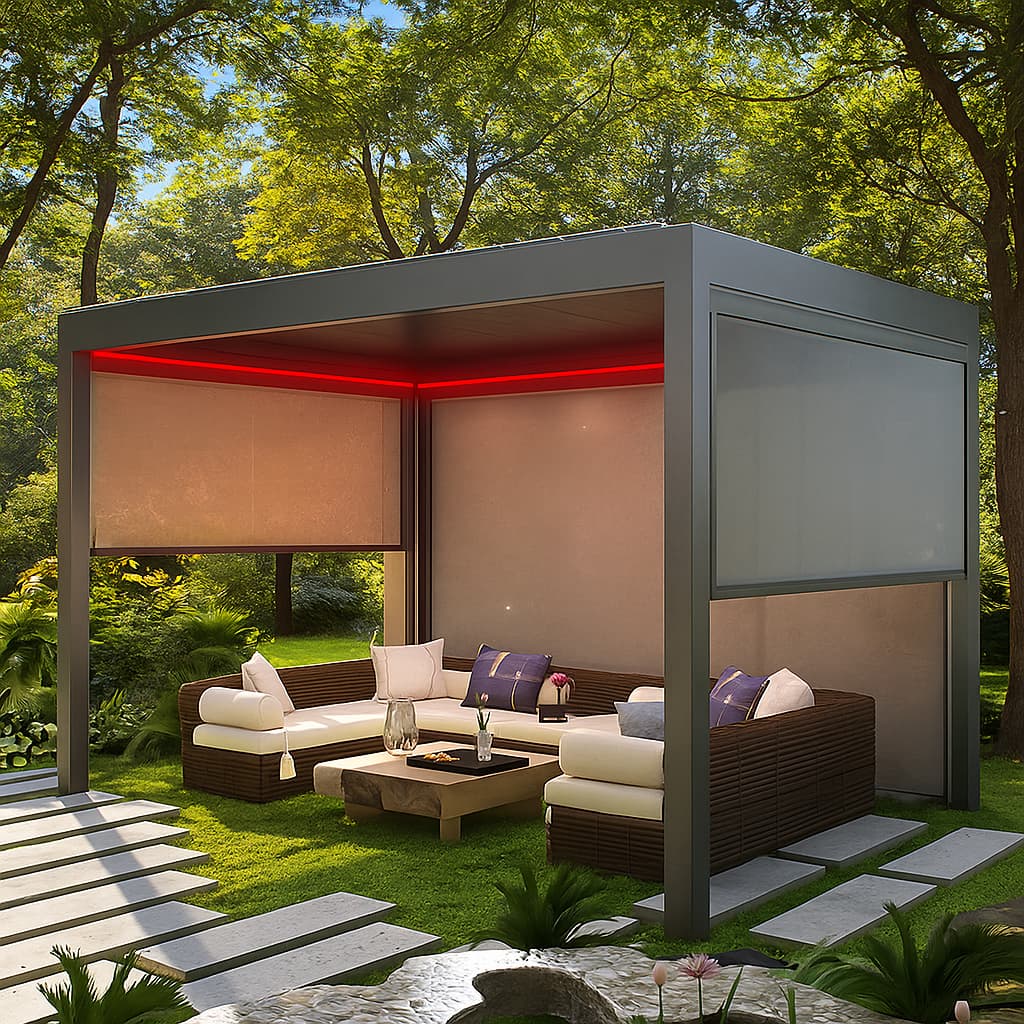

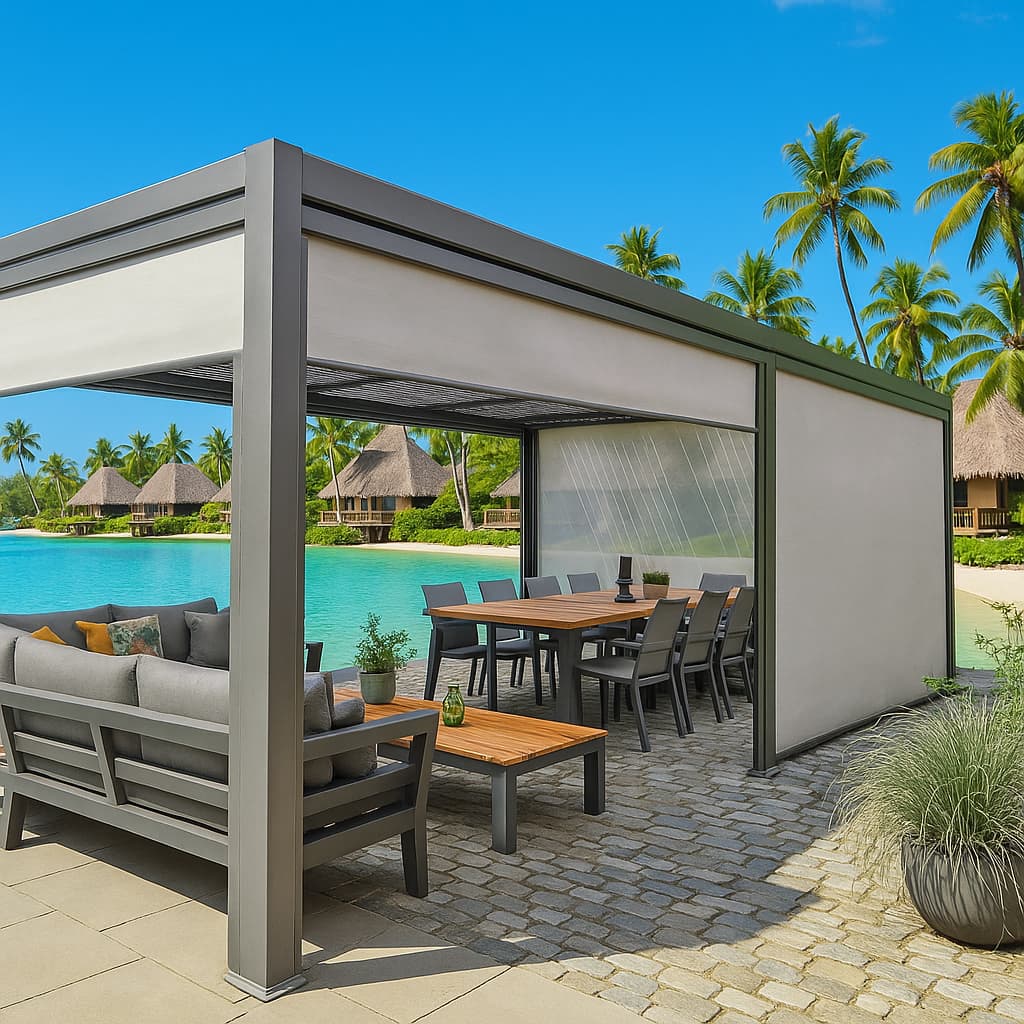

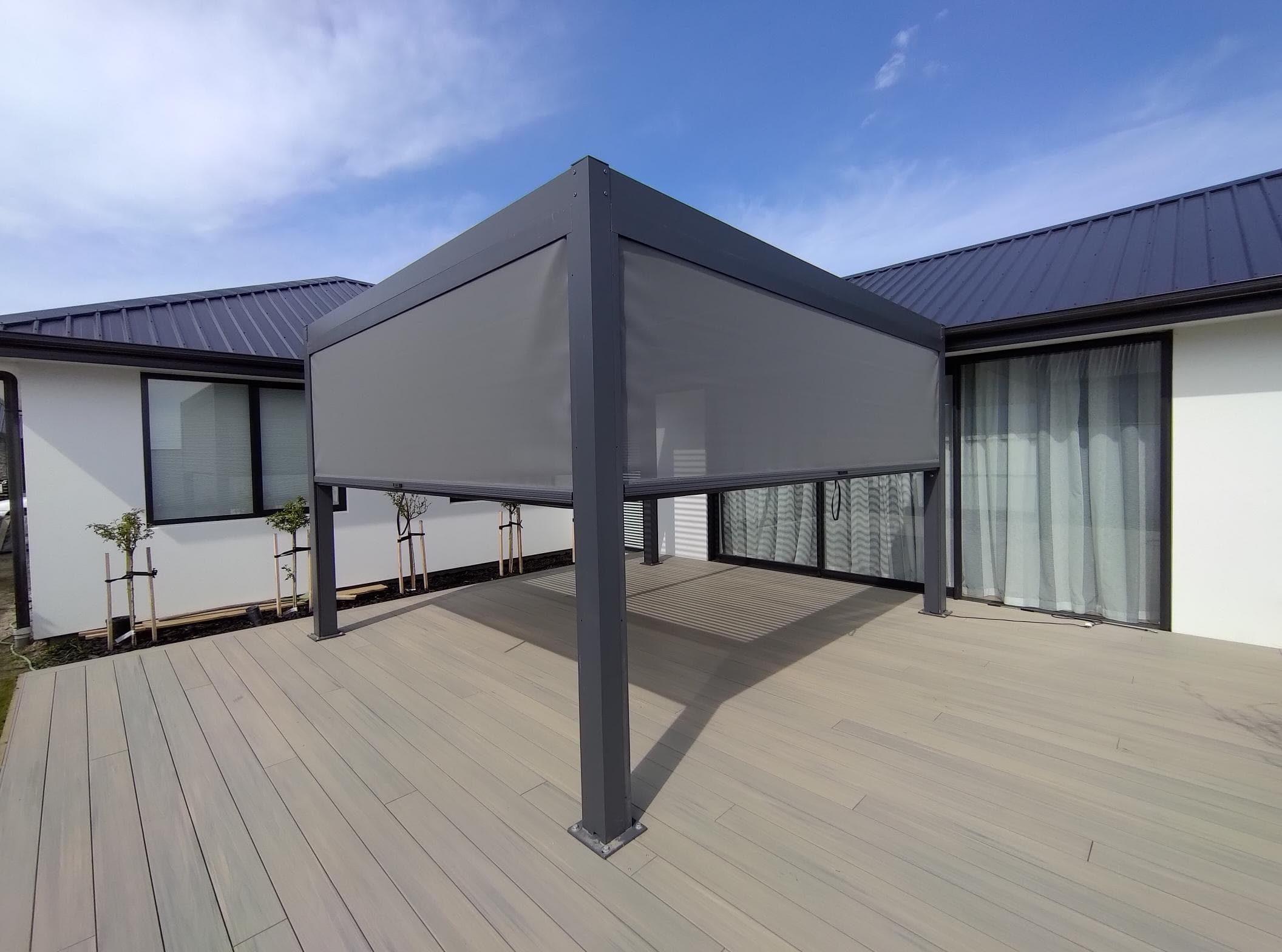

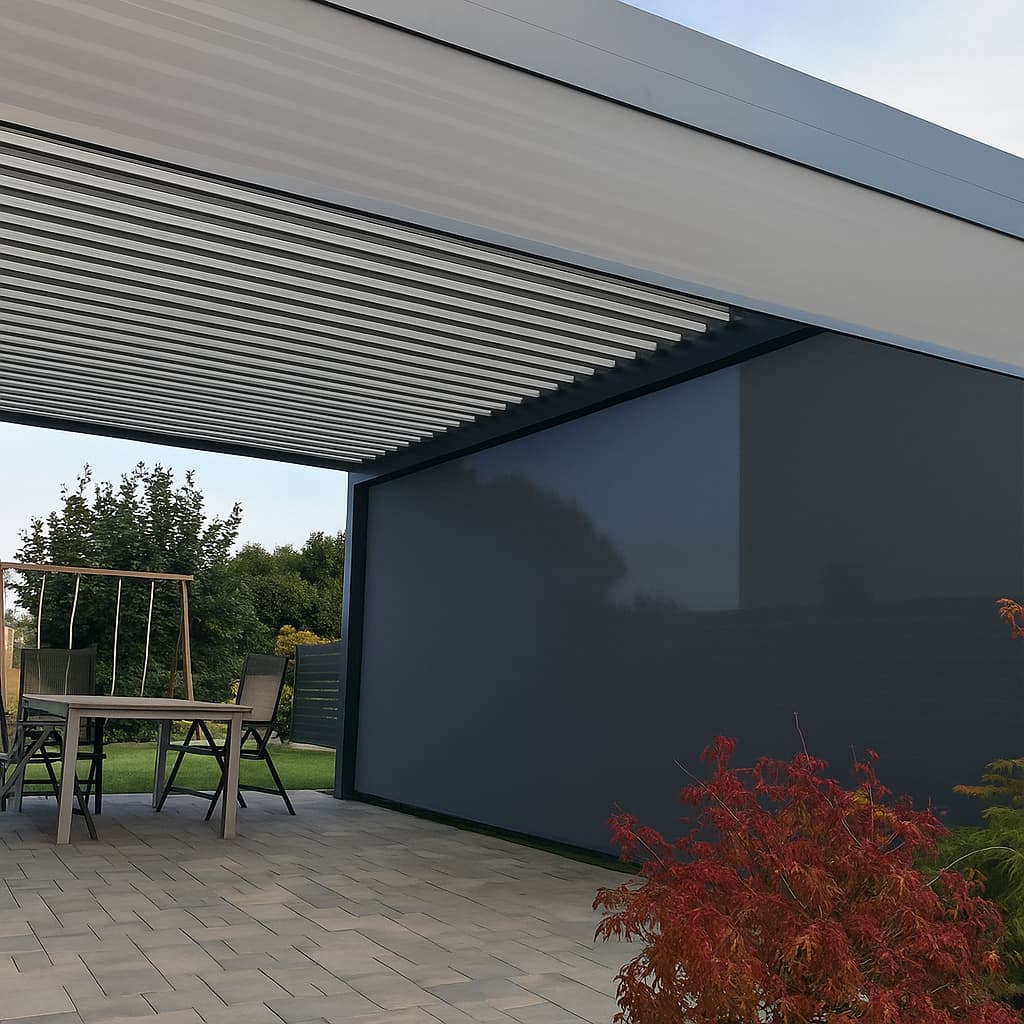

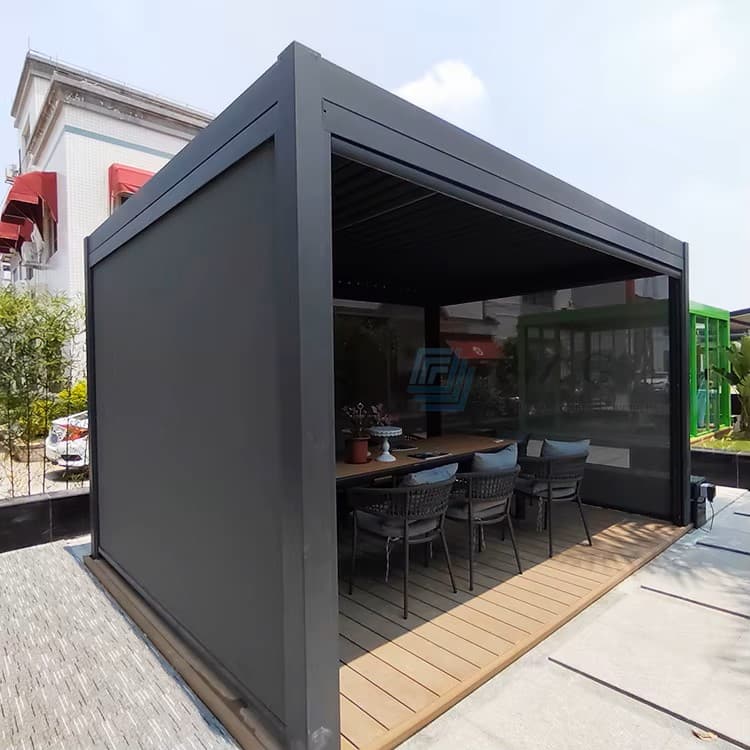

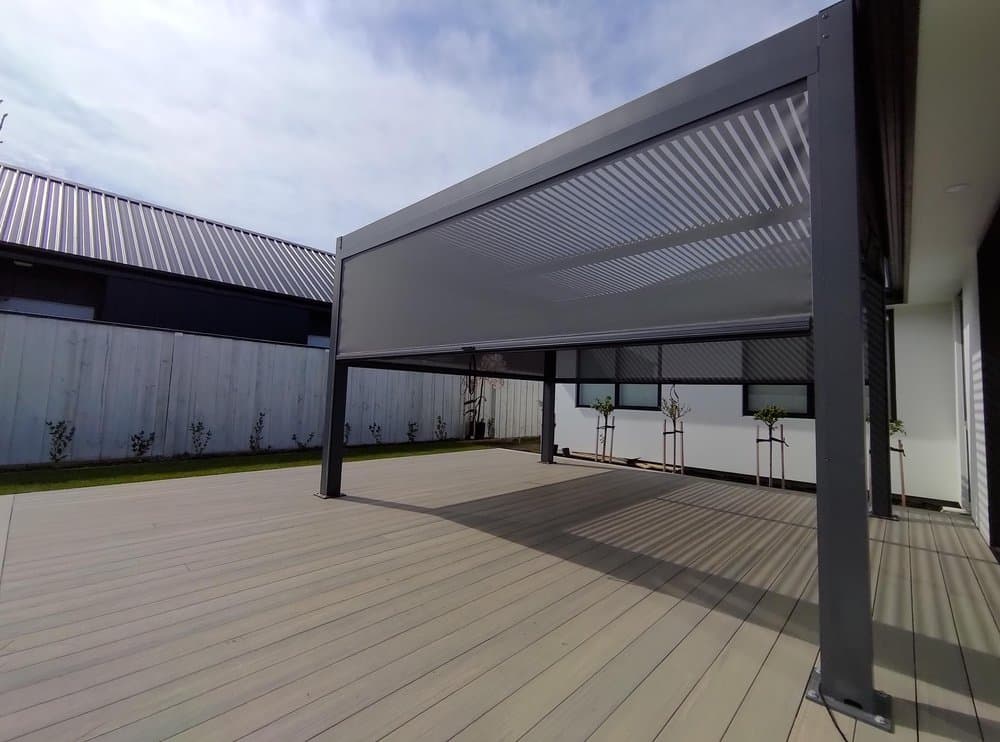

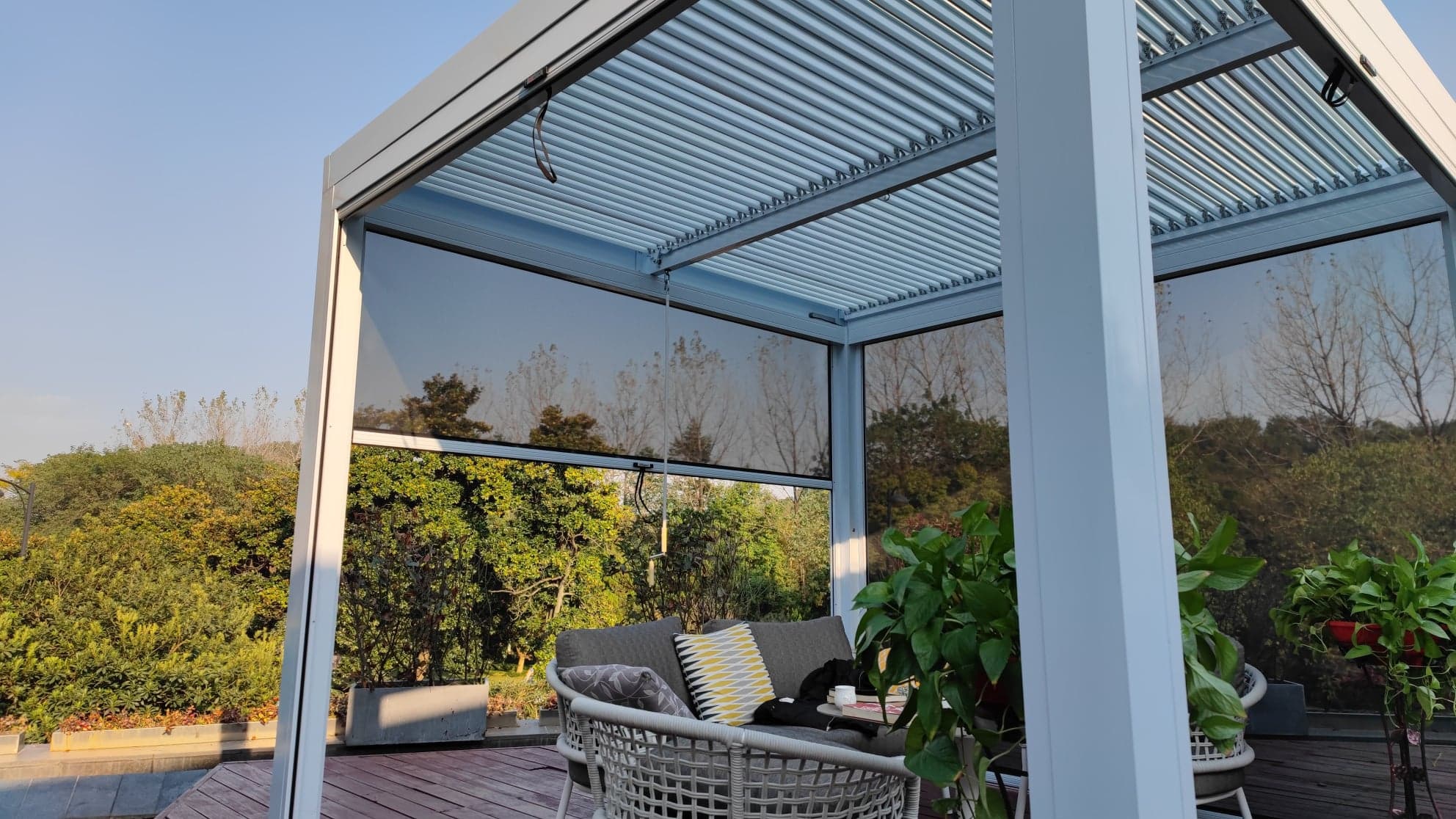

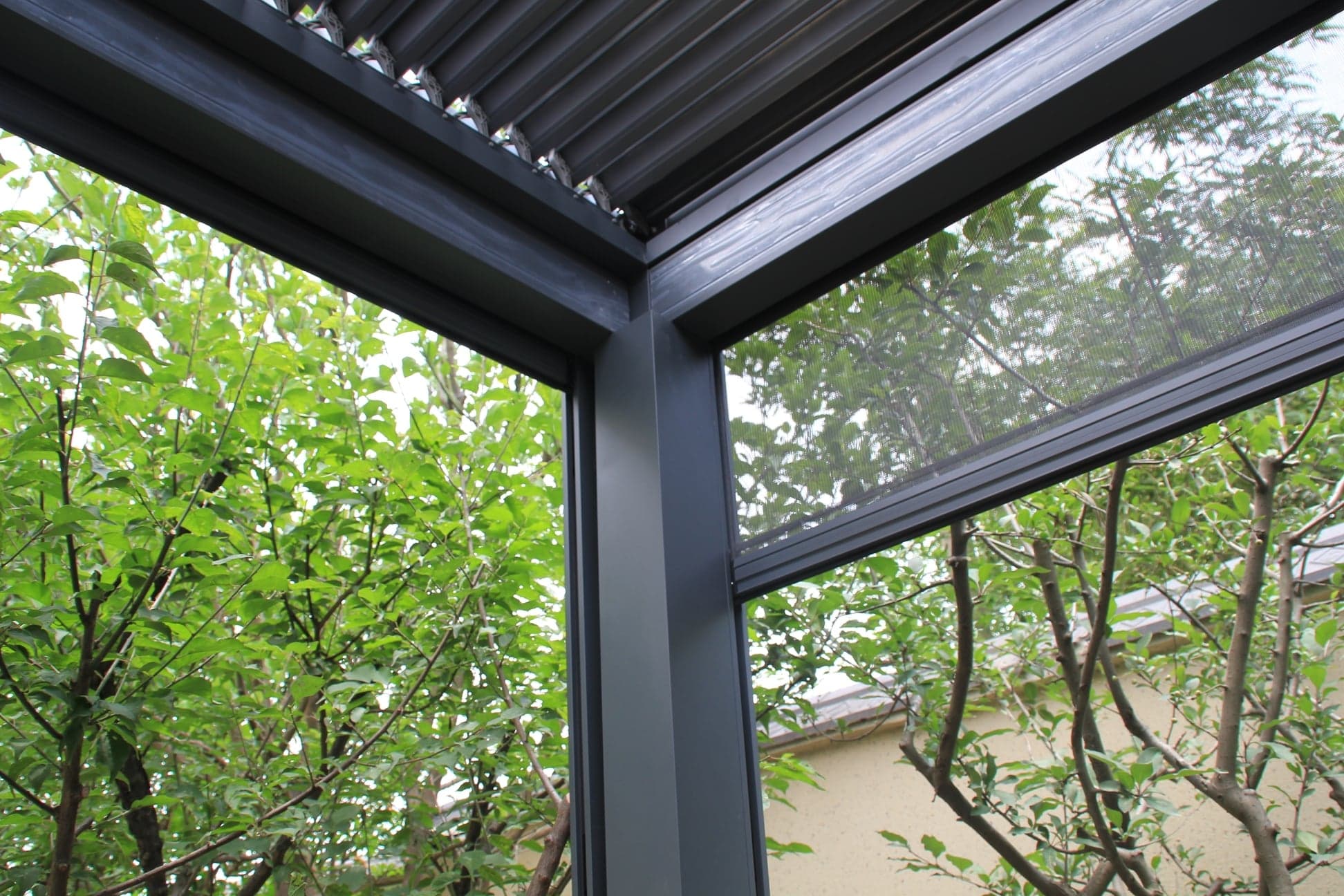

🪟 Motorised Blind Safety System
Motorised blinds feature built-in obstacle detection — automatically stopping when an object is detected in the path.
You can also upgrade to Dooya dual-function motors, offering both motorised and manual operation for added control and peace of mind.
🏗 Expanded Kitset Options

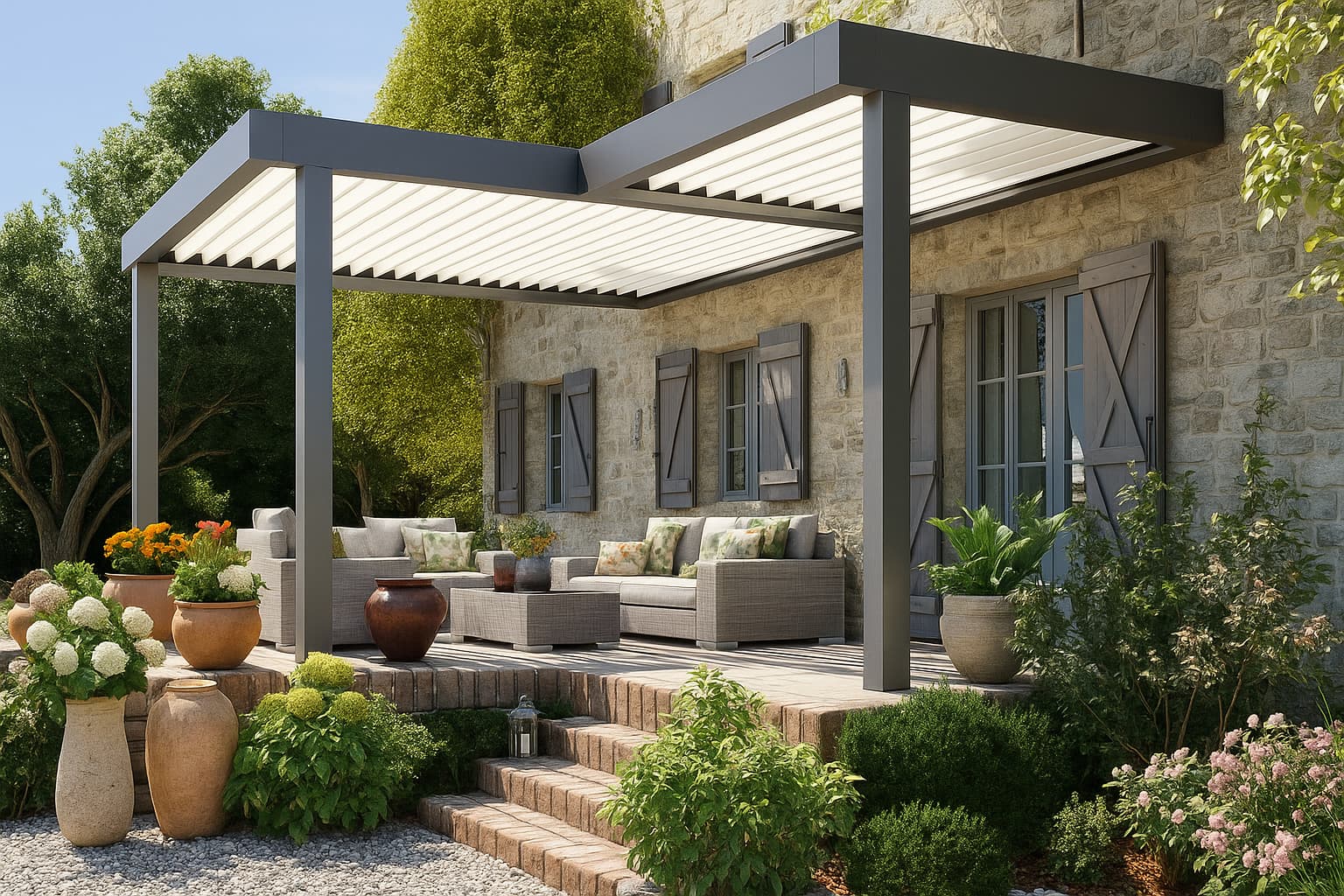

Shaped Pergolas for angled zones
Gable Roof designs for airflow & height
Glass / Polycarbonate inserts for custom lighting
🔲 Renter-Friendly Installation
Cerberus Frame-Only, Standard, and Plus models can be mounted on heavy steel base plates instead of bolts:
✔ Strong anchoring for small and medium systems
✔ Fully removable for relocation
✔ Ideal for rental and temporary setups
📦 Standard Sizes & Pricing (Supply Only + GST)
| Size (m) | Manual | Motorised |
|---|---|---|
| 2 × 1.5 | $1,210 | $1,300 |
| 2 × 2 | $1,480 | $1,600 |
| 3 × 1.5 | $1,615 | $1,750 |
| 3 × 2 | $2,020 | $2,200 |
| 3 × 3 | $2,830 | $3,100 |
| 4 × 3 | $3,640 | $4,000 |
| 4 × 4 | $4,720 | $5,200 |
| 5 × 3 | $4,450 | $4,900 |
| 5 × 4 | $5,800 | $6,400 |
| 5 × 5 | $7,150 | $7,900 |
| 6 × 2 | $3,640 | $4,000 |
| 6 × 3 | $5,260 | $5,800 |
| 6 × 4 | $6,880 | $7,600 |
| 6 × 5 | $8,500 | $9,400 |
| 6 × 6 | $10,120 | $11,200 |
| 7 × 3 | $5,830 | $6,700 |
| 7 × 4 | $7,660 | $8,800 |
| 8 × 3 | $6,880 | $7,600 |
| 8 × 4 | $9,040 | $10,000 |
| 9 × 3 | $7,690 | $8,500 |
| 9 × 4 | $10,120 | $11,200 |
| 9 × 5 | $12,025 | $13,525 |
| 10 × 3 | $8,500 | $9,400 |
| 10 × 4 | $11,200 | $12,400 |
👉 Custom sizes available on request
👉 Delivery to local depot quoted separately
Structural Note: Every 4 m of span (width or depth) requires an additional support post for compliance and wind-load integrity.
🛡 Lifetime Manufacturing Warranty
All Cerberus Plus Systems installed by Apollo NZ professional partners include a Lifetime Manufacturing Warranty — ensuring long-term quality, safety, and peace of mind.
