Description
Extra-Wide, No Centre Posts, Engineered for Large Outdoor Spaces
The Cerberus Titan Span Louvre System is Apollo NZ’s wide-span louvre roof solution designed for homeowners, architects, and commercial developers who require maximum open space with no centre posts. Built for large decks, poolsides, hospitality venues, and resort environments, Titan Span delivers clean architectural lines, motorised operation, and extreme weather performance.
With spans of up to 6 metres wide and 7 metres projection, Cerberus Titan Span is engineered to cover serious outdoor areas with uninterrupted space below.
Designed for Large Spans with No Centre Posts
Cerberus Titan Span is purpose-built for open-plan outdoor living, eliminating the need for middle support posts across wide areas. This makes it ideal for:
• Poolside entertaining
• Outdoor dining and bars
• Resort lounges and cabanas
• Restaurants and cafés
• High-end residential decks
• Commercial outdoor seating areas
The result is clean sightlines, better furniture layouts, and full use of your floor space without visual obstructions.
Cerberus Titan Span – Key Technical Specifications
These specifications apply across all Titan Span configurations:
• Operation: Fully motorised
• Blade Type: Flat aluminium louvre blades
• Main Beam & Gutter Size: 276 × 150 mm
• Louvre Blade Size: 270 × 48 mm
• Post Size: 150 × 150 mm
• Maximum Width: 6.0 metres (two bays, no centre post)
• Maximum Projection: 7.0 metres
• LED Lighting: Linear LED strip lighting
• LED Position: Built into the blades or around the gutter perimeter
• Waterproof Rating: IP68
• Wind Load Rating: 180–230 km/h
• Snow Load: 150 kg/m³ (fresh snow)
• Side Enclosures Supported: Side screen blinds and sliding glass doors
These values confirm Titan Span as one of the strongest wide-span louvre systems in the Cerberus range.
Integrated Drainage & All-Weather Protection
Cerberus Titan Span features a fully built-in gutter and internal drainage system, allowing rainwater to be channelled cleanly through the beam and down the posts. This delivers:
• Dry outdoor zones in heavy rain
• No visible external downpipes
• Clean architectural finish
• Proper water control for commercial installations
The motorised blades rotate to precise angles, allowing full sun, filtered airflow, or complete weather protection at the touch of a button.

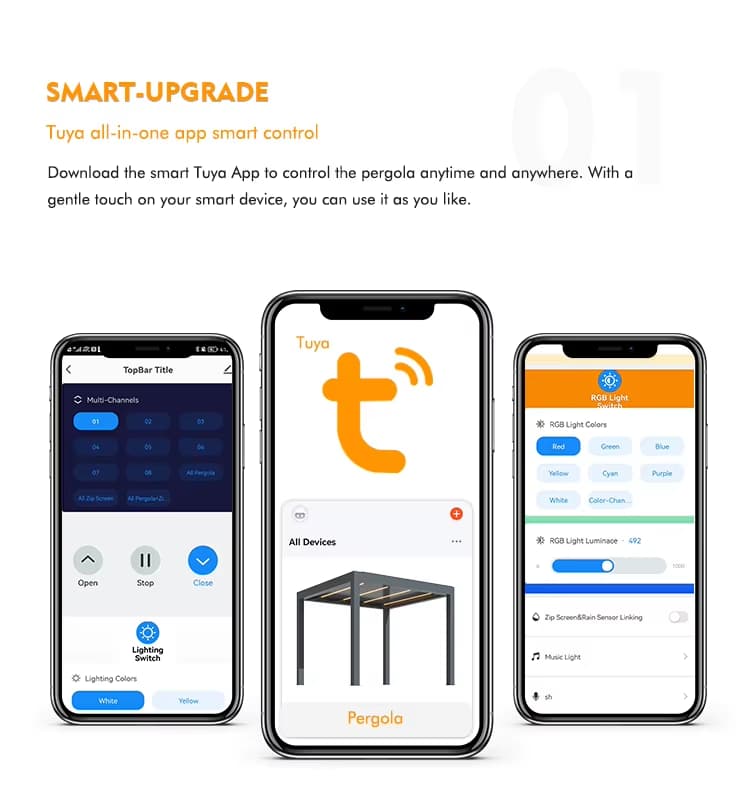

Motorised Control & Smart Operation
Cerberus Titan Span is supplied as a motorised system, making it suitable for:
• Remote control operation
• Smart home integration
• Commercial automation
• Weather sensor upgrades
The system allows smooth opening and closing of the louvre roof to fine-tune sun, shade, airflow, and rain protection instantly.
Design & Installation Options
Cerberus Titan Span supports multiple design layouts:
• Freestanding
• Freestanding wall-mounted
• Wall-hung installation
• Integrated into an existing structure
• Custom non-standard combinations
This flexibility allows Titan Span to be used as:
• Standalone pergola
• House-attached outdoor roof
• Courtyard cover
• Pool pavilion
• Commercial alfresco roof
Standard Colour Options
Cerberus Titan Span is supplied in a curated range of standard architectural powder-coat colours, selected for modern residential and commercial environments:
• Black – bold, contemporary contrast
• White – clean, minimal architectural finish
• Charcoal – modern commercial favourite
• Grey – versatile neutral for coastal and urban builds
These standard colours are stocked options for faster supply and seamless integration with existing building palettes.
Custom Colour Options:
Custom powder-coat colours are available through Apollo NZ’s bespoke colour service. All custom colours carry a surcharge and extended lead times.
Optional Side Infills & Upgrades
Titan Span is fully compatible with a wide range of enclosure and finish upgrades, including:
• Frameless sliding glass doors
• Motorised side screen blinds
• Fixed aluminium louvre shutters
• Integrated LED lighting packages
• Outdoor-rated furniture integration
• WPC decking compatibility
These upgrades allow Titan Span to evolve from a sunshade into a fully enclosed outdoor room.
Built for New Zealand & Pacific Conditions
Cerberus Titan Span has been developed for high-wind, coastal, alpine, and tropical environments, making it suitable for:
• New Zealand coastal zones
• Pacific Island resort environments
• High wind urban rooftops
• Heavy rainfall regions
With wind resistance up to 230 km/h, this system is engineered for serious outdoor exposure.
