🌞 Solis Vesta – Lucem et Vitam Ex Sole

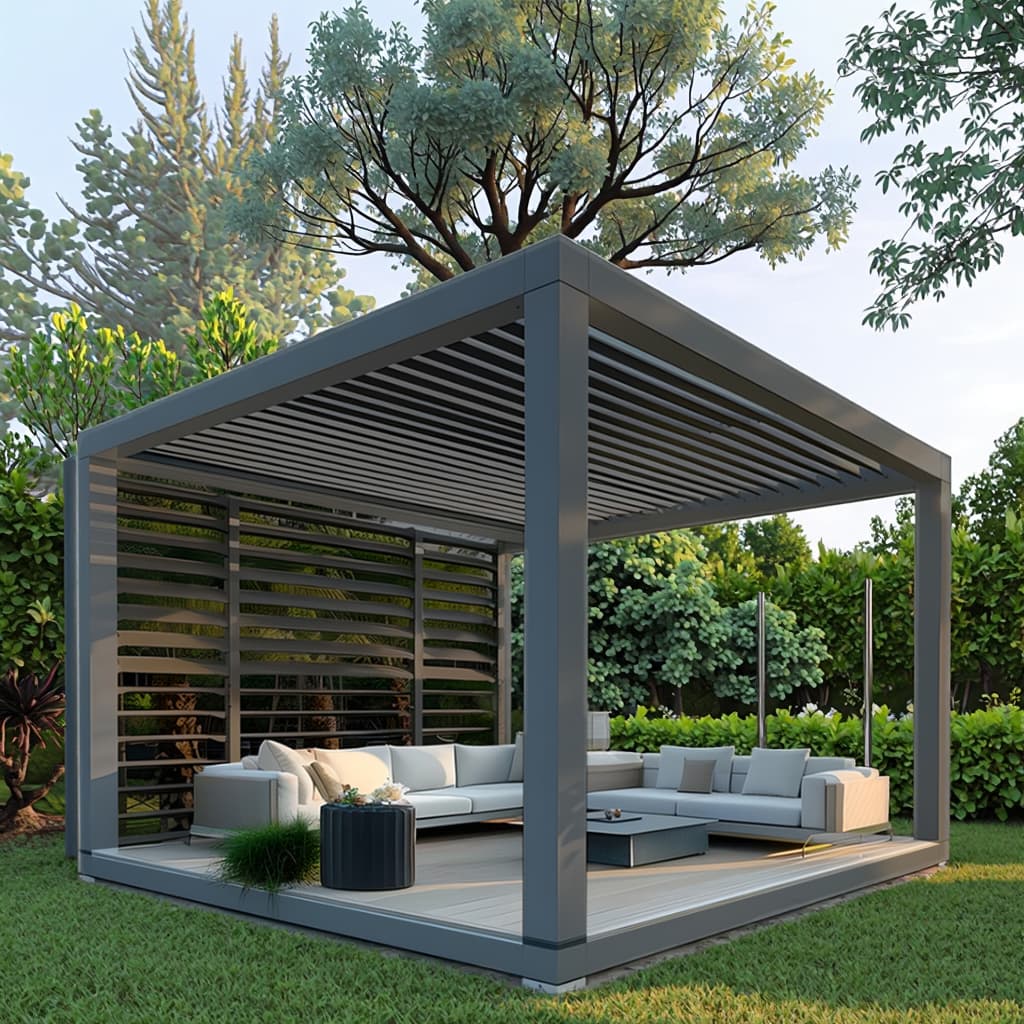

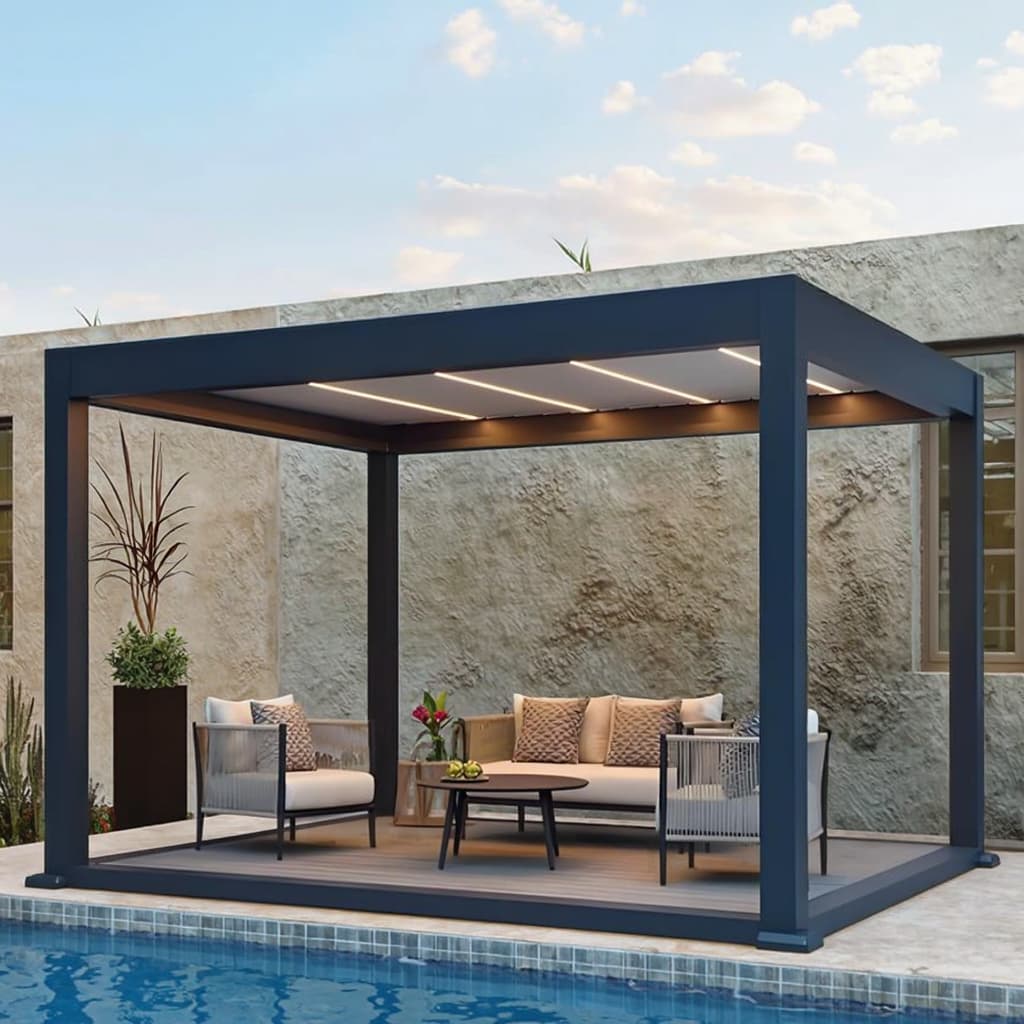

The Solar Louvre System by Apollo NZ
Experience the next generation of outdoor architecture with Solis Vesta, the solar-powered louvre system that brings light and life from the sun.
Designed for New Zealand’s diverse climate, this smart, sustainable, and self-powered system combines solar innovation, intelligent automation, and architectural design to redefine outdoor living.
☀️ The Power of the Sun
At the heart of Solis Vesta are high-efficiency solar panels that harness sunlight to operate lighting, sensors, and motorised louvres — completely off-grid.
No external power connection is required; your pergola is powered entirely by nature.

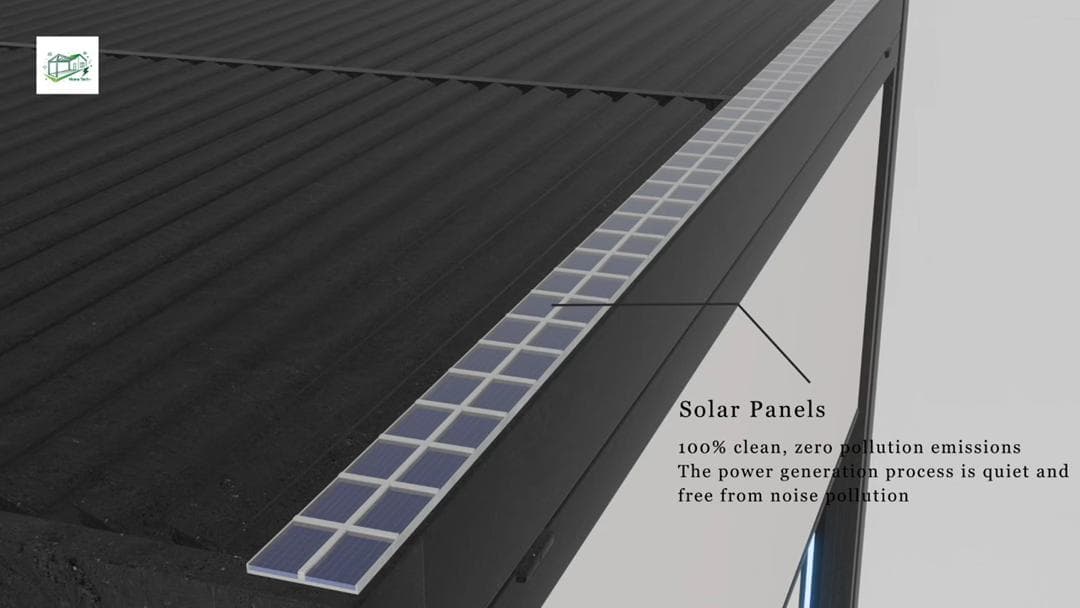

Solar Panel Advantages
100 % renewable, zero-emission energy source
Silent and maintenance-free operation
No external wiring or grid dependency
Continuous charging even in diffuse light
💡 Also Available as a Hard-Wired System
Solis Vesta can also be supplied as a non-solar version connected directly to mains power.
The hard-wired model provides the same elegant design and performance for homes or commercial spaces with established power access.

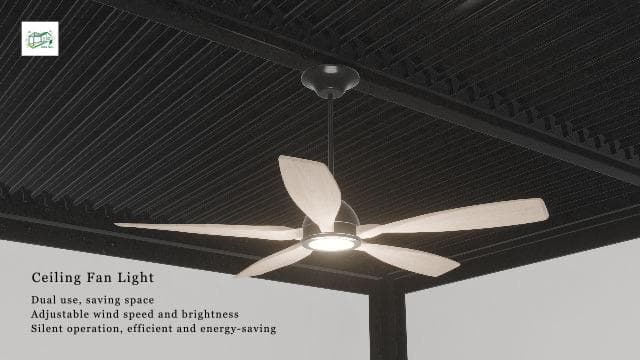

💡 Ceiling Fan Light System
Stay cool and comfortable beneath your pergola with the integrated Ceiling Fan Light — combining illumination and airflow for year-round enjoyment.
Key Features
Adjustable brightness and fan speed
Silent, energy-efficient operation
Perfect for summer nights or sheltered winter use

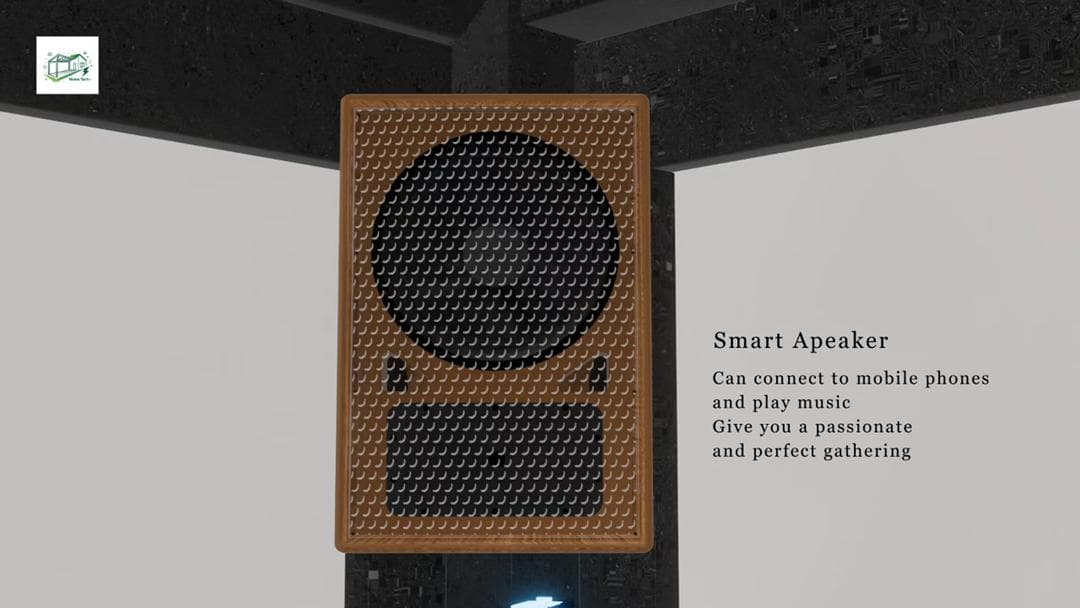

🎶 Smart Bluetooth Speaker
Enhance every occasion with the Smart Bluetooth Speaker, included as standard with every Solis Vesta system.
Stream your favourite playlists directly from your phone or tablet for effortless outdoor entertainment.
Highlights
Wireless Bluetooth connectivity
High-quality outdoor sound performance
Ideal for homes, cafés, and resorts
🌈 Colourful LED Light Strips
Transform your evenings with RGB LED light strips that sync with your music and mood.
From soft ambient tones to vibrant colour sequences, your pergola becomes a visual masterpiece.
Lighting Features
Music-responsive colour transitions
Remote or smart-app control
Weather-resistant LED channels
🌦 Smart Weather Sensors

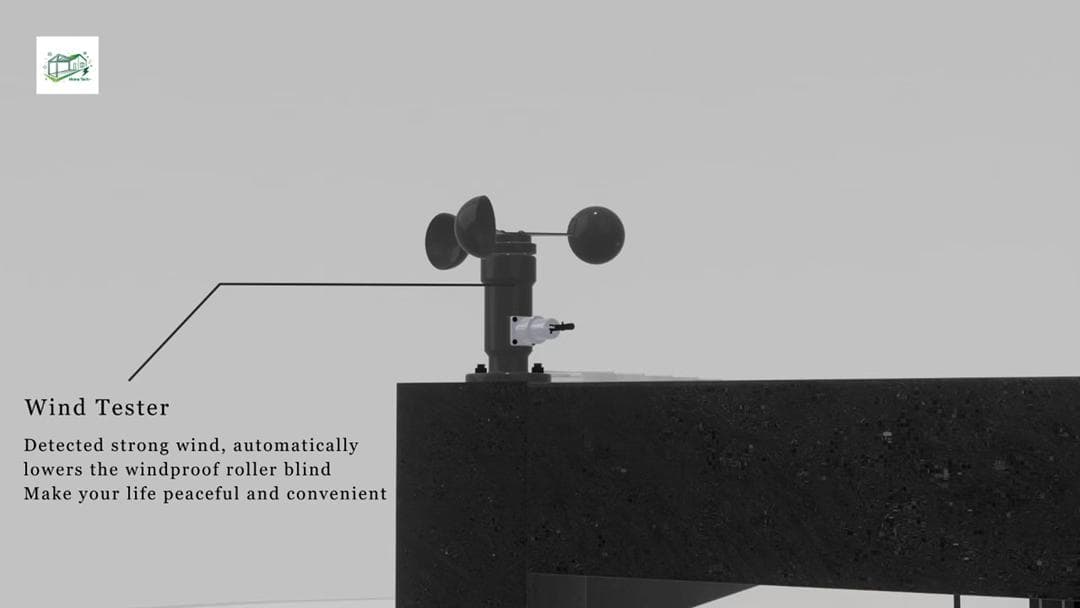

Wind Tester: Automatically detects strong gusts and lowers blinds to protect your space.
Rain Sensor: Instantly closes the roof to keep your area dry and sheltered.
Both operate seamlessly and hands-free for all-weather protection.
🔩 Engineering & Construction Details

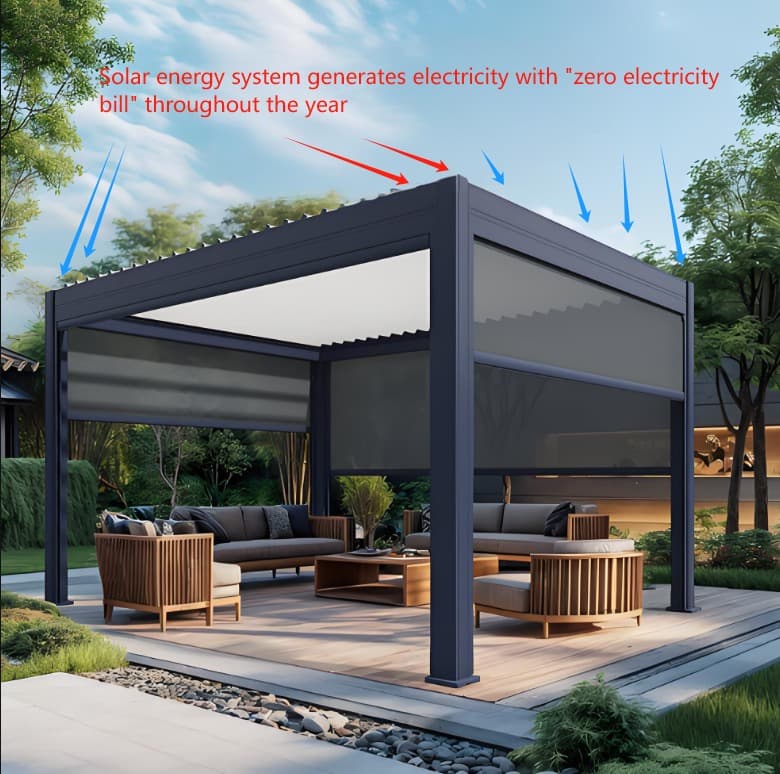

Solar-Powered Aluminium Pavilion
Generates its own power while reducing electricity costs through renewable solar energy.
Key Features
Aviation-grade aluminium frame
Rainproof, wind-resistant construction
Easy to install and maintain
Customisable configurations

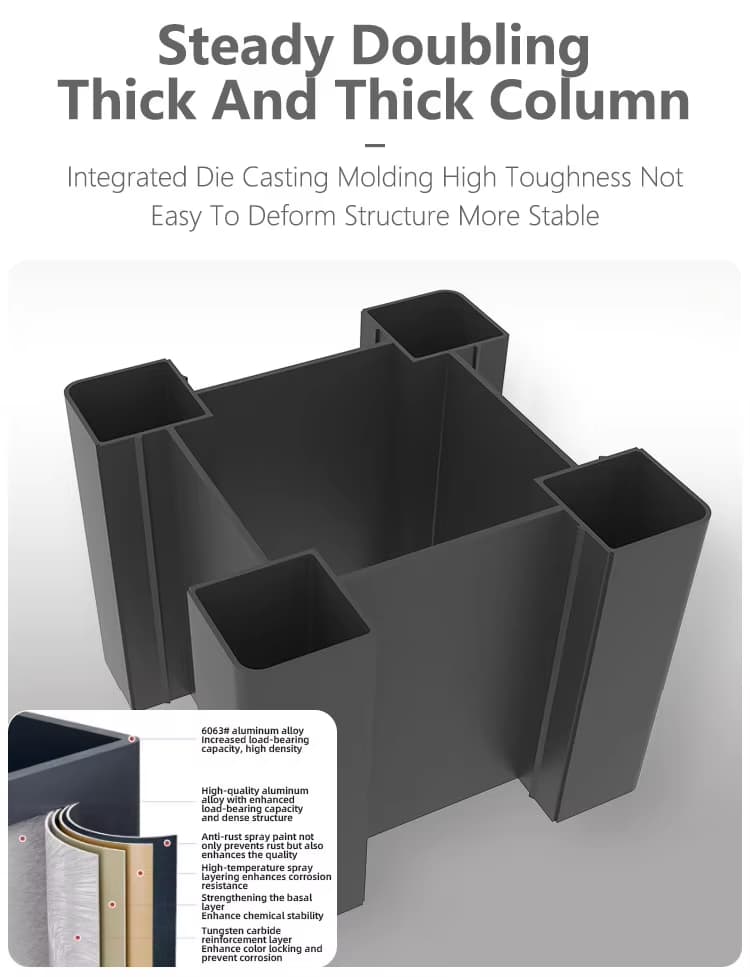

High-Strength Aluminium Frame
Built from 6063-T5 aluminium alloy for superior rigidity and corrosion resistance — ideal for New Zealand’s coastal and alpine conditions.

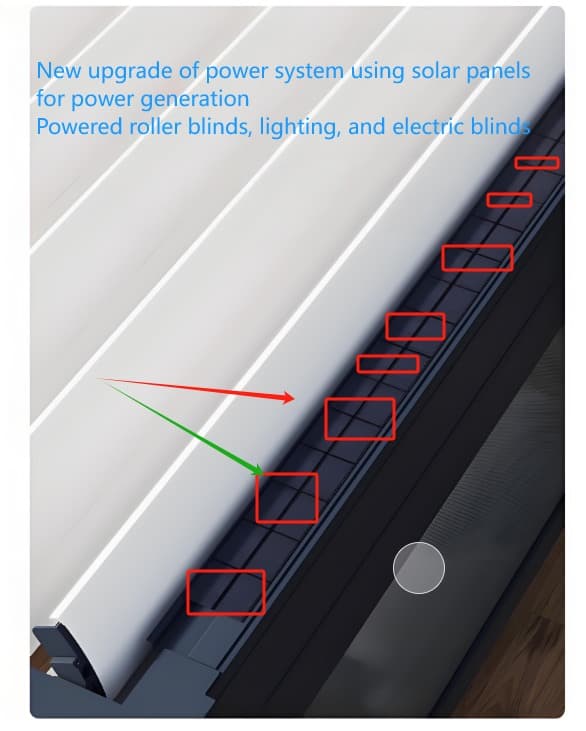

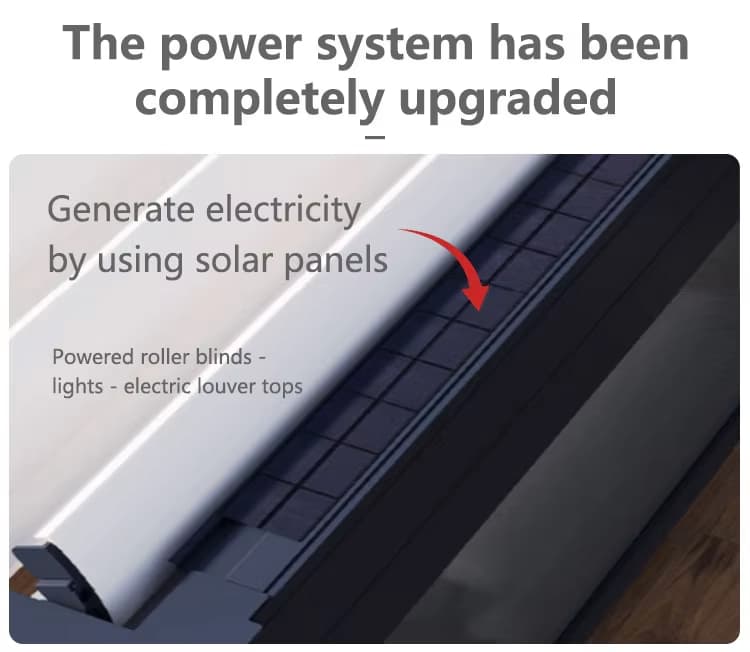

Upgraded Solar Power System
Integrated solar network powers:
Motorised louvres
LED lighting
Roller blinds
Protective Layering System
Anti-rust & corrosion-resistant coating
High-temperature powder-spray finish
Tungsten-carbide reinforced surface
⚙️ System Options & Structural Specifications
| System Type | Post (mm) | Beam (mm) | Blade (mm) | Material Thickness | Application | Max Roof Size (W × L) |
|---|---|---|---|---|---|---|
| 145 Series (Light Duty) | 135 × 135 × 2.0 | 150 × 130 × 2.0 | 145 × 32 × 1.3 | 1.3 – 2.0 mm | Medium-size outdoor areas | 3.5 m × 4.5 m |
| 163 Series (Light Duty) | 120 × 120 × 1.5 | 152 × 90 × 1.5 | 163 × 33 × 1.1 | 1.1 – 1.5 mm | Compact residential pergolas | 4.0 m × 4.0 m |
| 173 Series (Light Duty) | 135 × 135 × 2.0 | 180 × 140 × 2.0 | 175 × 40 × 1.6 | 1.6 – 2.0 mm | Wide-span residential & café spaces | 4.0 m × 5.0 m |
| 200 Series (Heavy Duty) | 150 × 150 × 2.0 | 200 × 150 × 2.0 | 190 × 43 × 1.9 | 1.9 – 2.0 mm | Coastal & commercial builds | 4.0 m × 5.0 m |
| 220 Series (Heavy Duty) | 150 × 150 × 2.4 | 200 × 150 × 2.4 | 220 × 53 × 2.0 | 2.0 – 2.4 mm | High-load, large-span projects | 5.0 m × 6.0 m |
🟢 Available Colours: Sand Grey | White | Black | Purple Coffee
🧩 Optional Add-Ons & Customisations
Every Solis Vesta structure can be made to measure and enhanced with a variety of comfort, lighting, and smart-control features.
Available Options
💡 Ceiling Fan Light System – Dual-function design providing light and airflow for year-round comfort.
🎶 Smart Bluetooth Speaker – Enjoy premium outdoor sound with wireless connectivity; stream directly from your phone or tablet.
🌈 LED Lighting Packages – Integrated RGB light strips and column LEDs for ambient, music-responsive illumination.
Infrared Heater – Efficient all-season warmth.
Wind-Proof Roller Shutters – Weather-resistant privacy and shade.
Sliding or Folding Glass Doors – Clear or tinted glass for stylish enclosure.
Integrated Speakers & Amplifiers – Multi-zone audio systems for larger entertainment areas.
Smart Home Integration – Compatible with Tuya Smart Life, Google Home, and Alexa.
Custom Colour Finishes – Extended palette with optional surcharge.
🌿 Aluminium-Plastic Wood Decking
A perfect match for the Solis Vesta system — combining aluminium strength with wood-grain warmth.
The lower aluminium frame ensures anti-corrosion and structural stability, while the upper wood-grain layer delivers the look of timber with resistance to moisture, fading, and cracking.
Ideal for patios, cafés, and resort decks — strong, stylish, and maintenance-free.
💡 Made to Measure & Fully Configurable
Every Solis Vesta pergola — solar or hard-wired — is precision-engineered to fit your required width, depth, and height.
Suitable for residential homes, commercial hospitality spaces, and architectural developments.
📏 Available Kitset Sizes
3 × 3 m
4 × 3 m
6 × 3 m
6 × 4 m
All supplied pre-cut and ready to assemble for quick, professional installation.
