Description
Premium Large-Span Outdoor Louvre Pergola System
The Alpine Ultra Max Louvre System is a premium large-format aluminium louvre pergola system designed for residential, hospitality, commercial, and multifunctional outdoor environments.
Built around a stronger 220-type structural platform, the system combines modern architectural styling with large-span engineering, integrated drainage technology, adjustable louvre functionality, and advanced outdoor durability.
Designed as a multifunctional ecological outdoor room, the Alpine Ultra Max can transform patios, outdoor dining areas, pool spaces, courtyards, rooftop entertainment zones, hospitality venues, and premium residential projects into year-round usable outdoor environments.
Built for Outdoor Living
Unlike traditional fixed outdoor roofing systems, the Alpine Ultra Max features adjustable louvre blades that can rotate up to 90 degrees.
This allows users to control:
- Sunlight exposure
- Ventilation
- Airflow
- Shade levels
- Rain protection
- Outdoor comfort throughout the day
The adjustable roof system helps create a more comfortable outdoor space while maintaining the open-air feel modern outdoor architecture is known for.
Key Features
Large Span Capability
The Alpine Ultra Max has been designed for larger outdoor areas and commercial-scale layouts.
Maximum Single System Size
- Up to 6m x 5m per single system
- Maximum blade length up to 5m
- Multi-system splicing available for oversized projects
The system can also be combined into larger configurations for hospitality venues, restaurants, commercial outdoor spaces, and large residential entertainment areas.
Structural Specifications
| Component | Specification |
|---|---|
| Louvre Blade | 220 x 55 x 2.0mm |
| Beam Size | 280 x 46.8 x 2.5mm |
| Sink/Gutter Size | 80 x 73.15 x 1.8mm |
| Column Option 1 | 150 x 150 x 2.0mm |
| Column Option 2 | 180 x 180 x 2.5mm |
| Maximum Blade Length | 5m |
| Standard Height | 2.7m |
| Operation Options | Manual or Motorised |
Advanced Drainage System
The Alpine Ultra Max features a concealed dual-drainage system designed to improve rain management and outdoor usability.
Rainwater flows:
- From the louvre blades
- Into internal water channels
- Through concealed gutter systems
- Down through the internal columns
- Underground discharge
This hidden drainage approach helps maintain the clean architectural appearance of the system while improving water management performance during heavy rain conditions.
Heavy-Duty Outdoor Engineering
The Alpine Ultra Max has been developed for demanding outdoor conditions.
Performance Benefits
- High-strength aluminium alloy construction
- Powder-coated protective surface
- Corrosion-resistant design
- Rust-resistant materials
- Strong wind resistance
- Snow load resistance up to 110kg/m²
- Low maintenance construction
- Designed for long-term outdoor durability
The wider and thicker structural components help reduce movement in stronger wind conditions while improving overall structural rigidity.
Integrated Lighting
The internal sink/gutter section comes with integrated lighting as standard on the system.
Optional upgrades may include:
- RGB lighting
- Fan lights
- Column lighting
- Smart control systems
- Wind and rain sensors
- Heating systems
This allows the Alpine Ultra Max to become a more advanced outdoor entertainment and lifestyle system.
Optional Add-Ons & Upgrades
The system can be customised with a wide range of enclosure and architectural options.
Optional Features
- Wind-resistant track blinds
- Sliding glass systems
- Decorative grille systems
- Fence integration
- Roman column styling
- European-style external gutters
- Smart automation
- Rain sensors
- Wind sensors
- Heaters
- LED lighting systems
- Fan lights
This flexibility allows the system to suit both modern minimalist architecture and more decorative outdoor environments.

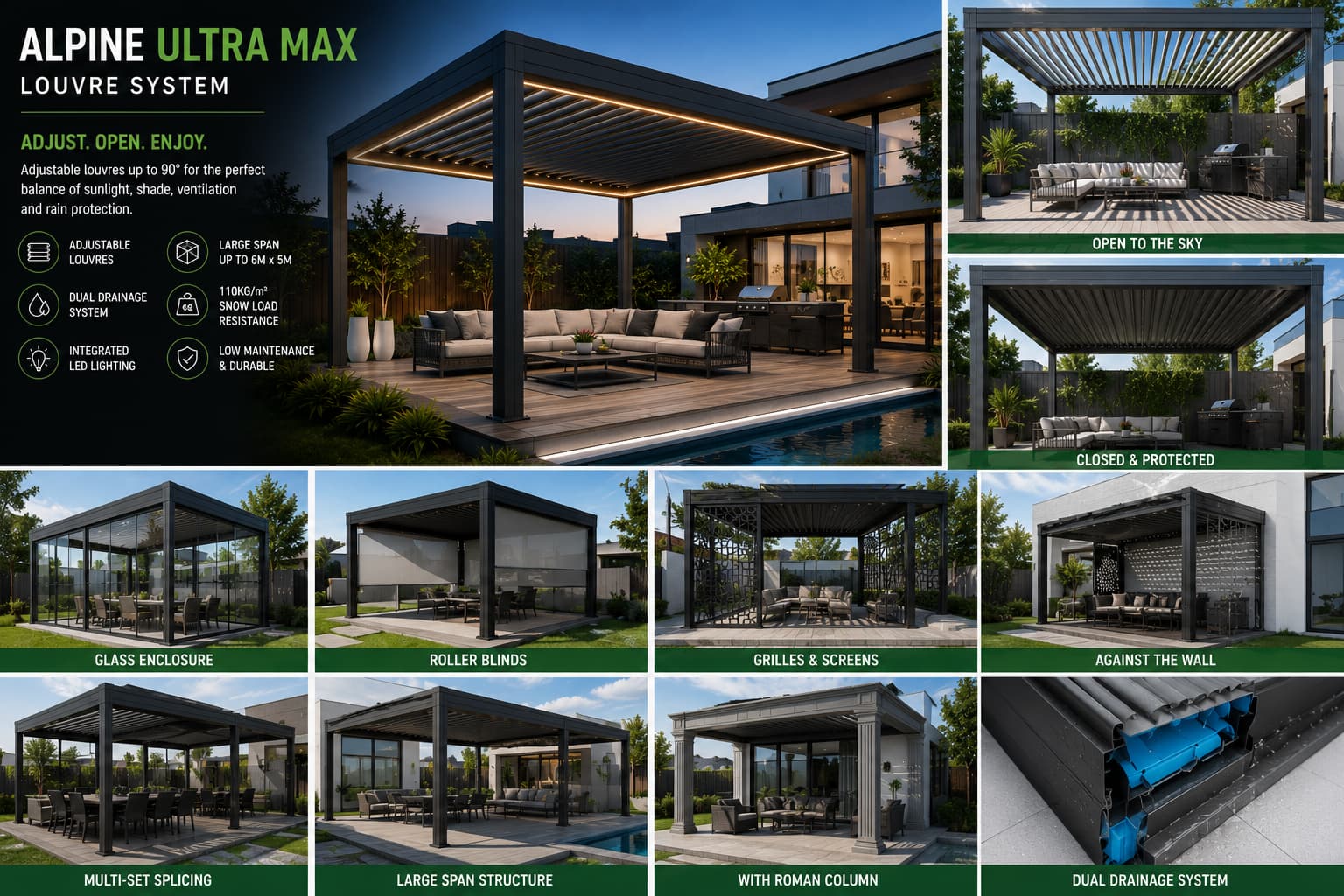

Installation Configurations
The Alpine Ultra Max can be configured in multiple installation styles depending on the site requirements.
Installation Options
- Freestanding four-column systems
- Wall-mounted systems
- No-column frame configurations
- Multi-bay linked systems
- Oversized spliced systems
- Large-span beam configurations
- Commercial outdoor layouts
- Poolside applications
- Rooftop terrace installations
This makes the system suitable for both residential and commercial projects.
Colour Options
Available standard colour options include:
- Black
- White
- Grey
- Coffee
Multiple colours can also be combined within the same project configuration.

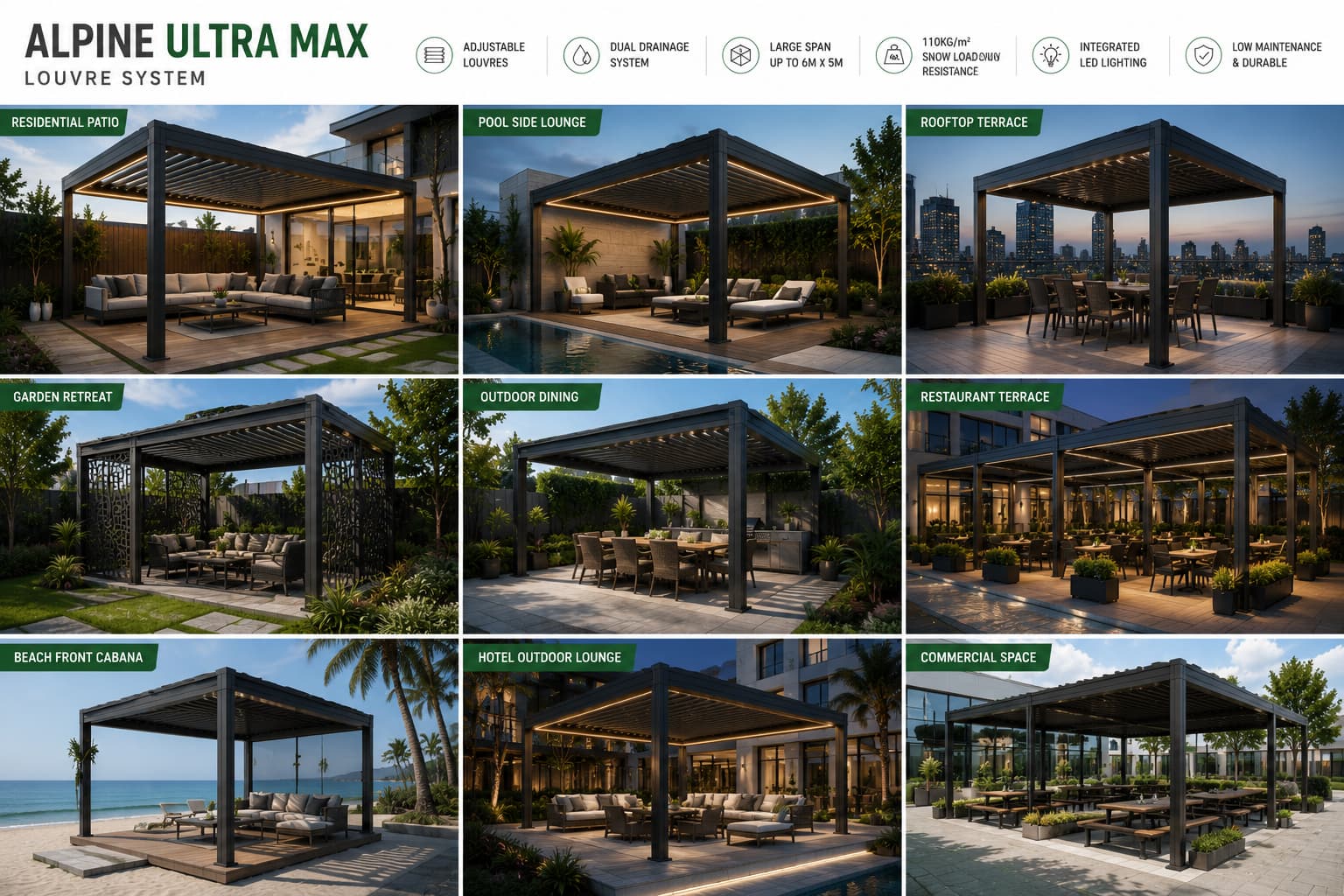

Application Areas
The Alpine Ultra Max Louvre System is suitable for:
- Residential patios
- Outdoor dining spaces
- Pool areas
- Garden entertainment zones
- Rooftop terraces
- Hospitality venues
- Restaurants
- Courtyards
- Outdoor lounges
- Commercial outdoor spaces
- Homestays and accommodation projects
Why Choose the Alpine Ultra Max?
The Alpine Ultra Max Louvre System has been designed for customers wanting:
- Larger span capabilities
- Stronger outdoor structures
- Modern architectural appearance
- Adjustable airflow and shading
- Integrated drainage
- Smart outdoor living functionality
- Flexible installation configurations
- Commercial-grade outdoor coverage
- Premium outdoor entertainment spaces
With its larger 220-type structural platform, concealed drainage system, integrated lighting, and wide range of upgrade options, the Alpine Ultra Max delivers a more advanced outdoor pergola solution for modern outdoor living projects.
