CanopyX Series Range – Ultimate Outdoor Shading & Pavilion Systems

Description

Apollo NZ introduces the CanopyX Series Range, a full line of premium outdoor shading and pavilion systems. Designed for New Zealand conditions, these systems combine architectural style, strength, and weather protection for homes and commercial spaces alike. Whether you’re seeking a folding canopy, scaling louvre, windproof roller shutter, or a complete outdoor pavilion, the CanopyX Series delivers innovation, durability, and choice.

Why Choose the CanopyX Series

• Comprehensive Range – folding pavilions, retractable canopies, louvre roofs, roller shutters, and awnings.

• Built for New Zealand Conditions – high-grade aluminium, stainless steel, and waterproof fabrics.

• Customisable – choose motorised or manual operation, fabric colours, blade styles, and dimensions.

• Modern Design – sleek lines, minimalist profiles, and architectural appeal.

• Durable Performance – engineered to resist UV, wind, and rain with long-term reliability.

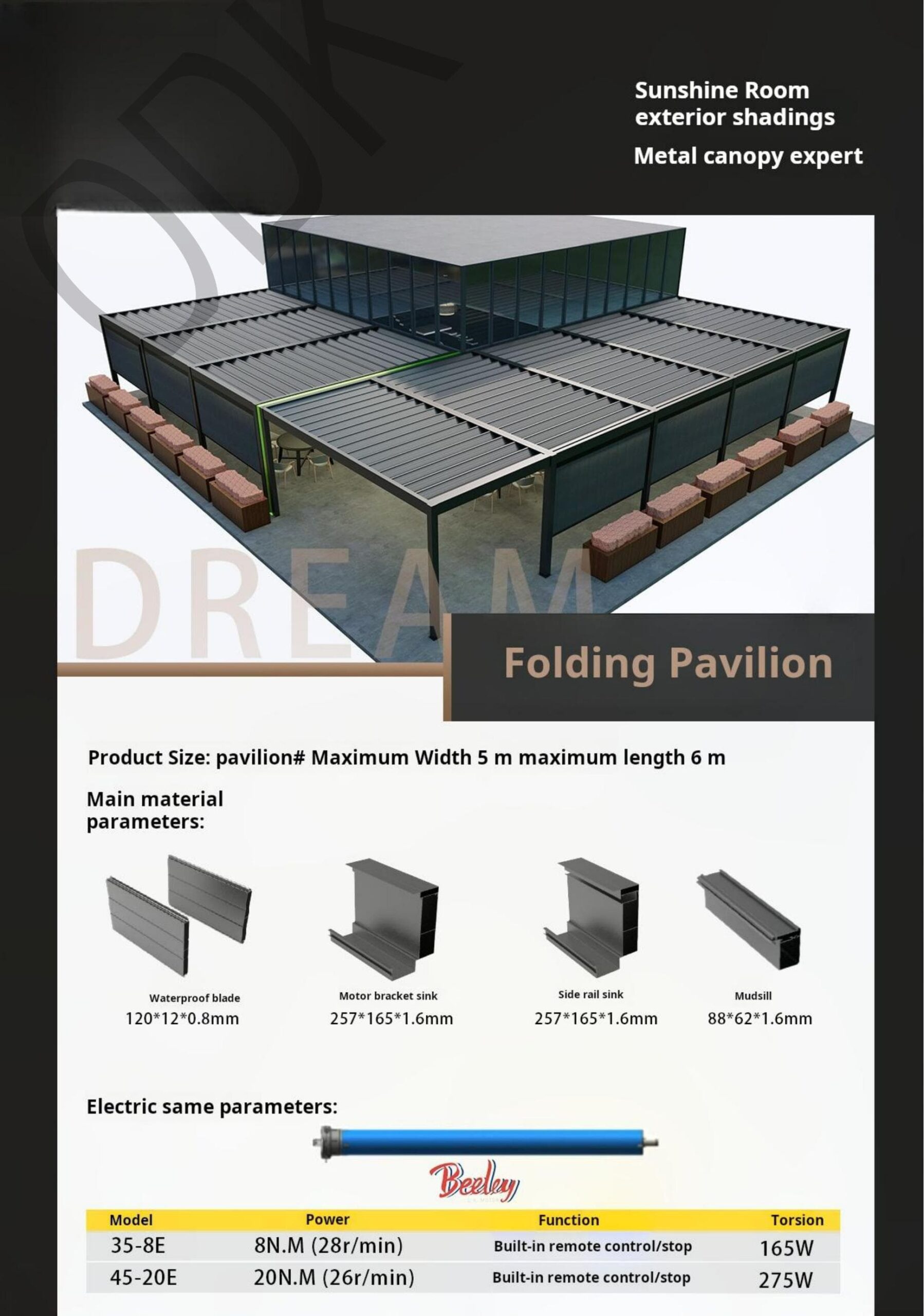

Folding Pavilion

• Maximum Size: 5 m width × 6 m length

• Materials: Waterproof blade 120×12×0.8 mm; Motor bracket sink 257×165×1.6 mm; Side rail sink 257×165×1.6 mm; Mudsill 88×62×1.6 mm

• Motor Options: 35-8E (165W) or 45-20E (275W) with built-in remote control and stop

Perfect for transforming patios and outdoor entertaining areas into flexible, weatherproof spaces.

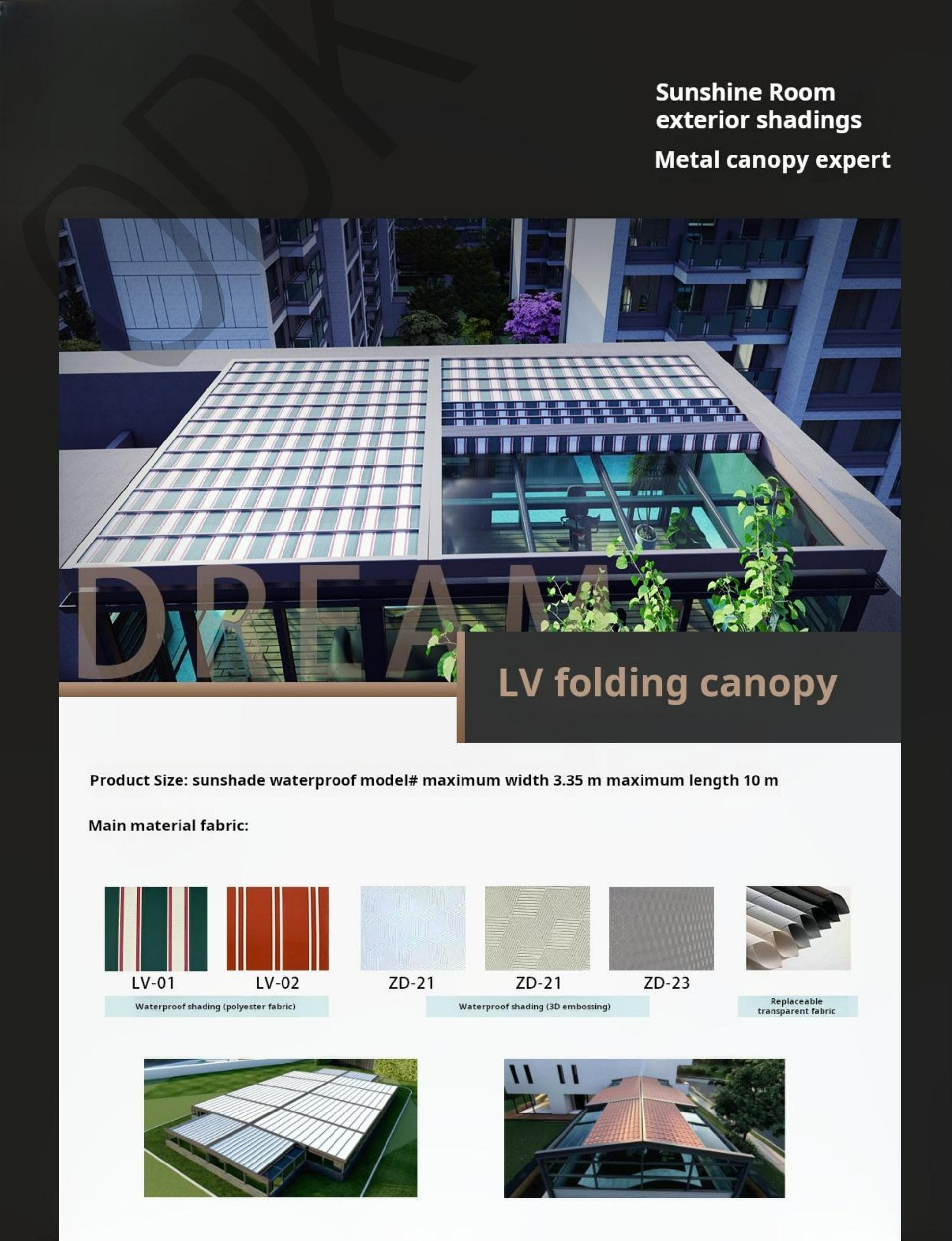

LV Folding Canopy

• Maximum Size: 3.35 m width × 10 m length

• Fabric Options: LV-01 / LV-02 waterproof polyester; ZD-21 3D embossed; ZD-23 replaceable transparent fabric

An ideal retractable solution for restaurants, cafés, or residential decks where versatility and waterproof performance are key.

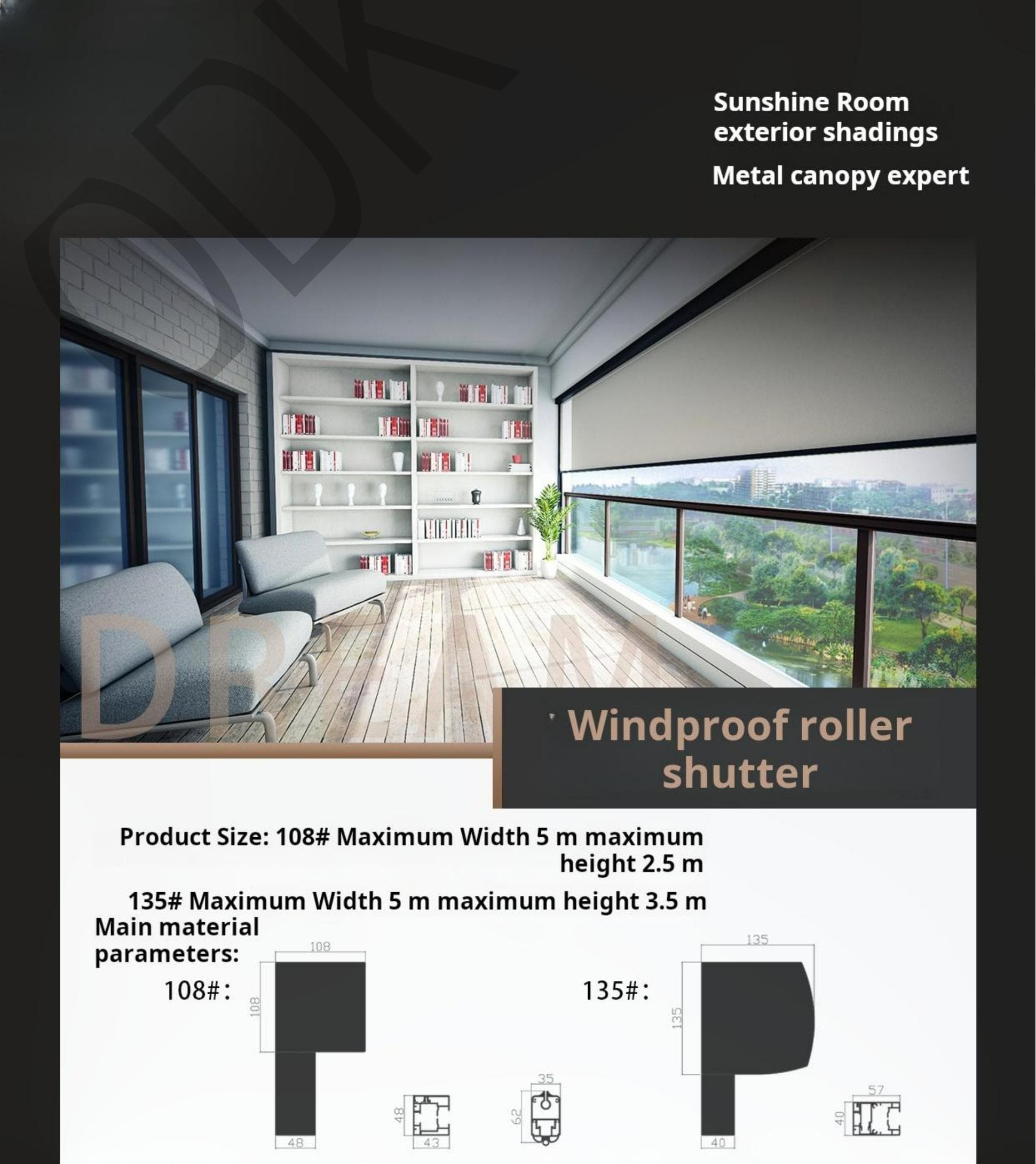

Windproof Roller Shutter

• Sizes Available:

  • 108#: 5 m width × 2.5 m height

  • 135#: 5 m width × 3.5 m height

Engineered for heavy wind resistance, this roller shutter adds privacy, security, and weather protection to balconies, terraces, and large windows.

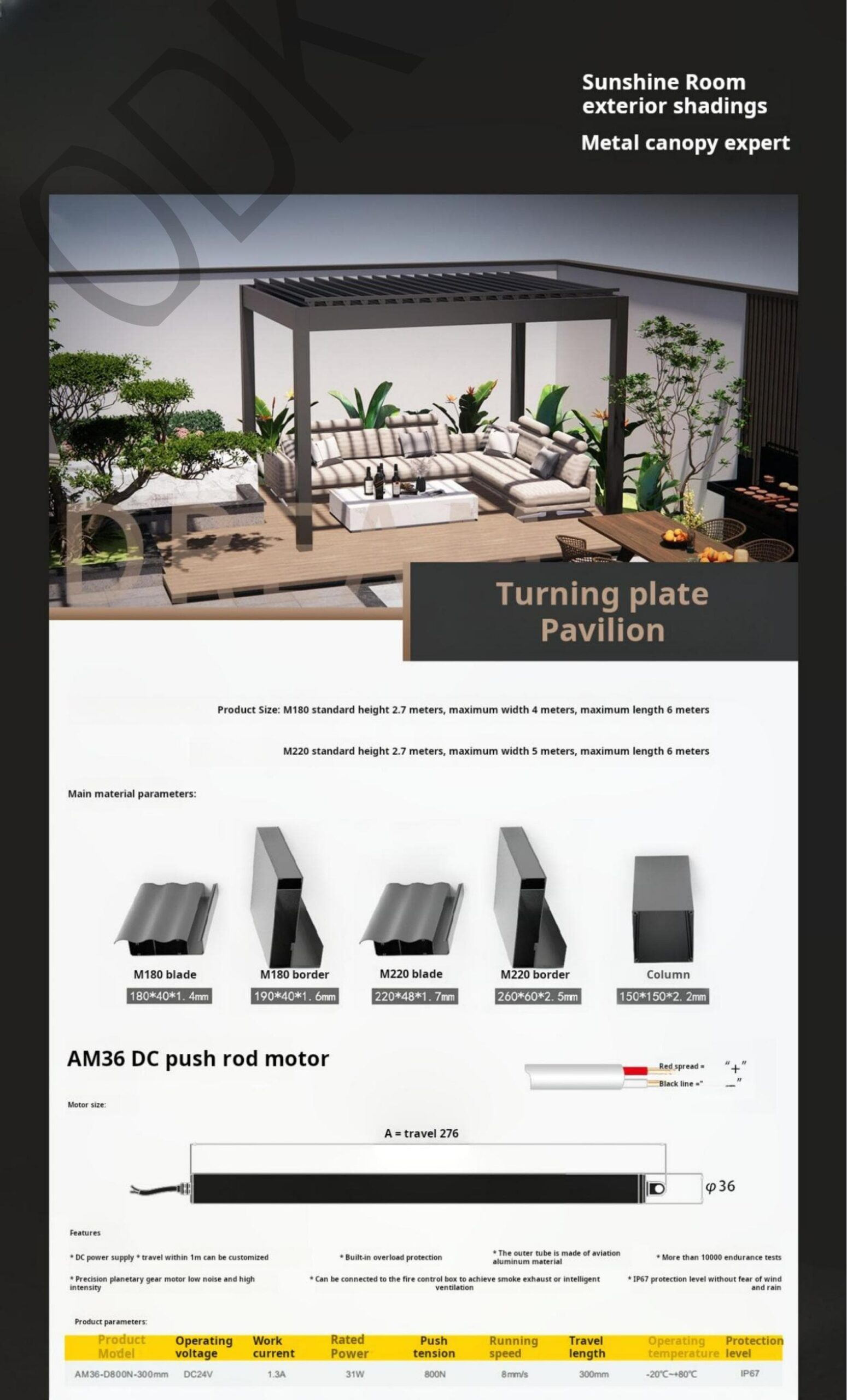

Turning Plate Pavilion

• Sizes:

  • M180: 2.7 m height, 4 m width × 6 m length

  • M220: 2.7 m height, 5 m width × 6 m length

• Materials: M180 blade 180×40×1.4 mm; M220 blade 220×48×1.7 mm; Columns 150×150×2.2 mm

• Motor: AM36 DC push rod motor with IP67 protection and overload safety

Combining strength with elegant design, this louvre pavilion offers a premium outdoor living experience.

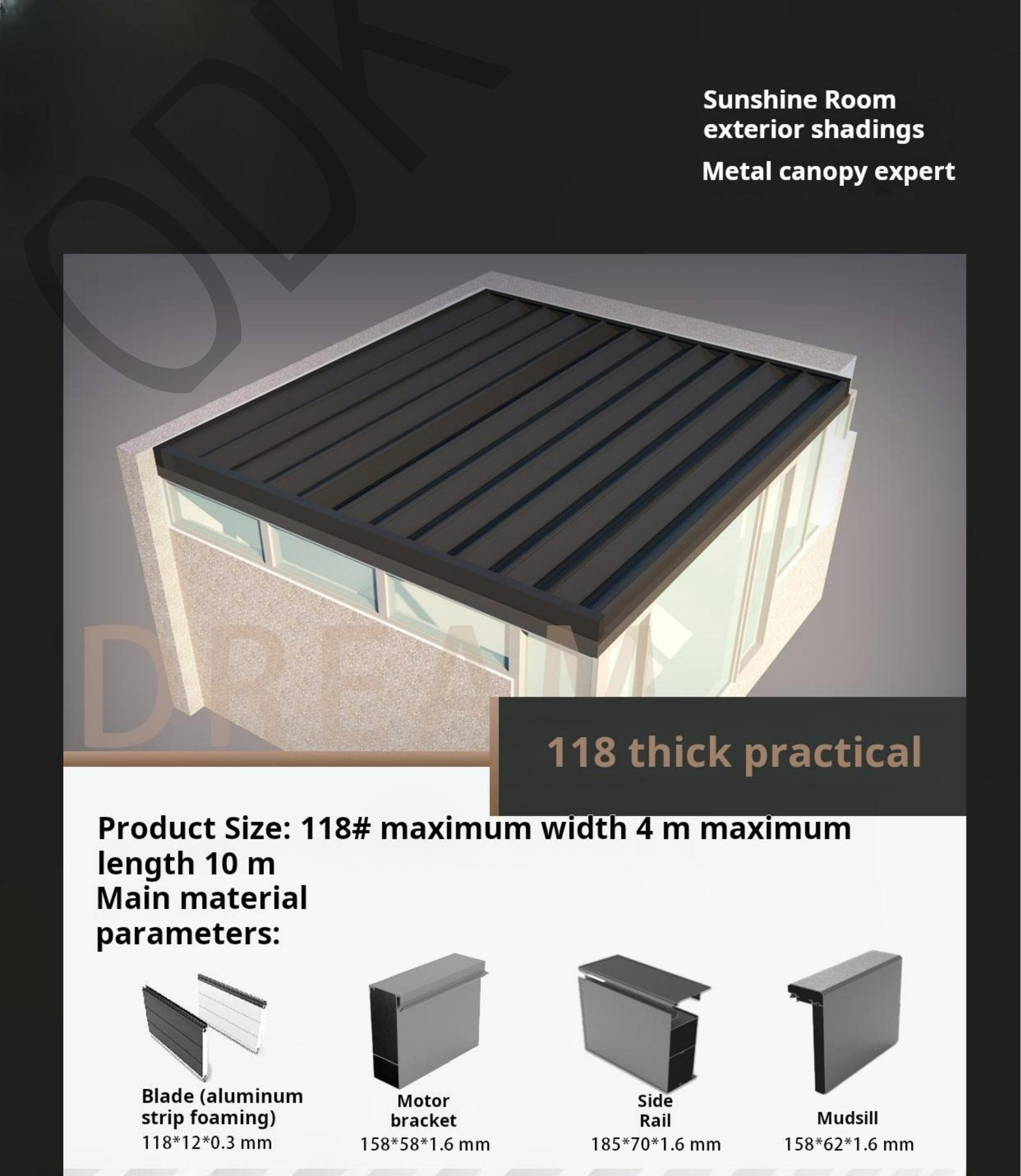

118 Thick Practical System

• Maximum Size: 4 m width × 10 m length

• Materials: Blade 118×12×0.3 mm aluminium strip foaming; Motor bracket 158×58×1.6 mm; Side Rail 185×70×1.6 mm; Mudsill 158×62×1.6 mm

A practical, robust option for roofed patios and terraces requiring superior load capacity.

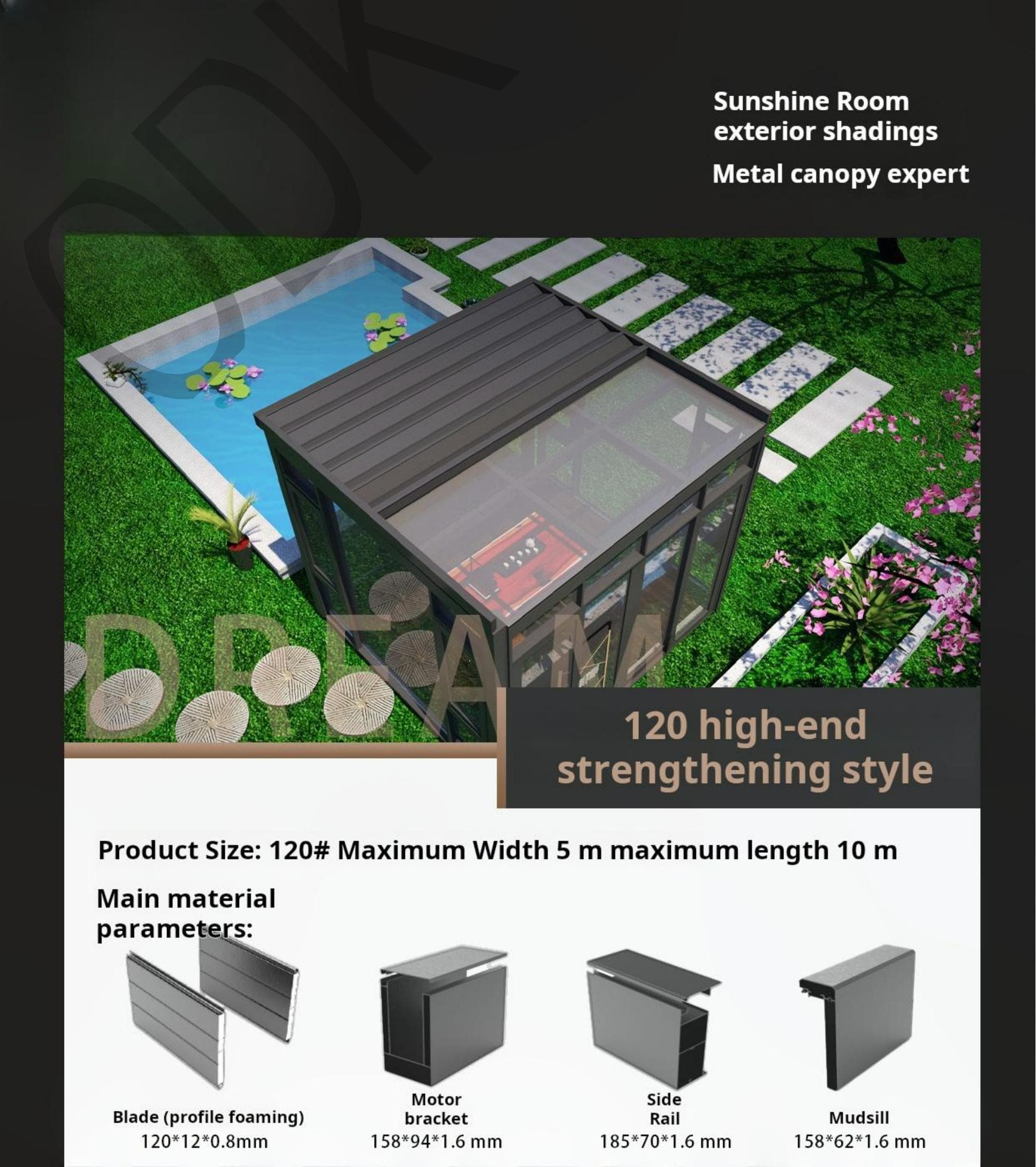

120 High-End Strengthening Style

• Maximum Size: 5 m width × 10 m length

• Materials: Blade 120×12×0.8 mm profile foaming; Motor bracket 158×94×1.6 mm; Side Rail 185×70×1.6 mm; Mudsill 158×62×1.6 mm

The enhanced strengthening style makes this system ideal for larger installations and commercial applications.

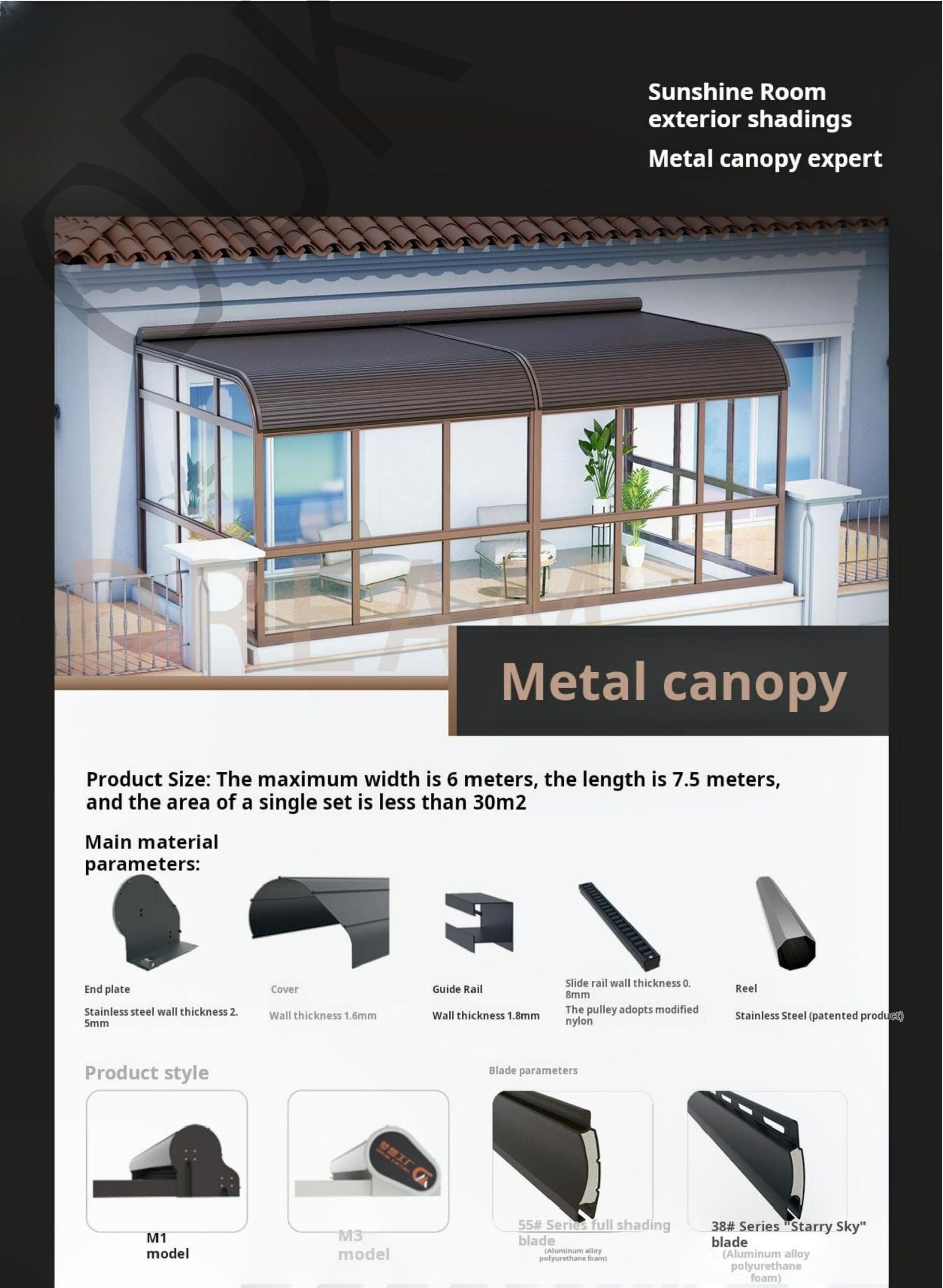

Metal Canopy

• Maximum Size: 6 m width × 7.5 m length (area under 30 m² per unit)

• Materials: Stainless steel end plate 2.5 mm; cover wall thickness 1.6 mm; guide rail 1.8 mm; slide rail 0.8 mm with modified nylon pulleys; patented stainless steel reel

A stylish, durable overhead cover for sunrooms, balconies, and commercial walkways.

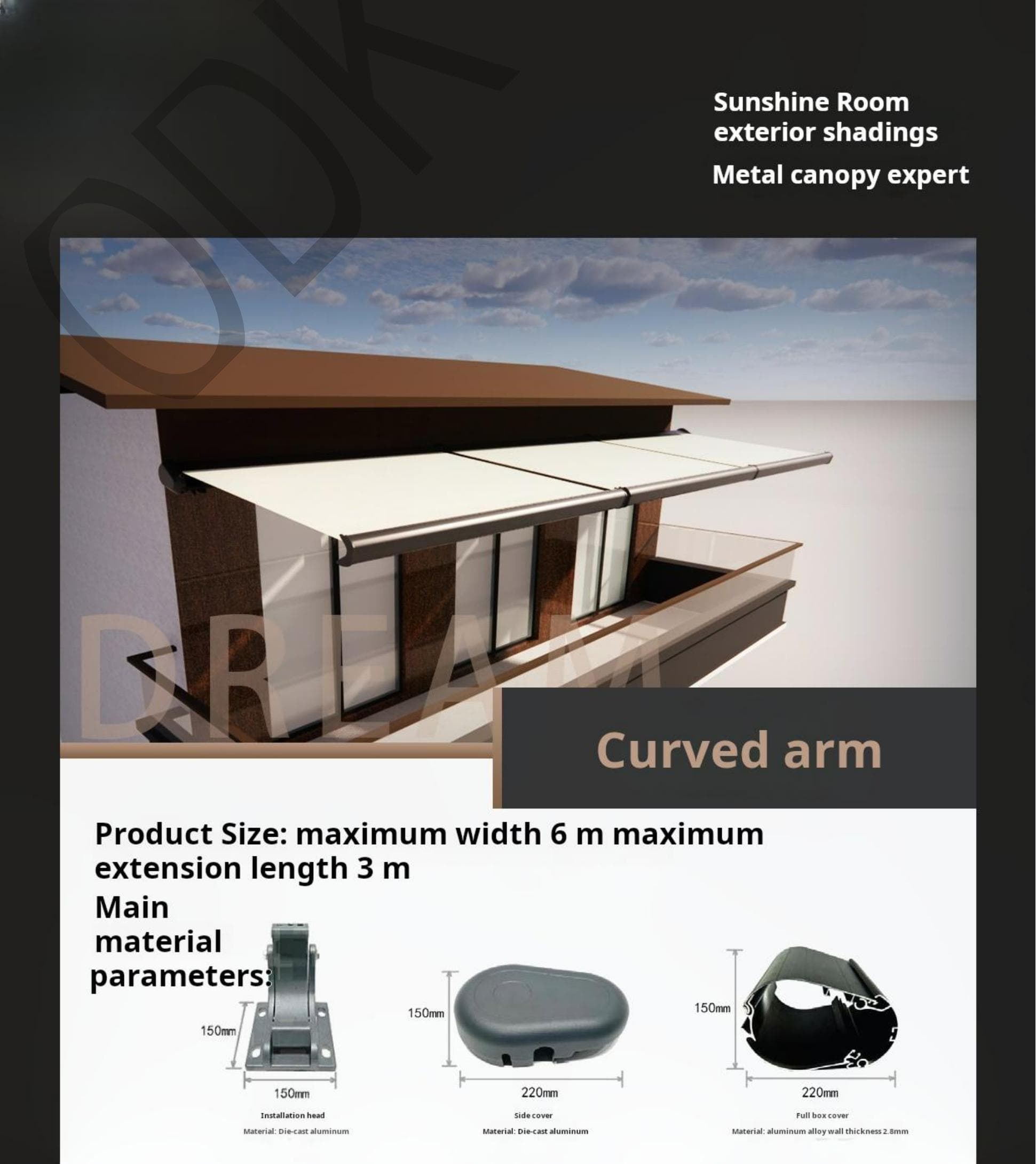

Curved Arm Awning

• Maximum Size: 6 m width × 3 m extension length

• Materials: Die-cast aluminium installation head 150 mm; Side cover 220 mm die-cast aluminium; Full box cover 220 mm aluminium alloy

Ideal for windows and patios where adjustable shading and space saving are important.

Folding 105 Lightweight System

• Maximum Size: 3.25 m width × 10 m length

• Materials: Blade 117×8×0.6 mm; Motor bracket 138×63×1.5 mm; Side Rail 160×72×1.5 mm; Mudsill 134×75×1.4 mm

Lightweight yet strong, this folding system is perfect for smaller spaces or retrofitting existing structures.

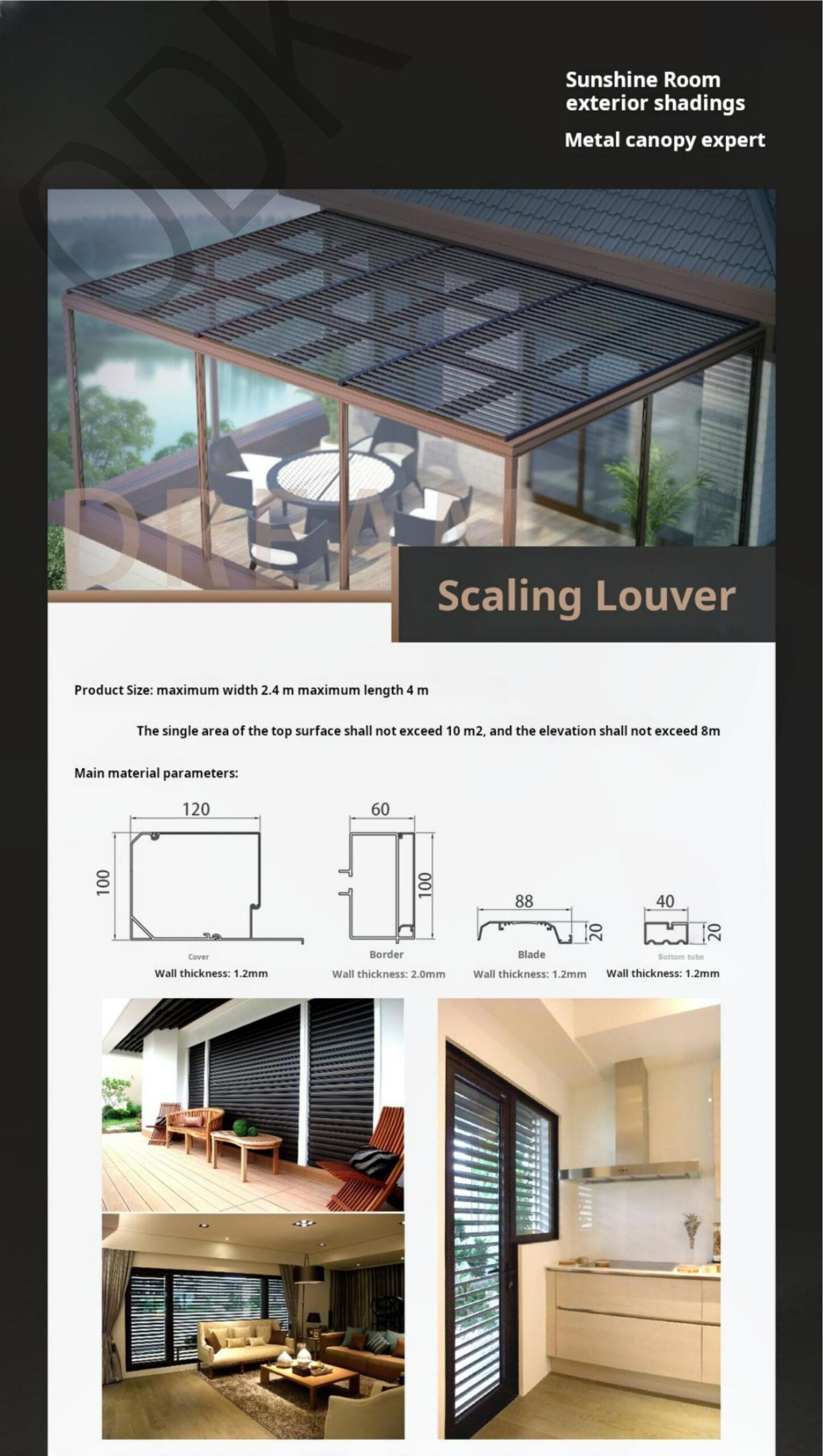

Scaling Louver

• Maximum Size: 2.4 m width × 4 m length (single area ≤10 m²; elevation ≤8 m)

• Materials: Cover 1.2 mm; Border 2.0 mm; Blade 1.2 mm; Bottom tube 1.2 mm

Combining shading with airflow, Scaling Louver systems can be used on rooftops or as privacy screens and window treatments.

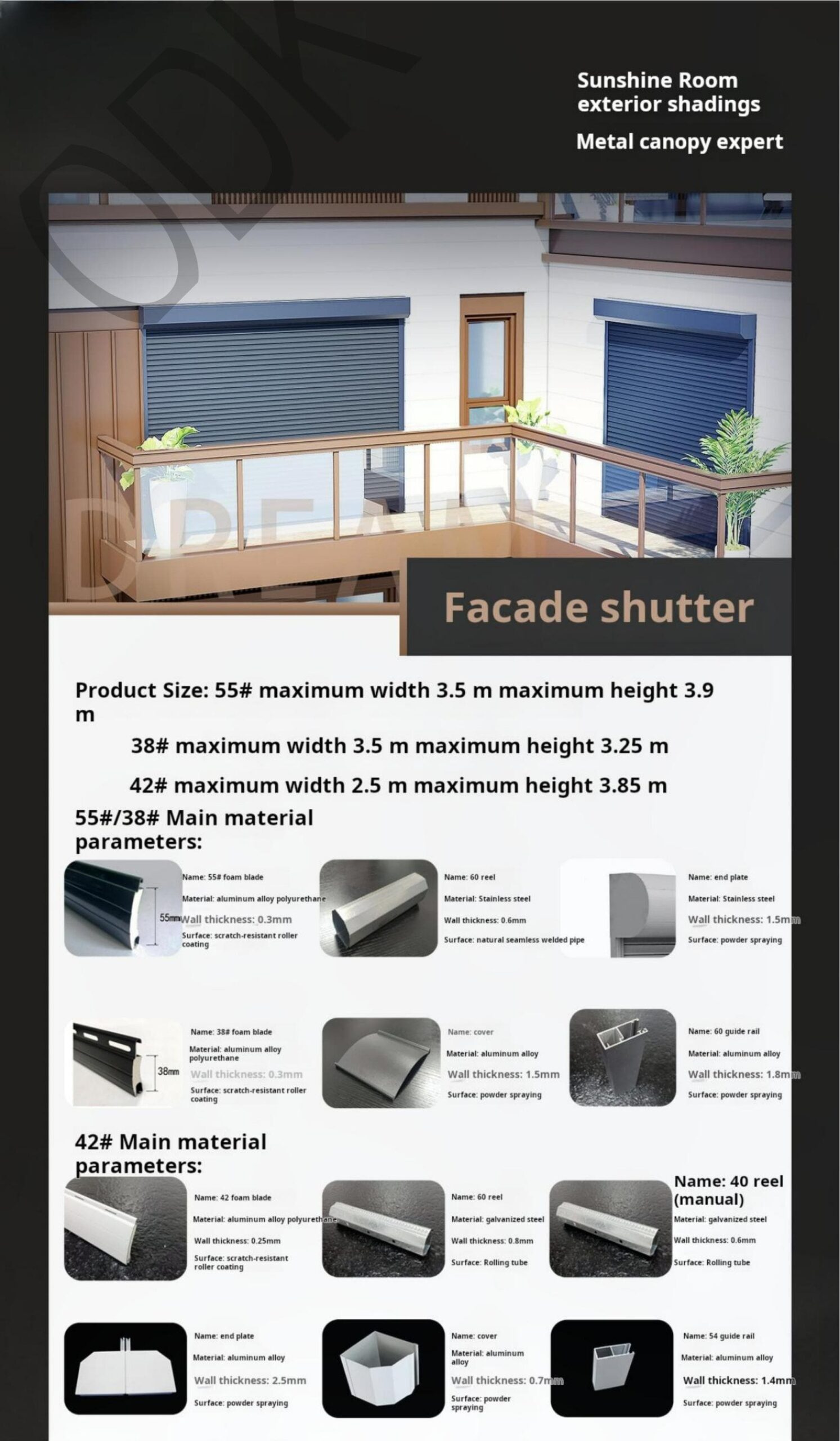

Facade Shutter

• Sizes:

  • 55#: 3.5 m width × 3.9 m height

  • 38#: 3.5 m width × 3.25 m height

  • 42#: 2.5 m width × 3.85 m height

Materials:

• Foam blade aluminium alloy polyurethane 0.3 mm or 0.25 mm with scratch-resistant coating

• Stainless steel or galvanised reels (manual or motorised)

• Aluminium alloy end plates and covers, powder sprayed

A heavy-duty roller shutter system designed to provide wind resistance, privacy, and security for large glass areas.

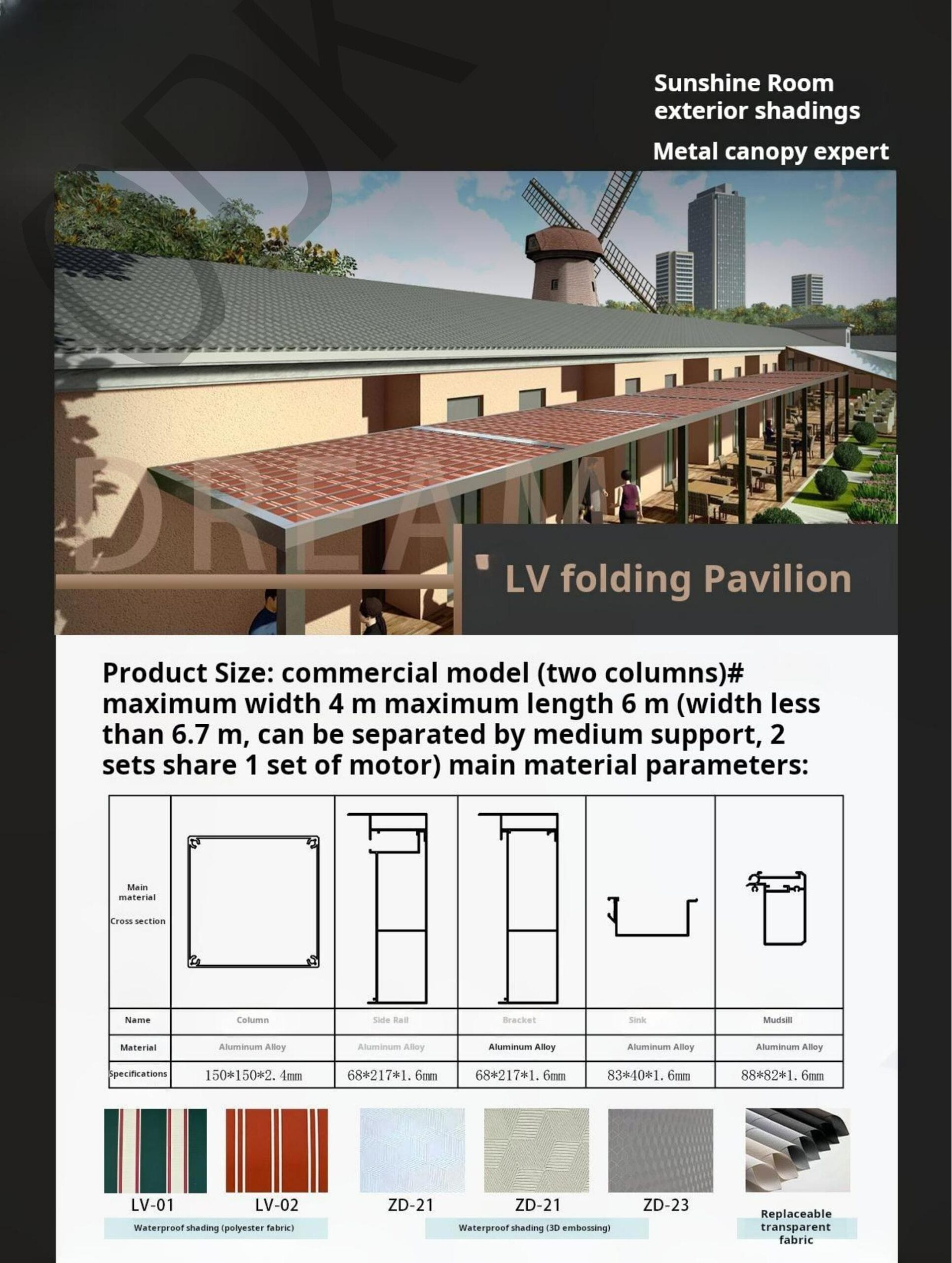

LV Folding Pavilion (Commercial Model)

• Maximum Size: 4 m width × 6 m length (two-column model; can separate at 6.7 m; two sets share one motor)

• Materials:

  • Column: 150×150×2.4 mm aluminium alloy

  • Side Rail: 68×217×1.6 mm aluminium alloy

  • Bracket: 68×217×1.6 mm aluminium alloy

  • Sink: 83×40×1.6 mm aluminium alloy

  • Mudsill: 88×82×1.6 mm aluminium alloy

Fabric Options: LV-01, LV-02, ZD-21, ZD-23 waterproof shading and replaceable transparent fabric.

Key Benefits Across the CanopyX Series

• All-Weather Protection – Built for sun, rain, and wind.

• Customisable Systems – Choose blade types, fabrics, and motorised controls.

• Architectural Appeal – Sleek, contemporary lines for both residential and commercial spaces.

• Durability & Strength – Engineered aluminium and stainless steel frames for long life.

Perfect for New Zealand Homes & Businesses

The CanopyX Series Range is ideal for:

• Residential patios, decks, and pool areas

• Hospitality venues like cafés, restaurants, and bars

• Sunrooms, carports, and commercial rooftops

• Large glass openings needing shading, security, or privacy
