Description
Standardised Simplicity Meets Flexible Outdoor Living
Across New Zealand and the Pacific, outdoor spaces are no longer seasonal extras — they are core living zones. Decks, patios, and courtyards are expected to work harder, stay comfortable longer, and adapt quickly to changing weather.
This shift is exactly why retractable pergola systems in NZ are gaining rapid momentum.

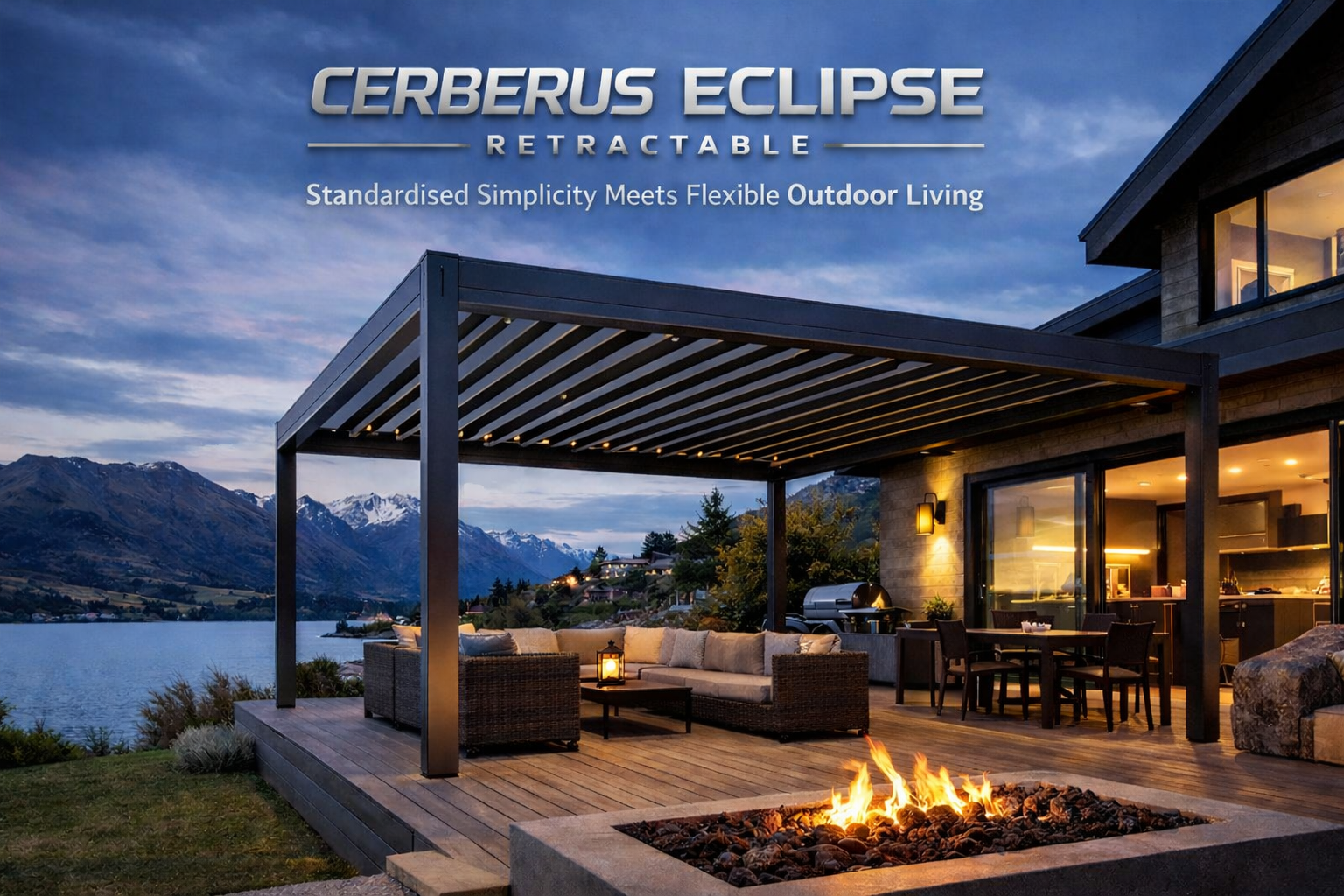

The Cerberus Eclipse Retractable
A standard-size kitset retractable pergola engineered to balance structural strength, clean architectural design, and real-world usability.
Eclipse Design Direction
Visually, the Cerberus Eclipse Retractable follows the established Cerberus design language, delivering a modern pergola that integrates seamlessly into New Zealand outdoor spaces.
Key Design Features
• Clean rectangular aluminium frame
• Modern flat-beam profile
• Integrated retractable canopy system
• Minimalist architectural appearance
• Kitset-friendly structural layout
The system is intentionally not overcomplicated — which is exactly where many kitset pergolas fall short.
Ideal Installation Environments
The Eclipse Retractable pergola is designed to perform across a wide range of outdoor settings:
• NZ residential decks
• Poolside environments
• Coastal homes
• Hospitality courtyards
• Pacific resort applications
Engineered Aluminium Platform
At the core of the system is Extruded Aluminium Alloy (6063-T5) — a proven architectural material widely used in premium outdoor pergola construction.
Material Advantages
• Excellent corrosion resistance
• Smooth powder-coat finish quality
• Strong structural span capability
• Lightweight for kitset handling
• Suitable for coastal NZ conditions
For New Zealand and Pacific environments, material selection is critical. The Eclipse platform is built with long-term durability firmly in mind.
Core Specifications
• Aluminium frame, powder coated in Dark Grey / White / Coffee / Black
• PVDF coating option available
• Flaxpod and Ironsand available as custom colours (surcharge applies)
• Extruded Aluminium Alloy (6063-T5)
• Beam profile: 175 × 40 × 2.2mm
• Gutter profile: 82 × 55 × 1.2mm
• Louver blade: 181 × 40 × 1.2mm (double coated)
• Post: 150 × 150 × 2.0mm
• Integrated warm white LED strip (around beam)
• Motorised system with receiver & remote (220V)
• Tuya Smart upgrade available
• Standard height: 2.7m (alternative heights available for a surcharge)
• 6-post configuration for 5m & 6m spans
Standard Sizes That Actually Work
Rather than chasing full customisation, the Cerberus Eclipse Retractable focuses on the sizes that cover the majority of real-world outdoor spaces.
Available Standard Footprints
| Size | Area | Price ex GST |
|---|---|---|
| 3 × 3 | 9 m² | $6,300 |
| 4 × 3 | 12 m² | $8,400 |
| 4 × 4 | 16 m² | $11,200 |
| 5 × 3 | 15 m² | $10,500 |
| 5 × 4 | 20 m² | $14,000 |
| 6 × 3 | 18 m² | $12,600 |
| 6 × 4 | 24 m² | $16,800 |
Configuration: Standalone
Standard Height: 2.7m
Delivery:
Delivery is additional and calculated based on location and depot requirements.
Important Height Note
• Plan dimensions are fixed kitset sizes
• Standard supplied post height is 2.7m
• Alternative heights available for a surcharge
This approach preserves kitset efficiency while allowing practical on-site flexibility.
Optional Add-On: Track Outdoor Blinds
The Eclipse system can be paired with high-performance outdoor blinds for added weather protection and privacy.
Blind Specifications
• Aluminium frame, powder coated in Dark Grey / White / Coffee / Black
• Casing profile: 100 × 100 × 2.0mm
• Guide rail: 39 × 44 × 1.3mm
• Bottom pipe: 61 × 31 × 1.3mm
• Fabric: 25% polyester / 75% PVC
• Openness factor: 5%
Built for Real Outdoor Use
The Cerberus Eclipse Retractable pergola is engineered around practical outdoor living, not just showroom aesthetics.
Ideal Applications
• Residential outdoor living zones
• Pool and spa areas
• Café seating expansions
• Courtyard weather control
• Multi-unit outdoor upgrades
The retractable canopy allows users to quickly respond to New Zealand’s fast-changing weather, making it a highly functional outdoor roofing solution.
