Description
Precision. Strength. Style.

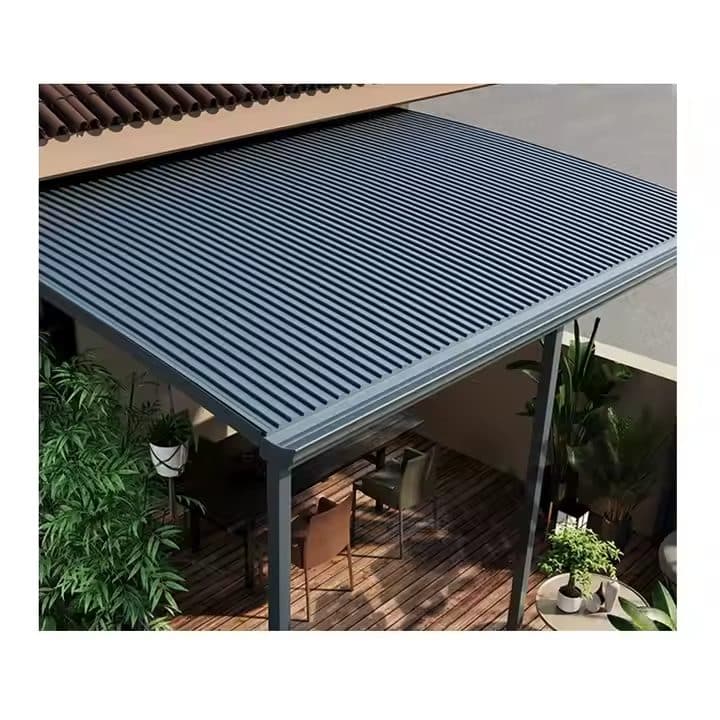

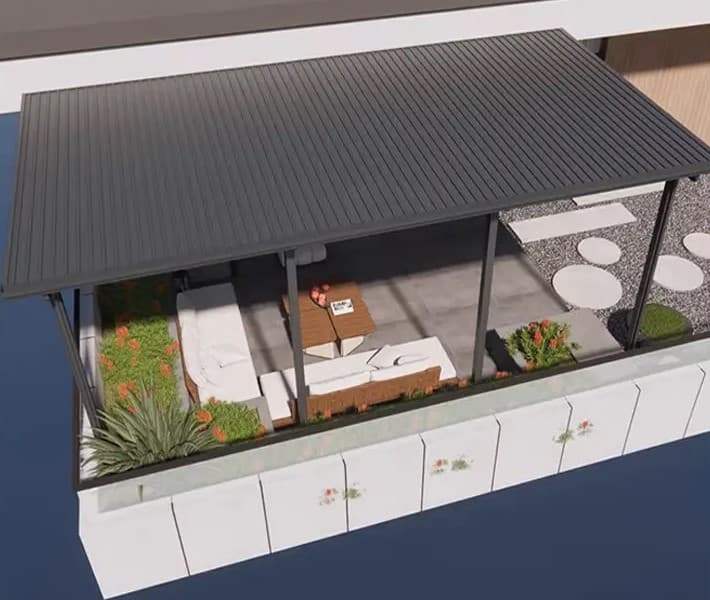

Apollo NZ proudly presents the Cerberus Fixed Roof, a premium outdoor cover system that blends cutting-edge engineering with sleek architectural design. As part of the Cerberus Pergola Series, this fixed roof solution offers both fixed-size options and custom-made configurations, ensuring versatility for every residential or commercial project.
Fixed Sizes (Made-to-Measure Also Available)
The Cerberus Fixed Roof is available in the following standard fixed sizes, each with a 2.5m height.
Column quantities are indicated for each model size.
3 × 3 Carport – 4 Columns
4 × 3 Carport – 4 Columns
4 × 4 Carport – 4 Columns
5 × 3 Carport – 6 Columns
5 × 4 Carport – 6 Columns
6 × 3 Carport – 6 Columns
6 × 4 Carport – 6 Columns
While these fixed sizes are pre-configured for convenience and cost efficiency, made-to-measure custom dimensions can also be manufactured upon request.
Standalone or Fixed to wall options
Specifications
Including:
Column: 110 × 100 × 2 mm
Main Beam: 110 × 60 × 3 mm
05 Type Roof Panel: 950 × 45 mm
Water Pipe: 50 × 1 mm
Gutter: 12 × 82 × 1.8 mm
European-Style Frame: 100 × 85 × 1.2 mm
Rear Frame: 110 × 60 × 1.5 mm
Sub-Frame: 62 × 58 × 1.2 mm
Column Kits: Included
Material & Performance Highlights
Aerospace-Grade 6063-T6 Aluminium Frame — engineered for strength, corrosion resistance, and sleek modern lines.
Electrostatic Powder Coating — smooth, durable, and eco-friendly finish that resists wear and oxidation.
UV Protection — blocks 98% of harmful UV rays, keeping spaces cooler and safer.
Snow Load Capacity — supports up to 100 kg/m², suitable for high-altitude and winter climates.
Hurricane Rated — stable in wind speeds up to 130 km/h.
100% Waterproof — advanced sealing ensures no leaks during heavy rainfall.
Thermal & Acoustic Insulation — internal polyester ammonia layer provides heat retention and noise reduction.
Drainage System — built-in guttering and downpipes efficiently manage water flow through hidden channels.
Colour Option
Standard Colour:
Grey
PricingÂ
| Size (m) | Price (NZD, excl. GST) |
|---|---|
| 3 × 3 | $1,950.00 |
| 4 × 3 | $2,250.00 |
| 4 × 4 | $2,650.00 |
| 5 × 3 | $2,700.00 |
| 5 × 4 | $3,200.00 |
| 6 × 3 | $2900.00 |
| 6 × 4 | $3,600.00 |
Pricing Notes:
Excluding GST
Delivery to local depot not included
Custom sizes pricing available on request
Applications
Residential: Patios, decks, pool areas, and driveways.
Commercial: Cafés, restaurants, carports, and alfresco dining areas.
Public & Recreational Spaces: Parks, walkways, and rest zones.
Warranty & Guarantee
10-Year Manufacturing Warranty — ensuring confidence in long-term performance and durability.
