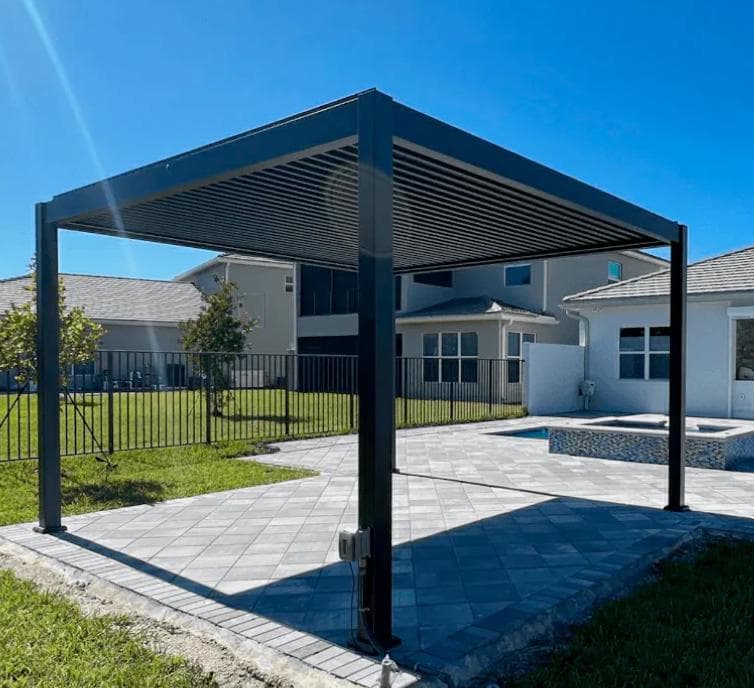

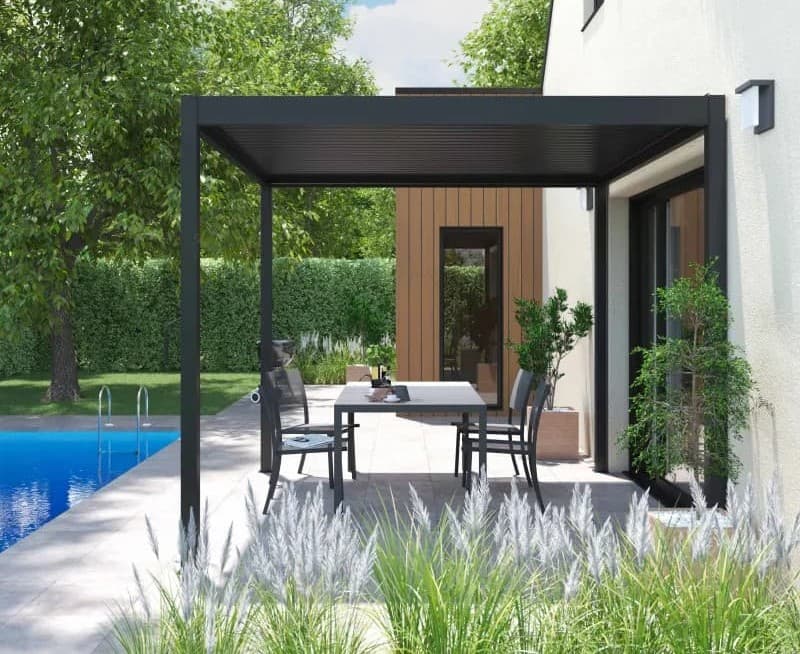

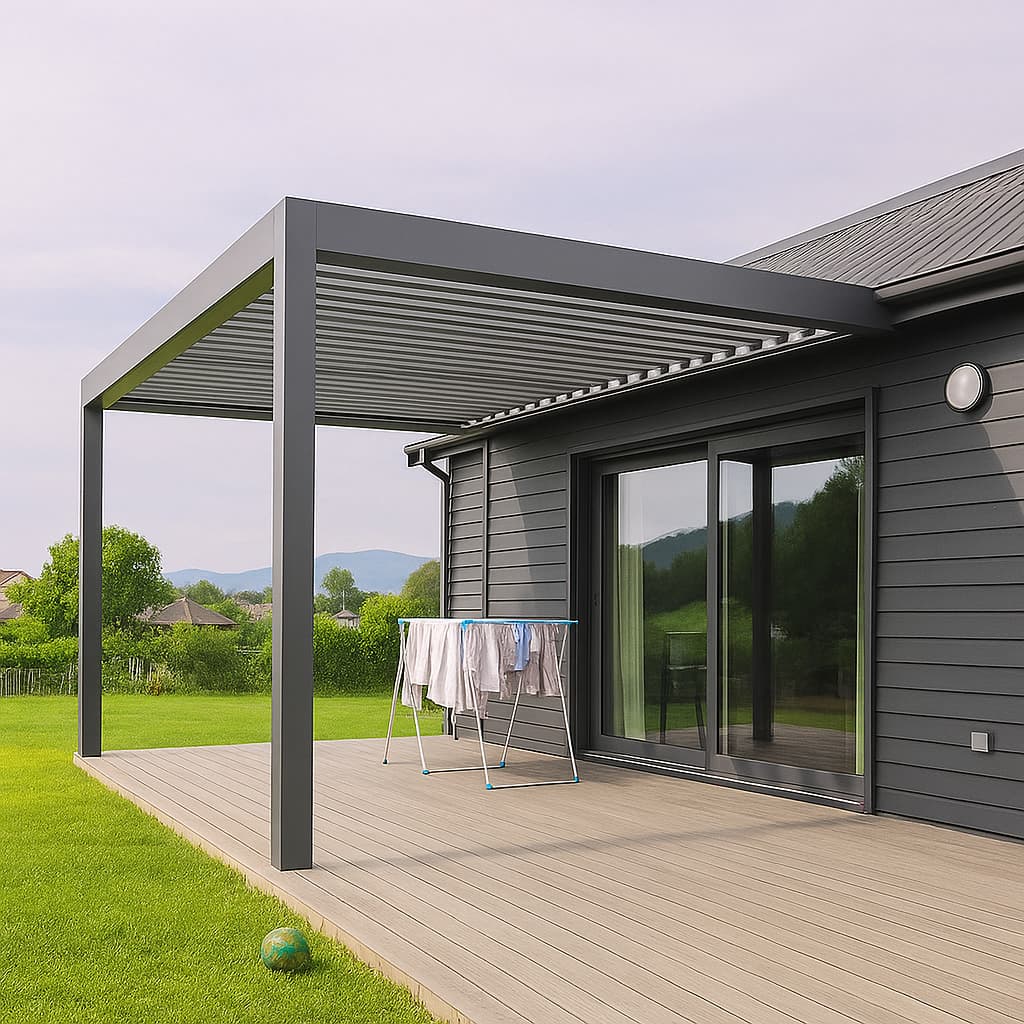

Description

If you're looking for a louvre roof system that offers durability, elegance, and outstanding value—without sacrificing quality—look no further.

The Cerberus Standard Louvre System from Apollo NZ offers premium-grade materials, superior craftsmanship, and a lifetime manufacturing warranty, now available in manual or motorised versions.

Built with true flexibility in mind, this system provides a cost-effective, premium outdoor solution suited for a wide range of residential and commercial applications.

Engineered to Last: Premium Build Without the Premium Price Tag

This is not your average pergola kitset. While many entry-level louvre systems on the market compromise on materials and structural strength, Apollo NZ’s Cerberus Standard is designed to outlast and outperform at every level.

Key Structural Specifications:

• Frame Material: 6063-T5 Aluminium – Strong, corrosion-resistant, and ideal for New Zealand’s outdoor environments

• Beam Size: 120 x 45 x 1.5mm

• Column Size: 100 x 100 x 1.5mm

• Louvre Blade Size: 30 x 150 x 0.8mm

• Fixed Height: 2.3m

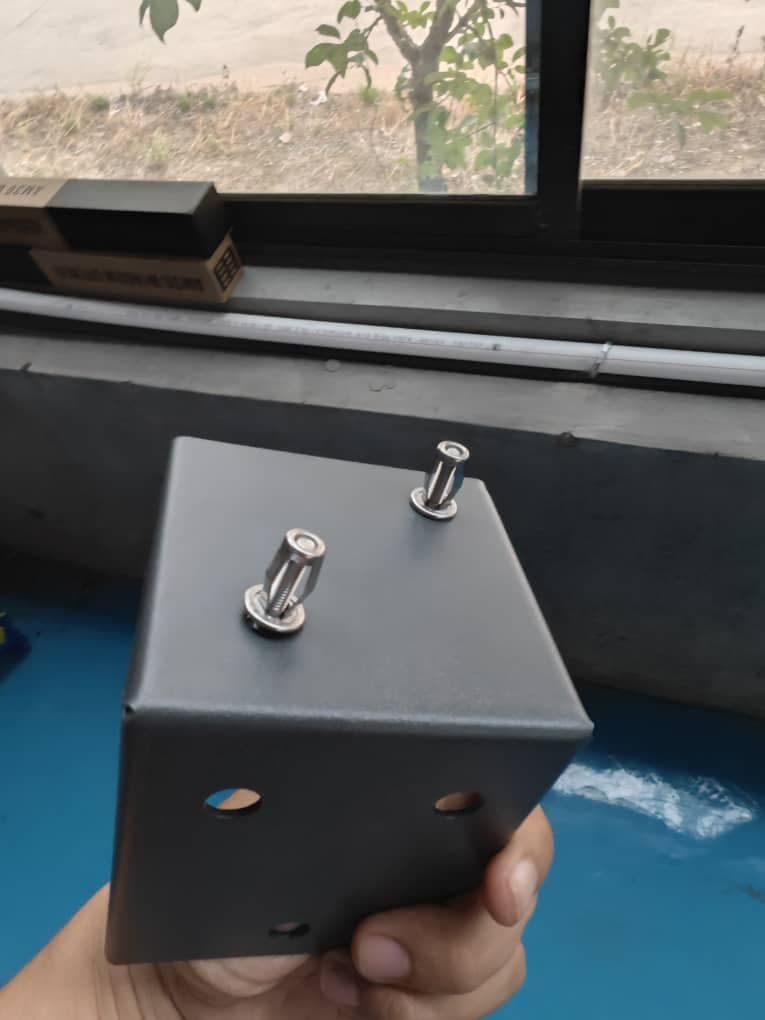

• Connections: 304 stainless steel standard – upgrade to 316 stainless steel available for coastal or high-exposure areas

Unlike many entry-level offerings, these dimensions are usually found in high-end louvre systems, making the Cerberus Standard one of the best-value aluminium pergola systems available today.

Fully Made-to-Measure: Your Size, Your Way

While we offer a range of standard sizes to suit common outdoor spaces, every system is now made to measure.
You can specify almost any width and depth you require—tailored precisely to your project.

Important Notes:

• Height remains fixed at 2.3 metres

• Posts are placed approximately every 4 metres for optimal support and clean design

This ensures a truly custom fit for patios, courtyards, cafés, restaurants, and more.

Integrated Gutters and Beams – A Rare Feature at This Price

The Cerberus Standard features integrated gutters and hidden drainage as standard.
This clean, all-in-one design ensures:

• Sleeker architectural finish

• Superior water management

• Fewer parts for quicker installation

• Lower ongoing maintenance

Simple Manual or Convenient Motorised Operation

Depending on your preferences and site conditions, you can choose:

• Manual Crank Handle Operation: No motors, no electrical wiring—ideal for simplicity and reliability

• Motorised Operation: Seamless control at the push of a button, perfect for premium residential projects and commercial spaces

Both options offer effortless control over sunlight, airflow, and rain protection.

Built for New Zealand Conditions – Rain, Wind, and Snow

Designed to withstand New Zealand’s variable weather, the Cerberus Standard provides strength and peace of mind year-round.

Weather Performance:

• Wind Rating: Up to 140 km/h

• Rainfall Drainage: 0.04–0.05 L/s/m²

• Snow Load Capacity: Up to 120 kg/m²

Standard Sizes and Pricing (Fully Custom Sizes Also Available)

Popular standard sizes and pricing:

Notes:

• All prices are supply-only, excluding GST and delivery.

• Height fixed at 2.3m.

• Posts approximately every 4 metres.

• Fully custom sizes available on request.

Colour Options to Suit Every Space

Standard Colours:

• Black

• Grey

• White

Optional Custom Colours (surcharge applies):

• Flaxpod

• Ironsand

Mix-and-match options available for frame and blade colours to create a more tailored and dynamic design.

Optional Add-Ons for Enhanced Outdoor Living

Cerberus Accessories Add-On Options – Blinds, Fixed Screens & Louvre Sides for Enhanced Functionality

Looking to customise your Cerberus Standard or Plus Series louvre system? Our range of high-quality accessories gives you more control over light, privacy, and protection—without compromising the modern design of your pergola.

From manual or motorised blinds to fixed screens and full louvre walls, these add-on options allow you to transform your outdoor space into a more functional, comfortable, and stylish area all year round.

🔧 Accessory Options Available for the Cerberus Standard & Plus Series

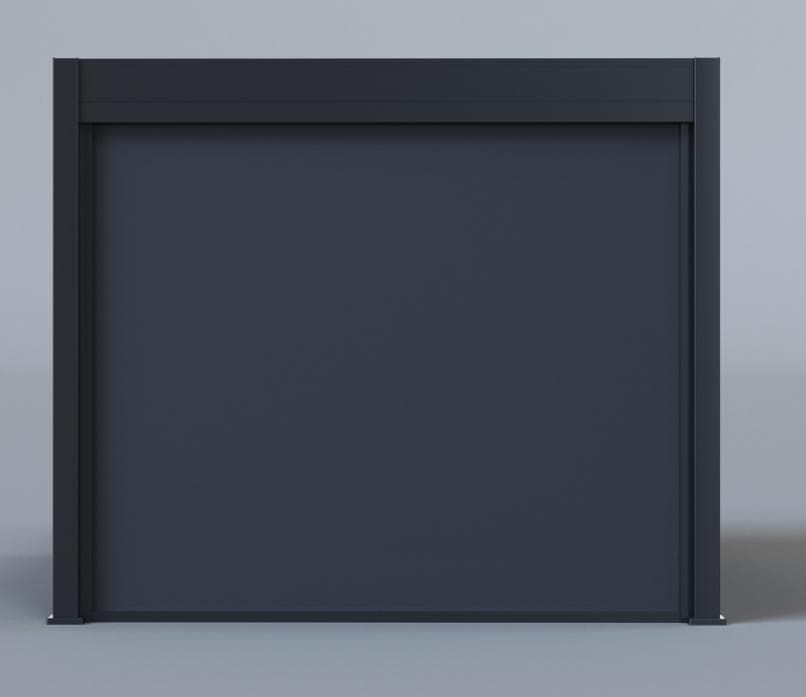

✅ Manual & Motorised Roller Blinds

Our integrated outdoor blinds offer reliable protection from sun, wind, and rain—while maintaining a sleek, clean aesthetic.

Specifications:

Roller Tube: Ø62mm aluminium

Cassette: 105 x 100mm aluminium

Guideway: 45 x 40mm aluminium

Lower Beam: 26 x 54mm aluminium

Fabric: 30% polyester + 70% PVC

Control Options: Manual or motorised (optional upgrade)

Sizes & Pricing (Manual):

3m Blind: $920 + GST

4m Blind: $1,090 + GST

Motorised Upgrade Cost: Add $400 + GST per blind

Simple, effective automation to enhance your outdoor experience.

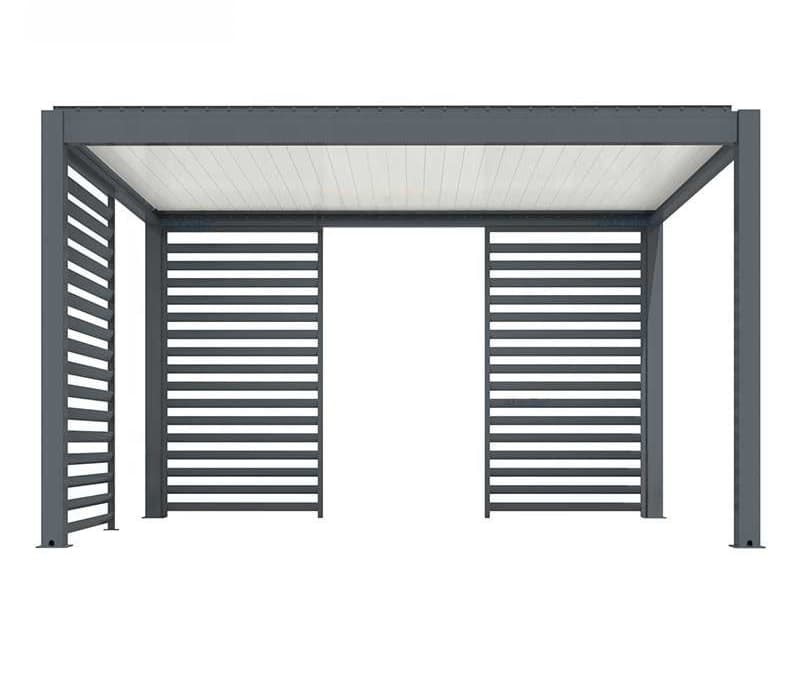

✅ Fixed Aluminium Screens

Perfect for side protection and visual privacy, these fixed louvre panels are designed to complement the structure of your Cerberus pergola. Durable and lightweight, they offer a sleek architectural finish.

Specifications:

18pcs Aluminium Louvres: 68.5 x 10 x 1.0mm

2pcs Side Poles: 60 x 25 x 1.5mm

2pcs Side Covers: 56.5 x 5.4 x 1.5mm

1pc Middle Pole: 60 x 25 x 1.5mm

2pcs Top/Bottom Beams: 58 x 25 x 1.8mm

3pcs Bottom Brackets: 100 x 13 x 6mm

1pc Upper Slat: 70 x 6.75 x 2mm

Ground Gap: 6mm

Sizes & Pricing:

3m Screen: $750 + GST

4m Screen: $950 + GST

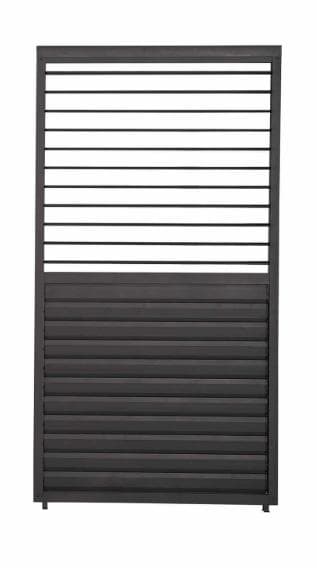

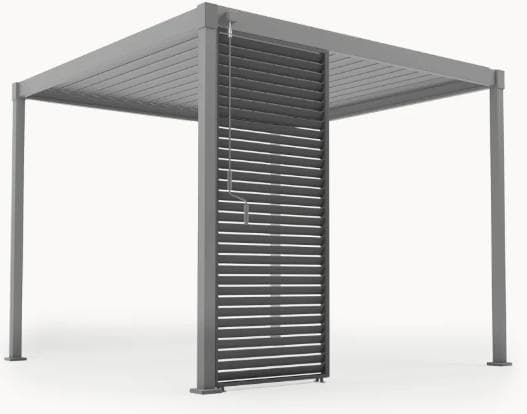

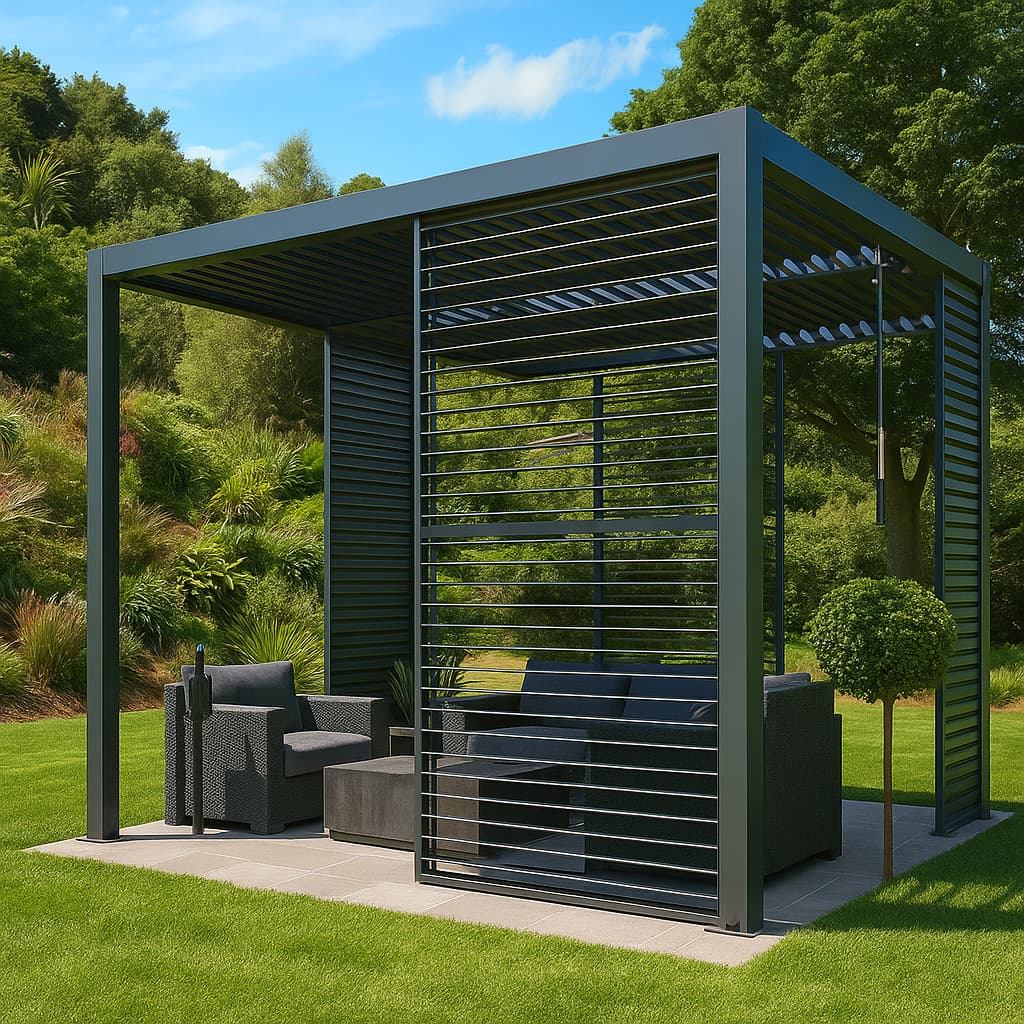

✅ Louvre Wall Panels (Aluminium)

These full-height louvre sides offer the ideal solution for added wind protection and privacy. Each wall requires three single panels for full coverage and can be installed modularly.

Specifications (Per Single Panel):

24pcs Aluminium Louvres: 76 x 14 x 0.9mm

2pcs Side Poles: 60 x 25 x 1.5mm

2pcs Side Pole Covers: 56.5 x 5.4 x 1.5mm

2pcs Top/Bottom Beams: 58 x 40 x 1.3mm

1pc Middle Beam: 58 x 55 x 1.2mm

2pcs Bottom Brackets: 100 x 3 x 16.3mm

1pc Upper Slat: 70 x 6.75 x 1.5mm

Ground Gap: 6mm

Installation Note:

3m Full Wall: Requires 3 panels

4m Full Wall: Requires 3 panels

Pricing (Per Panel):

3m Panel: $400 + GST

4m Panel: $550 + GST

Ordering & Production Process – Simple and Transparent

Orders are processed on a monthly production cycle to streamline efficiency and reduce costs.

To Order:

• Select your configuration (manual or motorised)

• Choose your colour scheme

• Finalise your size and layout

• Confirm order before the end-of-month cut-off to join the next manufacturing cycle

Delivery:
Delivery is charged separately to your nearest depot or direct to site (location-based rates apply).

Why Choose the Cerberus Standard Louvre System from Apollo NZ?

✅ Lifetime Manufacturing Warranty
✅ Heavy-Duty 6063-T5 Aluminium Frame
✅ 304 Stainless Steel Components (316 Upgrade Available)
✅ Integrated Gutters and Water Management
✅ Manual and Motorised Options
✅ Fully Made-to-Measure Flexibility
✅ Fixed 2.3m Height with Approx. 4m Post Spacing
✅ Built for New Zealand Weather Conditions

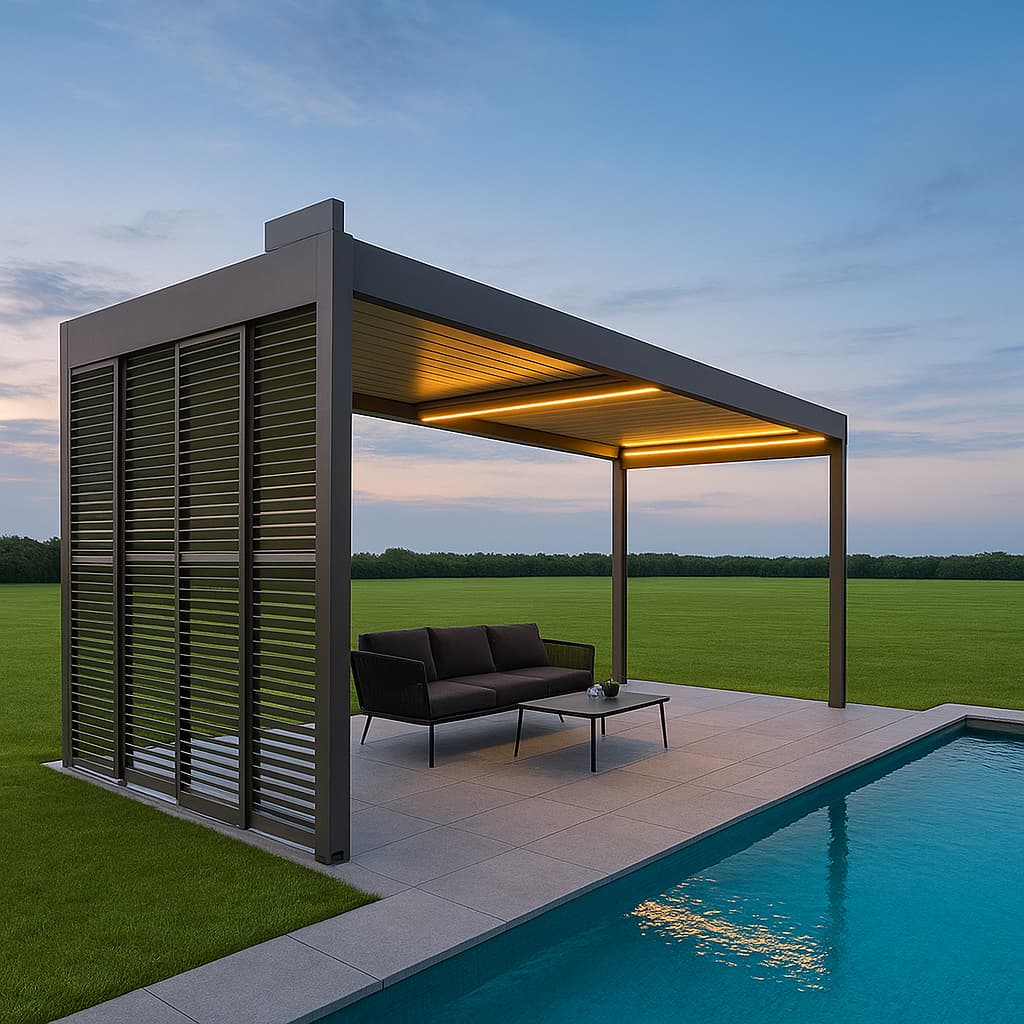

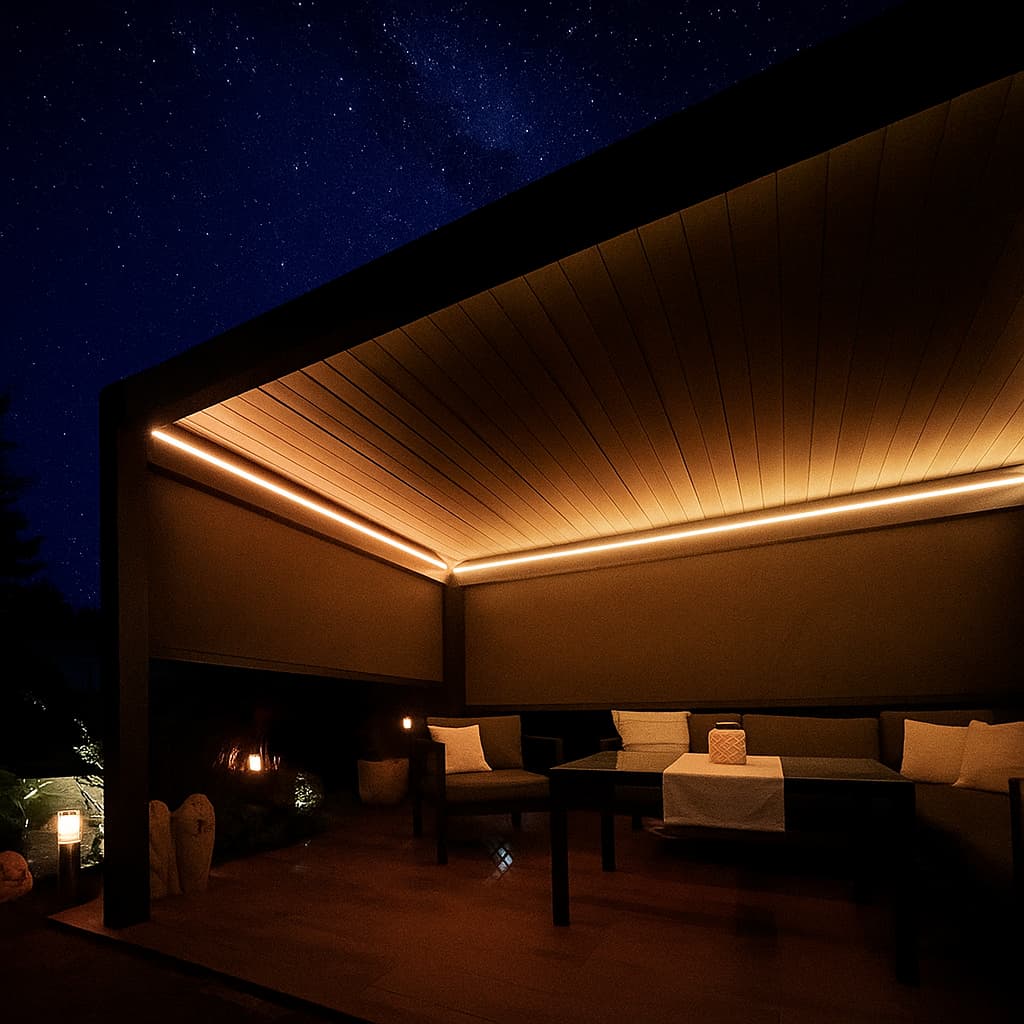

✅ Optional Lighting and Outdoor Blind Add-Ons
✅ Affordable, Professional-Grade Kitset Pricing
