Description

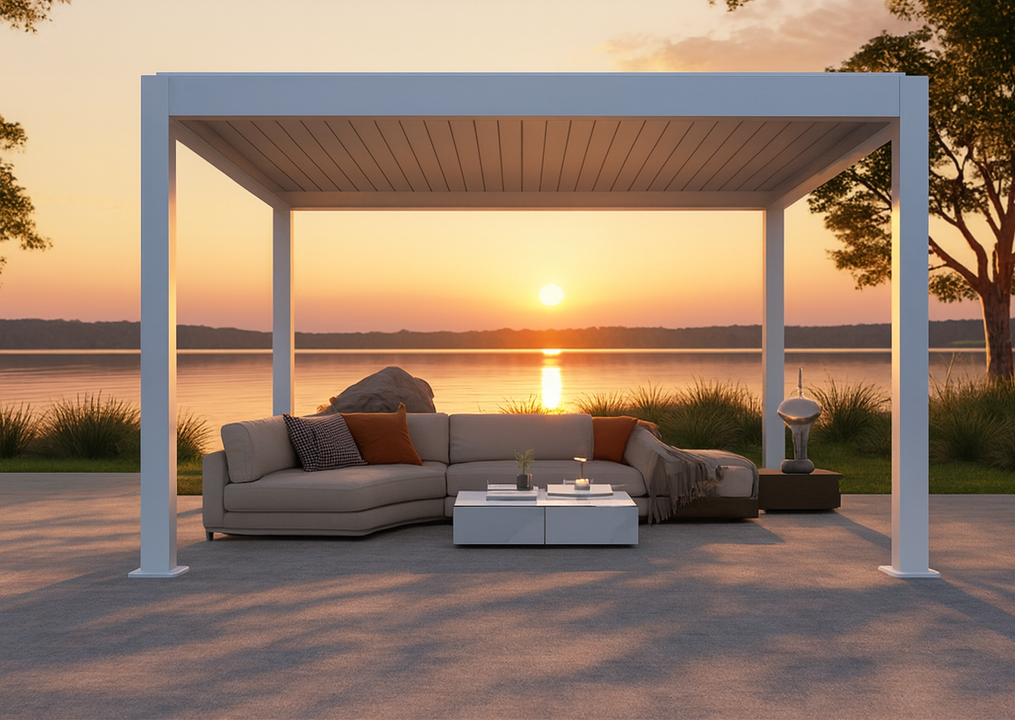

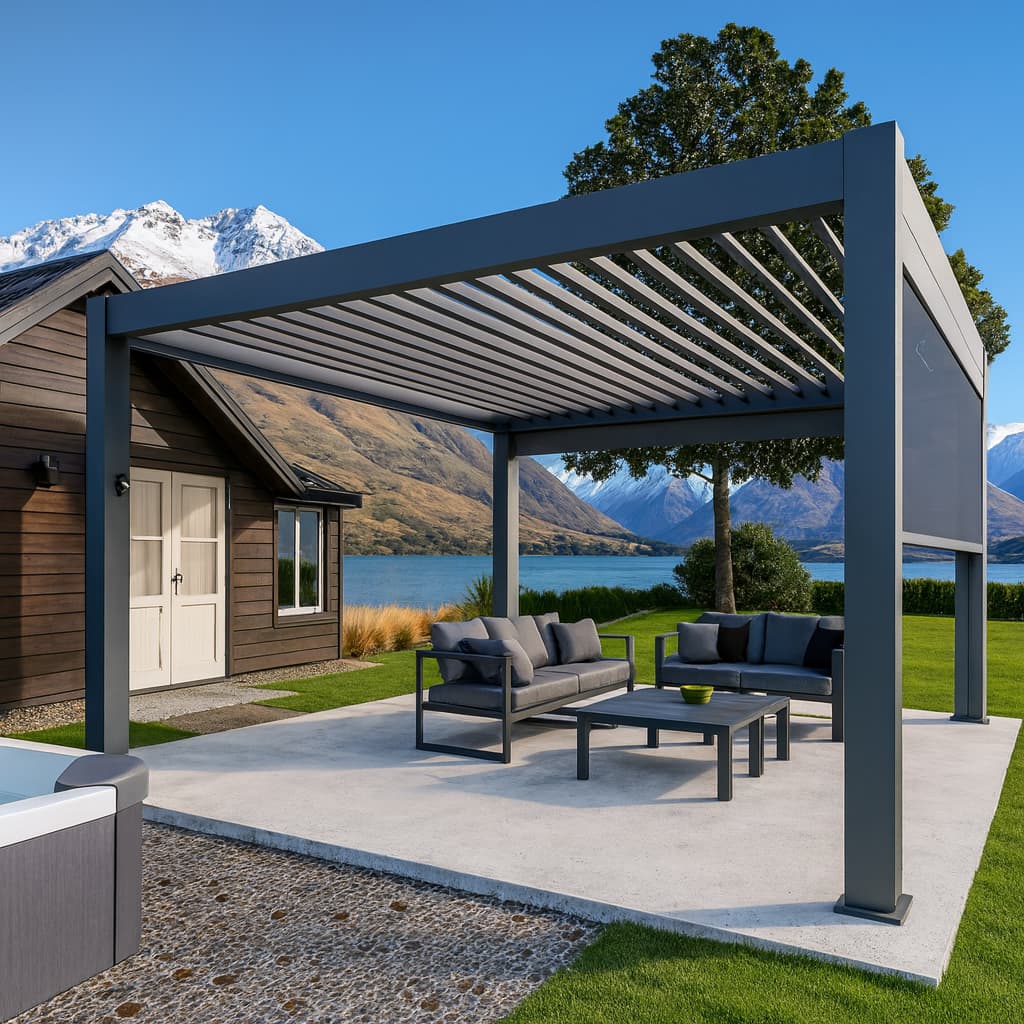

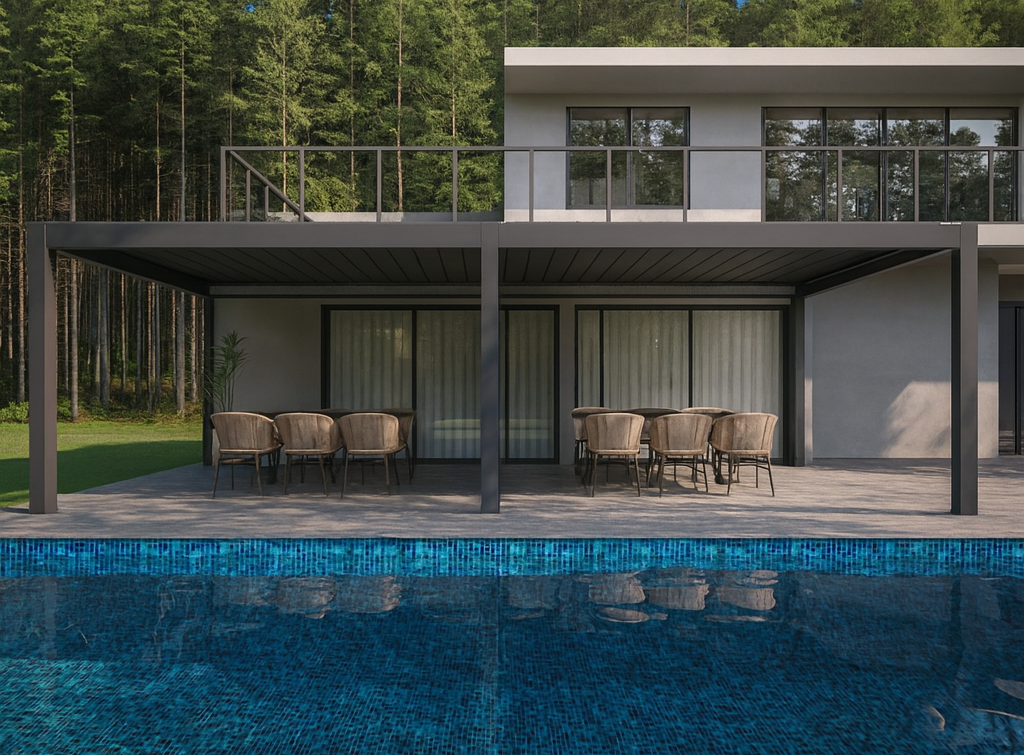

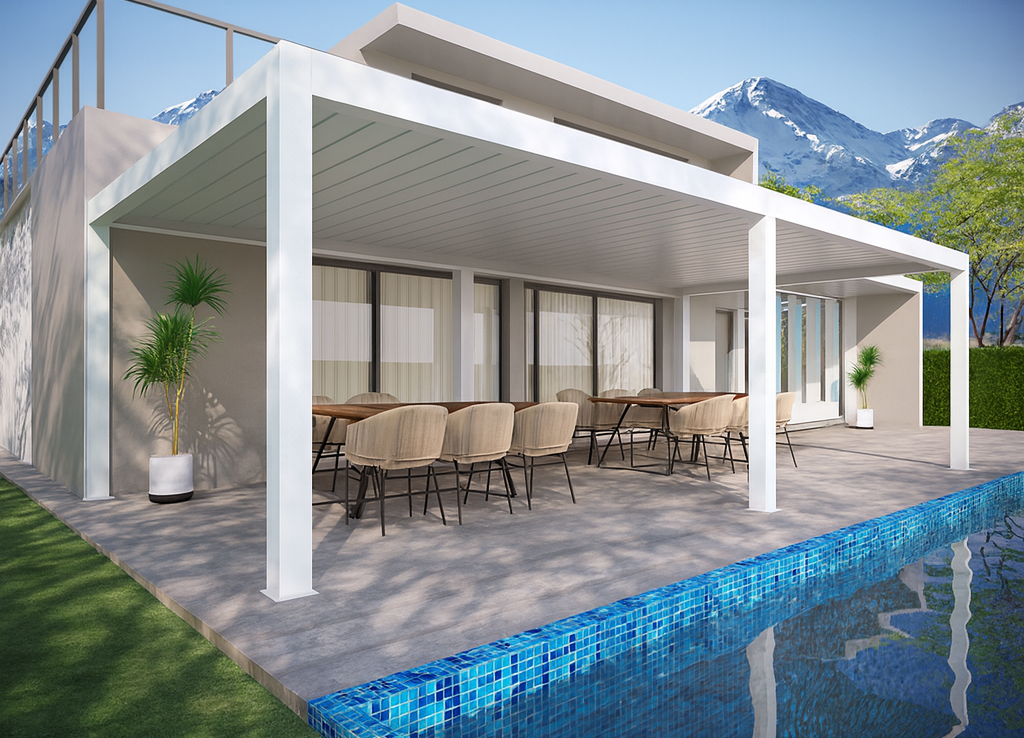

Cerberus Max is the premium evolution of the Cerberus range — a stronger, heavier, and fully made-to-measure louvre roof system designed for clients wanting the next level of performance and structural presence.
Using upgraded profile sizes and thicker aluminium sections, Cerberus Max maintains the clean architectural aesthetic of Cerberus Plus while offering enhanced rigidity, larger blade dimensions, and support for taller post heights up to 3.0 metres.
Cerberus Max also retains the full colour range, accessory compatibility, and operational options found in Cerberus Plus — making it a seamless step-up inside the Cerberus family.
🔧 Cerberus Max Technical Specifications
(Extracted from JY180 profile set)

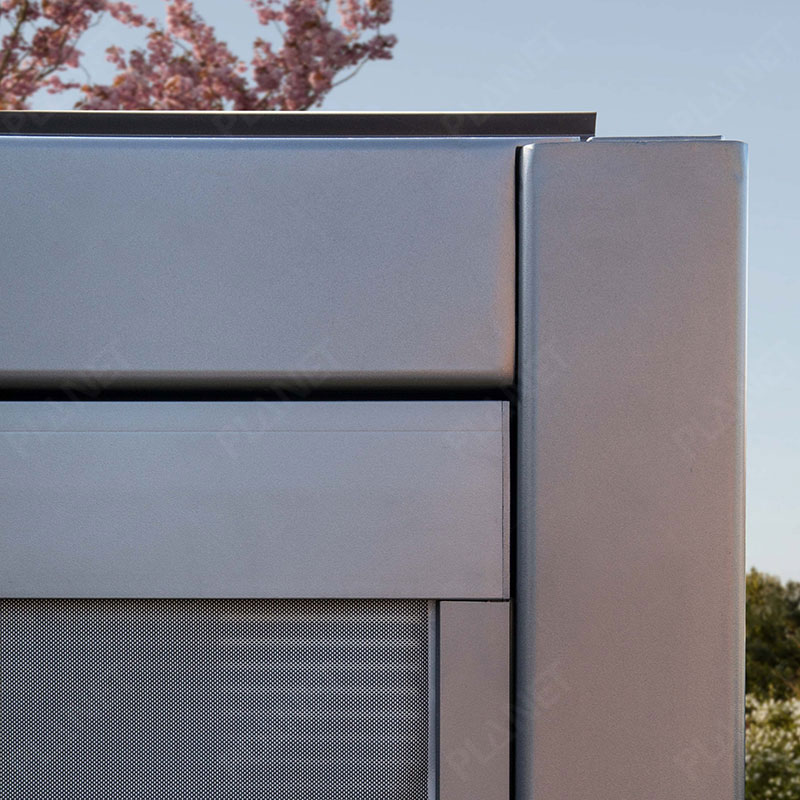

Posts
• 135 × 135 mm
• Thickness: 2.0 mm
• Strong, square structural post profile
• Maximum installation height: 3.0m
Beams
• 165 mm height × 110 mm width
• Thickness: 1.6 mm
• High-strength multi-chamber beam
• Supports both manual and motorised operation
Blades
• 180 mm blade width
• Blade height: 32 mm
• Thickness: 1.5 mm
• Increased shading efficiency and improved water management
• Same rotation range as Cerberus Plus
🎨 Colours
Cerberus Max uses the same colour options as Cerberus Plus:
• Black
• Grey
• White
• (Custom colours also available — surcharge applies)
⚙️ Operation Options
• Manual
• Motorised
Both options use the same control system family as Cerberus Plus.
📏 Size & Configuration Rules
Made-to-Measure System
Cerberus Max does not come in kitset sizes.
Every unit is custom-manufactured to suit the client’s exact dimensions.
Maximum Widths
• Same maximum widths as Cerberus Plus for engineering and accessory compatibility.
Maximum Height
• Up to 3.0 metres
🏆 Why Choose Cerberus Max?
• Increased structural strength
• Thicker aluminium profiles
• Larger 180mm blades for stronger shading performance
• A high-spec upgrade without changing the core Cerberus look
• Ideal for exposed sites, commercial projects, or premium residential builds
• Designed for New Zealand and Pacific Island conditions
