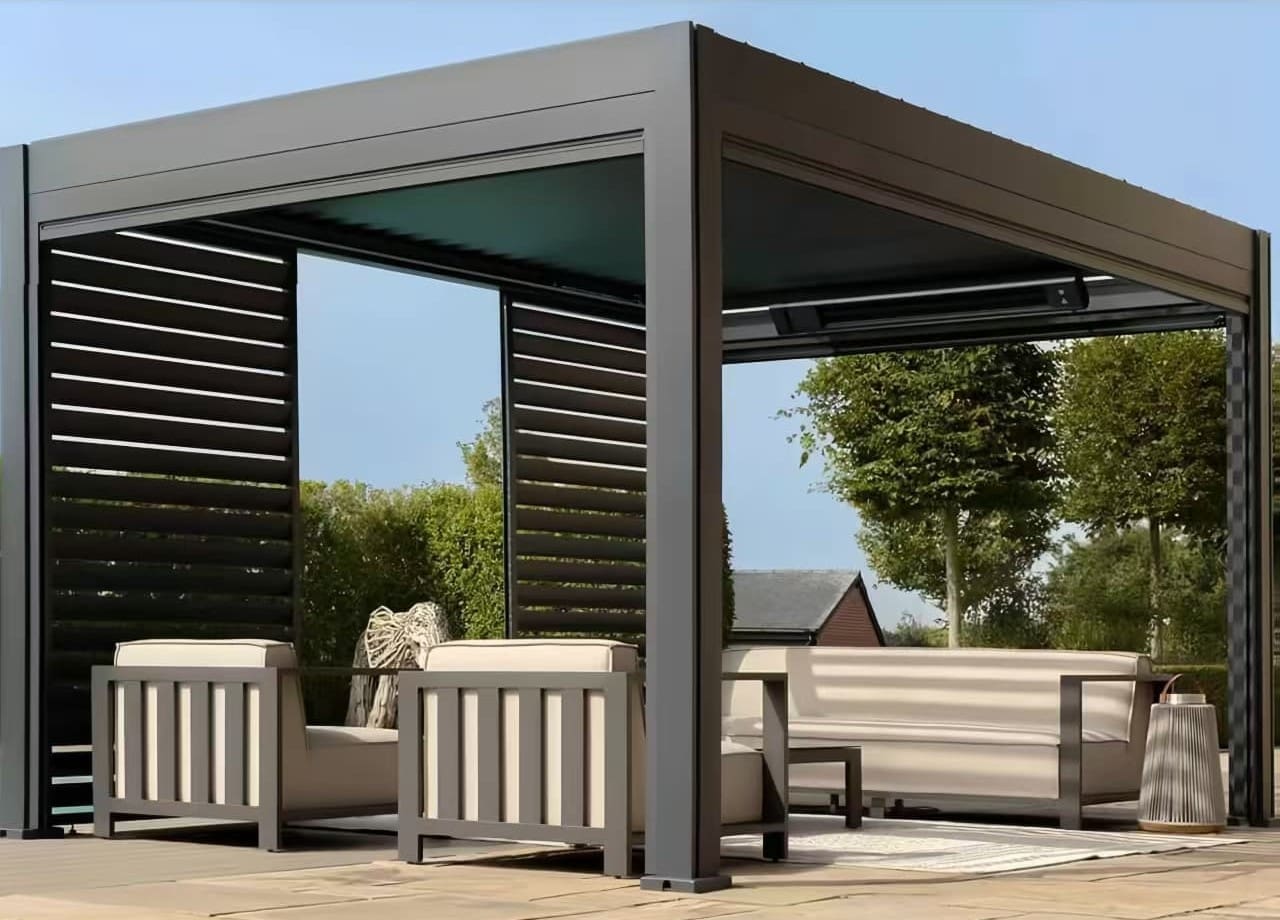

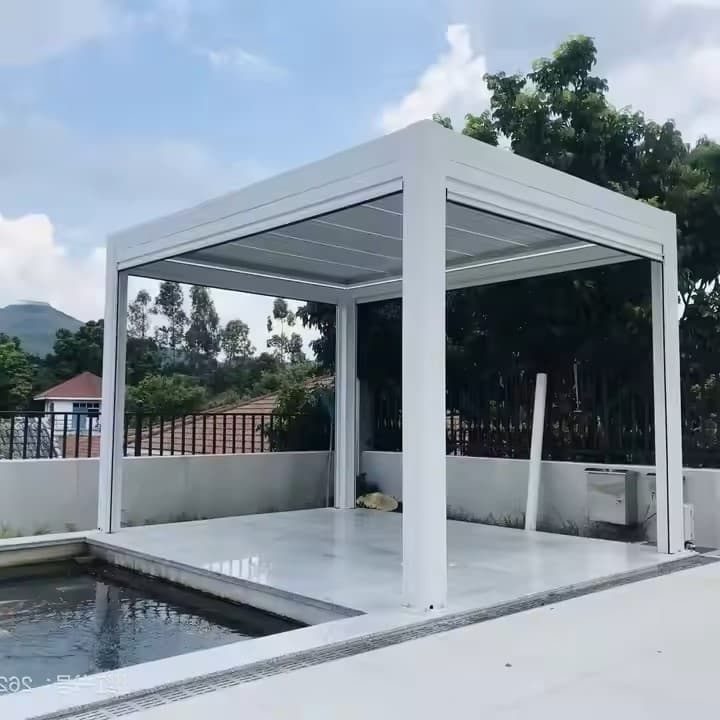

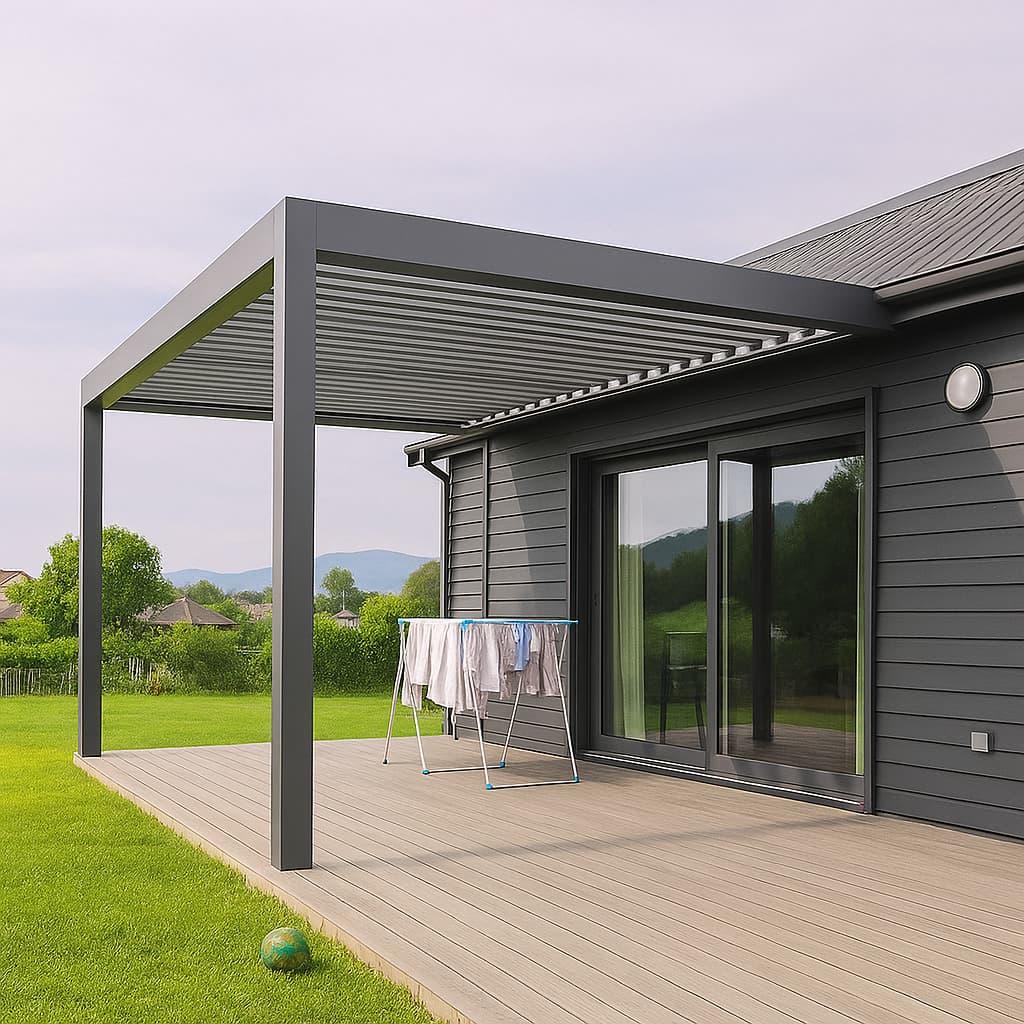

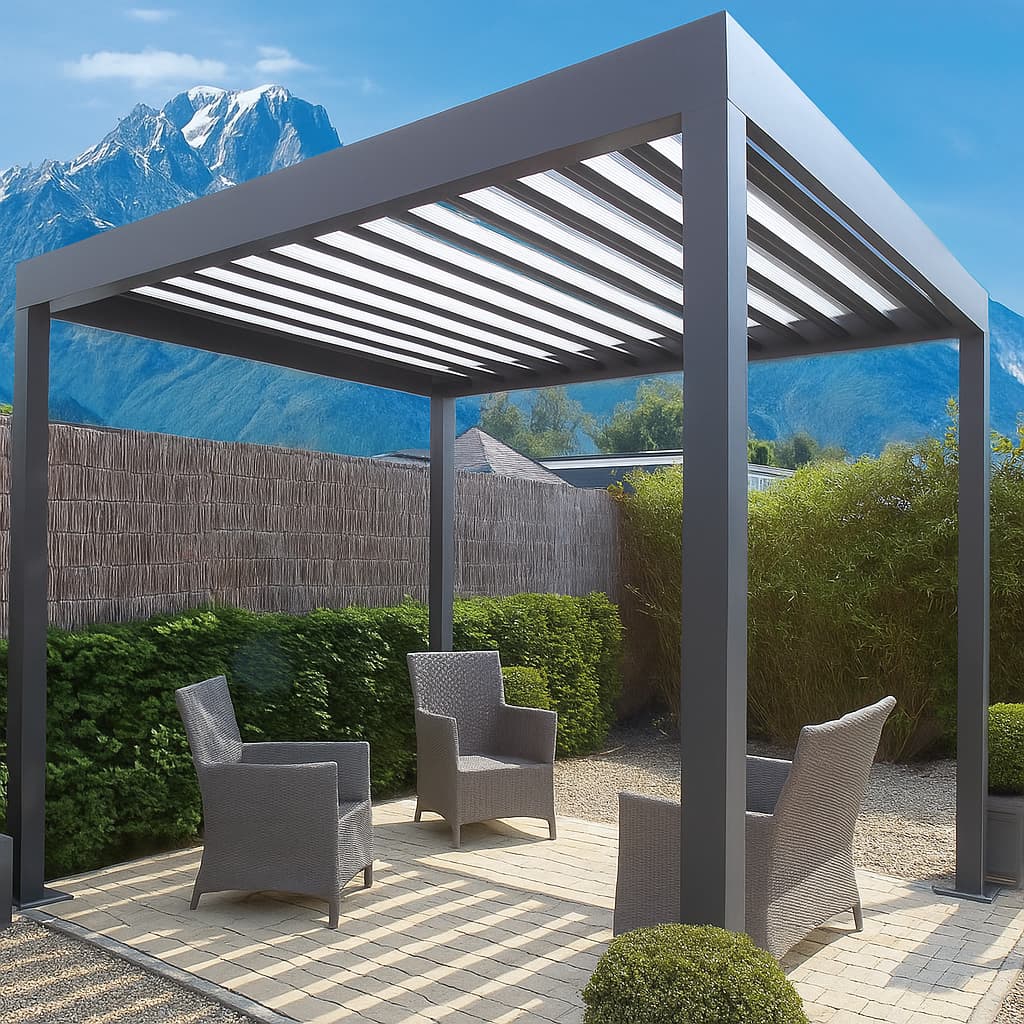

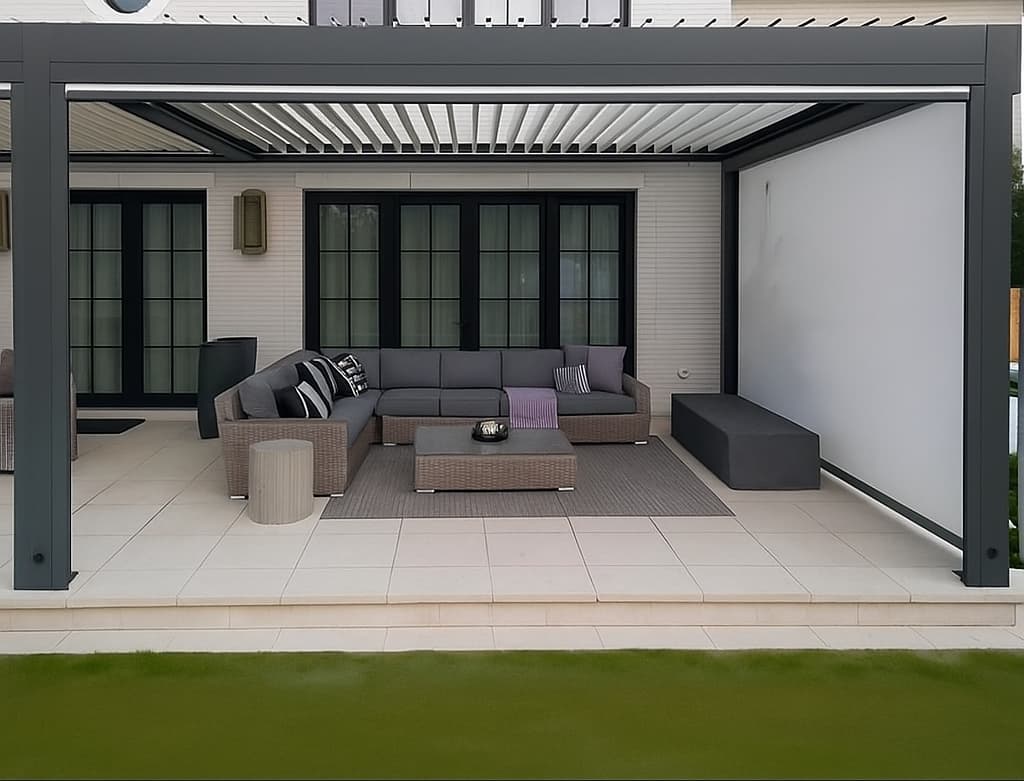

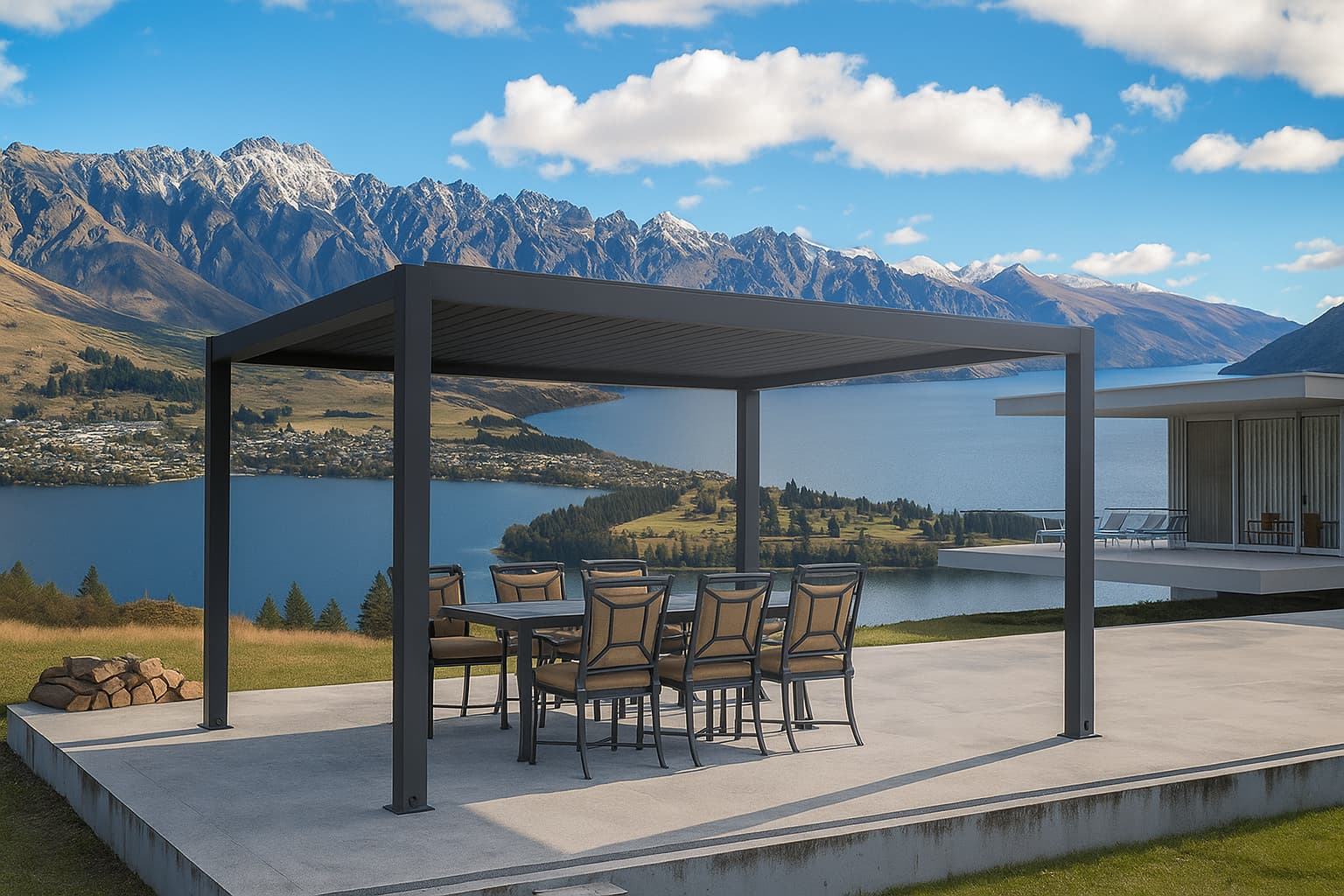

Aluminium Louvre Pergola Engineered for New Zealand Conditions

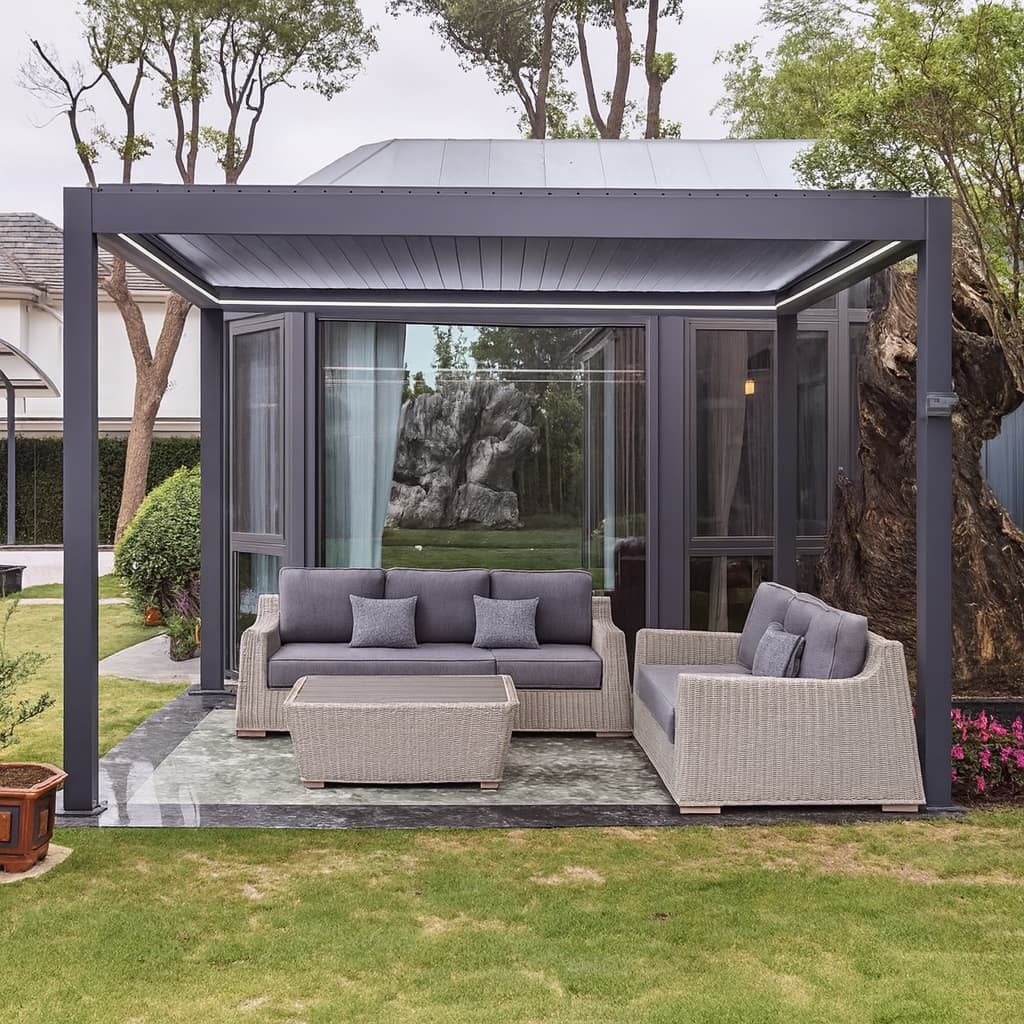

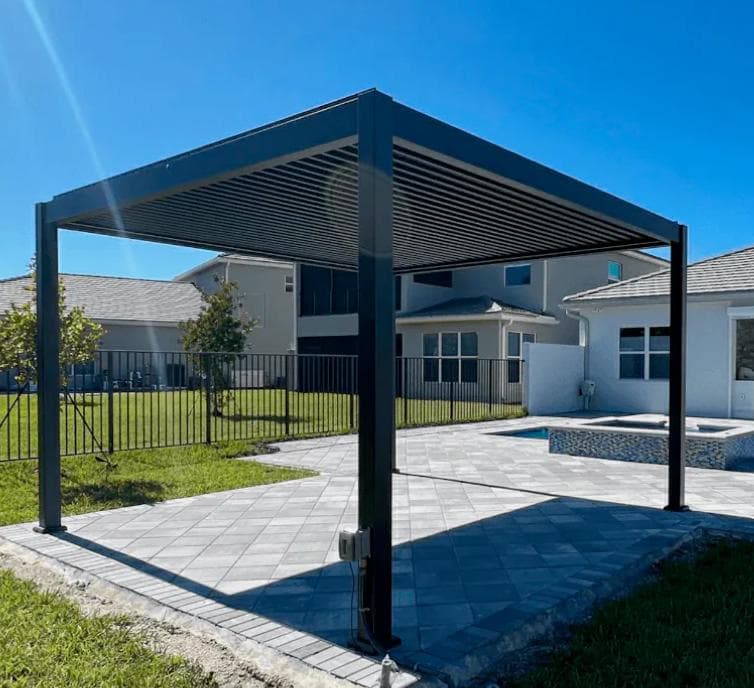

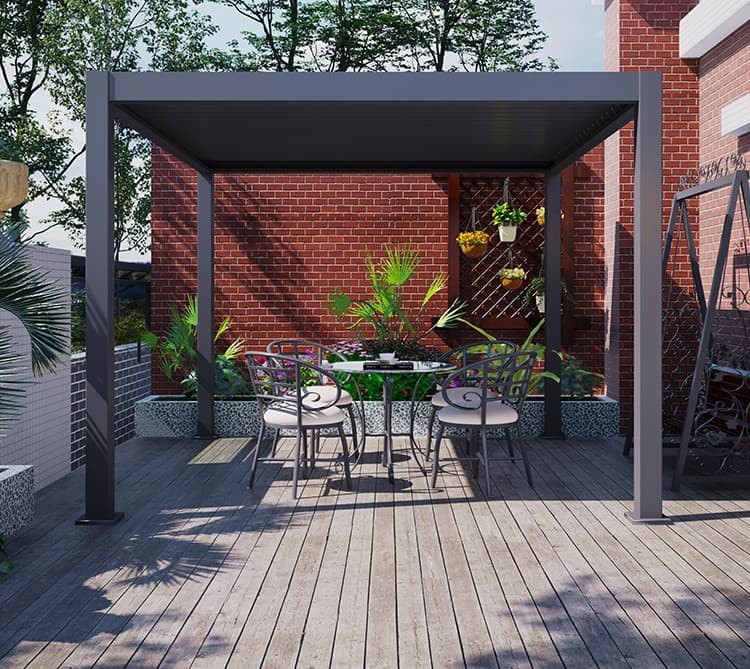

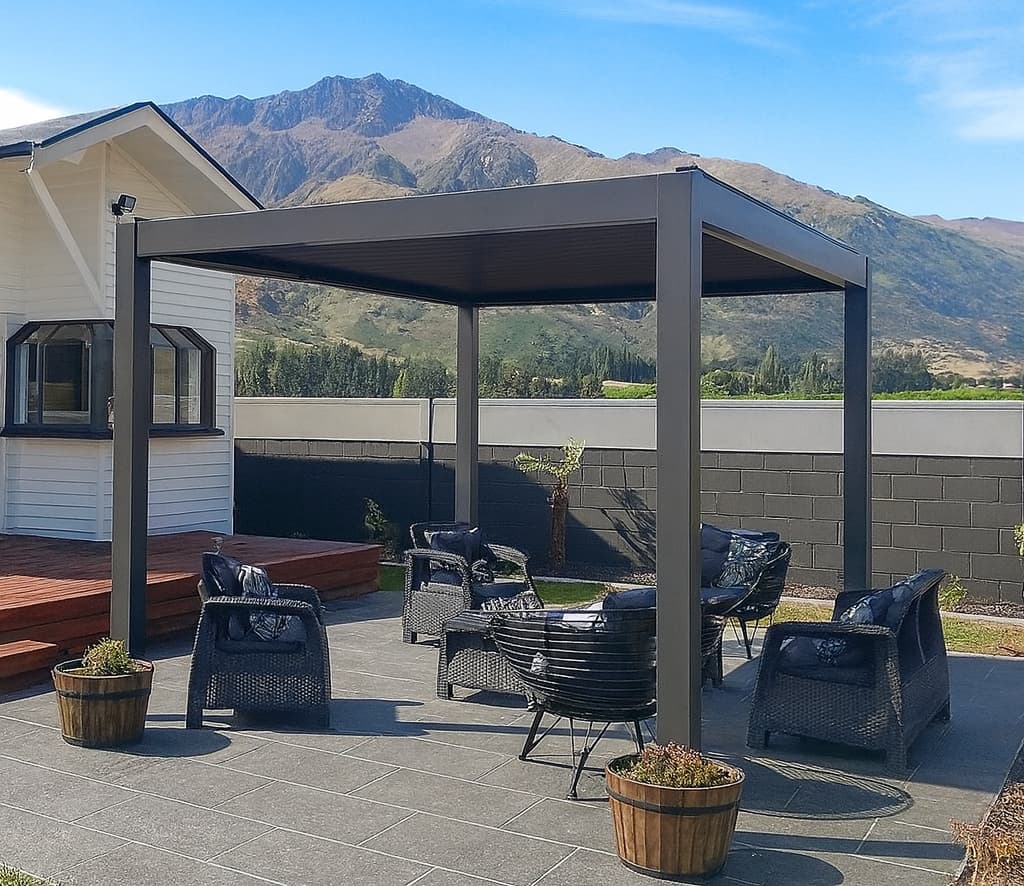

The Cerberus Plus Louvre Kitset System is an aluminium louvre pergola engineered for New Zealand conditions, combining structural strength, modular flexibility, and high-performance outdoor living capability.
Designed for real use — not just appearance.
Supply Only Kitset
Standard sizes below (made-to-measure available on request, max size up to 30m²)
Smallest Size in made to measure is 1m x 1m x 2.5m Height
| Size | Manual (updated) | Motorised |
|---|---|---|
| 2 × 2 m | $2,200 + GST | $2,500 + GST |
| 3 × 2 m | $3,000 + GST | $3,300 + GST |
| 3 × 3 m | $4,100 + GST | $4,500 + GST |
| 4 × 3 m | $5,200 + GST | $5,700 + GST |
| 4 × 4 m | $6,700 + GST | $7,300 + GST |
| 5 × 3 m | $6,300 + GST | $6,900 + GST |
| 5 × 4 m | $8,200 + GST | $8,900 + GST |
| 6 × 3 m | $7,500 + GST | $8,100 + GST |
| 6 × 4 m | $9,700 + GST | $10,500 + GST |
What’s Included with the Cerberus Plus Louvre Kitset System
The Cerberus Plus Louvre Kitset System is designed for modern outdoor living in New Zealand conditions, combining smart technology, lighting, and weather automation as part of the standard package
Included as Standard Features
• Smart Integration (Tuya Compatible – Motorised Louvre Only)
Motorised louvre systems include Tuya smart compatibility, allowing:
– App control
– Remote access
(Applies to the louvre motor system only — not other accessories)

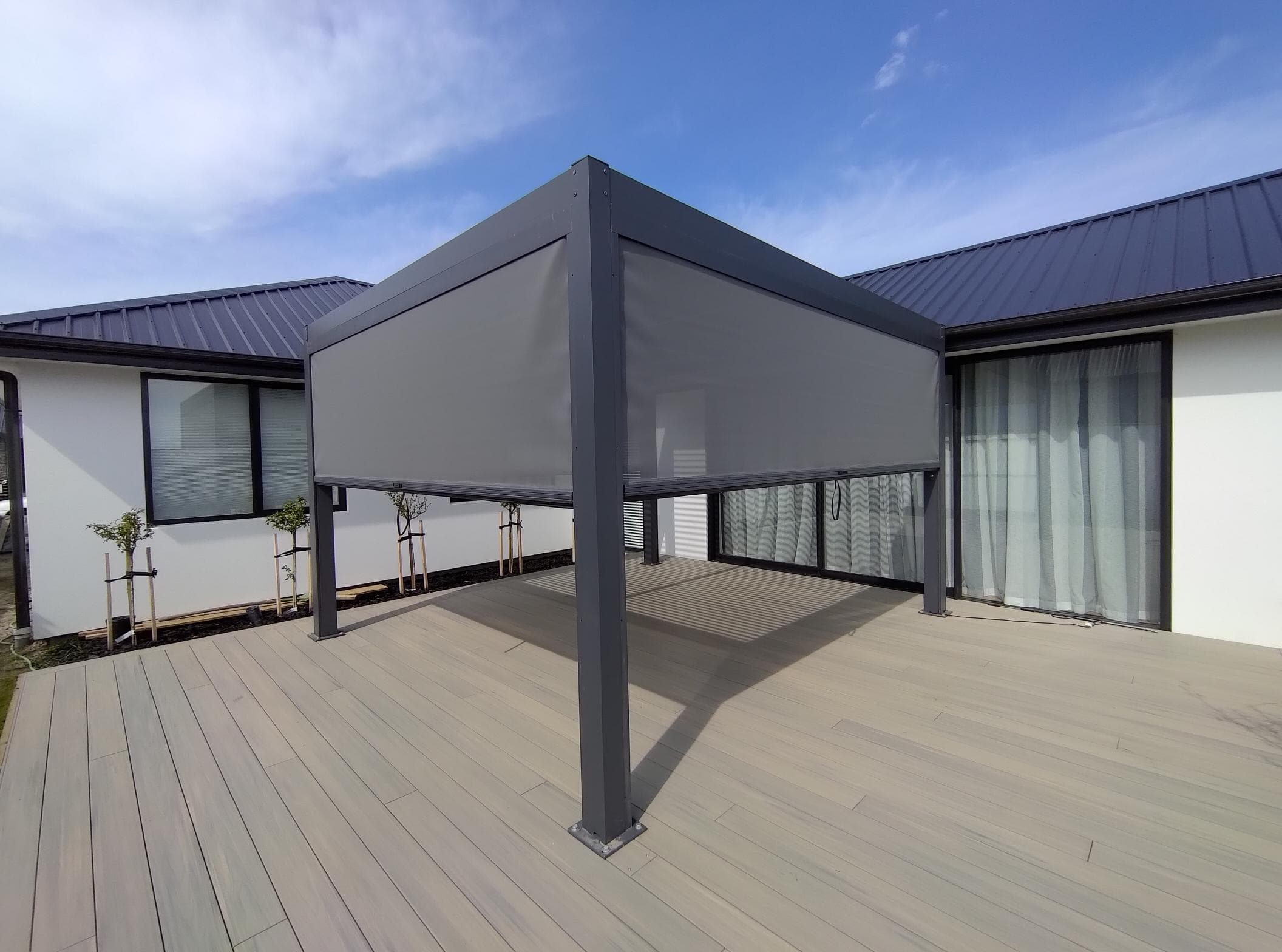

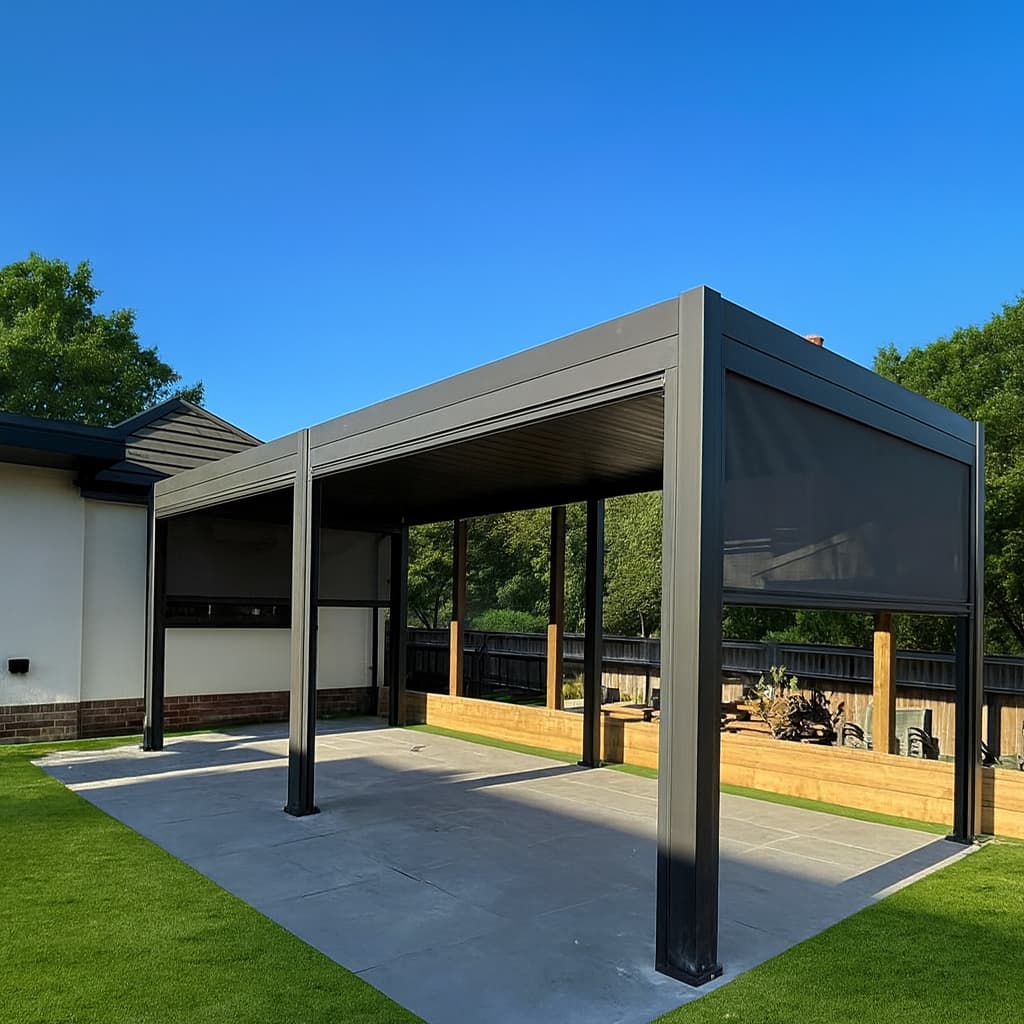

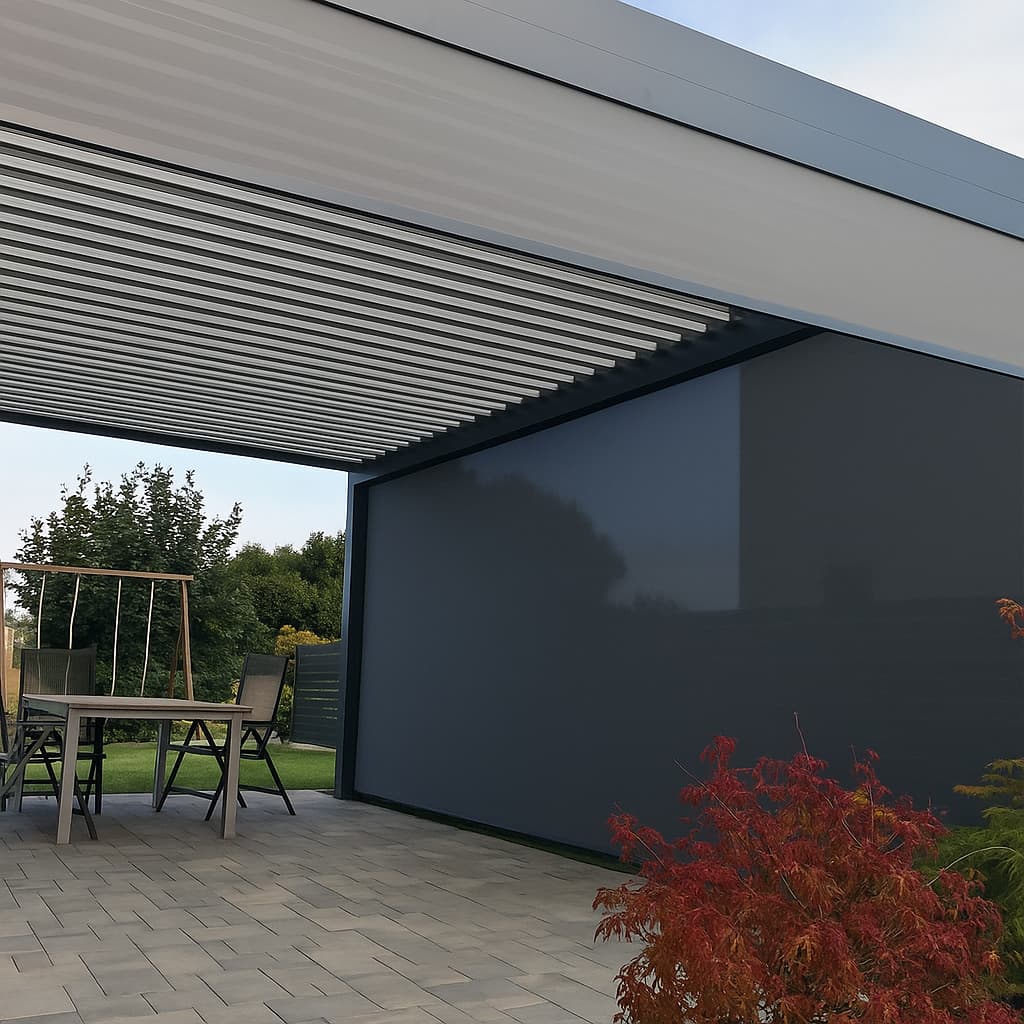

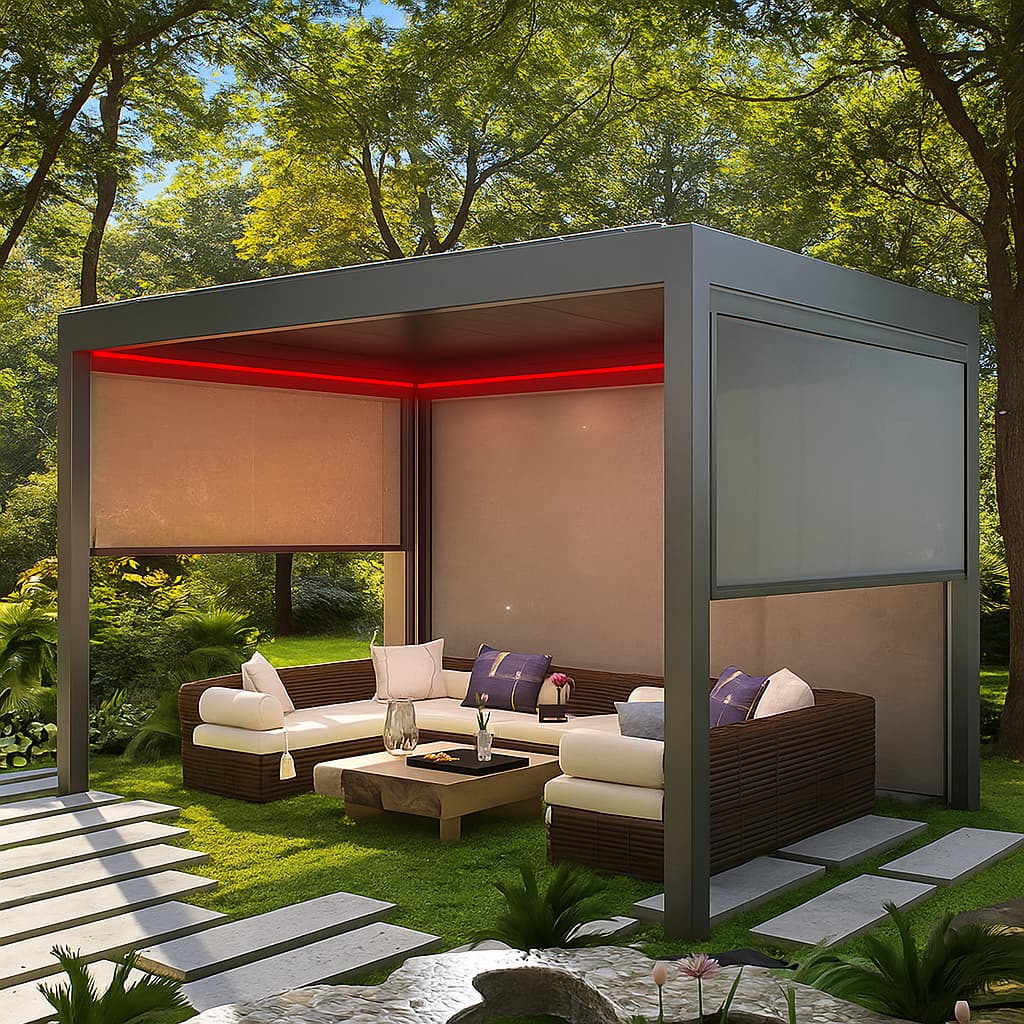

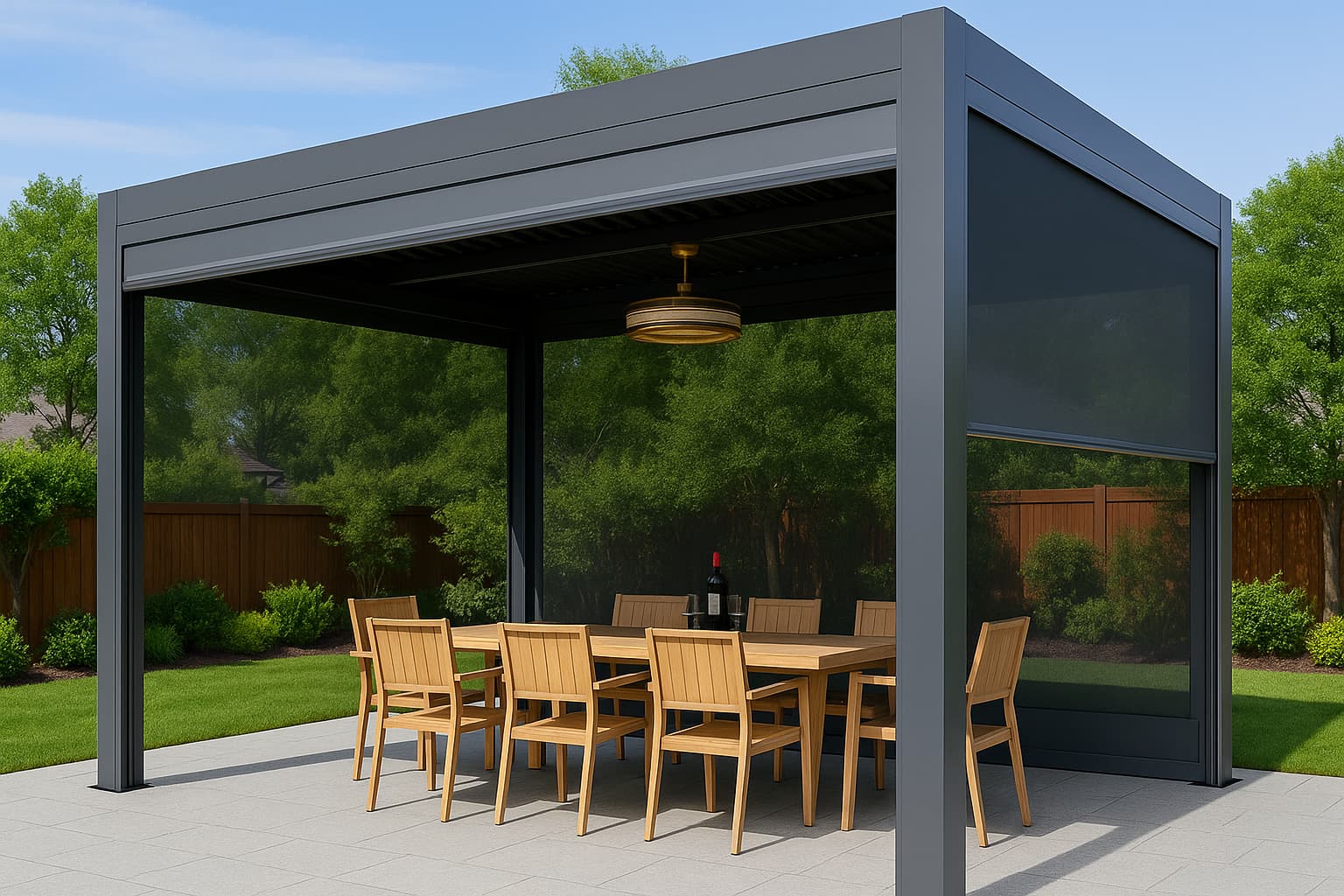

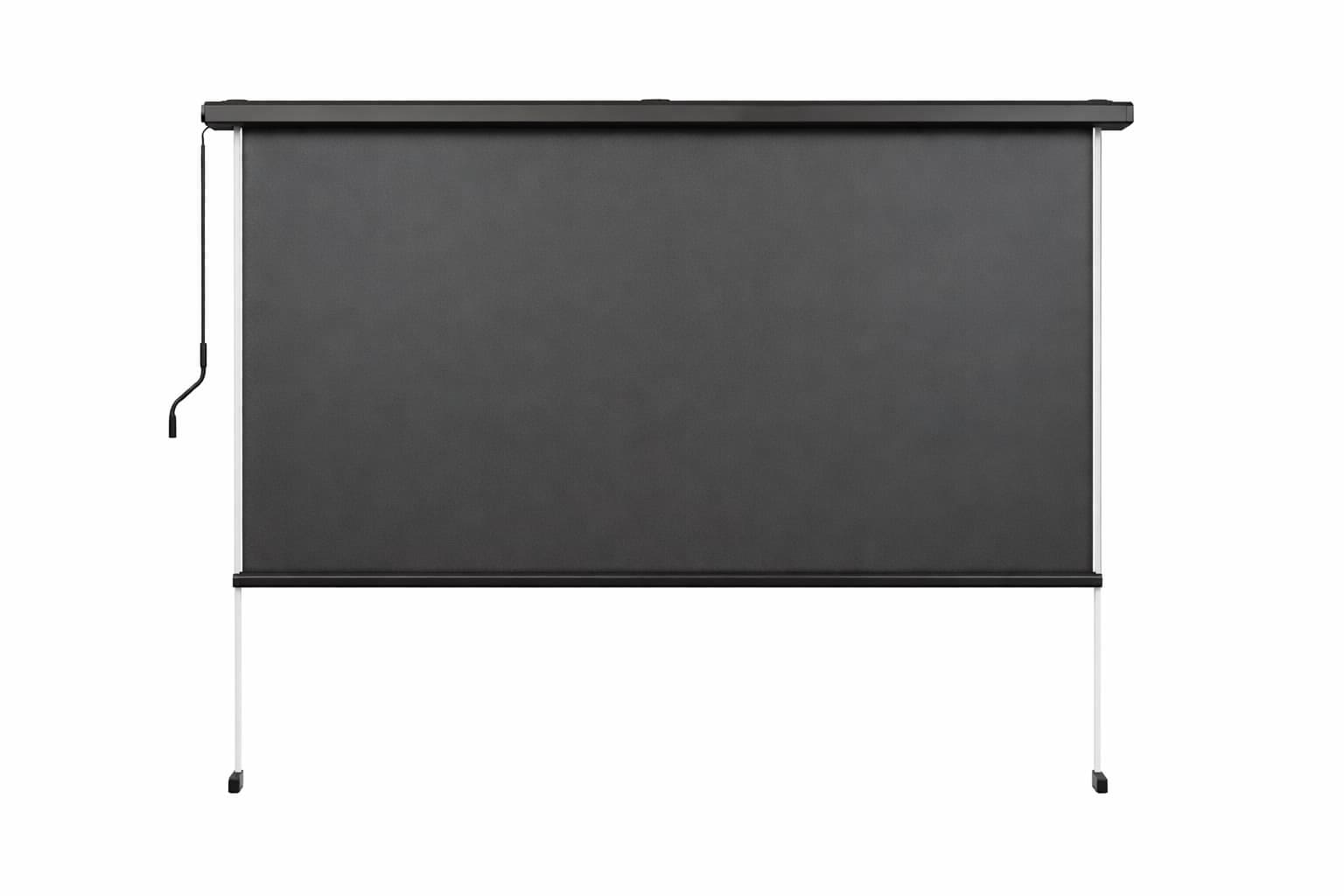

• 1 × Free Manual Wire Blind (Plus System Only)
A manual wire-guided blind (smallest width) is included to provide:
– Sun protection
– Wind control
– Added privacy

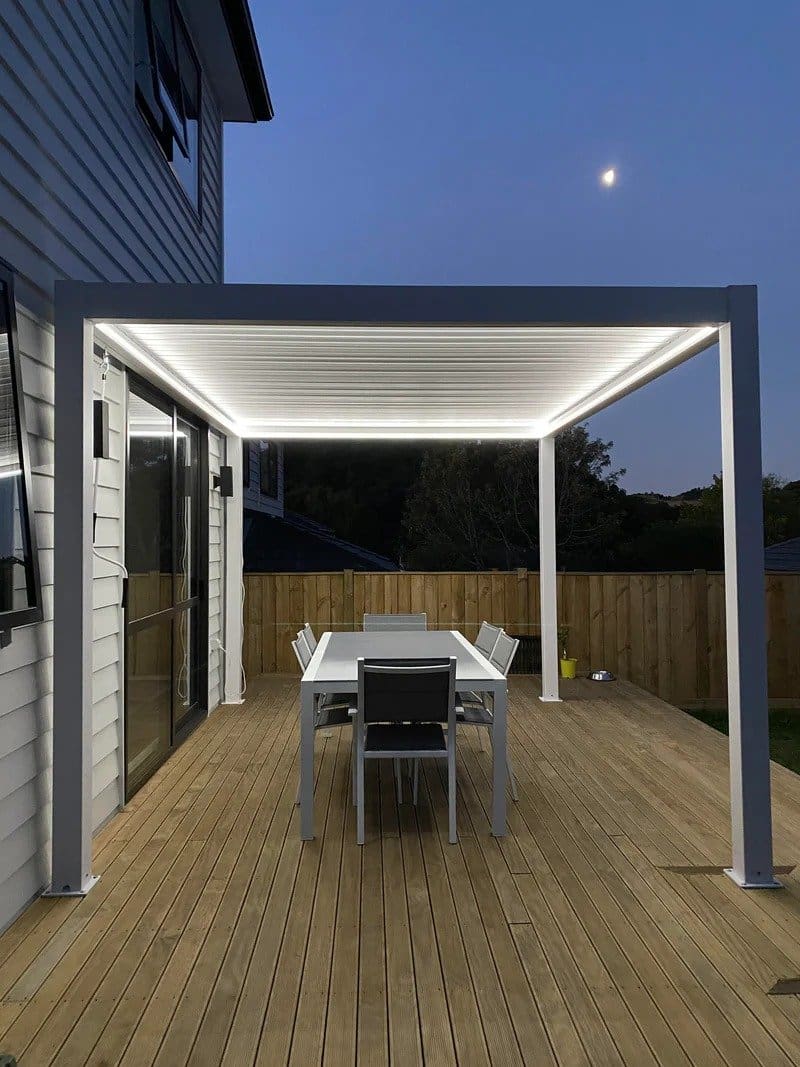

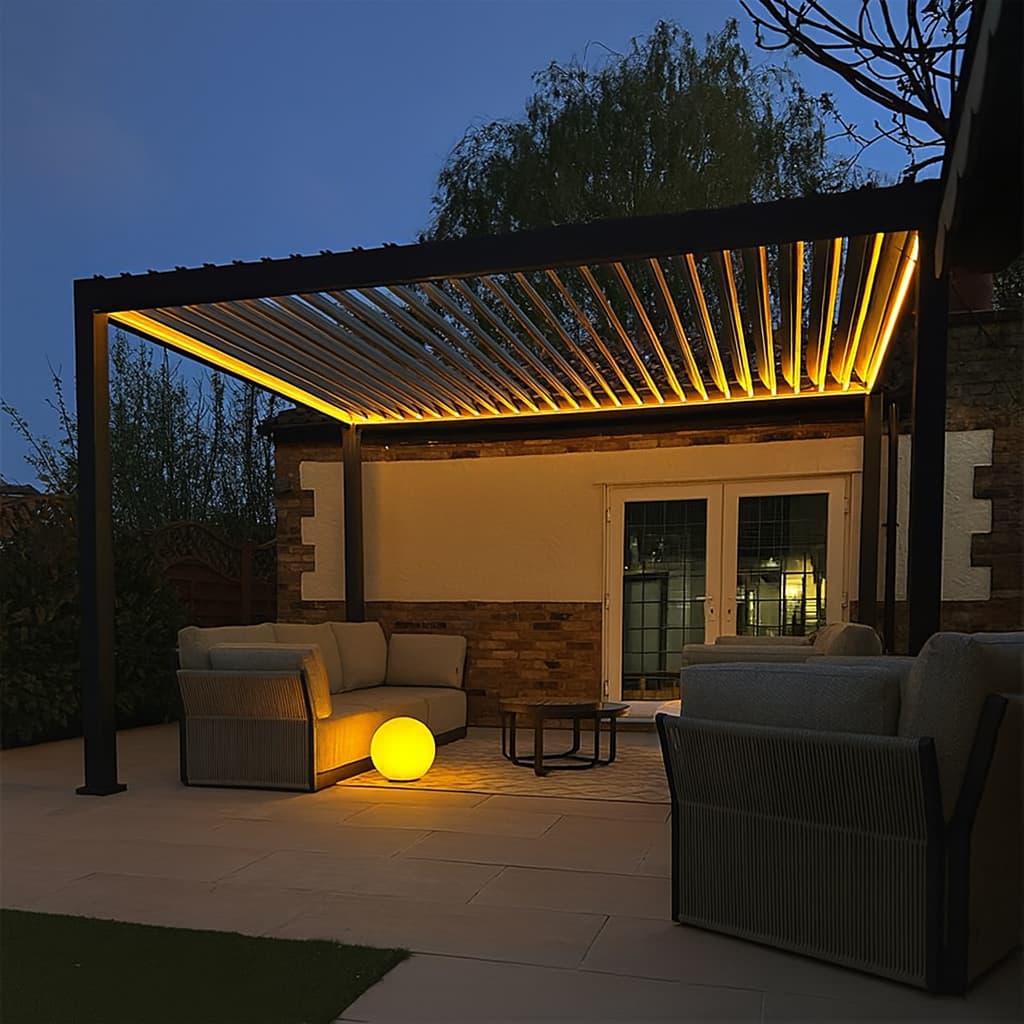

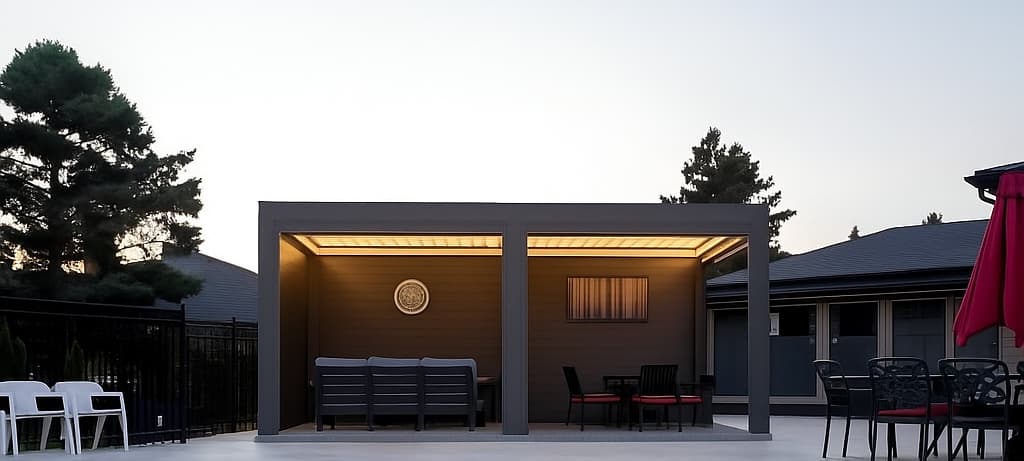

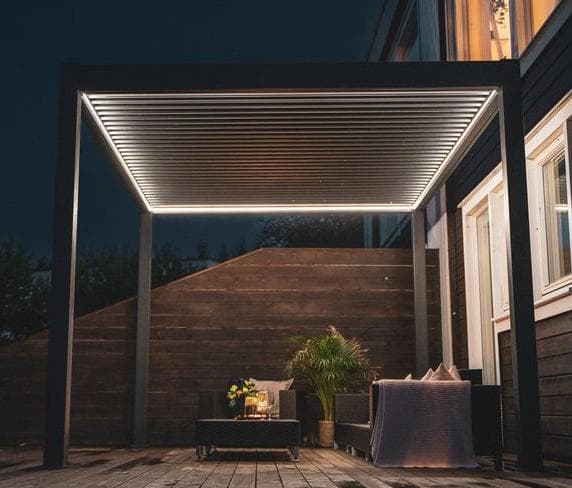

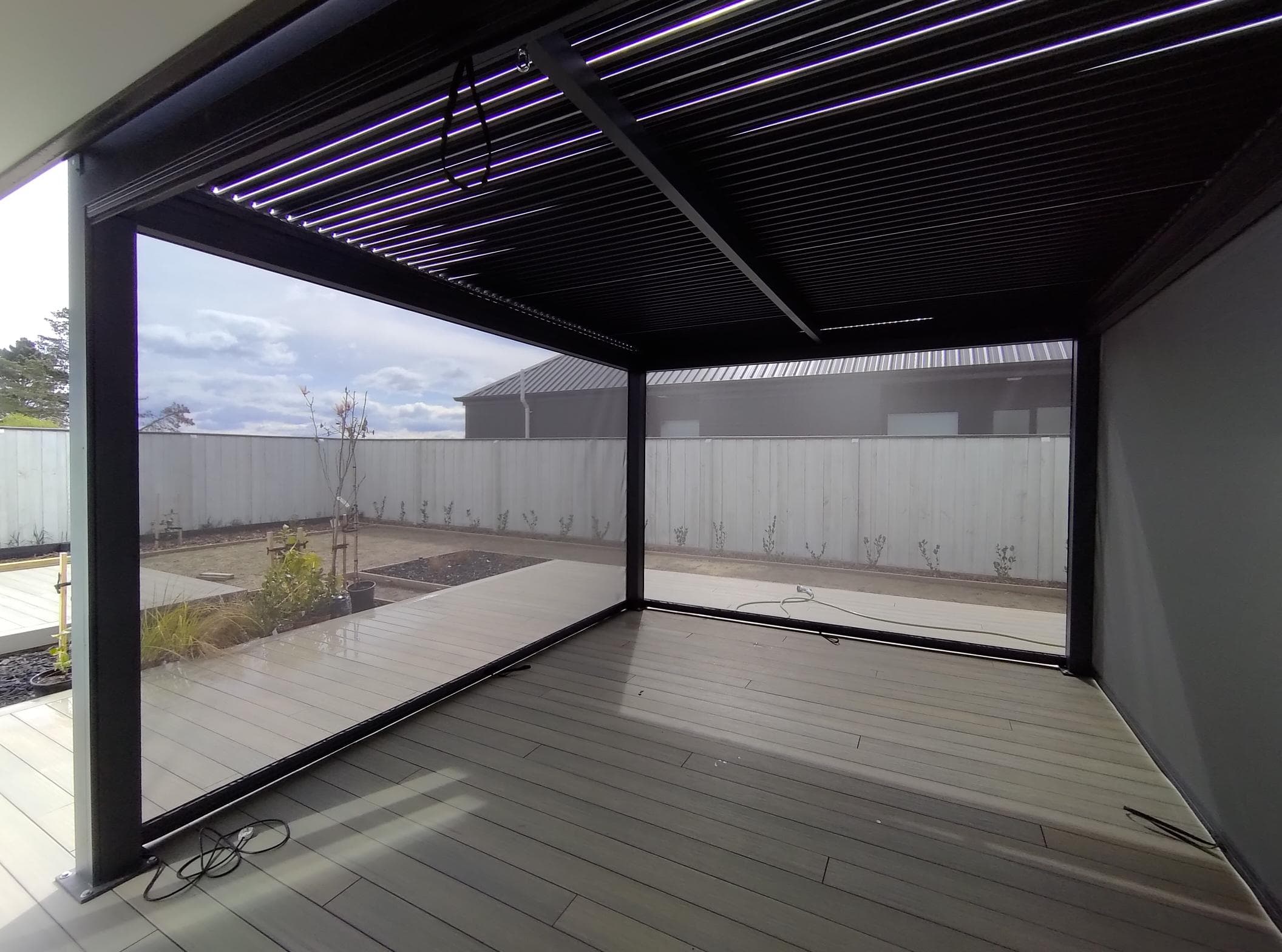

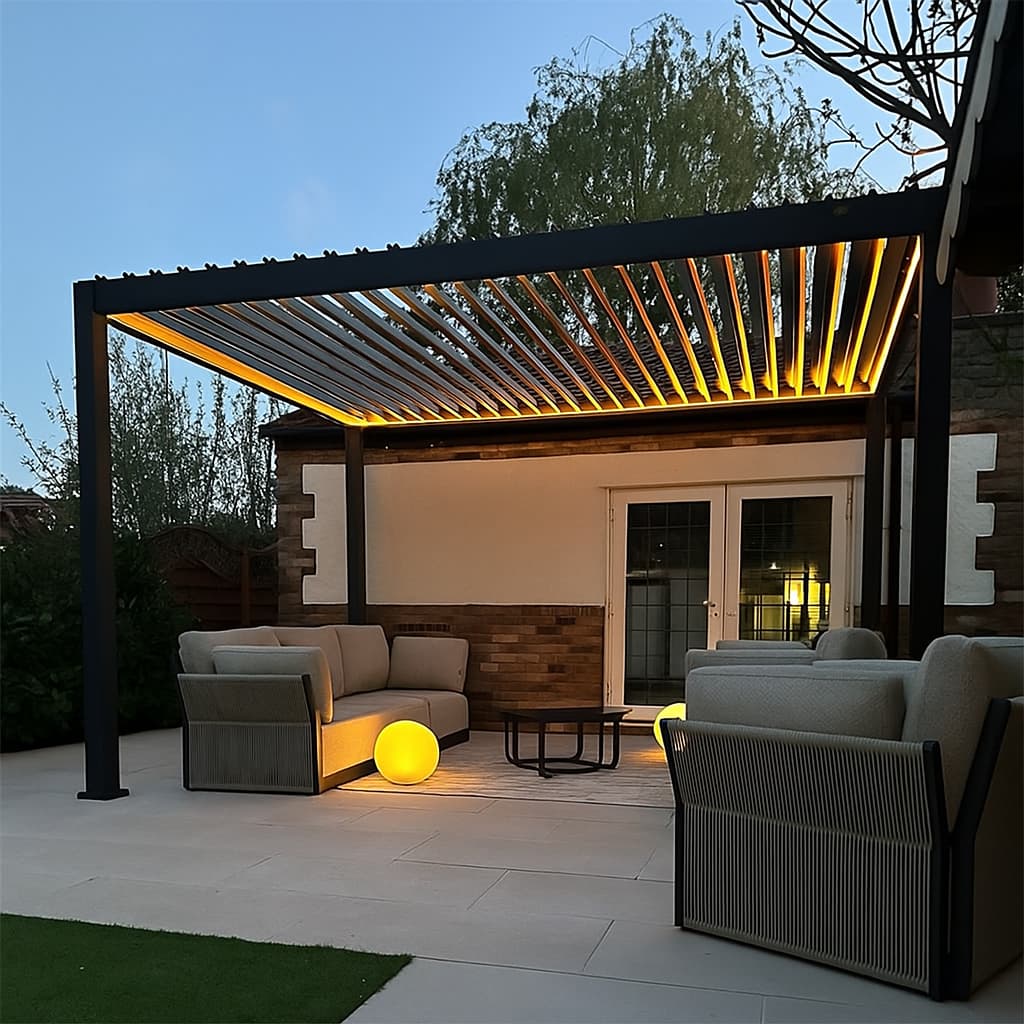

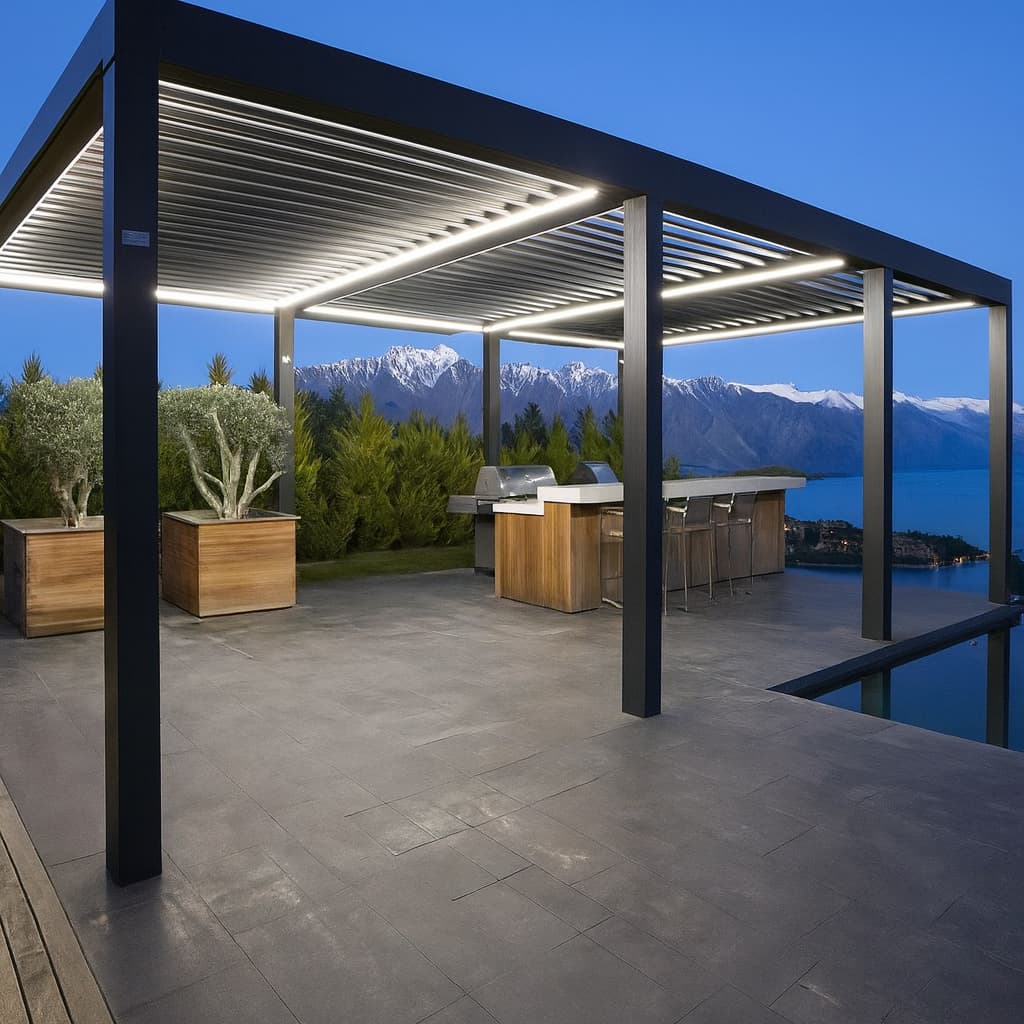

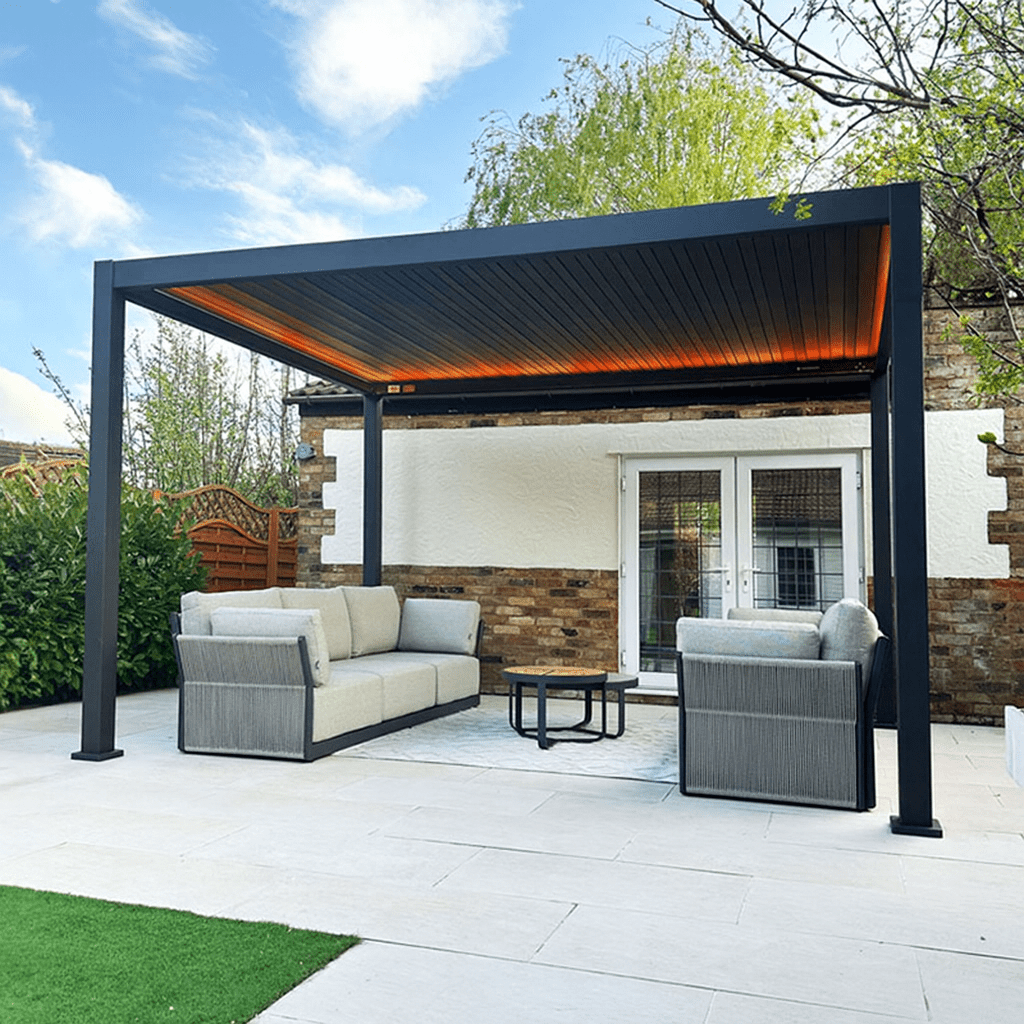

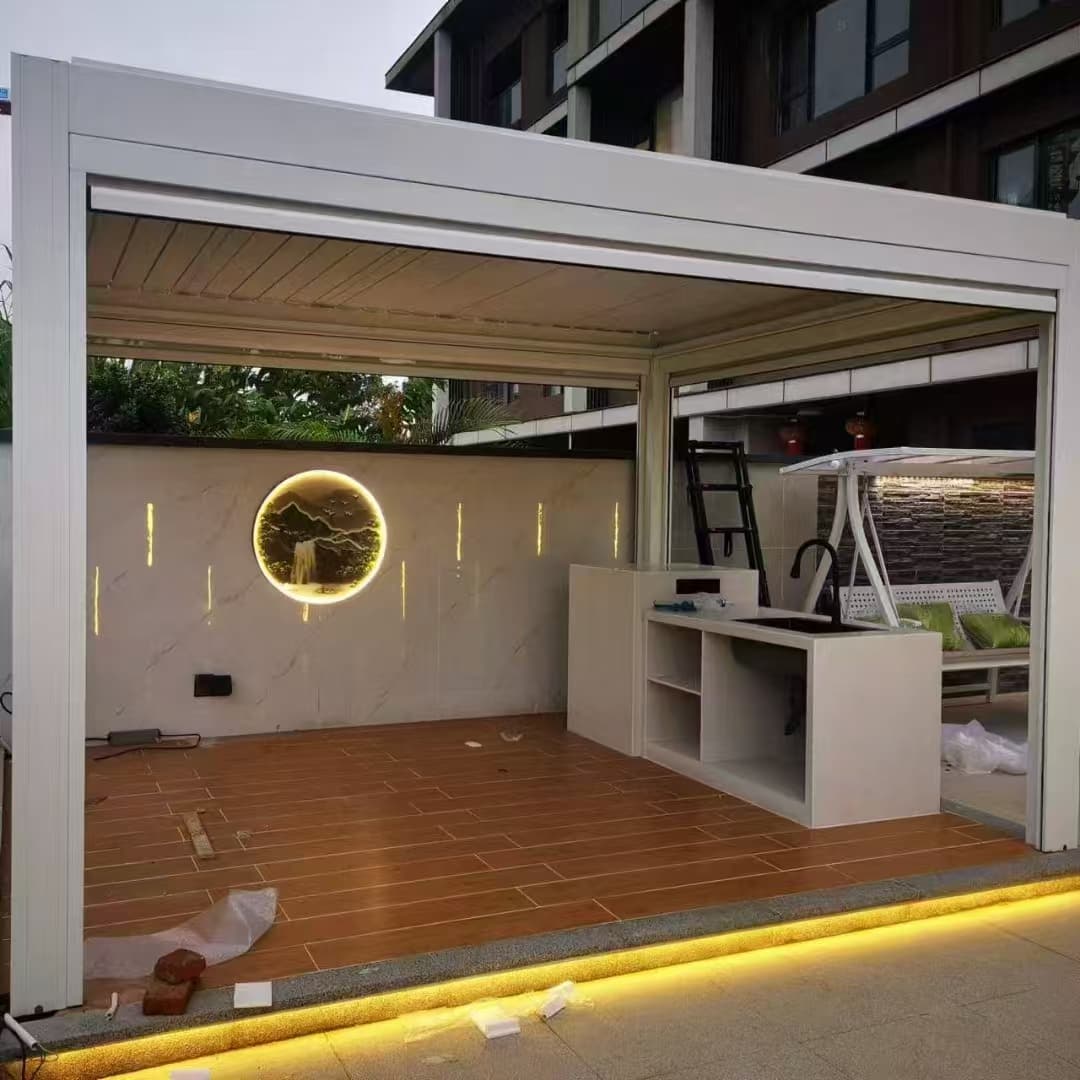

• Surround LED Lighting (Manual + Motorised Systems)
Integrated LED surround lighting is included as standard across all systems, providing:
– Night-time usability
– Ambient outdoor lighting
– Built-in finish (no retrofit required)

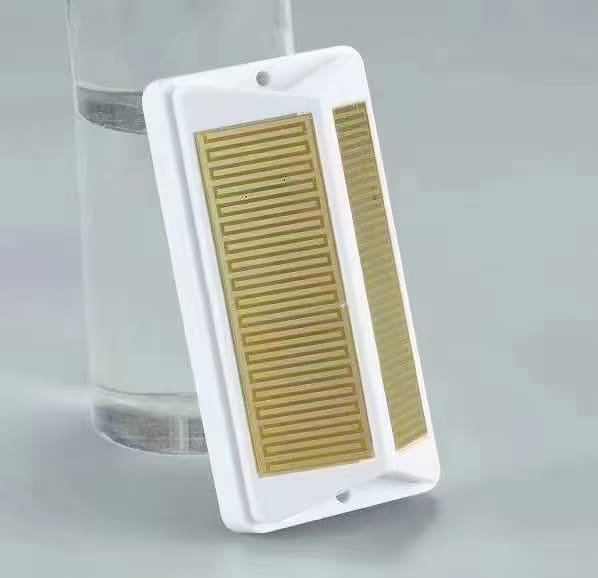

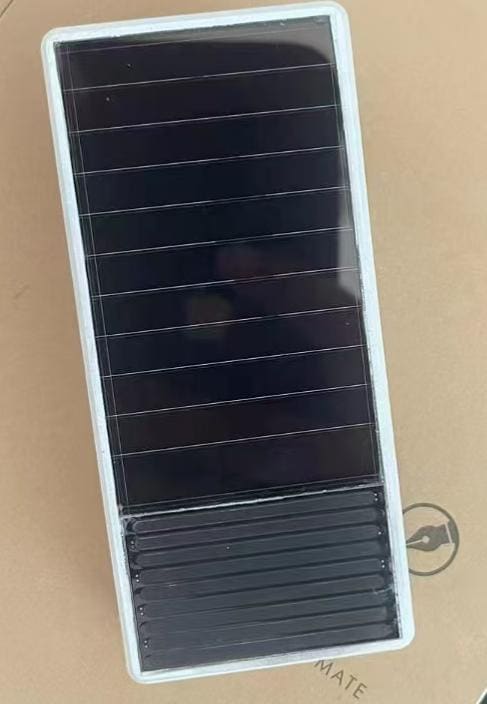

• Free Rain Sensor (Motorised Systems Only)
Motorised systems include an automatic rain sensor that:
– Detects rainfall
– Closes louvres automatically
– Protects furniture and outdoor areas without manual input
Why This Matters
Unlike basic pergola kits, the Cerberus Plus system includes key upgrades as standard, reducing the need for costly add-ons while improving usability and performance:
• Smart control ready (motorised systems)
• Built-in lighting — no extra installation required
• Weather automation included
• Immediate functionality straight out of the kit

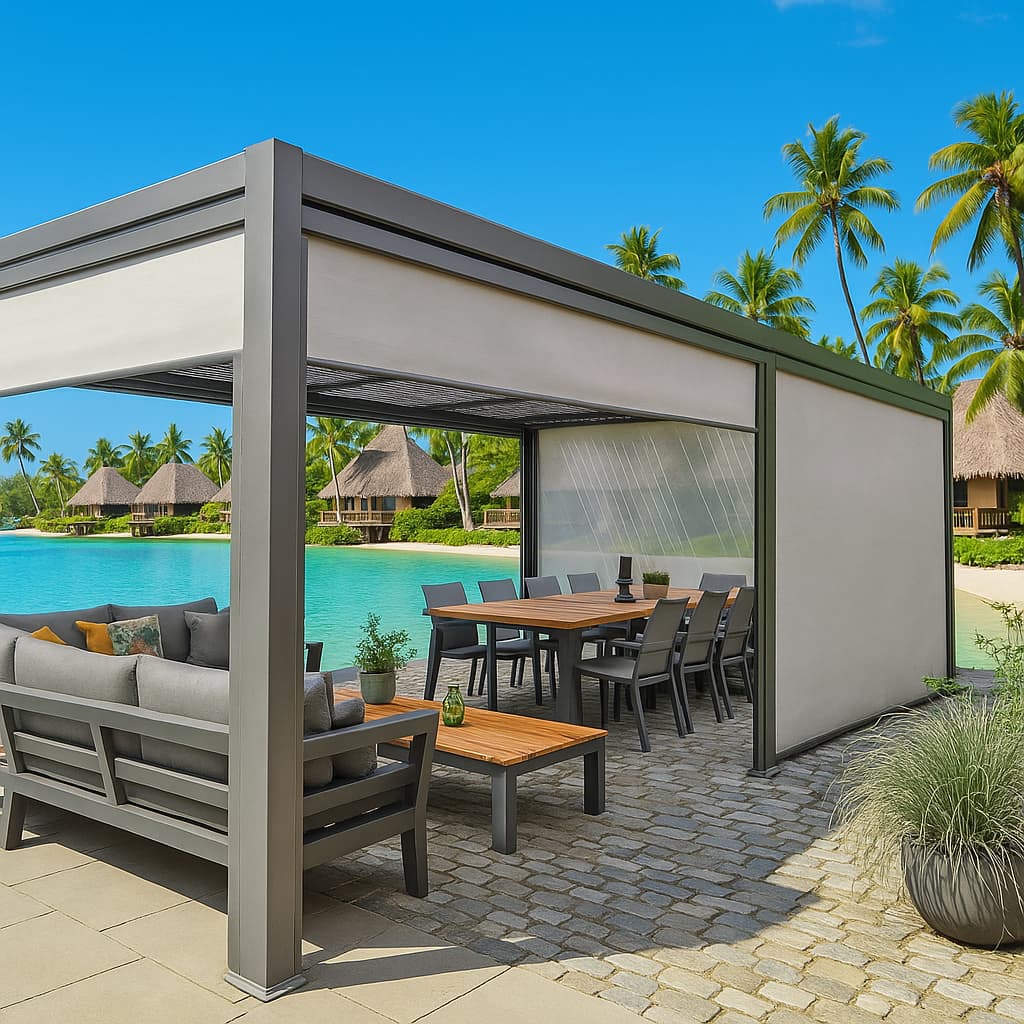

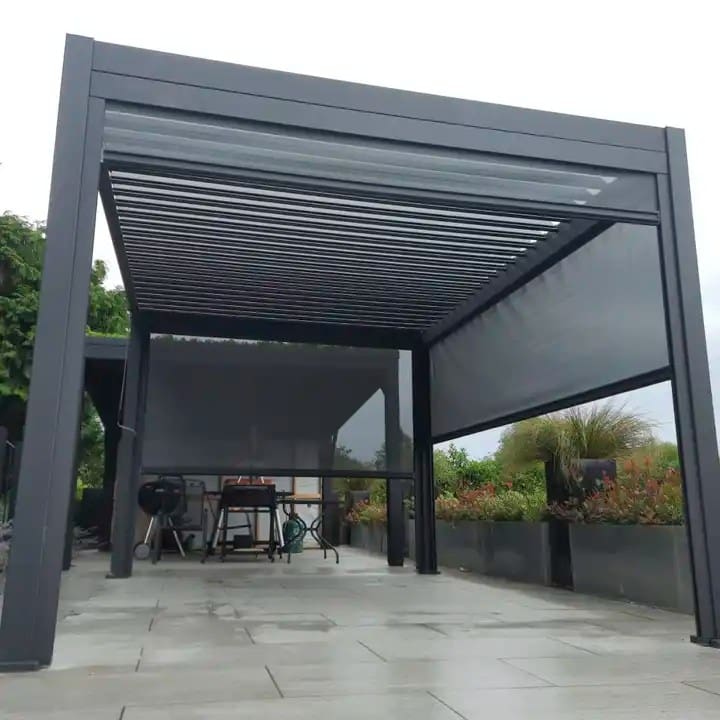

Add-Ons & Upgrades (NZD + GST)

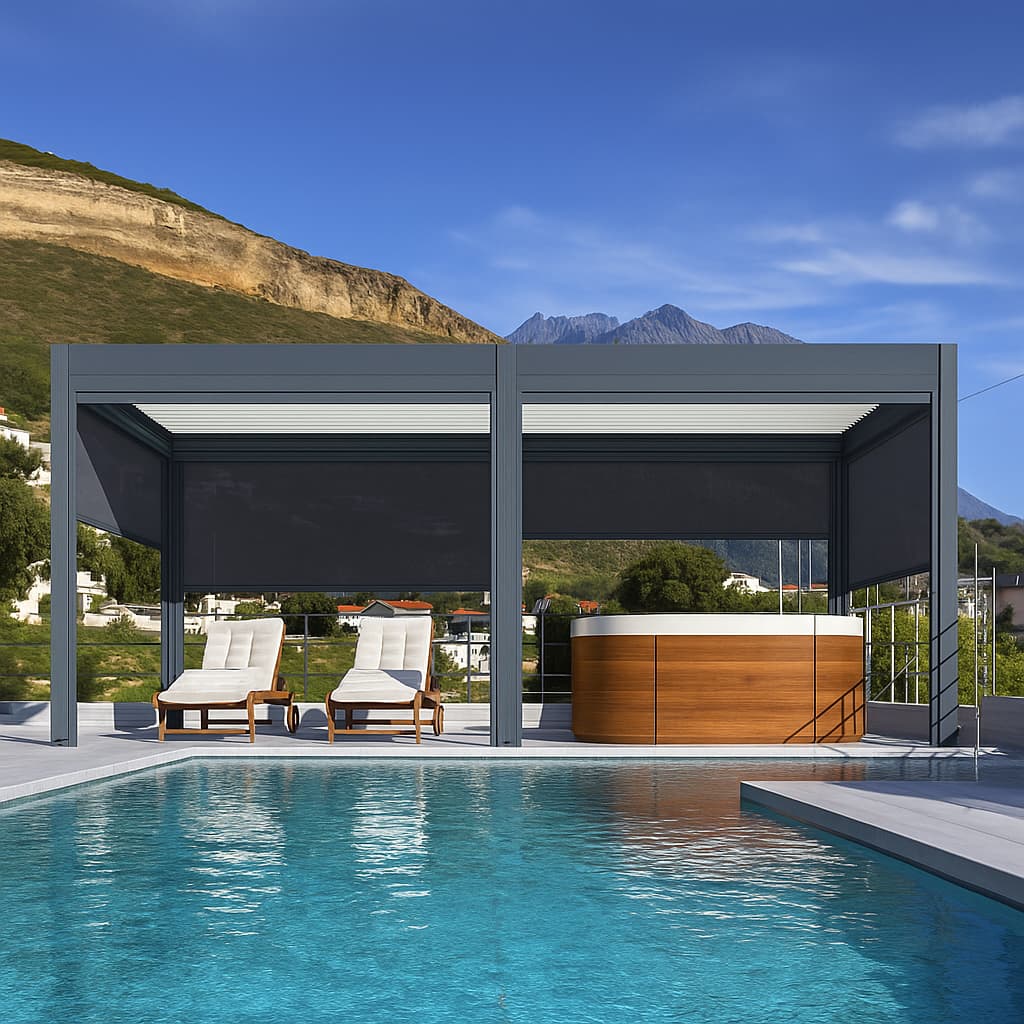

• Manual Track Blind – 3 m: $900
• Manual Track Blind – 4 m: $1,200
• Motorised Track Blind – 3 m: $1,200
• Motorised Track Blind – 4 m: $1,600

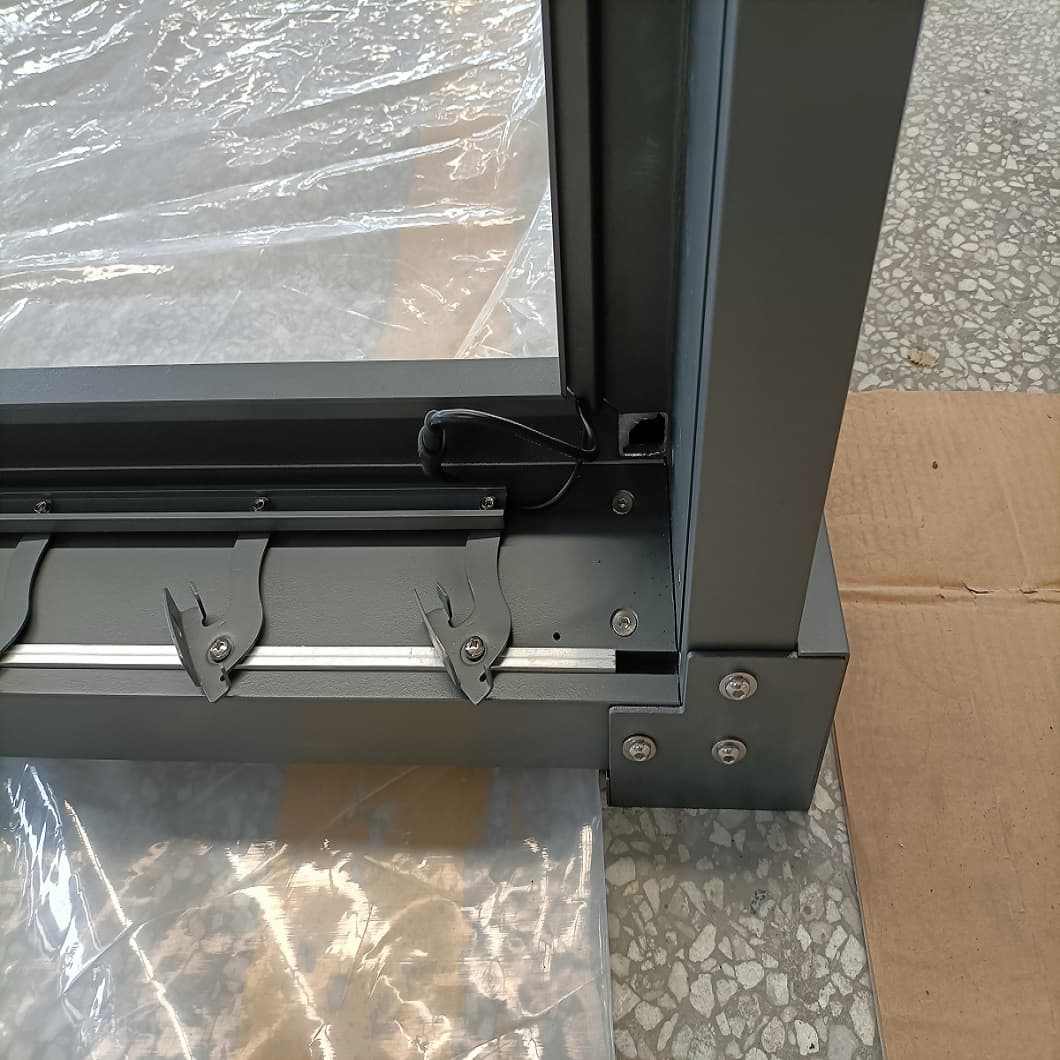

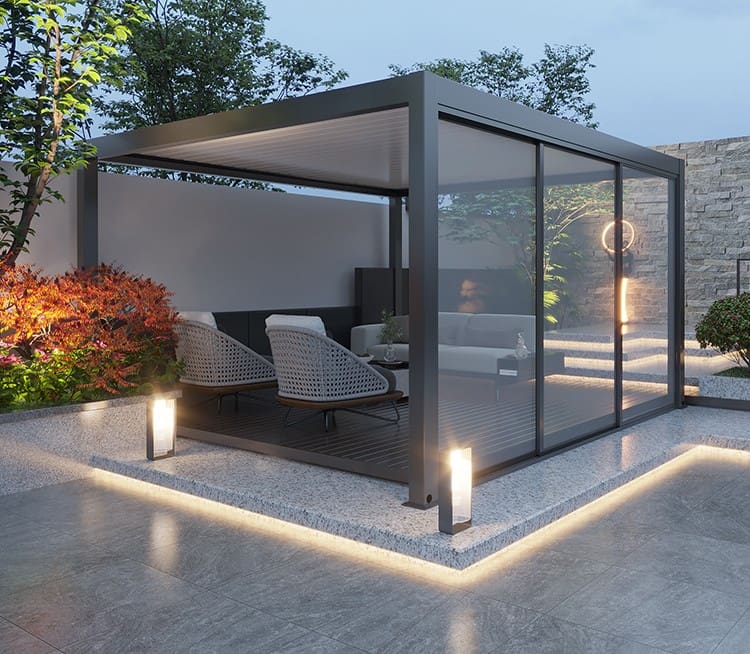

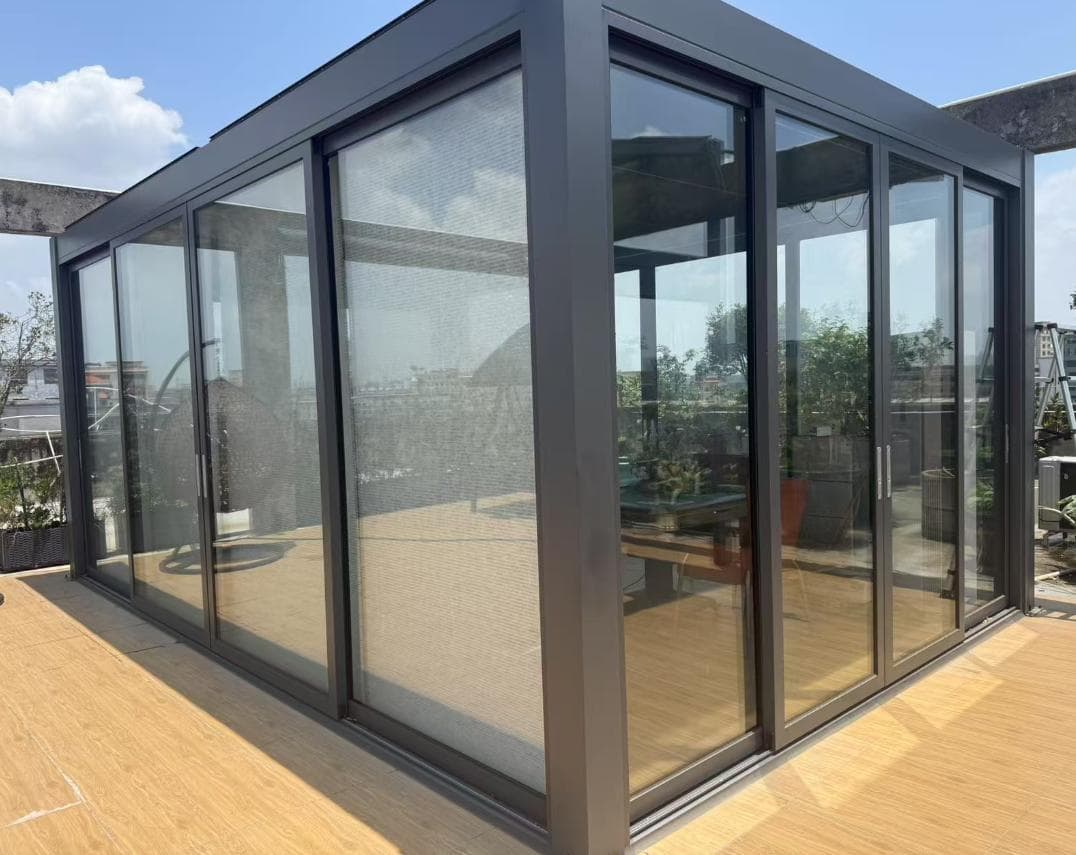

• Glass Sliding Door – 3 m: $1,700
• Glass Sliding Door – 4 m: $2,200

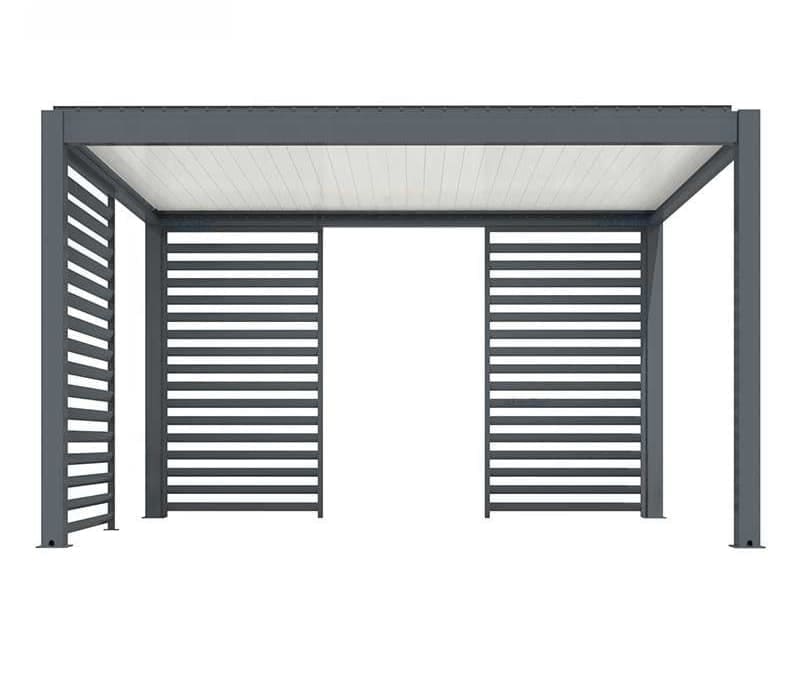

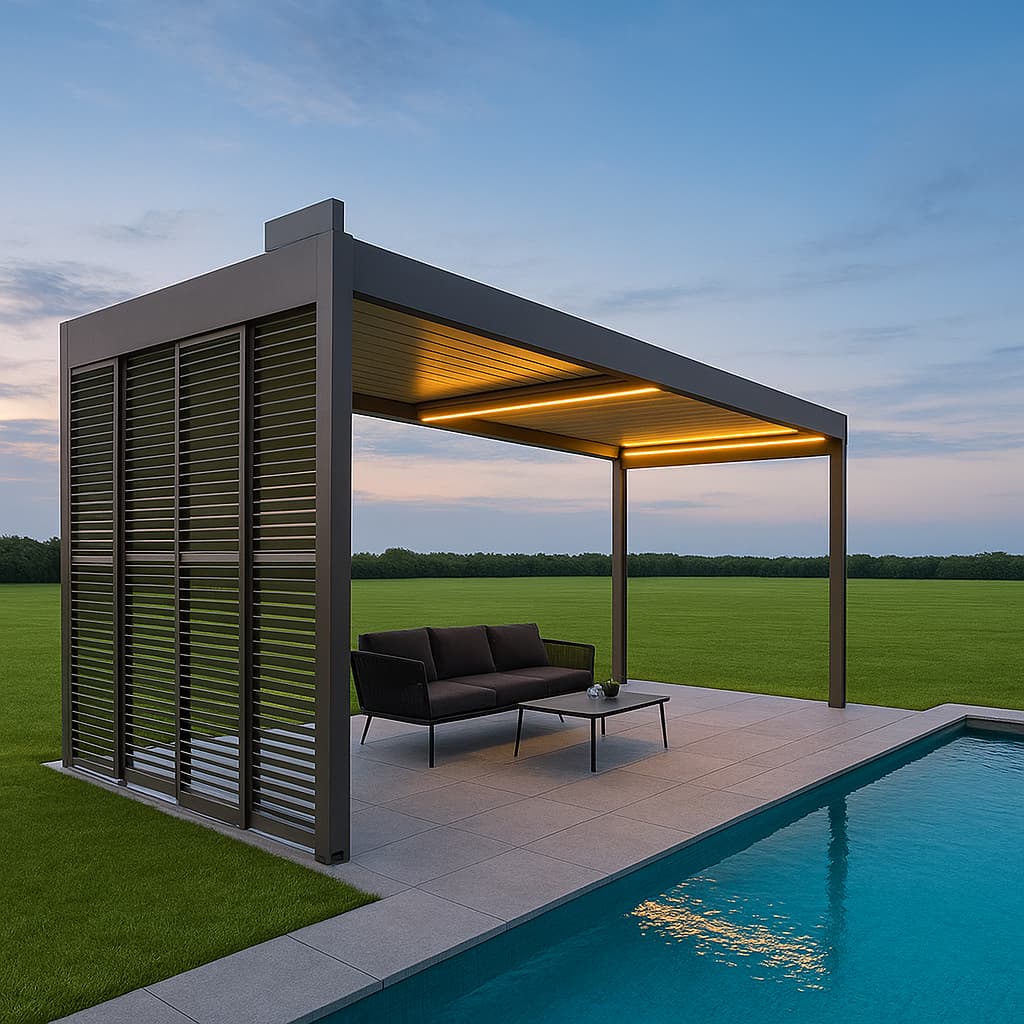

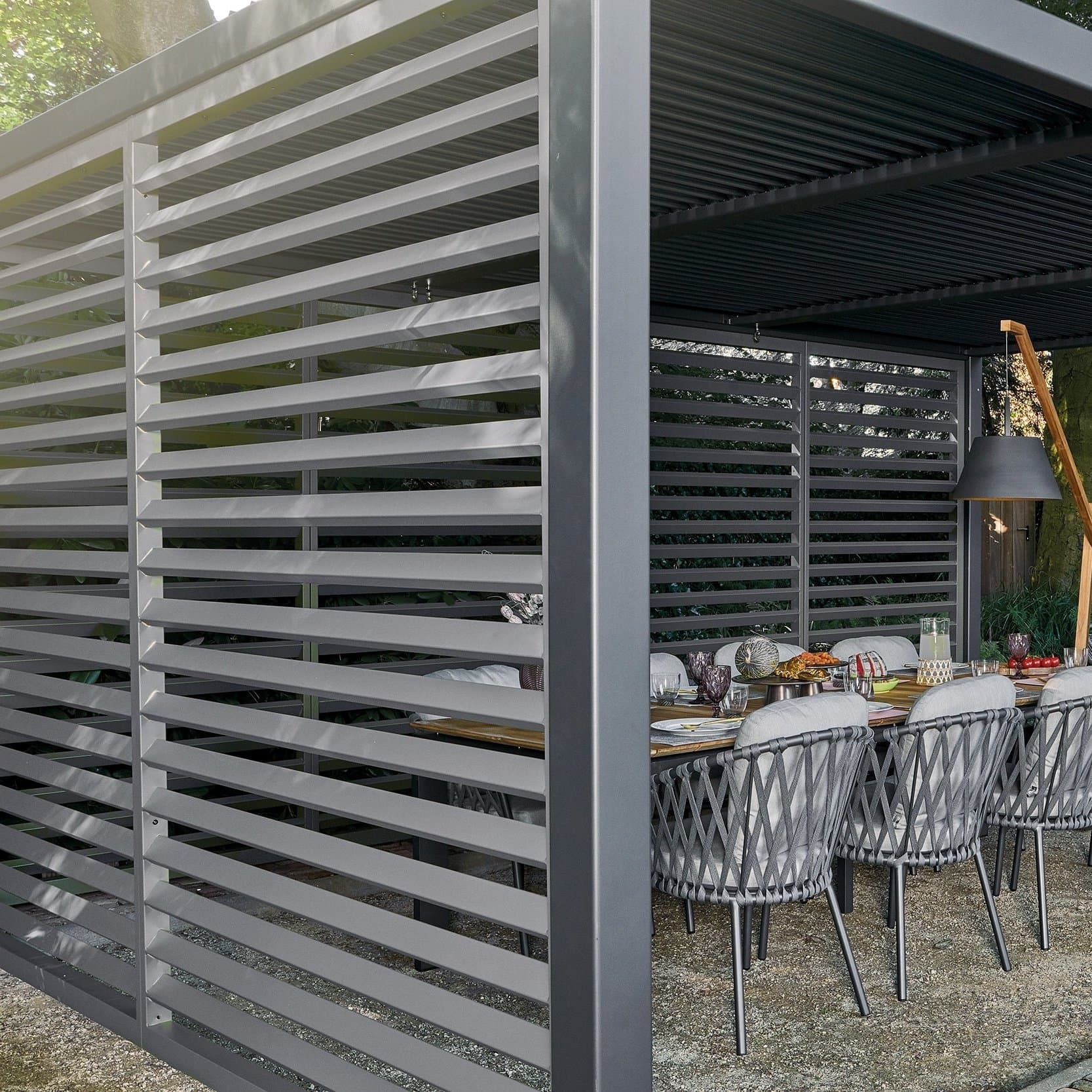

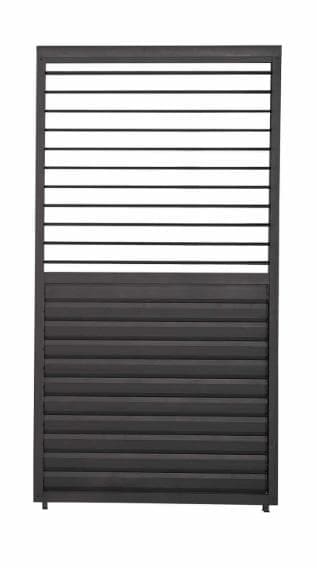

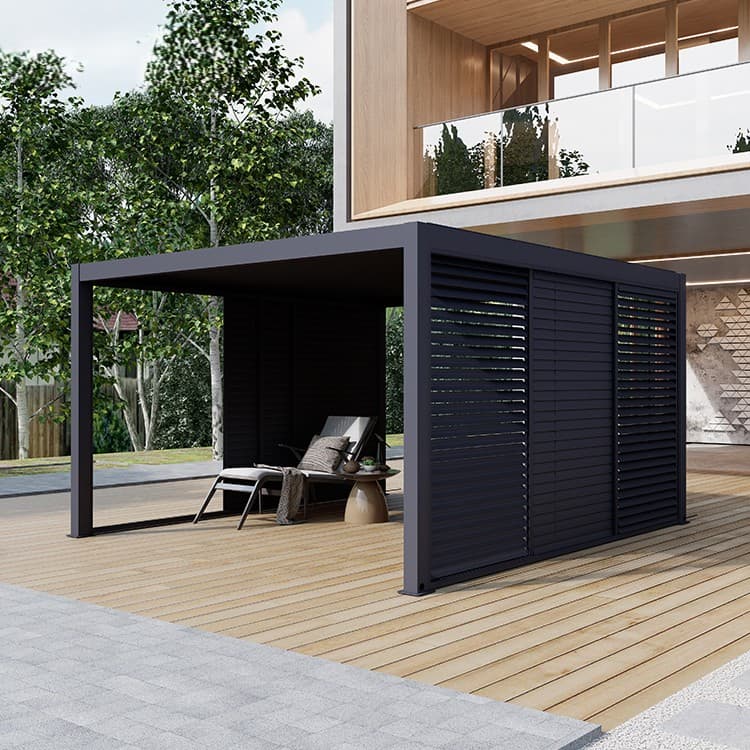

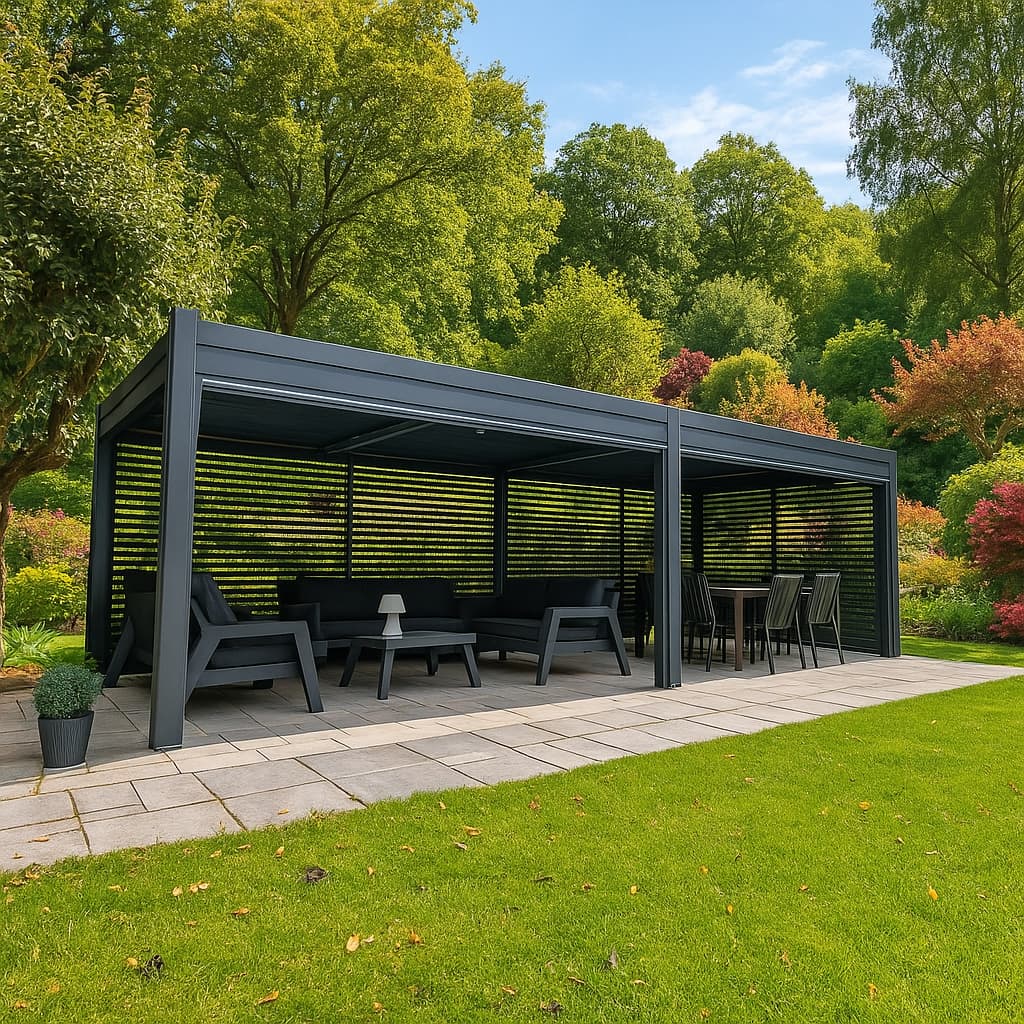

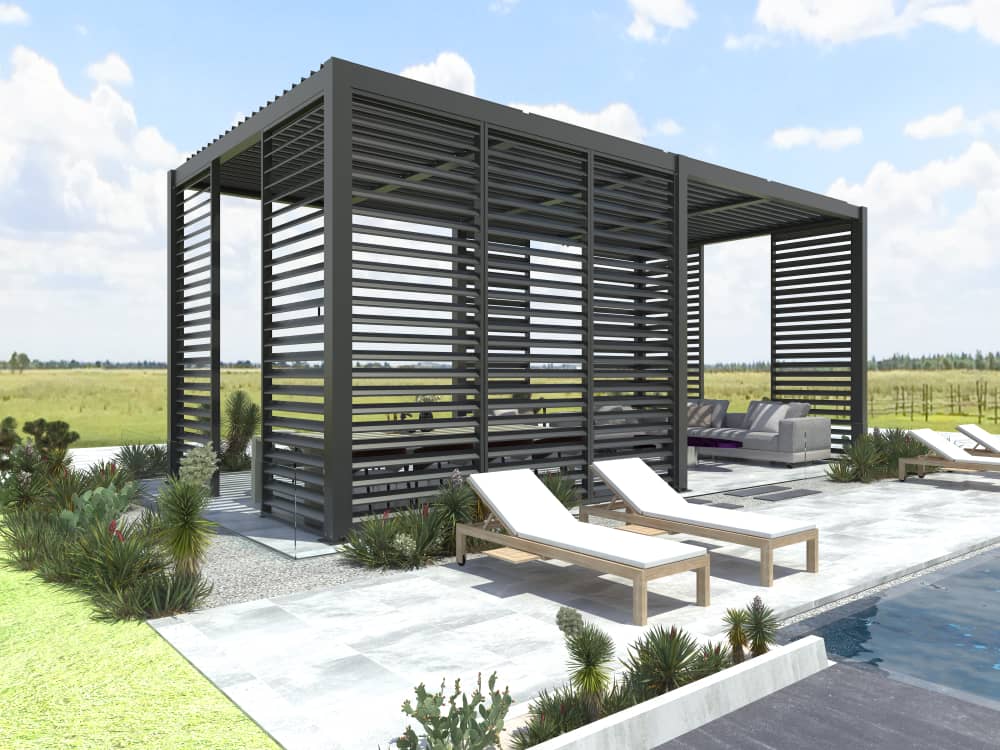

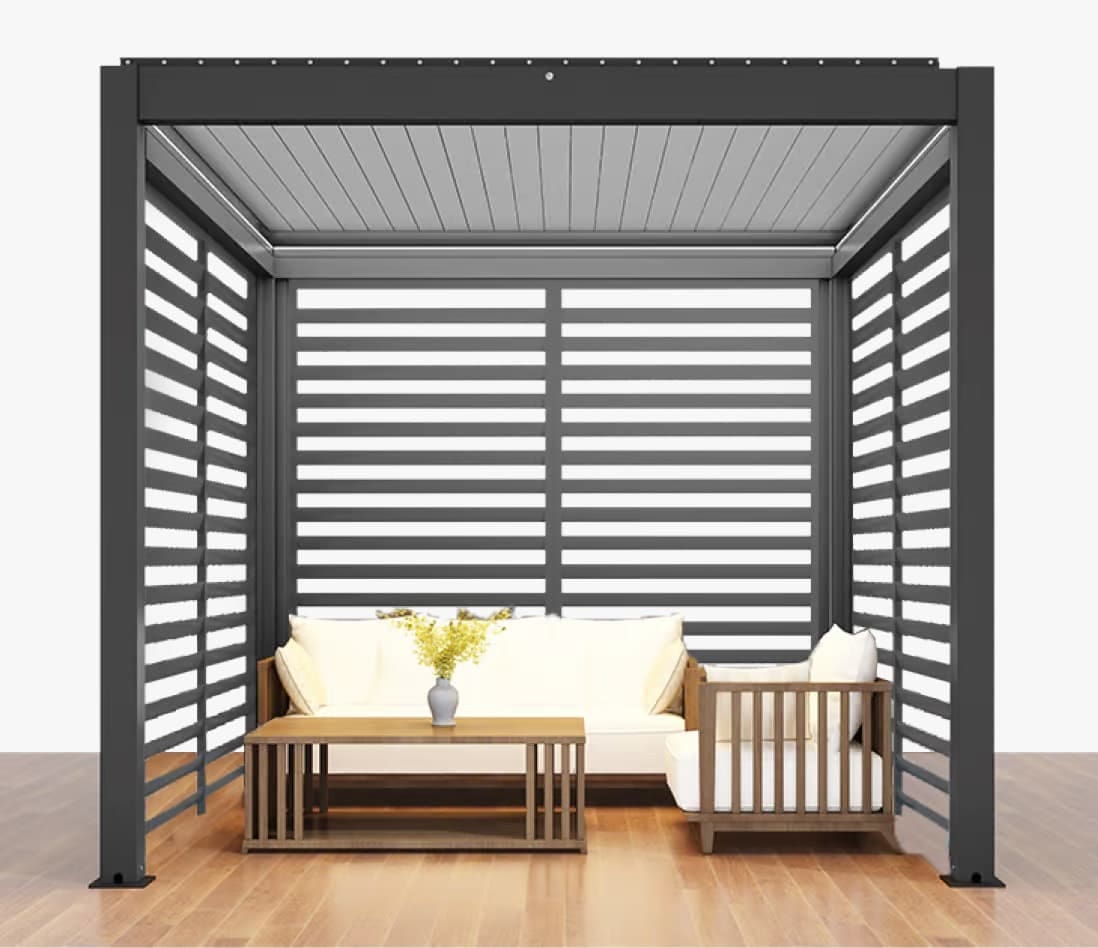

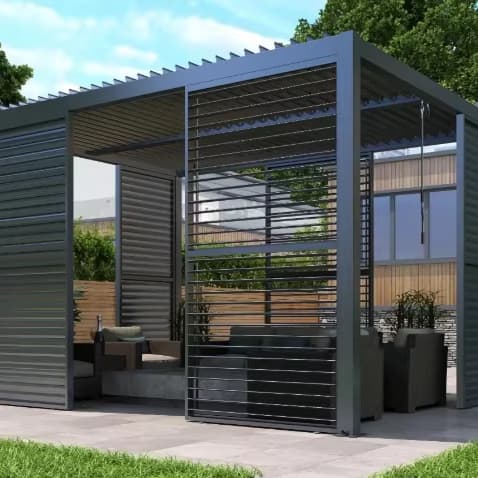

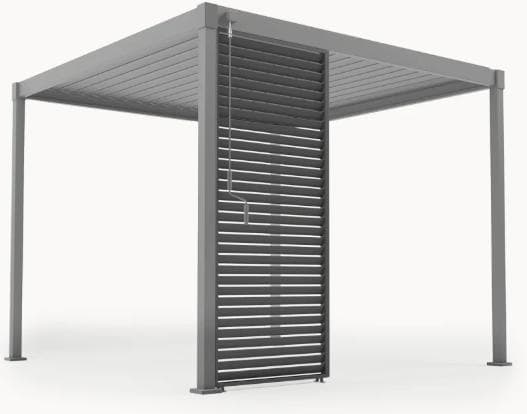

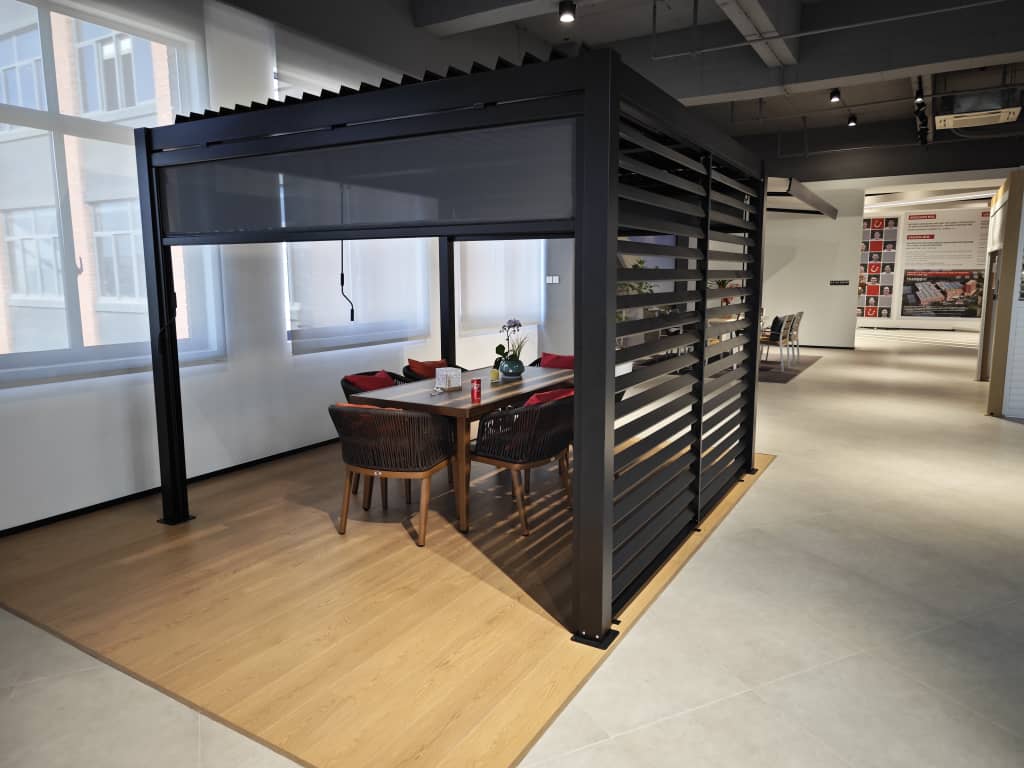

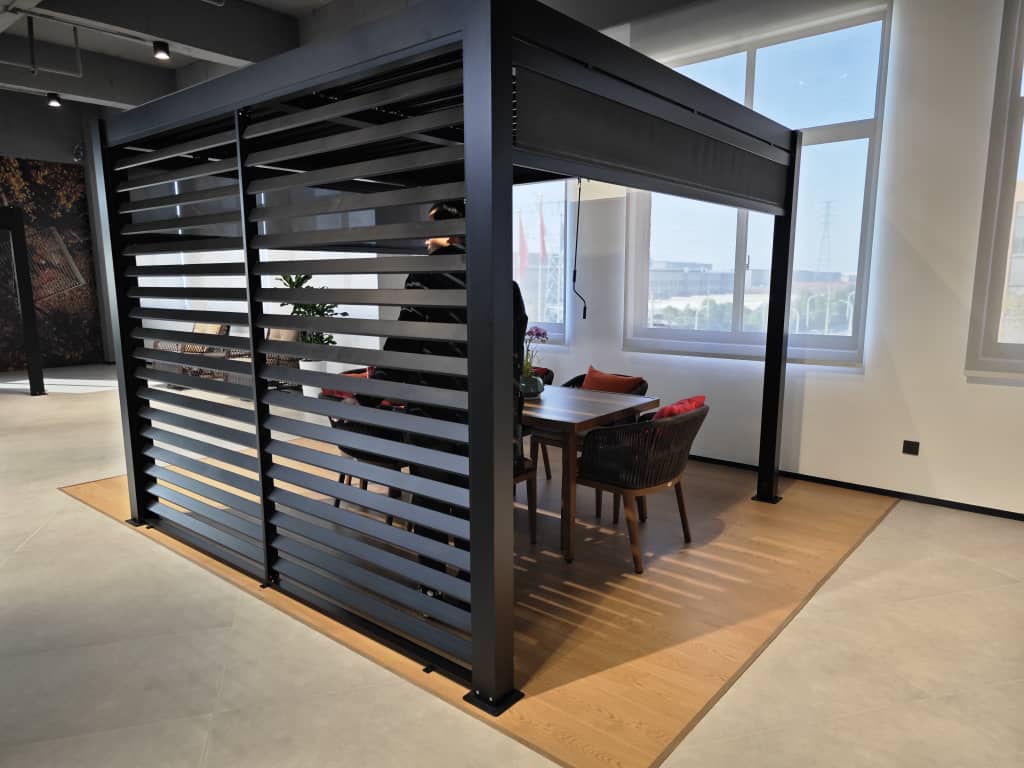

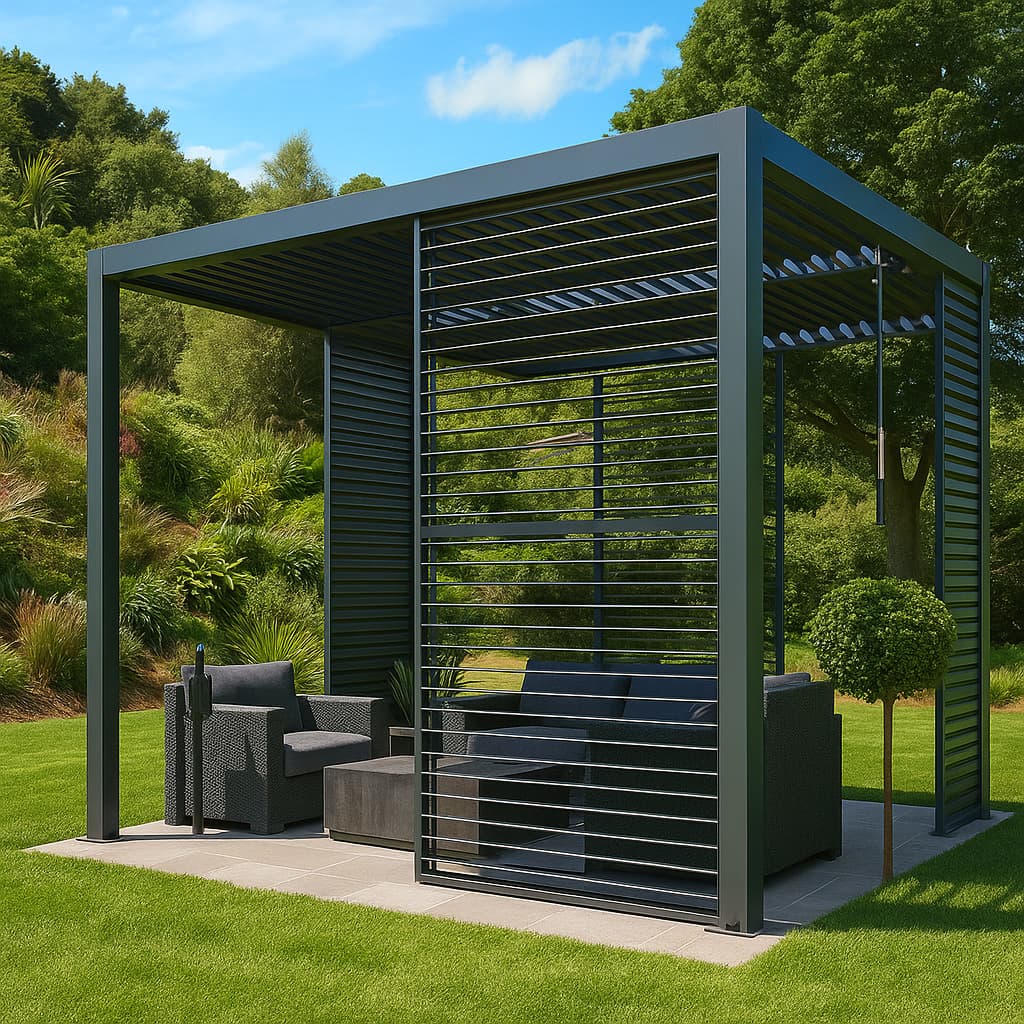

• Louvre Wall – 3 m: $3,000
• Louvre Wall – 4 m: $3,500

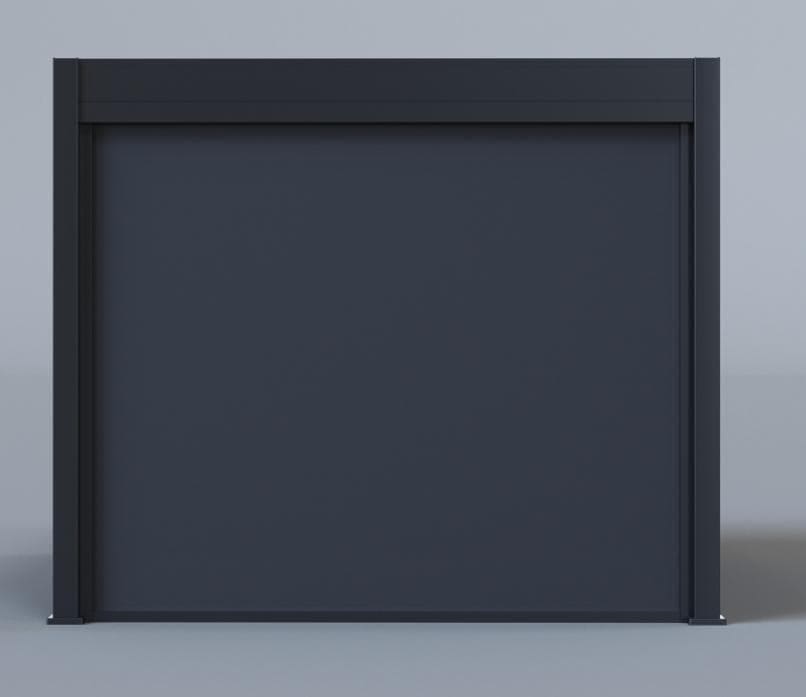

• Solid Aluminium Wall – 3 m: $2,000
• Solid Aluminium Wall – 4 m: $2,400

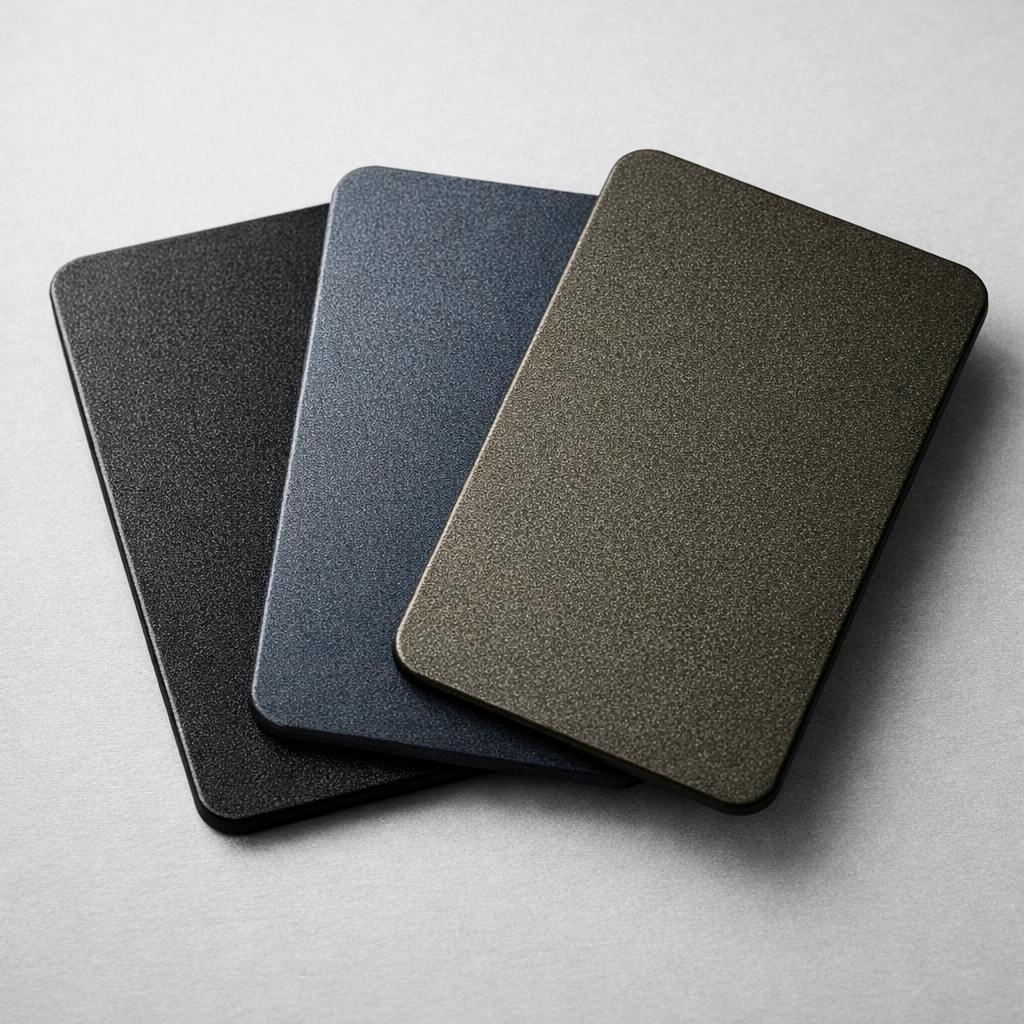

Colour Options
• Anthracite Grey – RAL 7016 (Matt)
• Aluminium Grey – RAL 9006 (Matt)
• White – RAL 9016 (Gloss)

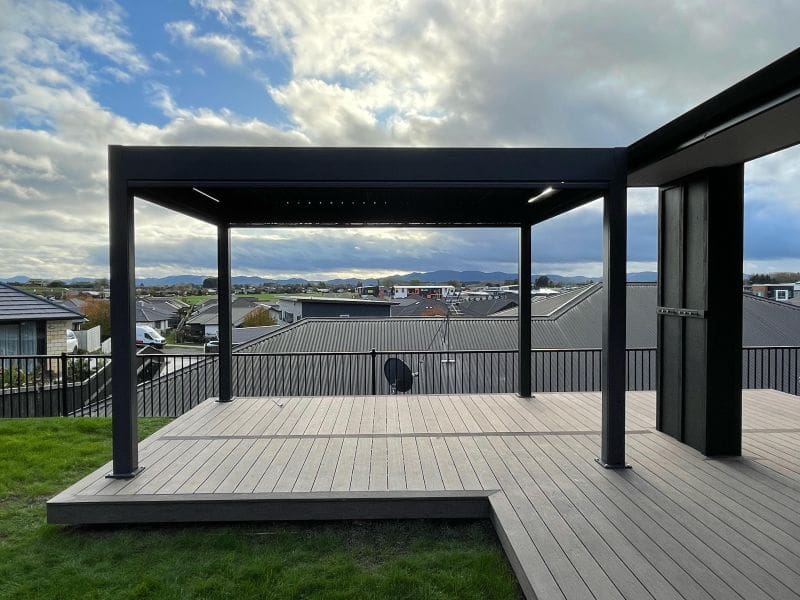

• Black – RAL 9005 (Matt)

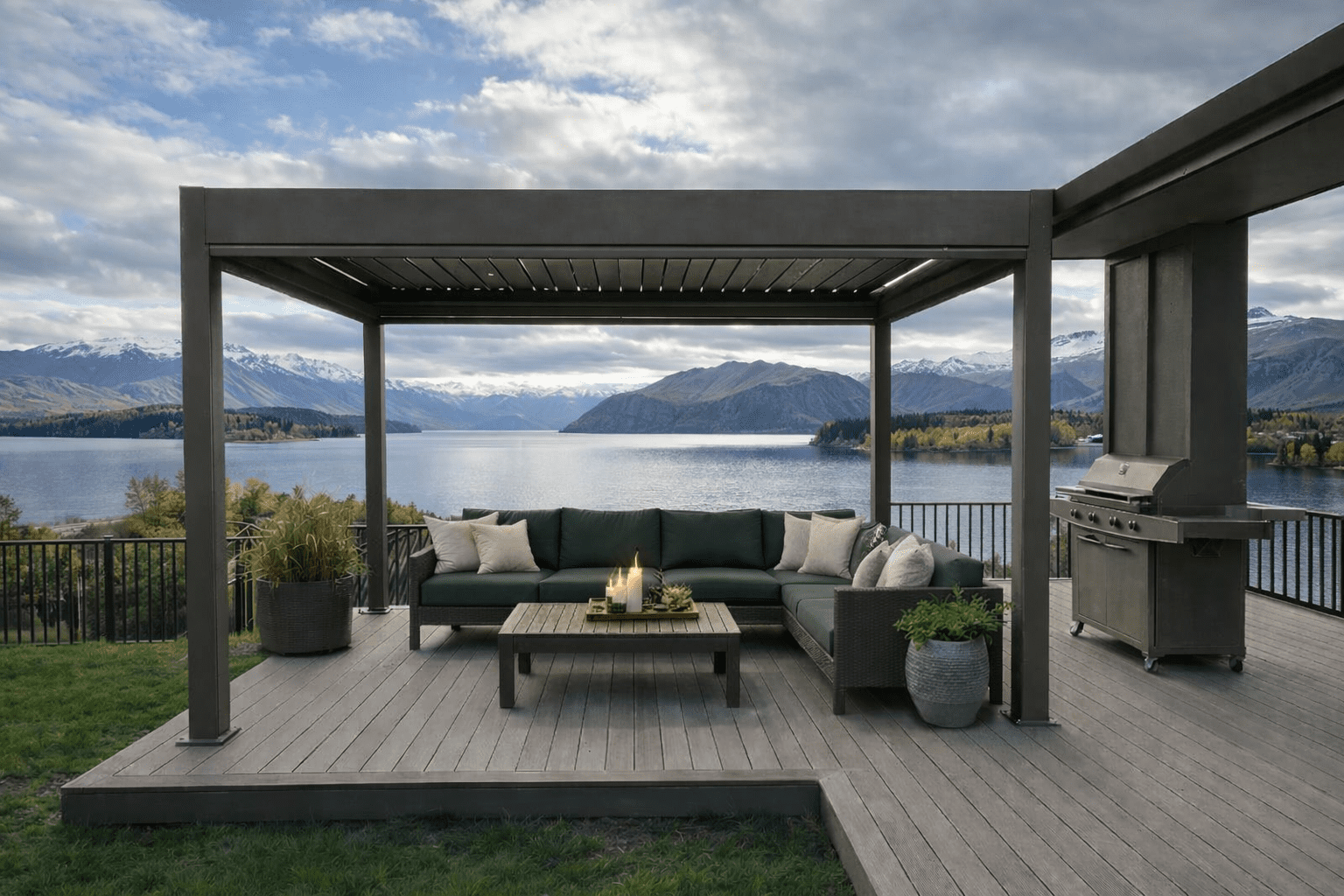

• Flaxpod, Grey Friars, Ironsand – Custom (Surcharge applies)

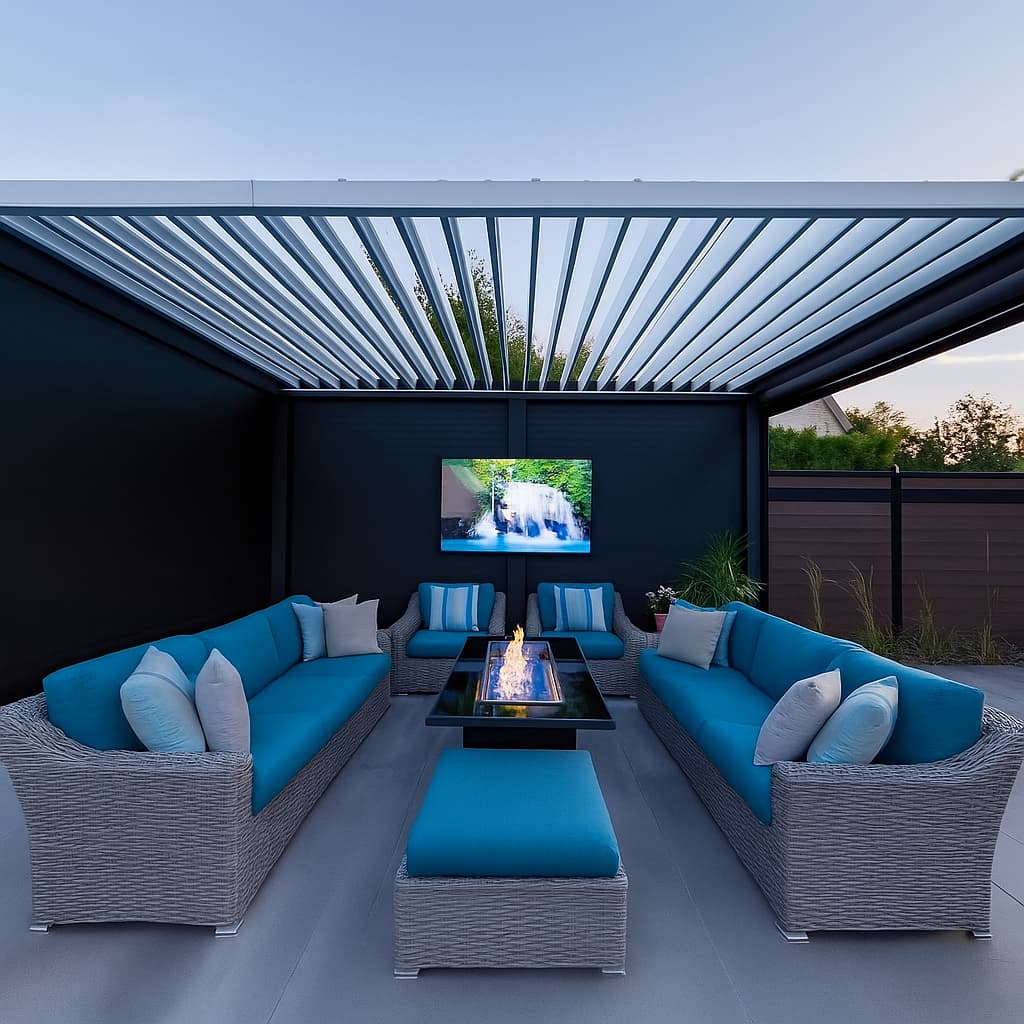

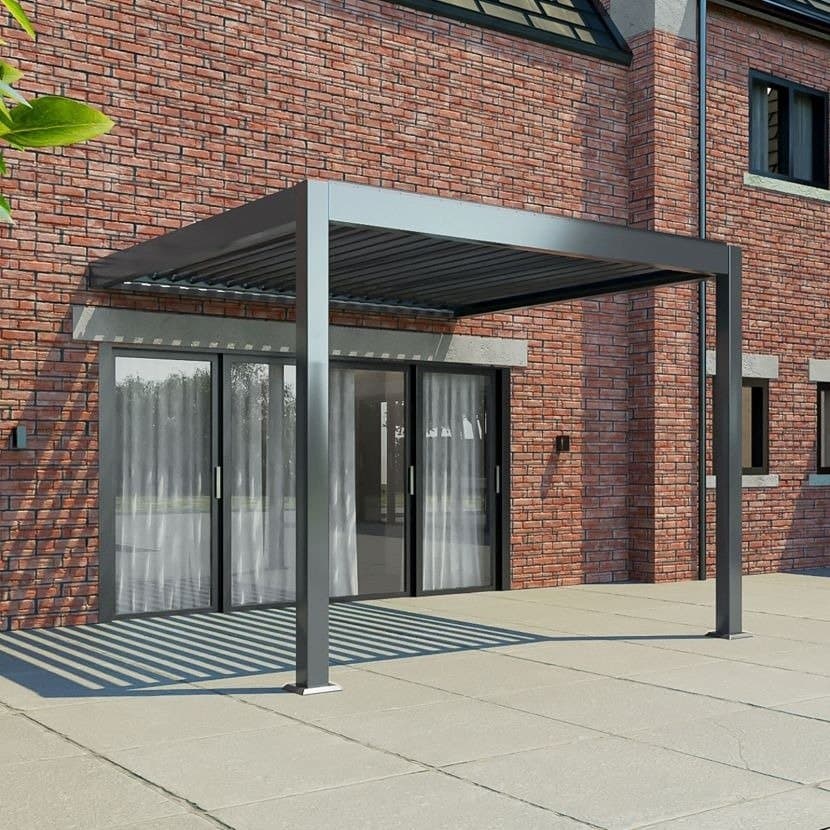

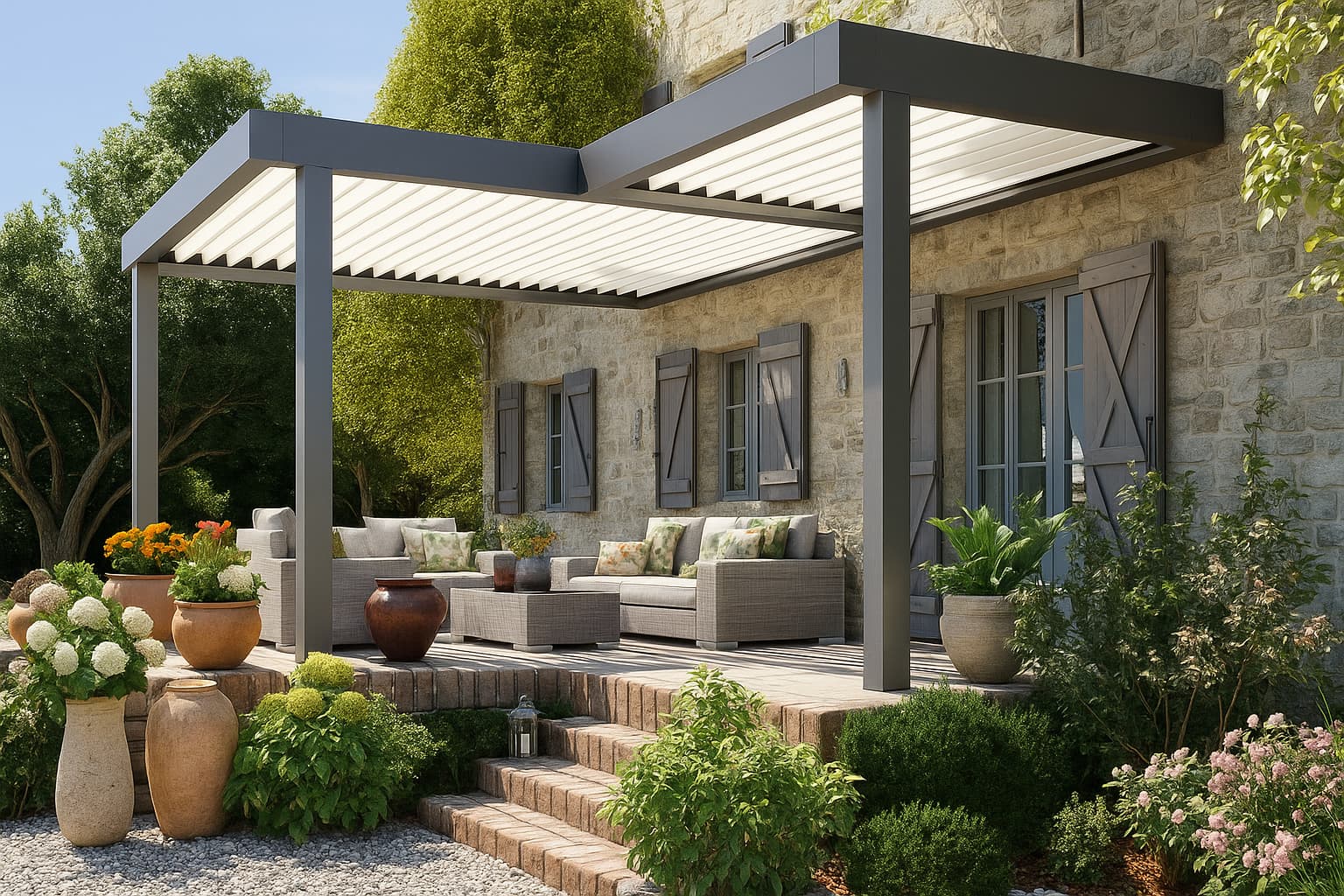

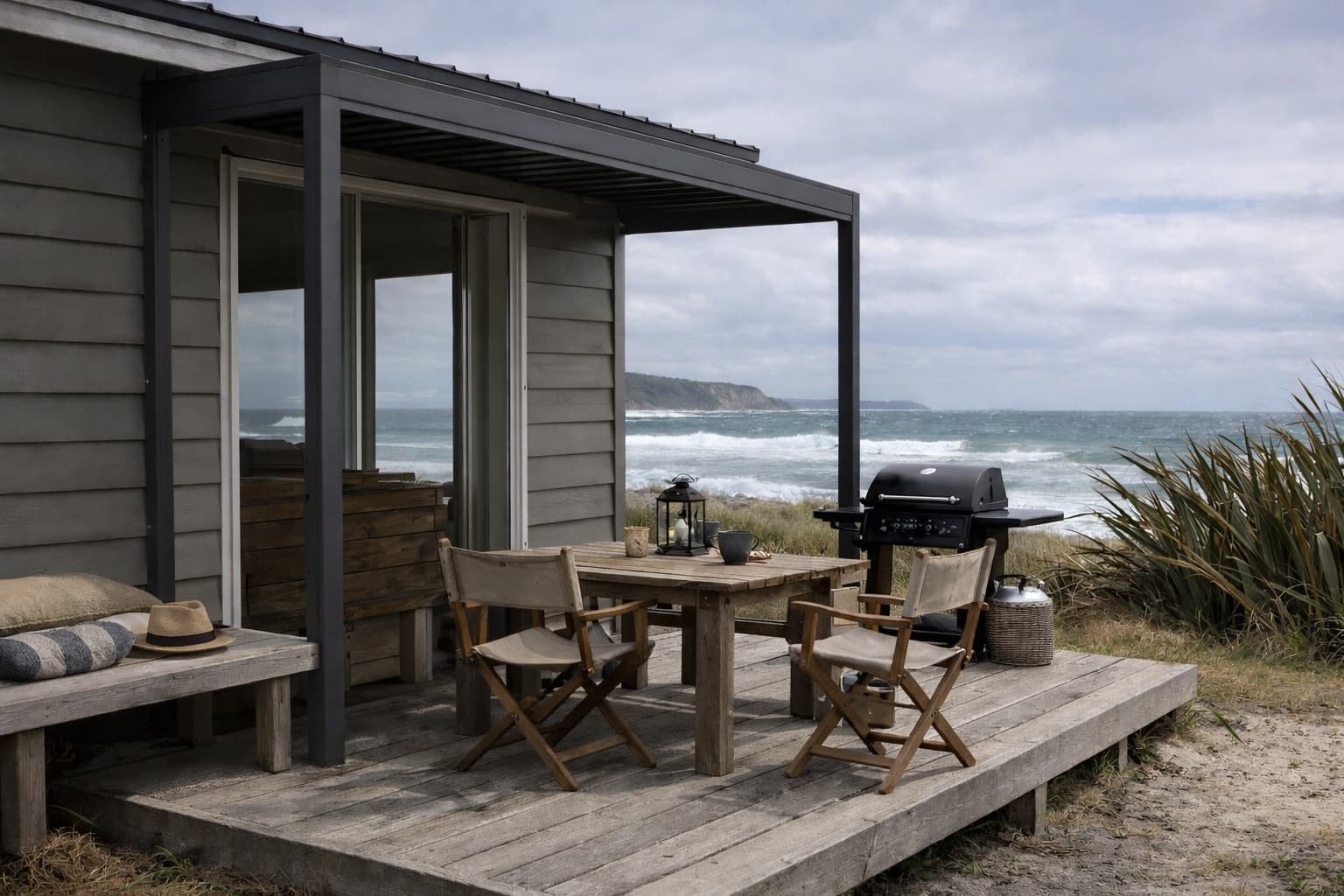

Roof-Only Option (Retrofit into Existing Structures)
Already have a structure in place but it’s not working?
The Cerberus Plus system can be installed as a roof-only solution, allowing you to upgrade an existing pergola or outdoor frame without rebuilding everything.
This is one of the most practical ways to transform a space without starting from scratch.
Ideal for:
• Existing timber pergolas
• Steel outdoor frames
• Covered decks needing adjustability

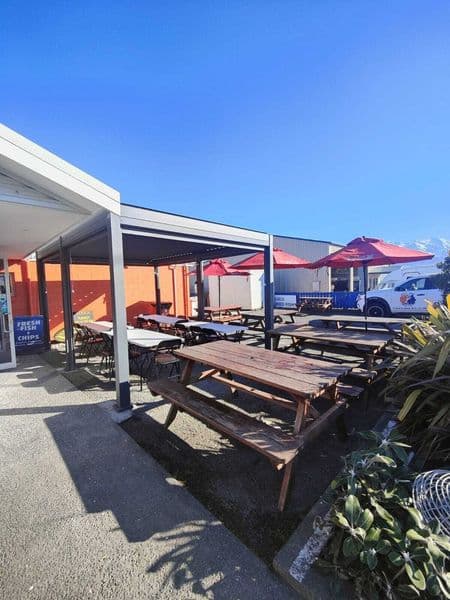

• Hospitality spaces upgrading fixed roofs
Why this works:
• Can be made to measure to fit existing structures
• Uses engineered aluminium for long-term performance
• Manual or motorised operation available
• Compatible with smart upgrades (rain sensors, automation)
• Integrates with existing posts and beams (subject to suitability)
What it changes:
Most pre-built structures are fixed — meaning they’re:
• Too hot in summer
• Too dark in winter
• Useless in rain
Adding a louvre roof gives you:
• Adjustable sun and shade
• Rain protection on demand
• Airflow control
• A space that actually gets used year-round

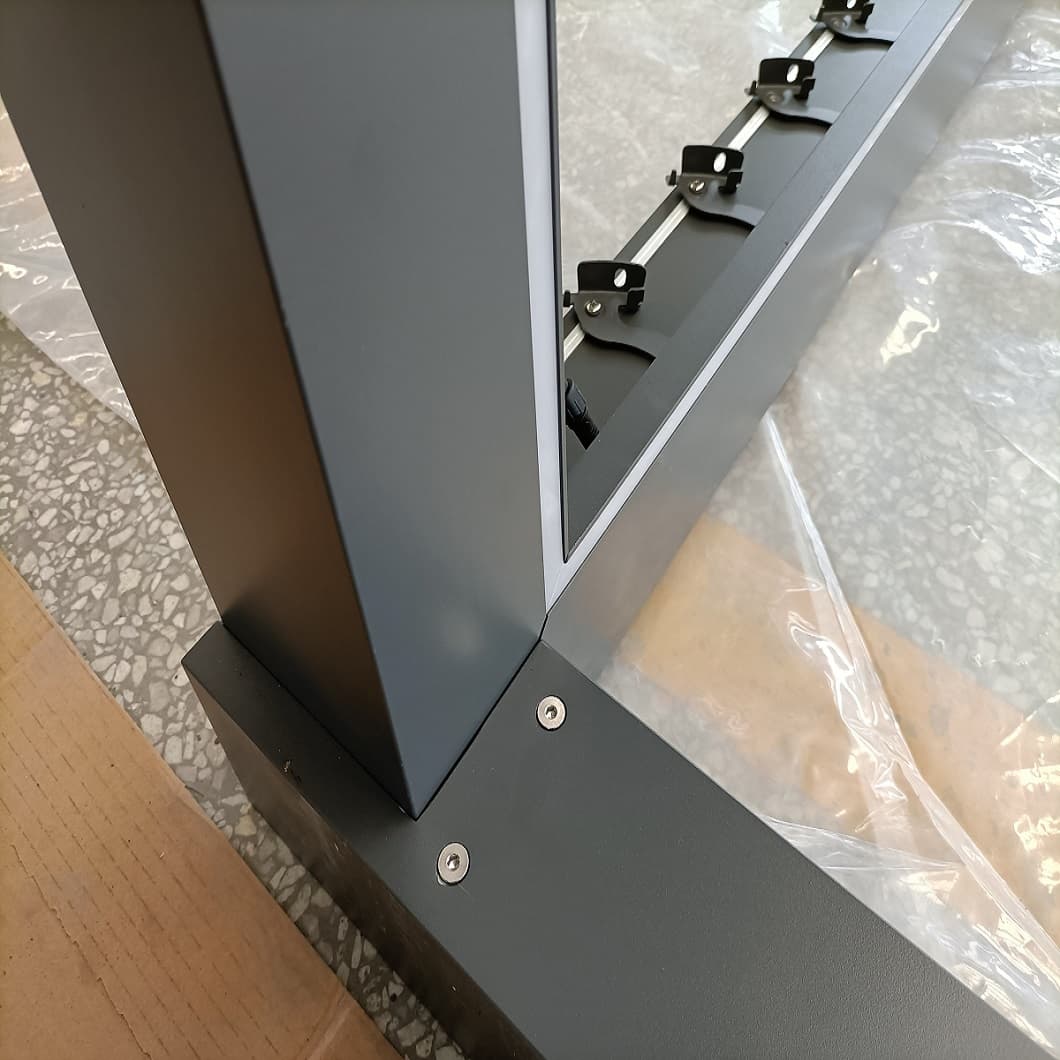

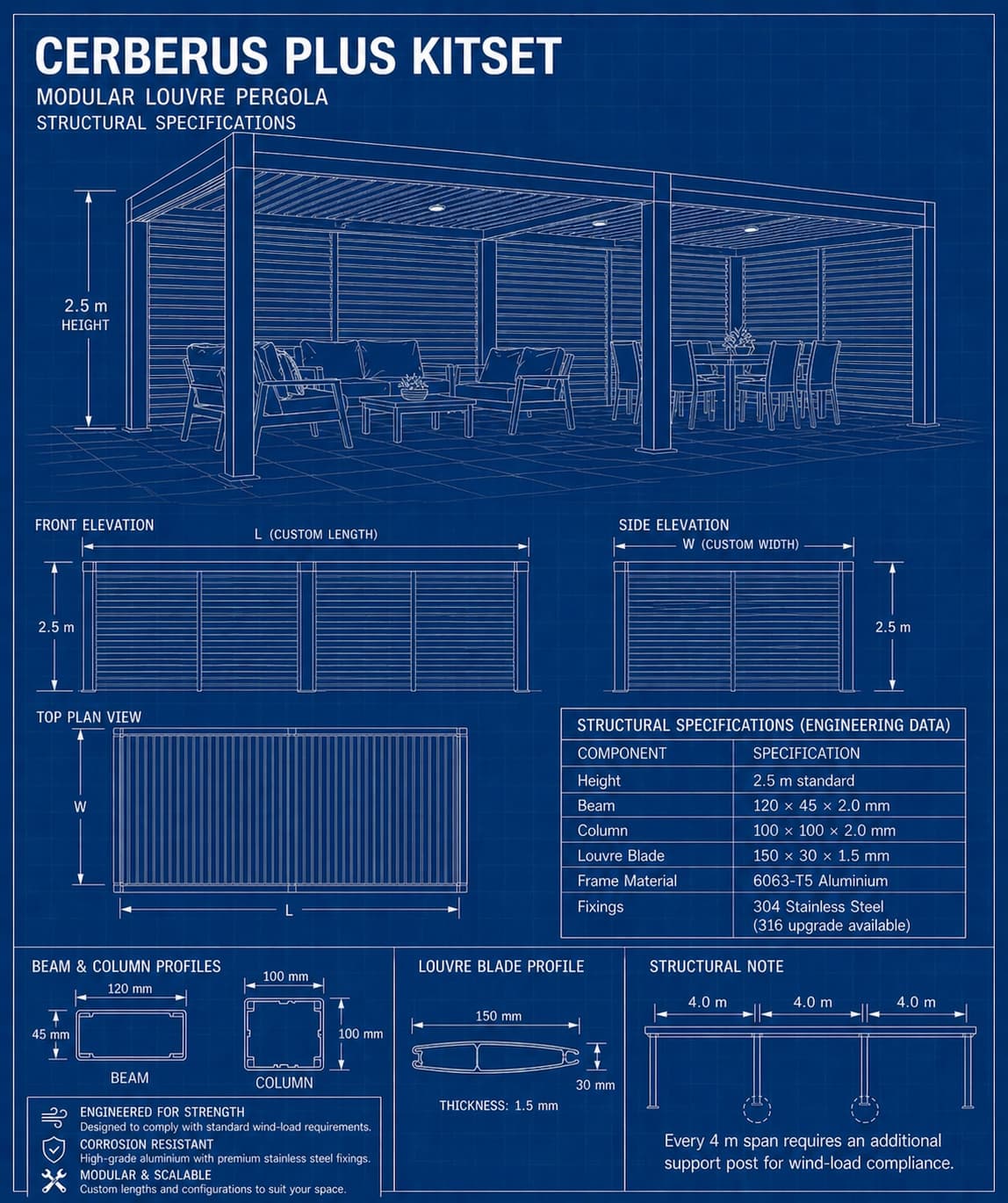

Structural Specifications (Engineering Data)
| Component | Specification |
|---|---|
| Height | 2.5 m standard |
| Beam | 120 × 45 × 2.0 mm |
| Column | 100 × 100 × 2.0 mm |
| Louvre Blade | 150 × 30 × 1.5 mm |
| Frame Material | 6063-T5 Aluminium |

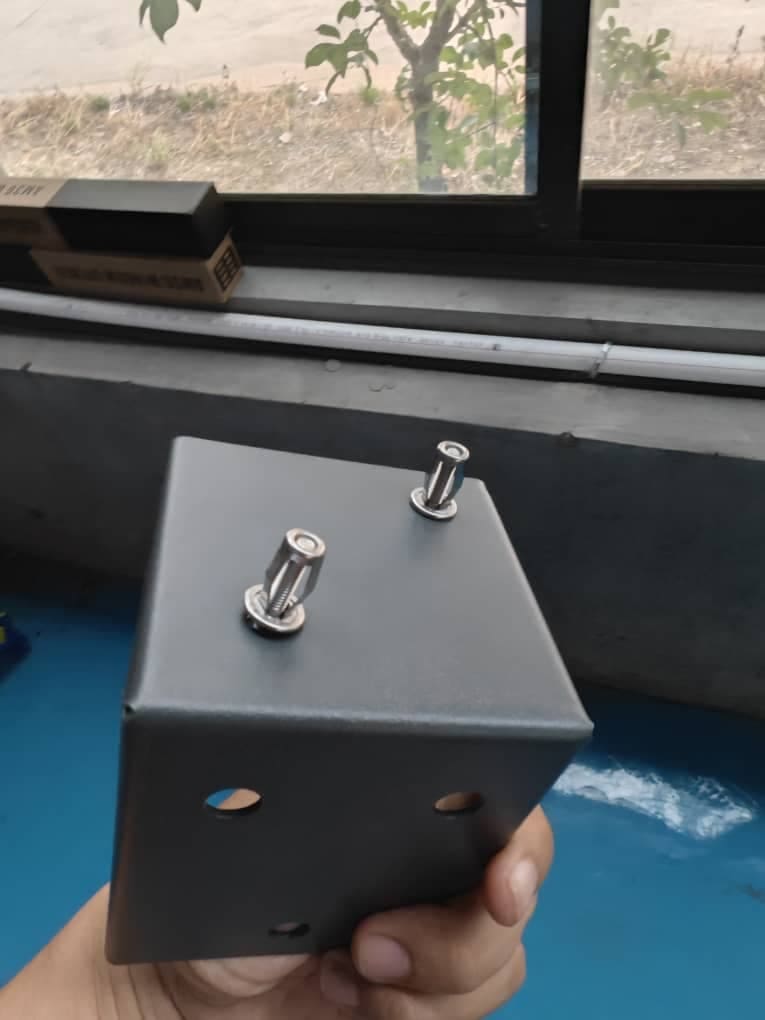

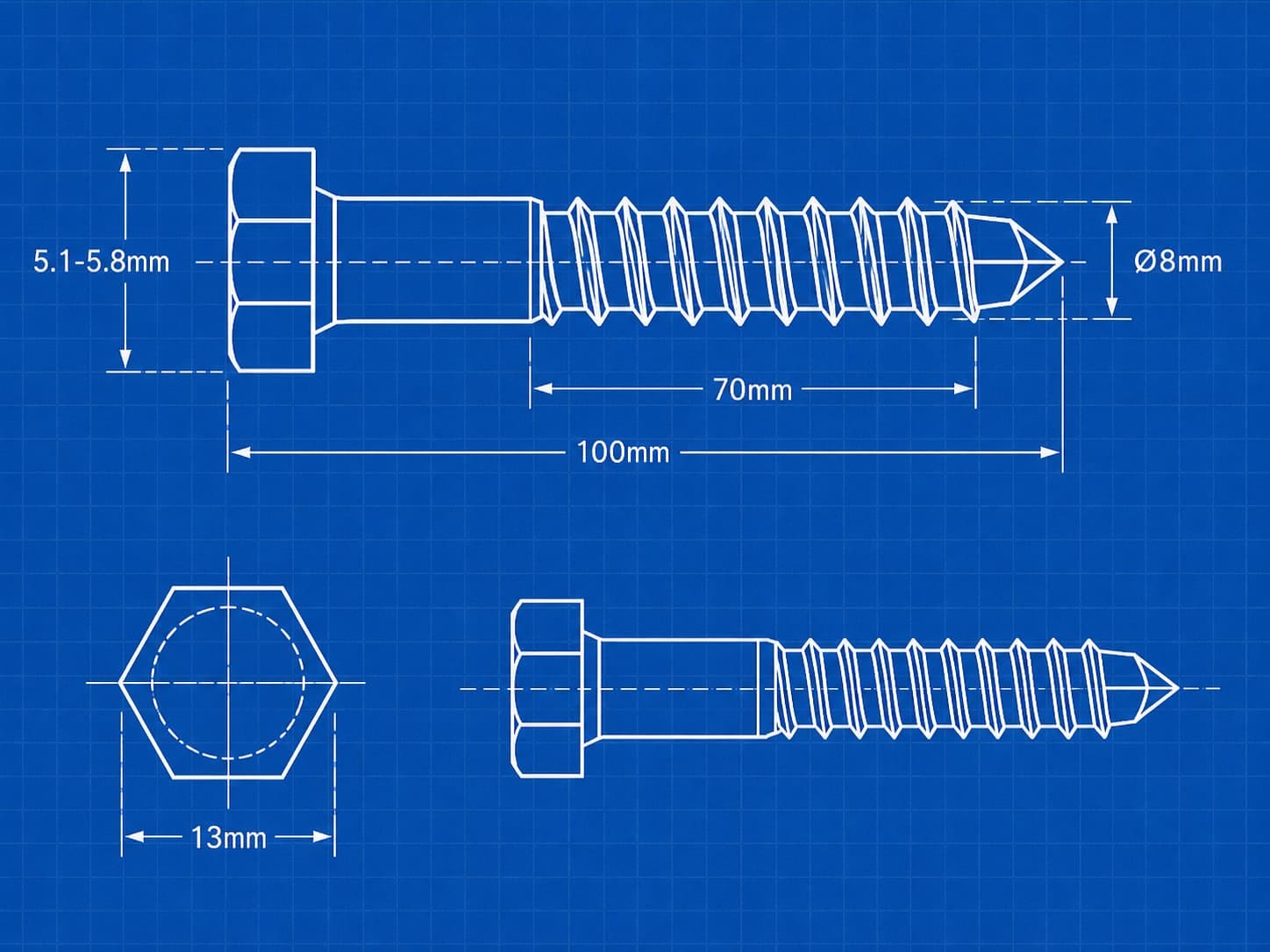

| Fixings | 304 Stainless Steel (316 upgrade available) |
Structural Note:
Every 4 m span requires an additional support post for wind-load compliance.
Performance Ratings (New Zealand Conditions)
• Wind Resistance: Up to 150 km/h
• Snow Load: Up to 120 kg/m²
• Rain Drainage: 0.04–0.05 L/s/m²

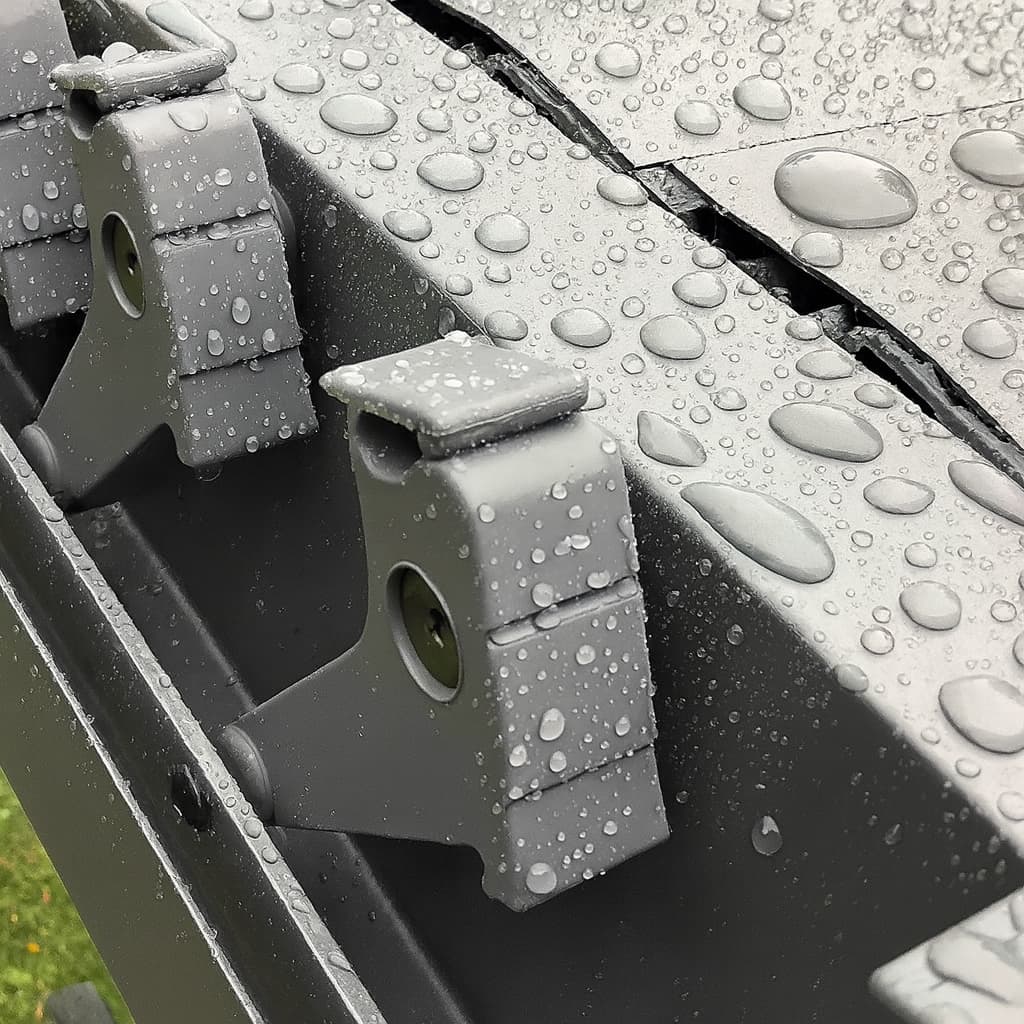

• Integrated internal drainage system included
Manual vs Motorised Options
Manual System
• Cost-effective
• No electrical required
• Simple and reliable
• Ideal for smaller areas
Motorised System

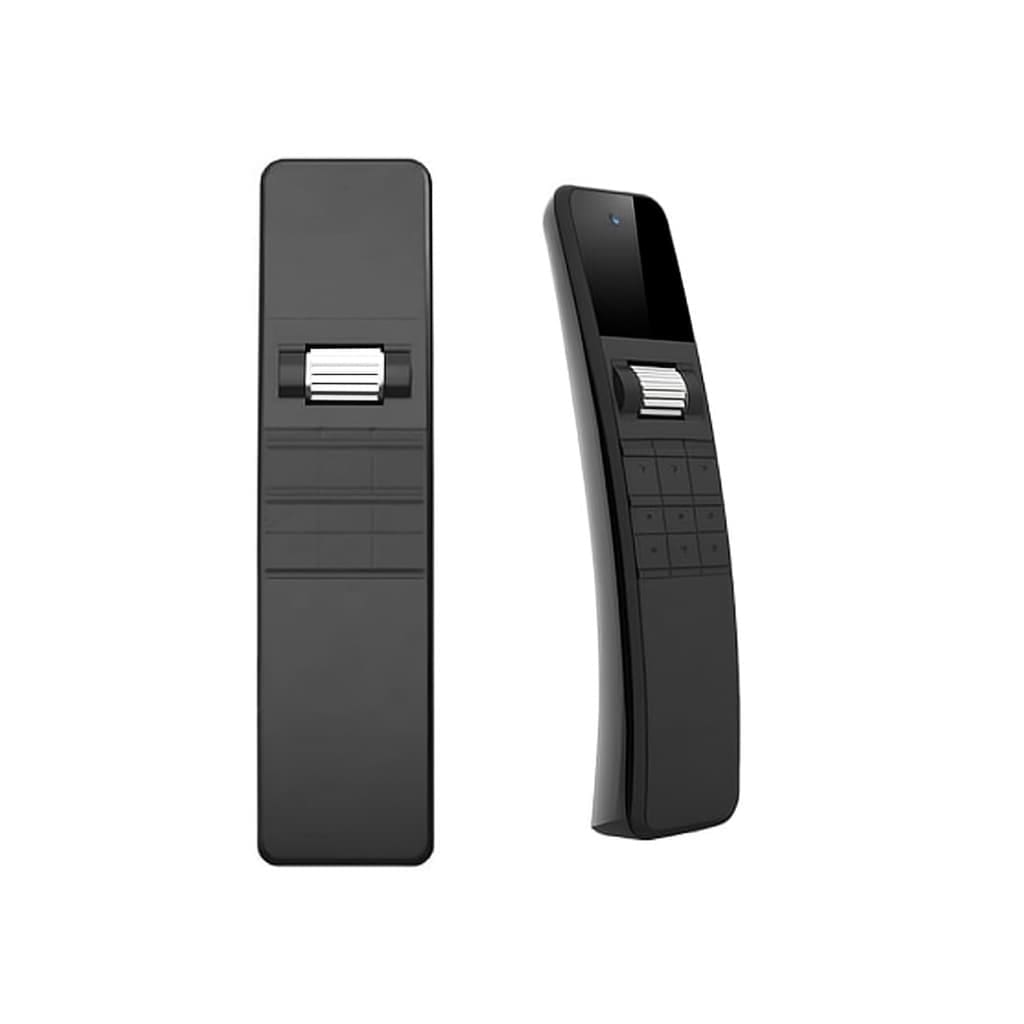

• Remote-controlled louvres
• Smooth, precise adjustment
• Ideal for frequent use
• Smart-ready system
Why This Matters
Unlike basic pergola kits, the Cerberus Plus system includes key upgrades as standard, reducing the need for costly add-ons while improving usability and performance:
• Smart control ready (motorised systems)
• Built-in lighting — no extra installation required
• Weather automation included
• Immediate functionality straight out of the kit

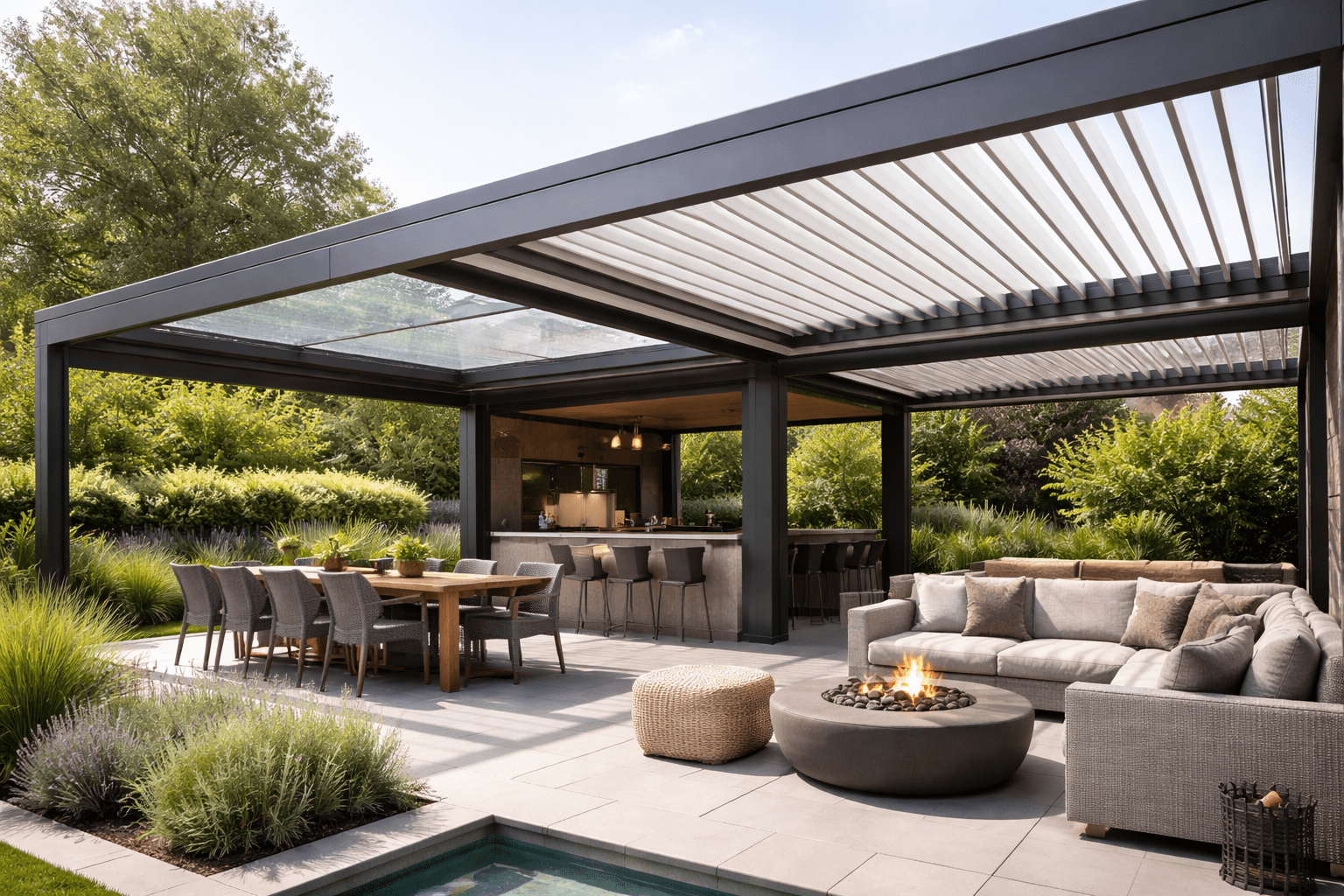

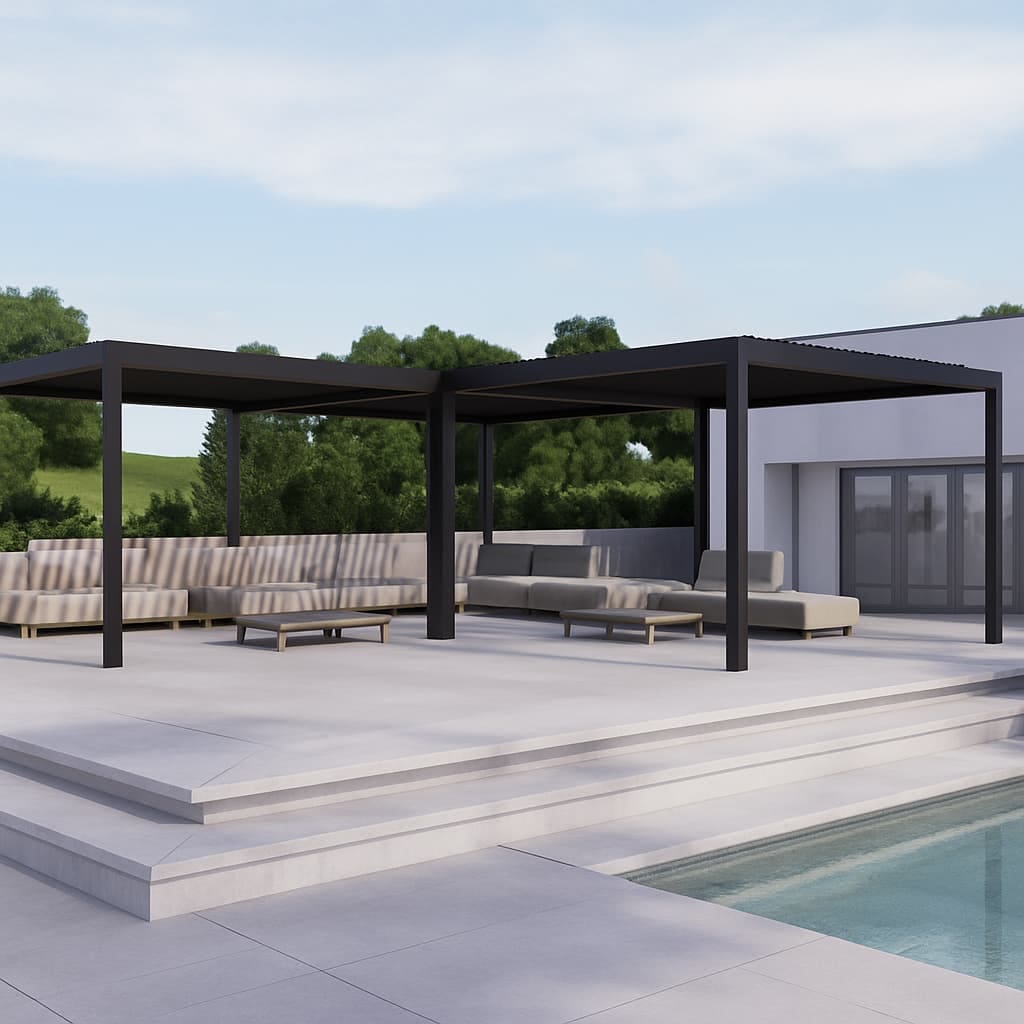

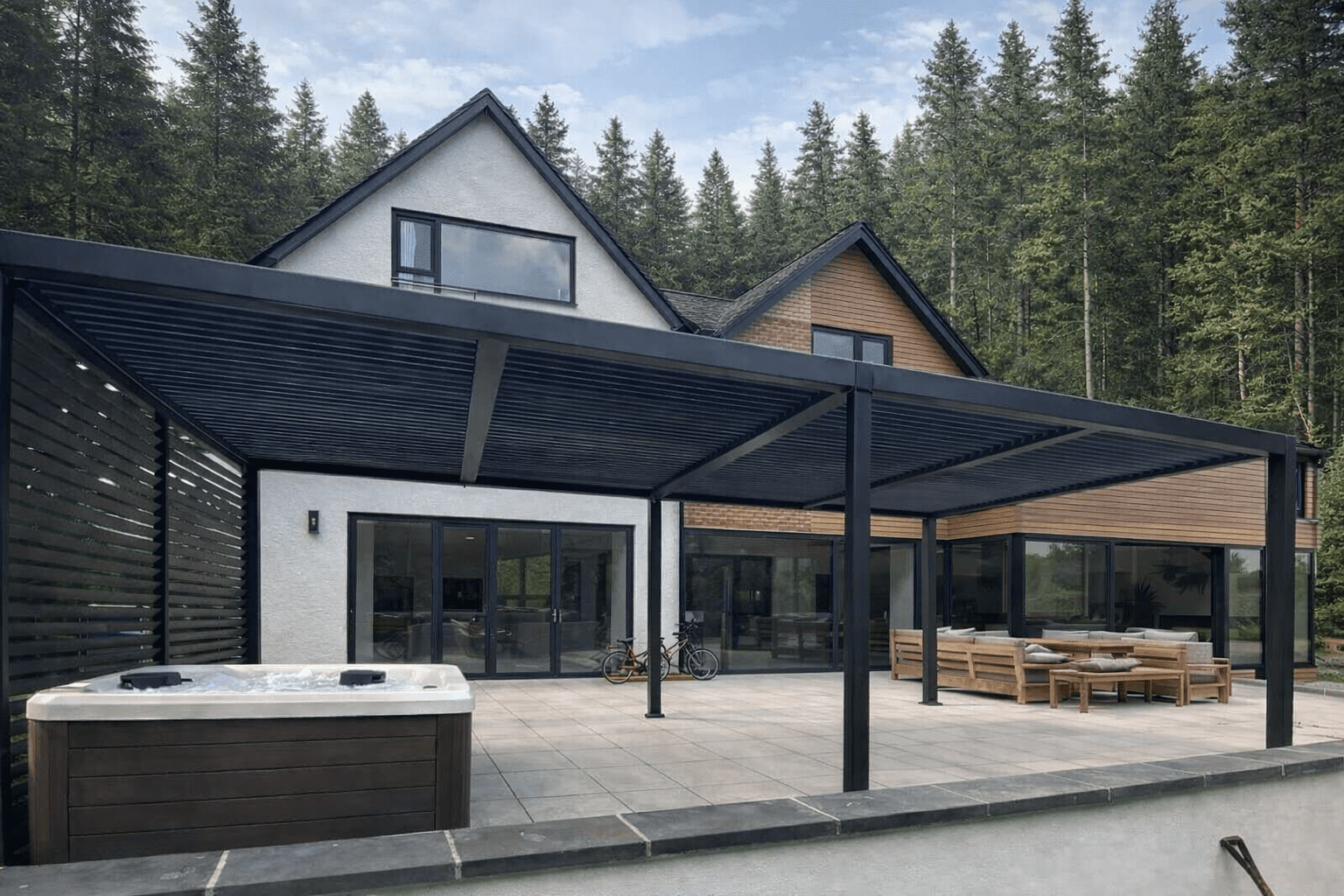

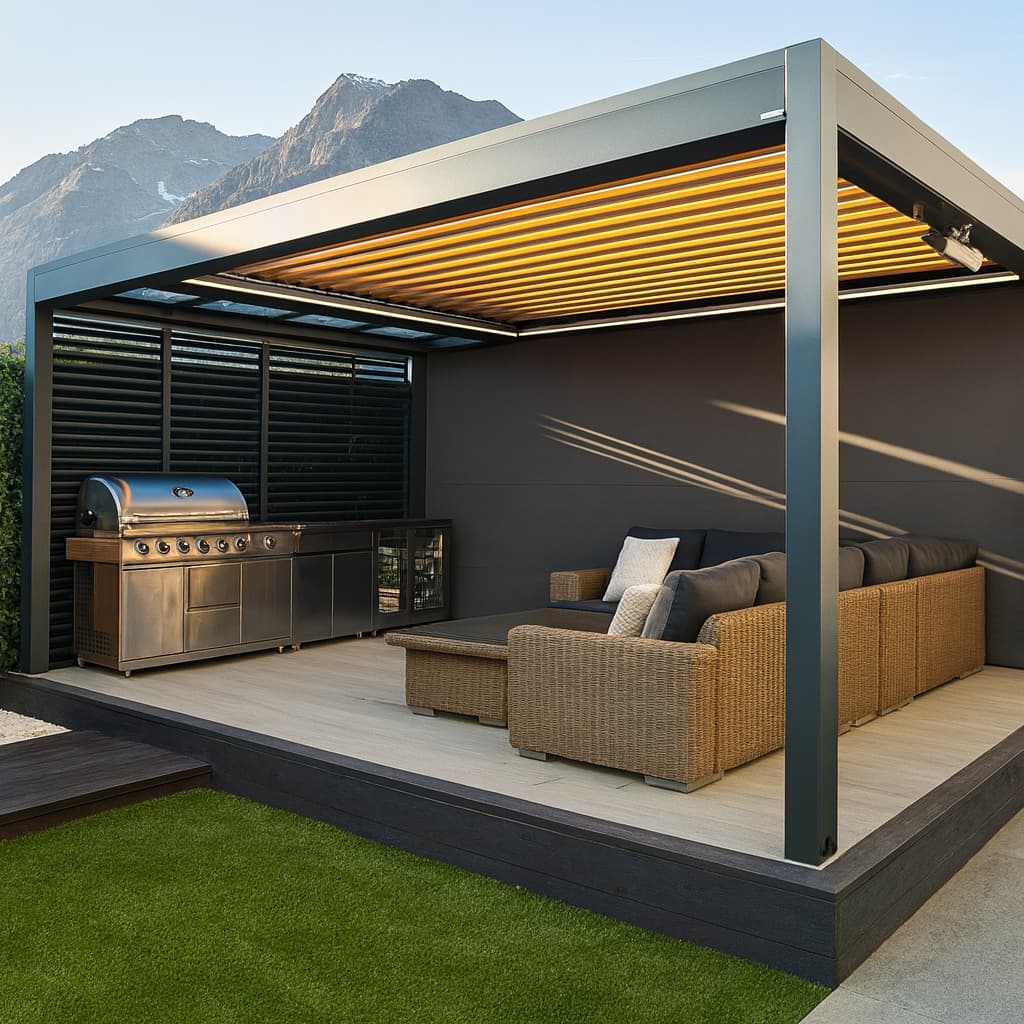

Expansion Capability – Hybrid System Design
Cerberus Plus is not limited to a single layout.
You can combine:
• Louvre-covered areas
• Frame-only extensions
• Polycarbonate light sections
• Open airflow zones

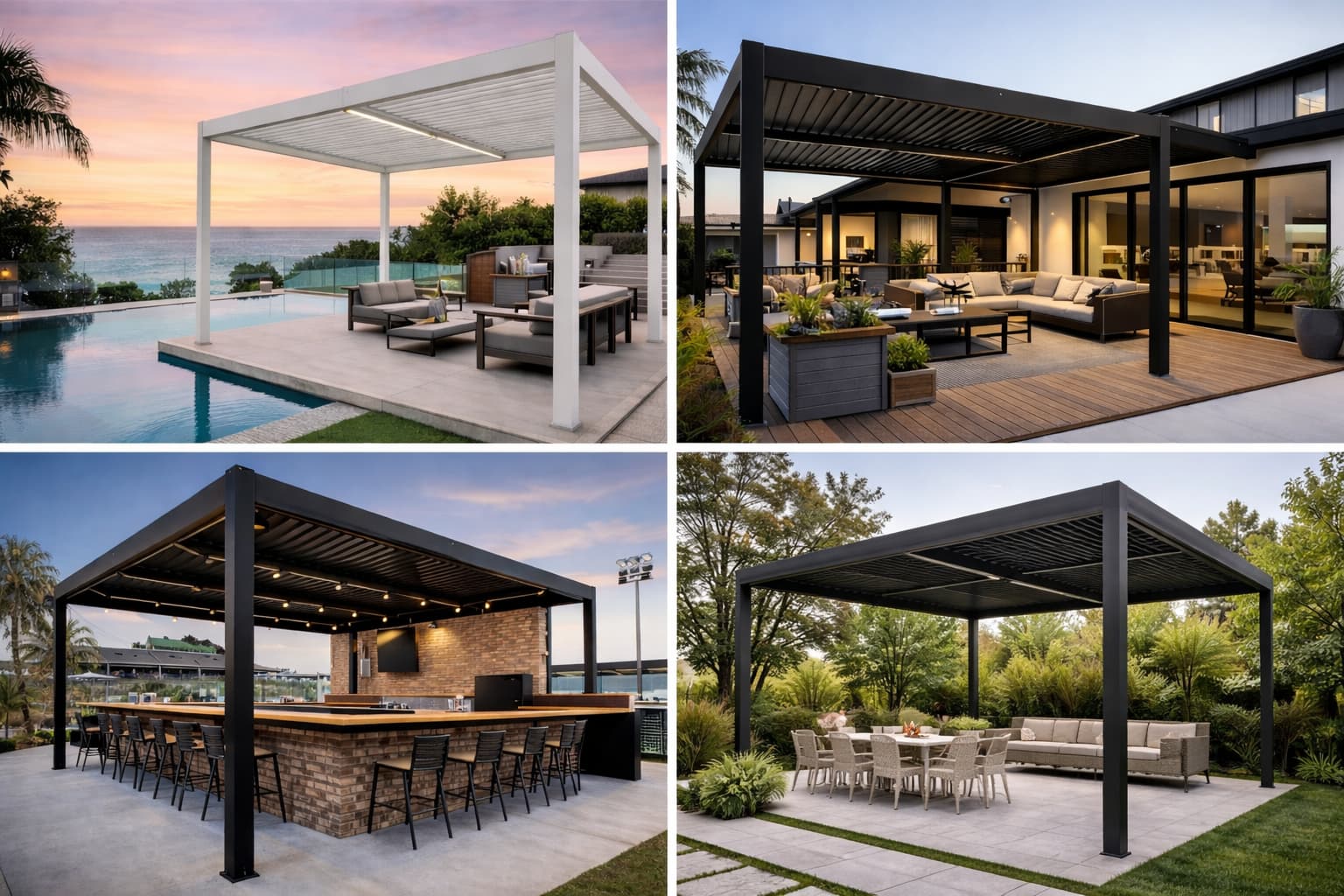

Perfect for:
• Large patios

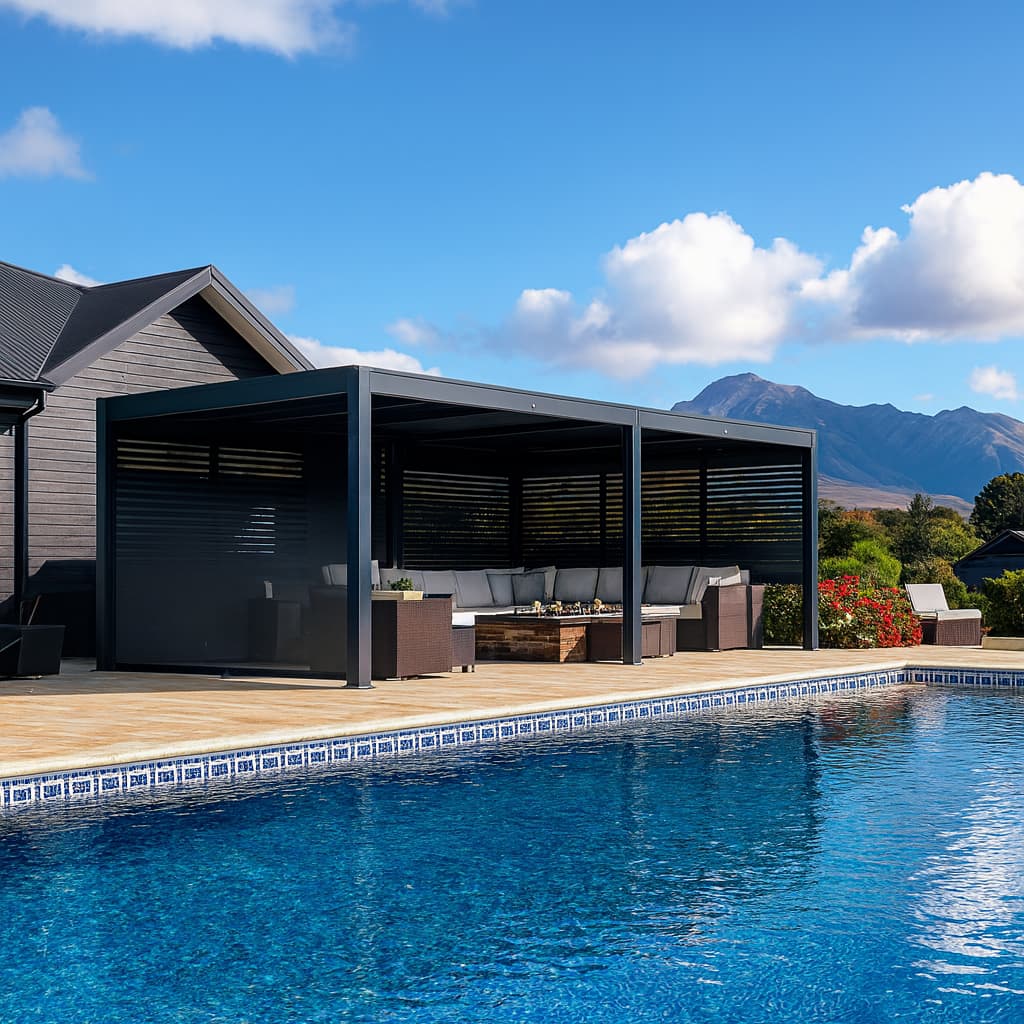

• Pool areas
• Outdoor kitchens
• Hospitality environments
Material & Roof Options

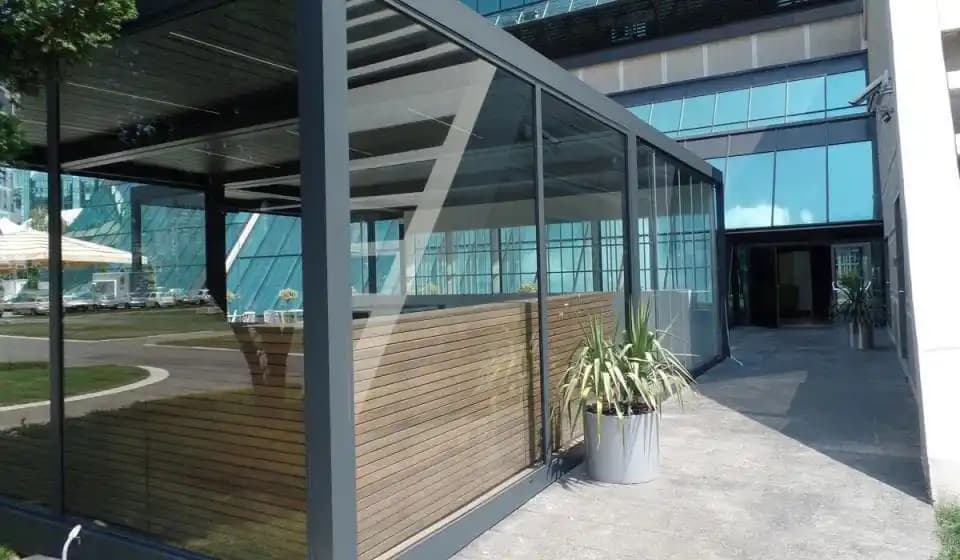

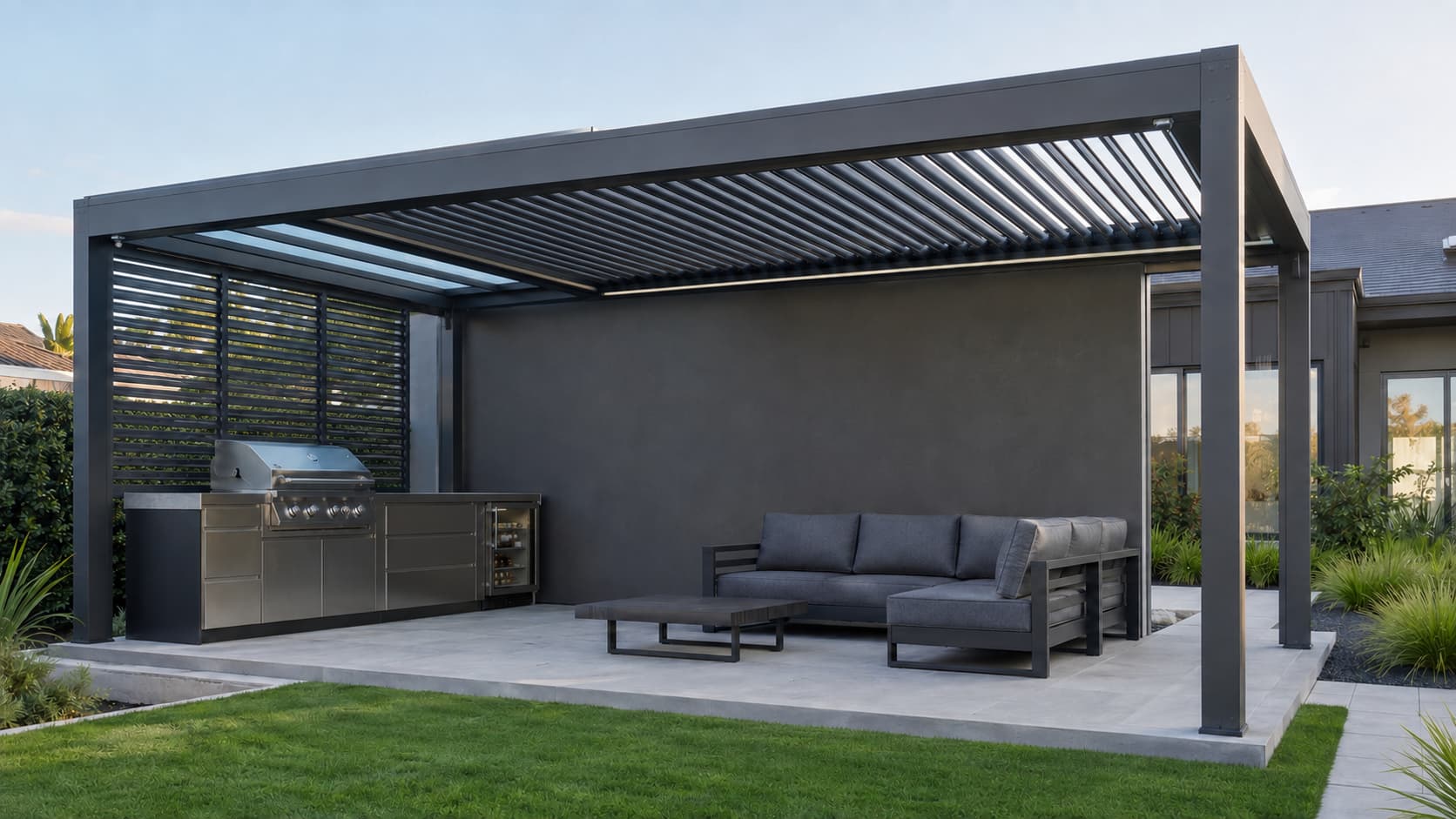

Polycarbonate & Glass Inserts
• Polycarbonate: 4–10 mm
• Laminated Glass: 10.76 mm
• Max panel depth: 1 m
Used to increase natural light while maintaining protection.
Built for New Zealand & Pacific Conditions
Designed to handle:
• Coastal environments
• High UV exposure
• Heavy rain
• Wind-prone regions
What Makes Cerberus Plus Different
This is not a lightweight kitset.
Cerberus Plus sits in the mid-range engineered category, bridging the gap between low-cost imports and high-end custom systems.
• 6063-T5 structural aluminium

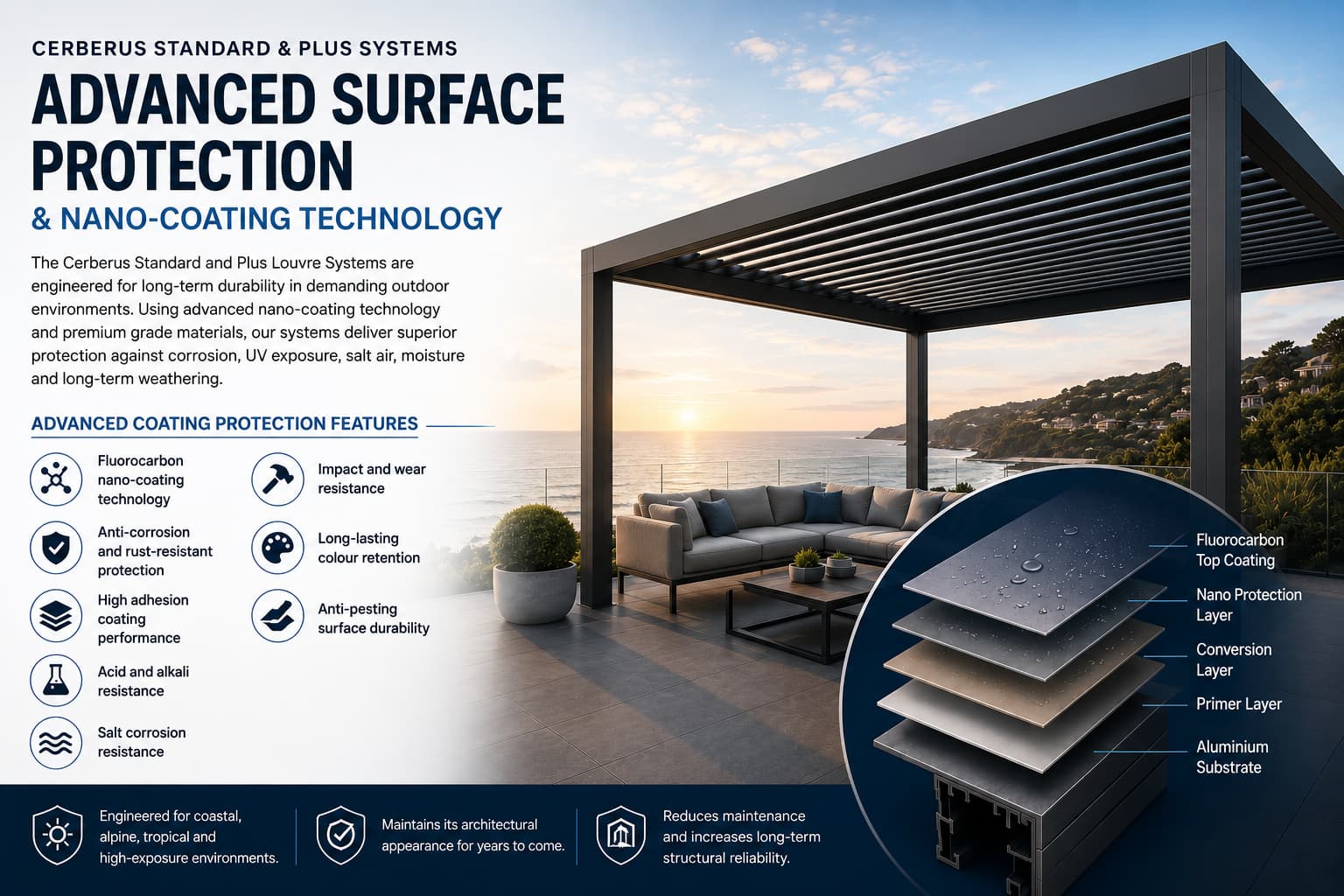

• Powder-coated for durability (10-year finish warranty)
• Stainless steel fixings
• Modular expansion capability
• Residential + commercial ready
The Pizza Oven Problem (And the Chimney Solution)
Outdoor fireplaces and pizza ovens are common — but most pergolas don’t account for them.
Cerberus Plus does.
How it works:
• Planned cut-outs in the roof layout
• Structural allowances for flues
• Waterproofing maintained
Result:
• Safe heat management
• Proper smoke ventilation
• Clean integrated finish
Warranty
• Lifetime Manufacturing Warranty (Apollo NZ professional installs)
