Description
The Cerberus Standard Louvre System is a high-value aluminium louvre pergola designed for New Zealand conditions, delivering strong structural performance, clean architectural design, and practical outdoor functionality at an accessible price point.
Positioned in the mid-range kitset category, it bridges the gap between lightweight entry systems and premium builds.
Pricing – Cerberus Standard Louvre Kitset
Supply Only
| Size | Manual | Motorised |
|---|---|---|
| 2 × 2 m | $1,600 | $1,700 |
| 3 × 2 m | $2,200 | $2,400 |
| 3 × 3 m | $3,100 | $3,400 |
| 4 × 3 m | $4,100 | $4,400 |
| 4 × 4 m | $5,300 | $5,800 |
| 5 × 3 m | $5,000 | $5,400 |
| 5 × 4 m | $6,600 | $7,100 |
| 6 × 3 m | $6,000 | $6,500 |
| 6 × 4 m | $7,800 | $8,500 |
• Prices exclude GST and delivery
• Surround LED lighting included on manual and motorised systems
• 1 free rain sensor included with motorised systems
Structural Specifications (Key Engineering Data)
Cerberus Standard is built using 6063-T5 architectural aluminium, delivering a strong, consistent structure suited for NZ residential and light commercial use.
| Component | Specification |
|---|---|
| Height | 2.3 m fixed |
| Beam | 120 × 45 × 2.0 mm |
| Column | 100 × 100 × 2.0 mm |
| Louvre Blade | 150 × 30 × 1.5 mm |
| Frame Material | 6063-T5 Aluminium |
| Fixings | 304 Stainless Steel (316 upgrade available) |
Structural Note:
Every 4 m span requires an additional support post for compliance and wind-load integrity.
Performance Ratings (NZ Conditions)
| Performance | Rating |
|---|---|
| Wind Resistance | Up to 150 km/h |
| Snow Load | Up to 120 kg/m² |
| Rain Drainage | 0.04–0.05 L/s/m² |
Integrated Drainage System (Standard)
Unlike many systems in this price category, Cerberus Standard includes integrated gutters and concealed drainage as standard:
• Clean architectural finish (no visible gutters)
• Efficient rainwater control
• Reduced long-term maintenance
• Better overall system durability
What Makes Cerberus Standard Different
This is not a basic pergola.
Cerberus Standard is engineered as a performance-focused mid-range system, offering features typically found in higher-end builds.
• 6063-T5 aluminium structural frame
• Integrated drainage system (not add-on)
• Stainless steel fixings for longevity
• Designed for NZ climate conditions
• Suitable for residential + commercial use
Manual vs Motorised Louvre Options
Manual System
• Cost-effective
• No electrical requirements
• Simple and reliable
• Ideal for smaller or occasional-use areas
Motorised System
• Remote-controlled operation
• Smooth blade adjustment
• Ideal for frequent use
• Compatible with smart automation
• Better suited for hospitality + commercial
Key Insight:
Motorisation increases usability—especially on larger spans where manual adjustment becomes impractical.
Add-Ons & Enclosure Options (NZD + GST)
| Product | Price |
|---|---|
| Manual Track Blind – 3 m | $900 |
| Manual Track Blind – 4 m | $1,300 |
| Motorised Track Blind – 3 m | $1,200 |
| Motorised Track Blind – 4 m | $1,600 |

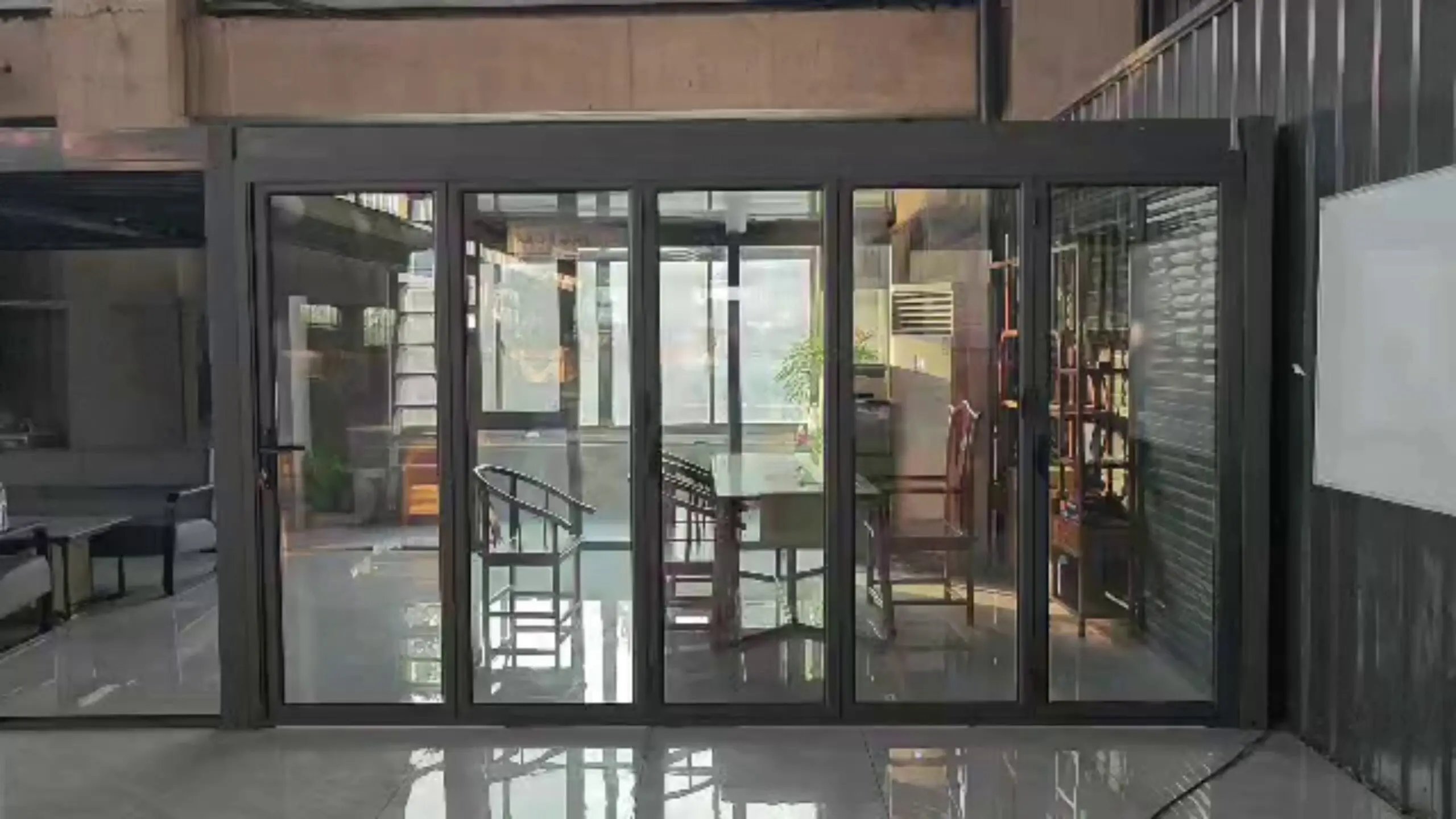

| Sliding Glass Door – 3 m | $1,700 |
| Sliding Glass Door – 4 m | $2,200 |
| Louvre Wall – 3 m | $3,000 |
| Louvre Wall – 4 m | $3,600 |
| Solid Aluminium Wall – 3 m | $2,000 |
| Solid Aluminium Wall – 4 m | $2,400 |
Screen Systems (Integrated)
Manual Screens
• Crank operation
• Aluminium cassette
• Outdoor PVC mesh
• Low maintenance
Motorised Screens
• Remote or app-controlled
• Fully enclosed cassette
• Tuya or Somfy compatible
• Ideal for larger spans
Screens can be used for:
• Wind protection
• Privacy
• Sun control
• Full enclosure systems
Colour Options
| Colour | Code | Finish |
|---|---|---|
| Anthracite Grey | RAL 7016 | Matt |
| Aluminium Grey | RAL 9006 | Matt |
| White | RAL 9016 | Gloss |
| Black | RAL 9005 | Matt |
| Flaxpod, Grey Frairs, Ironsand | Custom (Dulux) | Matt (Surcharge) |
Installation Flexibility (Renter-Friendly Option)
Cerberus Standard can be installed using heavy-duty steel base plates:
• No drilling required
• Fully removable
• Suitable for rental properties
• Secure anchoring system
Why Choose Cerberus Standard
• Strong mid-range aluminium pergola system
• Manual or motorised options
• Integrated drainage included
• Designed for NZ weather conditions
• Wide range of add-ons and enclosures
• Smart system compatibility
• Cost-effective vs premium systems
Warranty
• Lifetime Manufacturing Warranty (professional install)
• 10-Year Warranty (DIY installs)
