Description

Premium Stainless Steel Outdoor Kitchens Built Around Your Space

Create a practical outdoor cooking and entertaining area with the EmberForm Outdoor Kitchen Collection.

EmberForm is a modular outdoor kitchen system manufactured from 304-grade stainless steel and designed to combine cooking, preparation, washing and storage in one coordinated layout.

Choose individual cabinets for a compact BBQ area or combine multiple modules to create a complete straight, L-shaped or custom outdoor kitchen.

The collection includes BBQ grills, flat-top grills, sink cabinets, drawer storage, corner units, preparation cabinets and a dedicated Kamado grill cabinet.

Why Choose EmberForm?

EmberForm outdoor kitchens are built around a simple idea: provide strong, practical outdoor cabinetry that can be configured to suit different homes, patios, pergolas and entertaining areas.

Key Features

• 304-grade stainless steel construction
• Double-layer stainless steel panels
• Internal honeycomb aluminium reinforcement
• 18 mm-thick cabinet and door panels
• Anti-fingerprint stainless steel carcass finish
• Powder-coated flat-panel doors
• Sintered-stone countertops
• Integrated cooking appliance options
• Sink and faucet module available
• DTC drawer systems
• Modular cabinet layouts
• Fully assembled cabinetry
• Export-standard protective packaging
• 30-year stated guarantee on the stainless steel carcass

Strong Double-Layer Cabinet Construction

EmberForm cabinet carcasses and doors use double-layer 304-grade stainless steel with a honeycomb aluminium core.

Each finished panel has a total thickness of approximately 18 mm, creating a more rigid cabinet structure than a basic single-skin stainless steel cabinet.

The stainless steel skins are approximately 0.55 mm thick, while the internal aluminium honeycomb helps reinforce the panel without adding unnecessary weight.

This construction is used throughout the EmberForm cabinet collection, including storage, sink, cooking and corner modules.

Anti-Fingerprint Stainless Steel Carcass

The main cabinet carcass is finished in its original stainless steel colour with an anti-fingerprint pattern.

This gives the internal and structural cabinet surfaces a clean appearance while helping reduce visible fingerprints and handling marks.

Powder-Coated Flat-Panel Doors

The exterior cabinet doors and drawer fronts feature a simple flat-panel design with a powder-coated finish.

The minimal appearance works well with modern homes, aluminium pergolas, covered patios and contemporary outdoor entertaining spaces.

Colour availability should be confirmed when ordering.

Sintered-Stone Countertops

Selected EmberForm cabinets include an 11 mm-thick sintered-stone countertop.

Sintered stone provides a clean and modern surface for outdoor food preparation, serving and entertaining. Countertops are manufactured to suit the dimensions of each cabinet and include a finished front overhang.

Final countertop colours and overhang dimensions should be confirmed during the layout and drawing approval process.

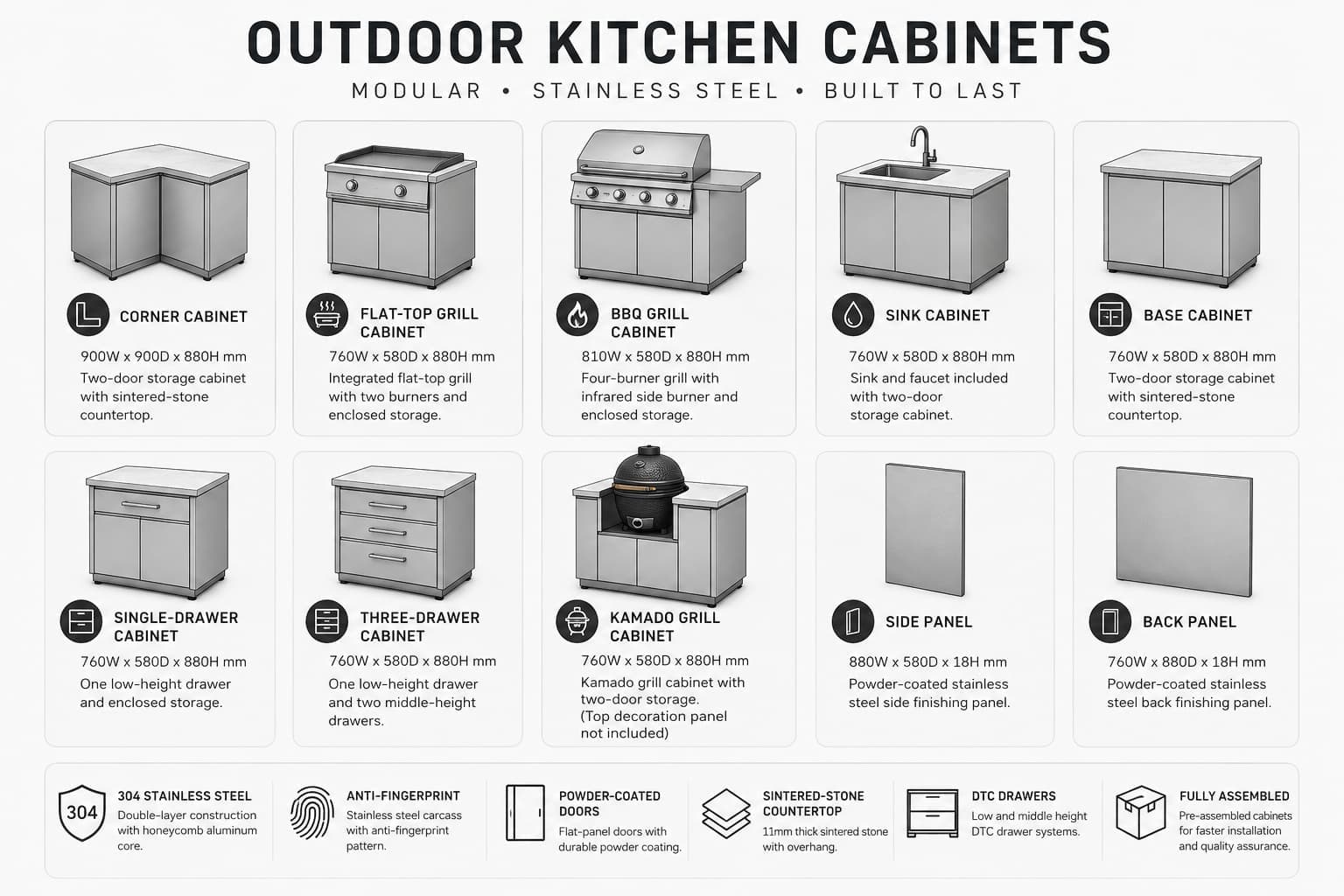

EmberForm Outdoor Kitchen Modules

EmberForm Corner Cabinet

The EmberForm Corner Cabinet connects adjoining modules and allows an outdoor kitchen to continue around a 90-degree corner.

It is ideal for L-shaped kitchens where additional preparation and storage space is required.

Specifications

• Cabinet size: 900 W × 900 D × 880 H mm
• Countertop size: 900 × 900 × 11 mm
• Two-door storage cabinet
• Double-layer 304 stainless steel construction
• Honeycomb aluminium panel core
• Anti-fingerprint stainless steel carcass
• Powder-coated flat-panel doors
• Sintered-stone countertop

EmberForm Flat-Top Grill Cabinet

The EmberForm Flat-Top Grill Cabinet combines a stainless steel cooking plate with enclosed cabinet storage.

It is suitable for cooking steaks, burgers, vegetables, seafood, breakfast foods and other meals that benefit from a solid flat cooking surface.

Cabinet Specifications

• Cabinet size: 760 W × 580 D × 880 H mm
• Two-door enclosed storage
• Double-layer stainless steel construction
• Honeycomb aluminium reinforcement
• Powder-coated doors

Flat-Top Grill Specifications

• Appliance size: 753 W × 580 D × 410 H mm
• Material: 304 stainless steel
• Available finishes: Stainless steel or black titanium
• Cooking area: 650 × 440 mm
• Burner configuration: Two gas burners
• Burner output: 2 × 3.55 kW
• Total stated output: 24,200 BTU
• Gas options: LPG or natural gas
• Functions: BBQ and flat-top steak cooking
• Certification stated: CE

The required gas type must be confirmed before ordering.

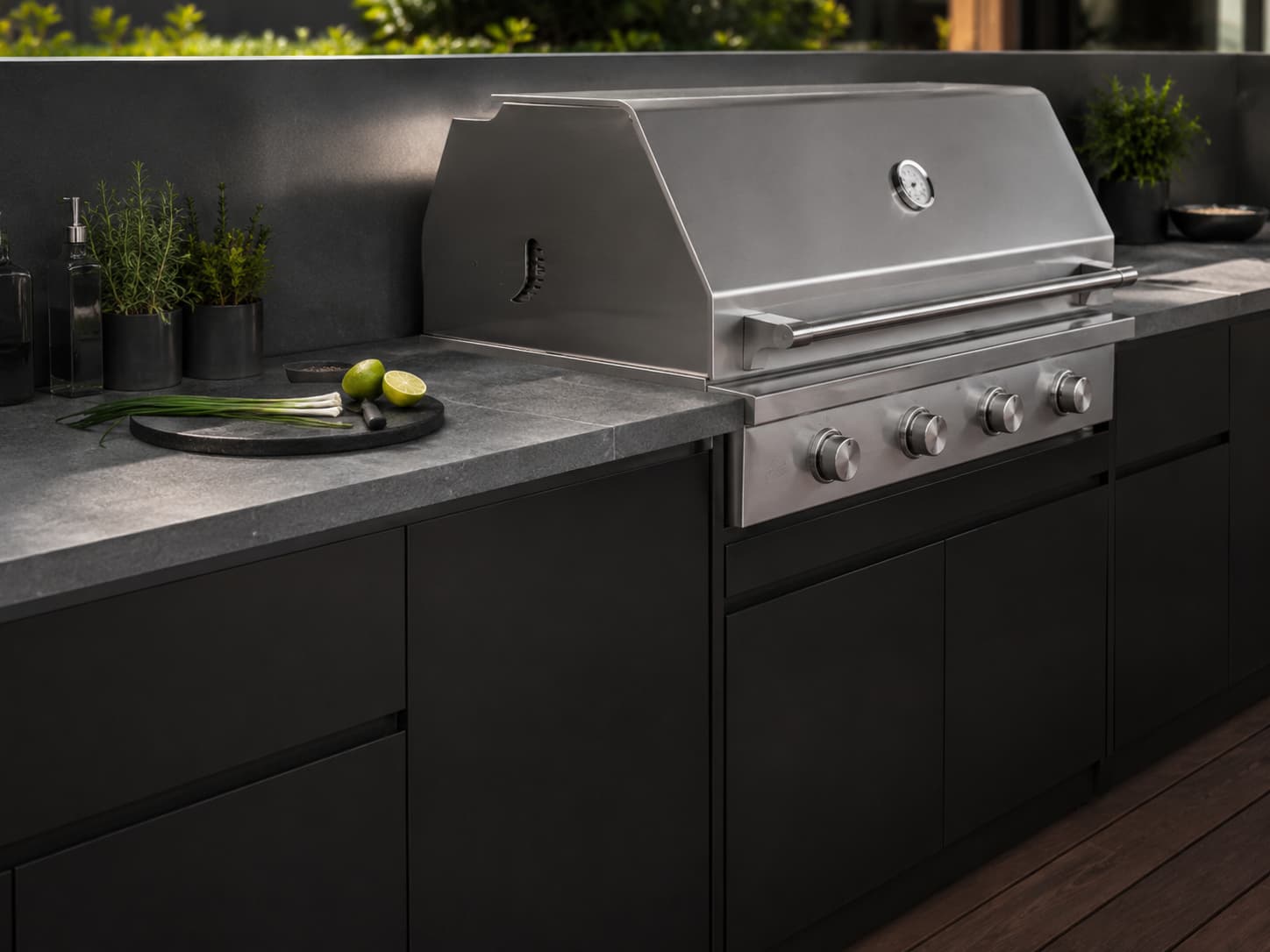

EmberForm Four-Burner BBQ Grill Cabinet

The EmberForm BBQ Grill Cabinet is the main cooking module within the collection.

It combines four stainless steel tube burners, an infrared side burner and enclosed lower storage.

Cabinet Specifications

• Cabinet size: 810 W × 580 D × 880 H mm
• Two-door storage cabinet
• 304 stainless steel construction
• Honeycomb aluminium panel filling
• Anti-fingerprint stainless steel carcass
• Powder-coated doors

BBQ Grill Specifications

• Appliance size: 810 W × 580 D × 543 H mm
• Material: 304 stainless steel
• Finish options: Stainless steel or black titanium
• Cooking area: 723 × 460 mm
• Main burners: Four stainless steel tube burners
• Main burner output: 4 × 3.55 kW
• Side burner: One infrared burner
• Side burner output: 4.5 kW
• Total stated output: 18.7 kW
• Total stated heat output: 63,700 BTU
• Gas options: LPG or natural gas
• Certification stated: CE

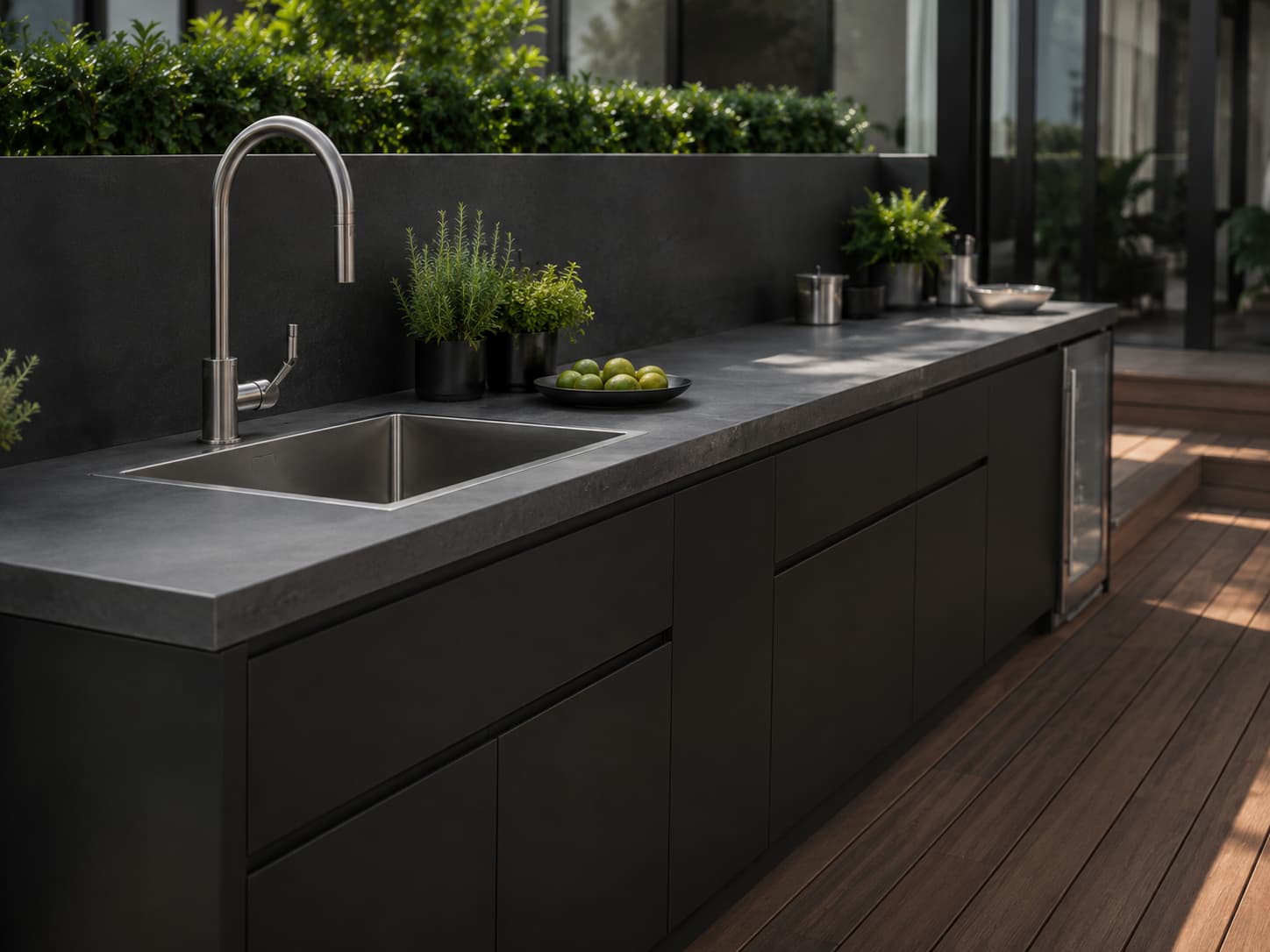

EmberForm Sink Cabinet

The EmberForm Sink Cabinet adds a dedicated washing and preparation area to the outdoor kitchen.

It includes a sink and faucet positioned above a two-door storage cabinet.

Specifications

• Cabinet size: 760 W × 580 D × 880 H mm
• Countertop size: 760 W × 600 D × 11 mm
• Sink and faucet included
• Two-door lower cabinet
• Double-layer stainless steel construction
• Honeycomb aluminium core
• Anti-fingerprint stainless steel carcass
• Powder-coated doors
• Sintered-stone countertop

Water supply, drainage and plumbing connections are not included and must be completed by a suitably qualified tradesperson.

EmberForm Base Cabinet

The EmberForm Base Cabinet provides general storage and additional countertop preparation space.

It can be positioned between cooking appliances, beside a sink cabinet or at the end of a kitchen layout.

Specifications

• Cabinet size: 760 W × 580 D × 880 H mm
• Countertop size: 760 W × 600 D × 11 mm
• Two-door enclosed storage
• 304 stainless steel construction
• Double-layer panel design
• Honeycomb aluminium core
• Anti-fingerprint carcass finish
• Powder-coated doors
• Sintered-stone countertop

EmberForm Single-Drawer Cabinet

The EmberForm Single-Drawer Cabinet combines a convenient upper drawer with enclosed lower storage.

The drawer is suitable for BBQ tools, utensils and smaller kitchen accessories, while the lower cabinet provides space for larger items.

Specifications

• Cabinet size: 760 W × 580 D × 880 H mm
• Countertop size: 760 W × 600 D × 11 mm
• One low-height DTC drawer
• Lower enclosed storage
• Double-layer stainless steel construction
• Honeycomb aluminium reinforcement
• Powder-coated front panels
• Sintered-stone countertop

EmberForm Three-Drawer Cabinet

The EmberForm Three-Drawer Cabinet provides organised storage for cutlery, cooking utensils, BBQ accessories, plates and outdoor kitchen supplies.

Specifications

• Cabinet size: 760 W × 580 D × 880 H mm
• Countertop size: 760 W × 600 D × 11 mm
• One low-height DTC drawer
• Two middle-height DTC drawers
• Double-layer 304 stainless steel construction
• Honeycomb aluminium panel core
• Anti-fingerprint stainless steel carcass
• Powder-coated drawer fronts
• Sintered-stone countertop

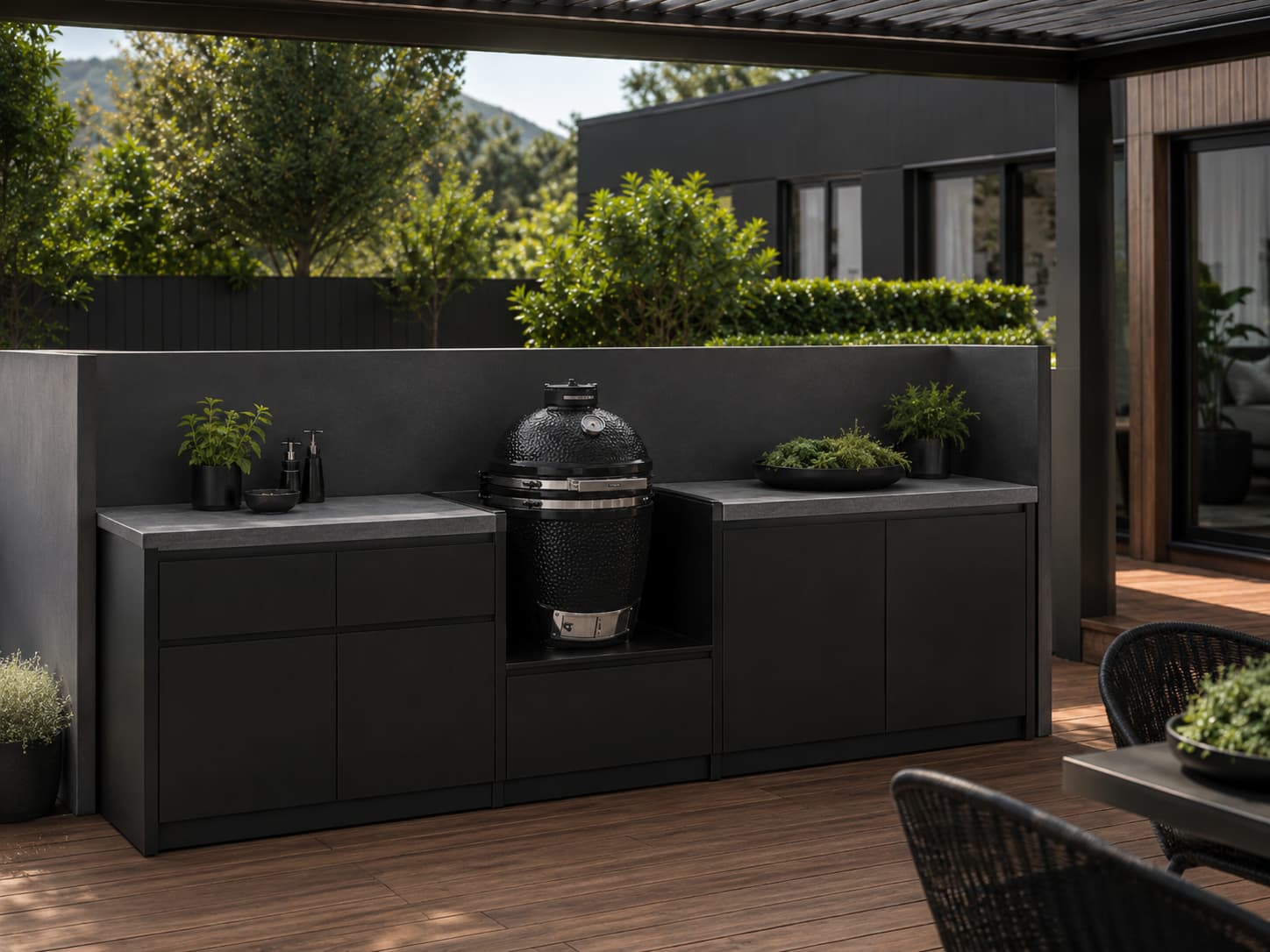

EmberForm Kamado Grill Cabinet

The EmberForm Kamado Grill Cabinet is designed to accommodate a compatible ceramic Kamado-style grill.

The cabinet provides a coordinated built-in appearance while retaining lower storage beneath the cooking appliance.

Specifications

• Cabinet size: 760 W × 580 D × 880 H mm
• Countertop size: 760 W × 600 D × 11 mm
• Two-door lower storage
• Double-layer stainless steel construction
• Honeycomb aluminium core
• Anti-fingerprint stainless steel carcass
• Powder-coated doors
• Sintered-stone countertop
• Supplied without the upper decorative panel

The Kamado grill is not included unless specifically stated in the final quotation.

The grill model, external dimensions, weight and required countertop opening must be confirmed before production.

EmberForm Finishing Panels

Finishing panels can be added to exposed cabinet sides and backs to create a cleaner, more complete appearance.

Side Finishing Panel

• Size: 880 × 580 × 18 mm
• Stainless steel construction
• Powder-coated finish

Rear Finishing Panel

• Size: 760 × 880 × 18 mm
• Stainless steel construction
• Powder-coated finish

Rear panels are particularly useful when an EmberForm kitchen is installed as an island or where the back of the cabinetry remains visible.

Create a Kitchen Layout That Suits Your Space

The EmberForm system can be configured in several ways.

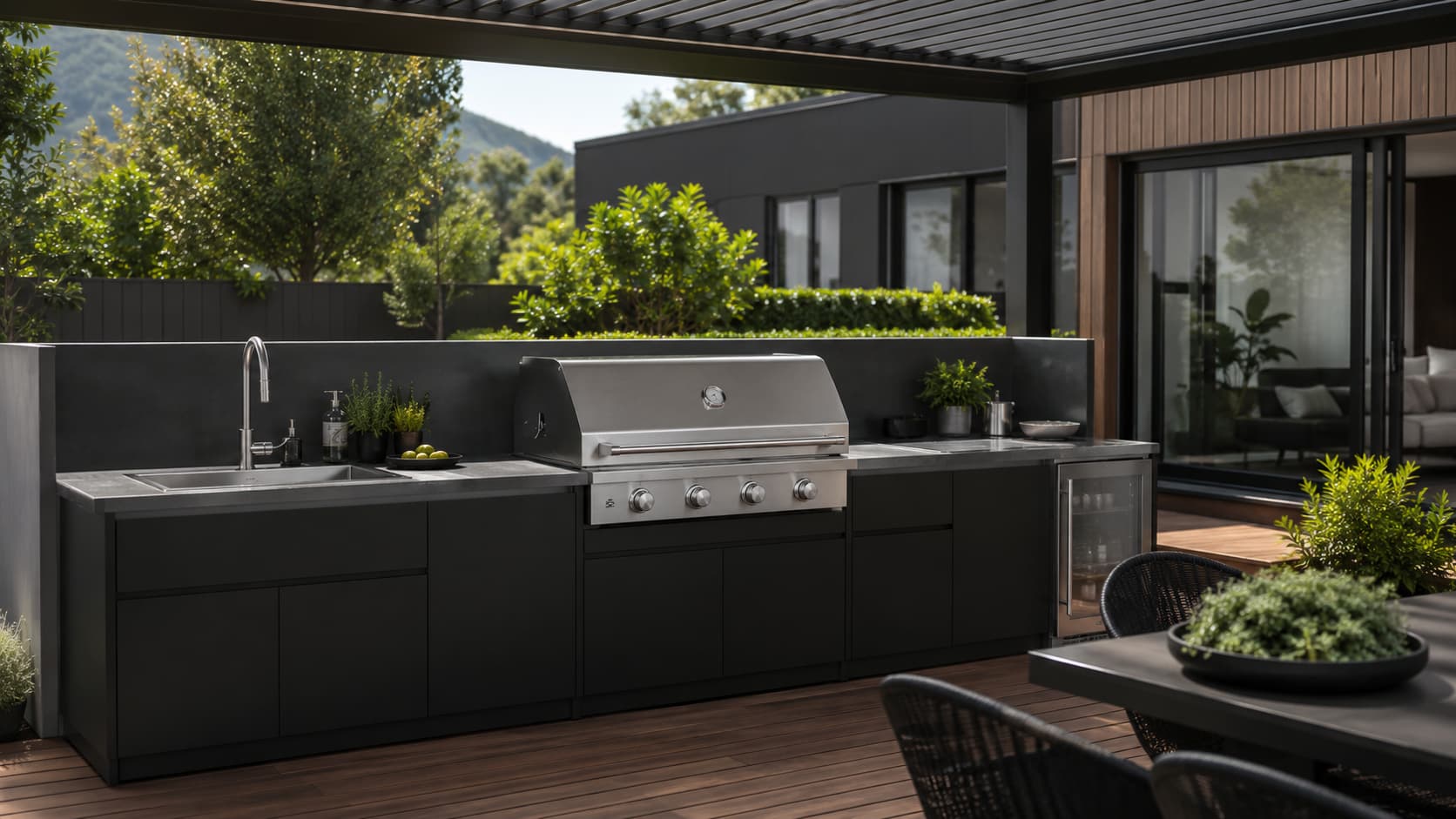

Straight Outdoor Kitchen

A straight kitchen layout is suitable for:

• Smaller patios
• Pergola walls
• Courtyards
• Decks
• Narrow outdoor entertaining areas

A typical straight kitchen could include:

BBQ Grill Cabinet + Sink Cabinet + Drawer Cabinet

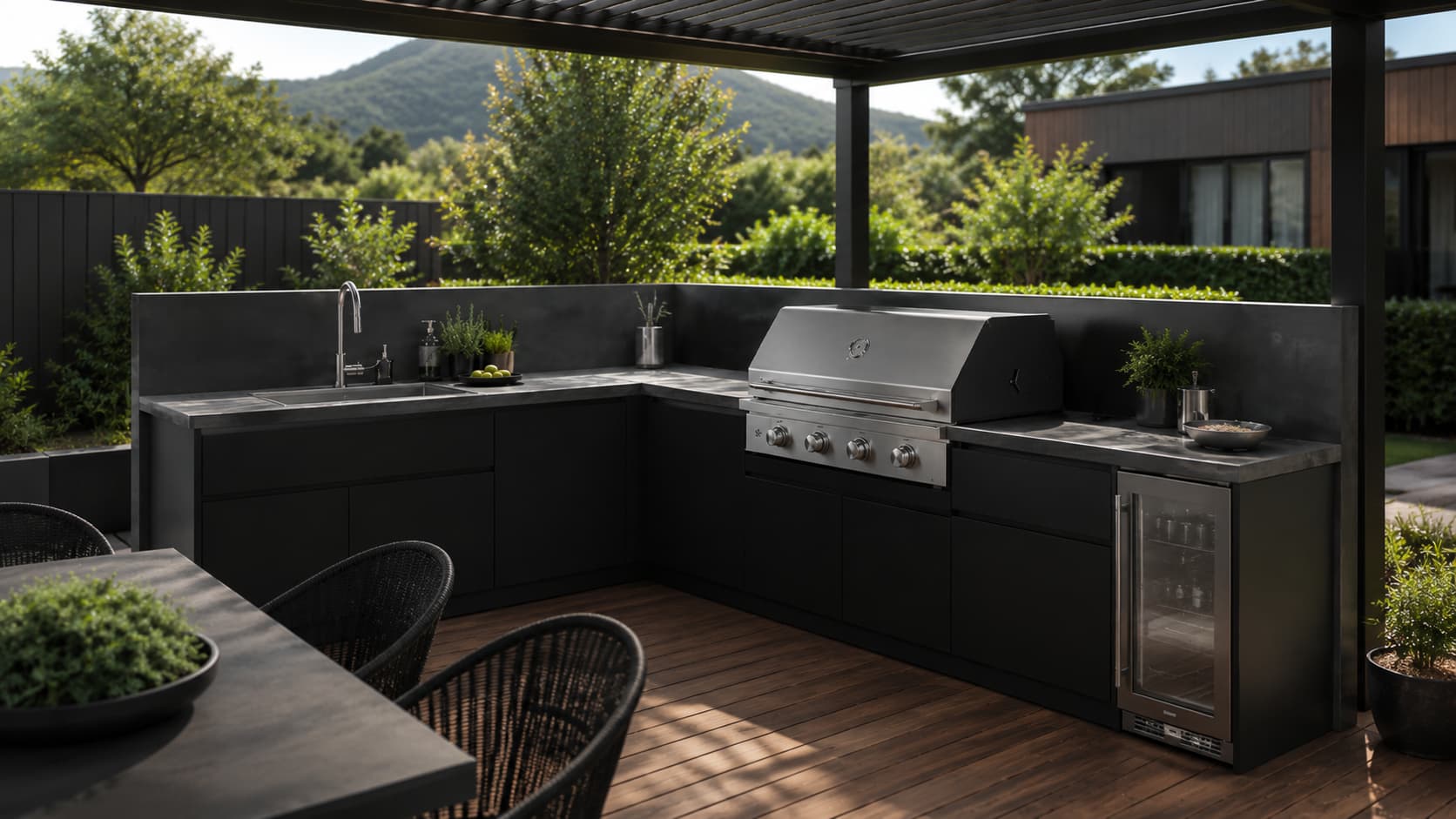

L-Shaped Outdoor Kitchen

An L-shaped configuration uses the EmberForm Corner Cabinet to connect two cabinet runs.

This layout provides more preparation space and helps define a dedicated outdoor cooking area.

A typical L-shaped configuration could include:

BBQ Grill Cabinet + Base Cabinet + Corner Cabinet + Sink Cabinet + Drawer Cabinet

Outdoor Kitchen Island

The modules can also be arranged as a free-standing island, subject to suitable finishing panels, services and site conditions.

An island configuration can create a central cooking and entertaining area with access from multiple sides.

Fully Assembled Cabinetry

EmberForm cabinets are supplied fully assembled rather than as flat-pack units.

This provides several benefits:

• Less on-site cabinet assembly
• More consistent cabinet alignment
• Faster positioning and installation
• Reduced risk of incorrectly assembled doors or drawers
• Pre-dispatch quality checking
• Export-standard protective packaging

Final assembly, positioning, countertop alignment, service connections and fixing may still be required on site.

Quality Control

Before dispatch, EmberForm cabinetry is pre-assembled and checked.

The stated quality-control process includes:

• Cabinet assembly checks
• Door and drawer alignment
• Finish inspection
• Pre-installation inspection
• Export-standard packaging
• Installation and maintenance guidance

A replacement door panel may be provided if a panel is found to be scratched or incorrectly coloured on arrival, subject to inspection, reporting requirements and the applicable warranty terms.

EmberForm Warranty

30-Year Stainless Steel Carcass Guarantee

The EmberForm 304 stainless steel cabinet carcass carries a stated 30-year guarantee.

This guarantee applies to the stainless steel carcass and does not automatically include appliances or accessories.

Items that may have separate warranty terms include:

• BBQ grills
• Flat-top grills
• Gas burners
• Ignition systems
• Infrared burners
• Sinks
• Faucets
• Drawer hardware
• Gas components
• Kamado grills
• Other accessories

Final warranty coverage will be confirmed in the applicable product documentation.

Production and Ordering

The approximate production lead time is 30 to 45 days following:

• Confirmation of the final kitchen layout
• Approval of drawings
• Confirmation of finishes
• Confirmation of appliance selections
• Receipt of the required deposit

Installation Requirements

EmberForm outdoor kitchens are supplied as modular products.

Installation, transportation and trade connections are not included unless specifically stated in the quotation.

Depending on the selected layout, installation may require:

• Cabinet positioning and levelling
• Cabinet-to-cabinet connection
• Benchtop alignment
• Secure fixing
• Plumbing connection
• Drainage connection
• LPG or natural gas connection
• Electrical connection for applicable appliances
• Final testing and commissioning

Gas, plumbing and electrical work must be completed by appropriately qualified tradespeople.

Important Outdoor Installation Considerations

Although EmberForm cabinets use stainless steel construction, the kitchen should still be positioned in a suitable outdoor area.

For best long-term performance:

• Install the kitchen on a level and stable surface
• Provide suitable protection from severe weather where possible
• Avoid allowing water to pool around cabinet bases
• Clean salt, grease and food residue regularly
• Use a suitable stainless steel cleaning product
• Do not use abrasive cleaning pads
• Keep ventilation openings clear
• Follow the appliance maintenance instructions
• Use a fitted cover where appropriate

Coastal and high-salt environments may require more frequent cleaning and maintenance.
