Description
The Movis Retractable System from Apollo NZ represents the next evolution in outdoor architecture — combining strength, smart automation, and architectural refinement. Built for New Zealand’s coastal and alpine environments, Movis delivers adaptable comfort, all-weather protection, and intelligent control for residential, commercial, and hospitality spaces.
Smart Outdoor Living Redefined
Crafted from 6063-T6 aluminium, the Movis system provides exceptional rigidity, corrosion resistance, and a clean architectural profile.
Its retractable and reversible double-layer louvre roof transitions seamlessly between open-sky freedom and watertight protection at the touch of a button — balancing sunlight, airflow, and shade for the perfect outdoor experience.

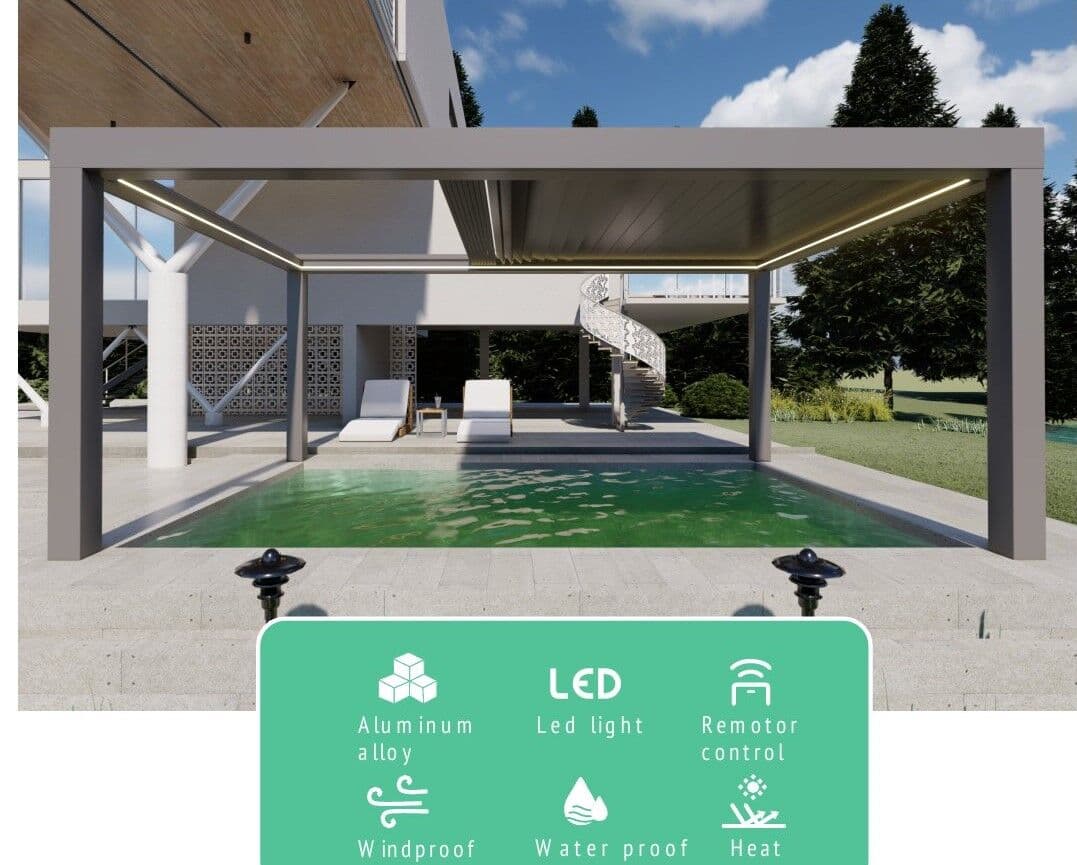

Key Features
6063-T6 Aluminium Frame – High-tensile alloy engineered for lasting performance.
Retractable and Reversible Roof Design –
A# Single-Opening: Louvres fold to one side for increased sunlight.
B# Dual-Opening: Louvres fold to both sides for balanced light and ventilation.
Double-Layer Louvres – Superior rainproofing, anti-sag performance, and heat insulation.
Integrated Hidden Drainage System – Internal post drainage with concealed gutters for a sleek, waterproof finish.
Smart Motorised Operation – DC motor with precise angular control and quiet performance.
Wind Resistance: Engineered to withstand up to 150 km/h.
LED Lighting System – 24 V waterproof linear lighting for functional and ambient illumination.
Professional Powder Coating – Excellent weather resistance and finish quality.
Sunproof, Waterproof & Ventilated Design – Provides full control over light, airflow, and comfort.
Custom-Sized Configuration – Designed to suit each site, available up to 4 m width × 6 m length per module.
Multi-Zone Control – Operate separate roof sections independently.
Facade Integration Options – Compatible with glass doors, roller blinds, or aluminium shutters for a fully enclosed outdoor room.
Lighting & Ambience
Movis integrates full-spectrum LED lighting with stepless dimming.
Blade LEDs provide warm functional light, while RGB frame lighting delivers seven vivid tones — red, orange, yellow, green, cyan, blue, and purple — all controllable through the Tuya Smart Life app.
Smart Connectivity
Through the Tuya Smart Life ecosystem, Movis enables unified control of:
Retractable roof louvres
Motorised blinds / side screens
Integrated LED lighting
Set schedules, automate weather responses, and manage your system via smartphone or voice assistant for effortless outdoor automation.
Optional Heat-Insulated Aluminium Panels
Designed for New Zealand’s diverse climate, Movis offers an optional upgrade to heat-insulated aluminium panels that enhance comfort and efficiency year-round.
Energy Efficiency Built Into Every Panel
Each insulated panel includes a thermal barrier that minimises heat transfer between interior and exterior surfaces — retaining warmth in winter and reducing heat gain in summer to lower energy costs.
Key Benefits:
Lower Heating Costs – Retains warmth and reduces winter energy use.
Perfect for Cold Regions – Ideal for Queenstown, Dunedin, Invercargill, and Taupō.
Enhanced Comfort – Year-round usability in any season.
Reduced Condensation – Prevents cold-surface moisture build-up.
Architectural Integration – Thermal efficiency with modern design.

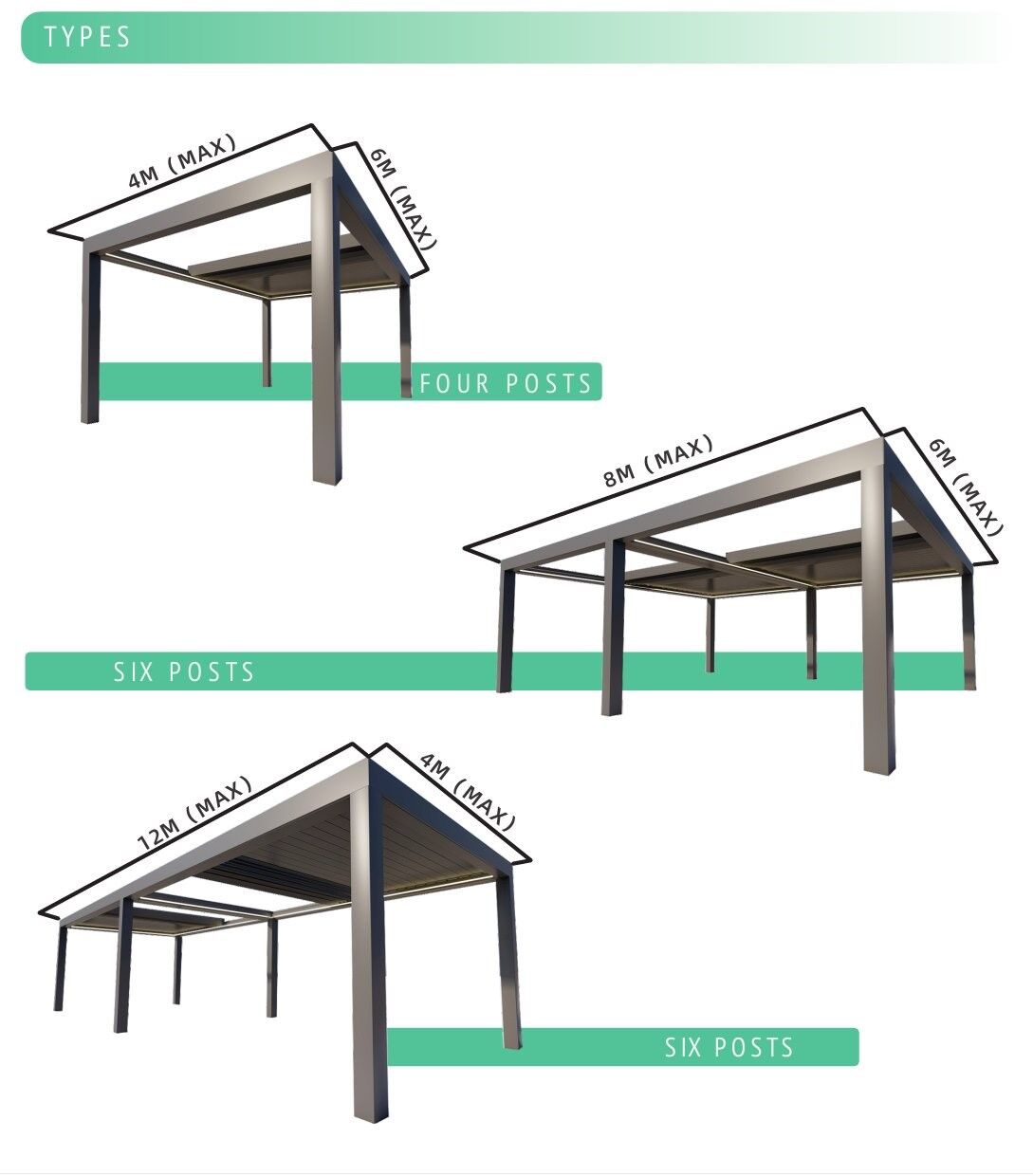

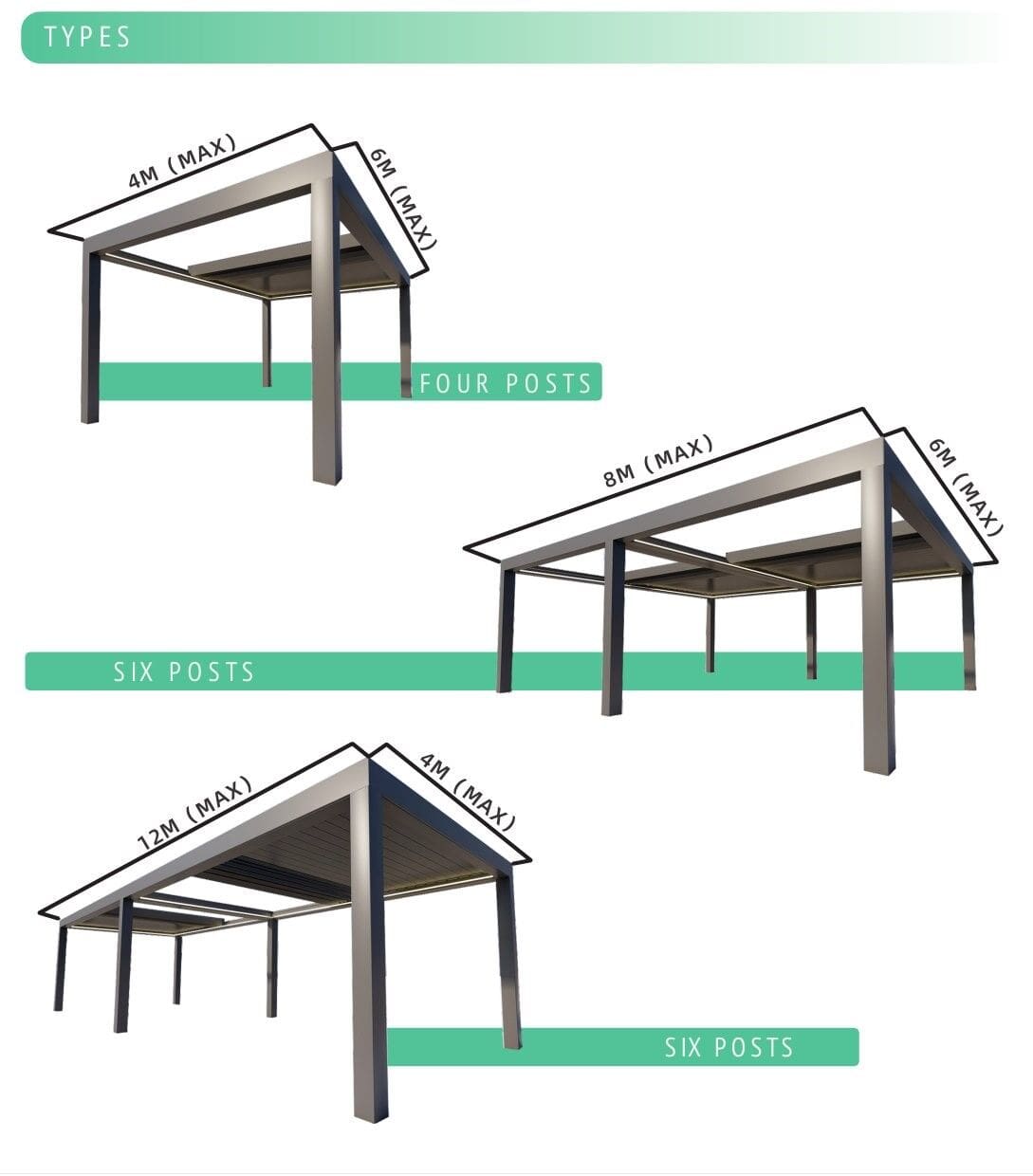

Configuration Options
| Type | Description | Maximum Dimensions |
|---|---|---|
| Group A | Four-post standalone configuration | 4 m × 6 m |
| Group B | Six-post motorised model for larger spans | 8 m × 6 m |
| Group C | Extended six-post modular layout | 12 m × 4 m |
All configurations feature retractable operation, integrated drainage, and full smart connectivity, with modular scalability for custom designs.
Technical Highlights
| Component | Specification |
|---|---|
| Frame Material | 6063-T6 Aluminium |
| Blade Profile | 210 × 45 × 2.0 mm |
| Beam Size | 200 × 208 × 2.0 mm |
| Post Size | 150 × 150 × 2.5 mm |
| Standard Height | 3 m |
| Operation Type | Retractable / Reversible (Single or Dual-Opening) |
| Motor System | Low-noise DC tubular drive with precision control |
| Wind Resistance | Up to 150 km/h |
| Drainage System | Hidden internal gutter and down-post drainage |
| Lighting | 24 V Waterproof LED (Warm + RGB, IP67-rated) |
| Coating Options | Standard Powder Coat / Optional PVDF Coating |
| Control Options | Remote / Tuya Smart Life App / Sensor Automation |
| Panel Option | Heat-Insulated Aluminium Panels (Upgrade) |
Colour & Finish Options
Classic Full-Frame Finishes
All Wood Grain Colour – Warm natural tone (surcharge applies)

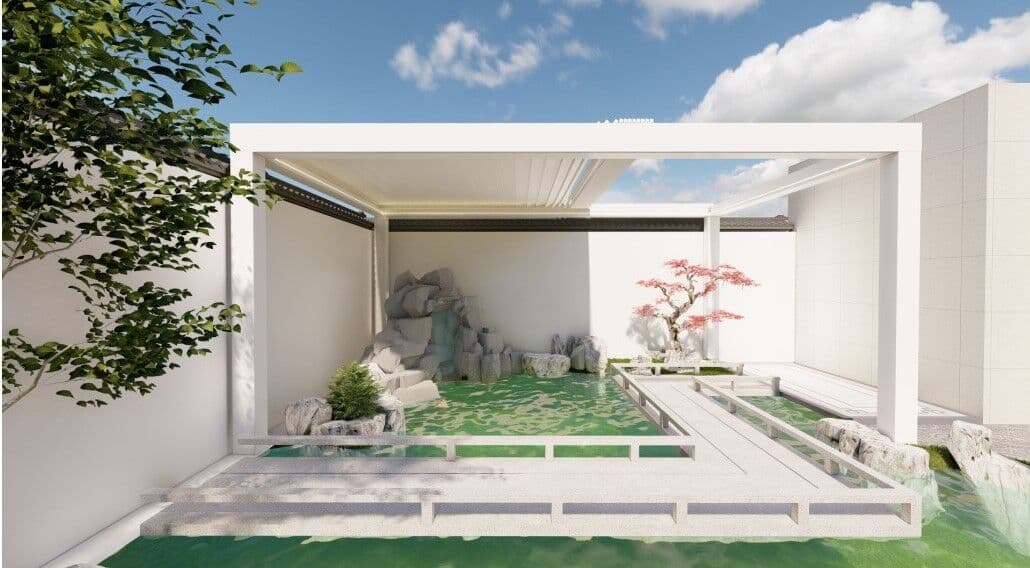

All White – Clean, modern, ideal for coastal homes

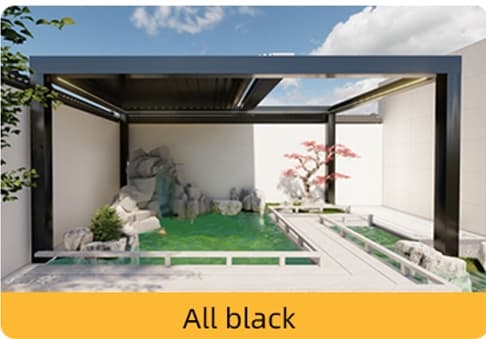

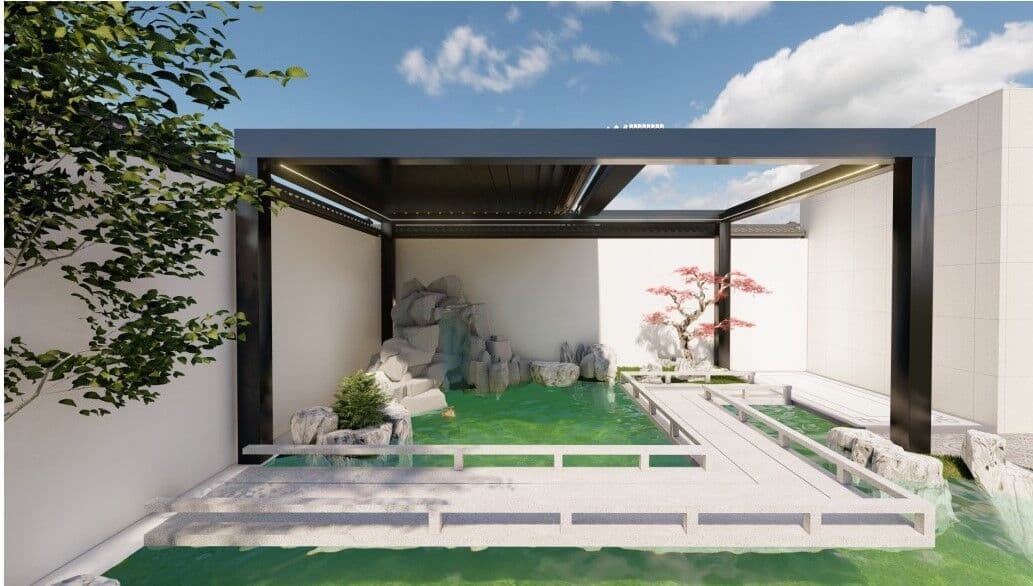

All Black – Strong architectural aesthetic for urban / industrial projects

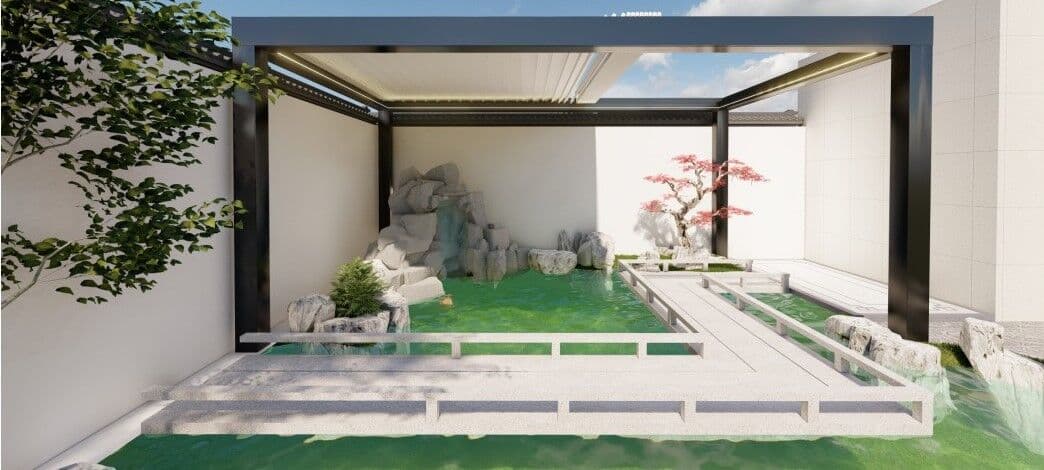

Mixed Colour Combinations

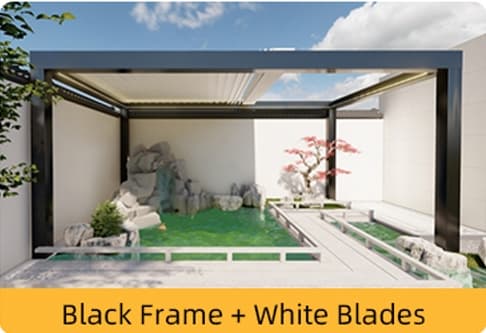

Black Frame / White Louvres – Bold contrast, contemporary style

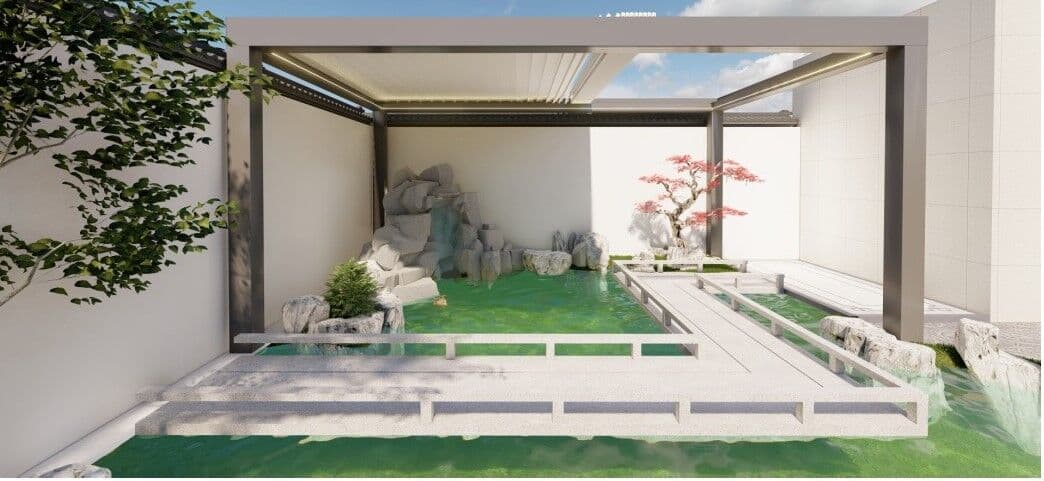

Grey Frame / White Louvres – Subtle neutrality, universal appeal
White Frame / Wood Grain Louvres – Combines warmth with modern minimalism
Customisation
200 + RAL Colours available
Two-Tone Combinations for frame and louvre
PVDF Coating Option for extreme-environment protection
Warranties
| Component | Warranty |
|---|---|
| Frame | 20 Years |
| Coating | 12 Years (Standard) / Extended with PVDF Option |
| Motor & Electronics | 5 Years |
Movis System Pricing (Excl. GST)
| Size (m) | Area (m²) | Pricing |
|---|---|---|
| 3 × 3 | 9 | $10,800 |
| 4 × 3 | 12 | $14,400 |
| 4 × 4 | 16 | $19,200 |
| 5 × 3 | 15 | $18,000 |
| 5 × 4 | 20 | $24,000 |
| 5 × 5 | 25 | $30,000 |
| 6 × 3 | 18 | $21,600 |
| 6 × 4 | 24 | $28,800 |
| 7 × 4 | 28 | $33,600 |
| 8 × 4 | 32 | $38,400 |
| 8 × 6 | 48 | $57,600 |
| 10 × 3 | 30 | $36,000 |
| 12 × 4 | 48 | $57,600 |
✅ Notes:
All pricing excludes GST.
Standard height configuration: 3 m.
Additional posts may be required for spans exceeding 6 m.
Built for New Zealand Conditions
From alpine retreats to coastal homes, the Movis Retractable System combines durability, design, and intelligent control. With Tuya Smart Life connectivity, PVDF coating, and optional heat-insulated panels, Movis creates an elegant, energy-efficient environment built for all seasons.
