Description

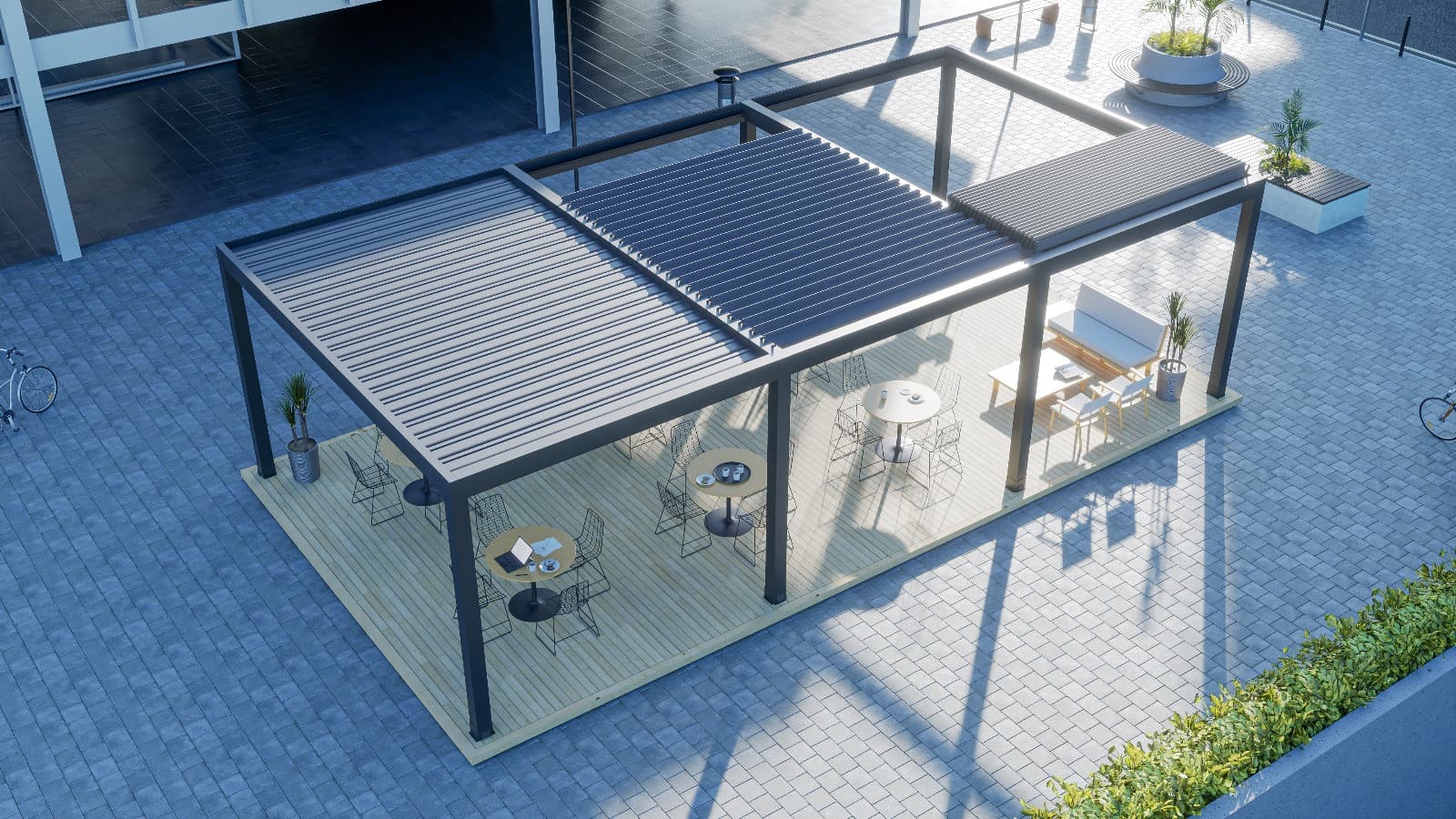

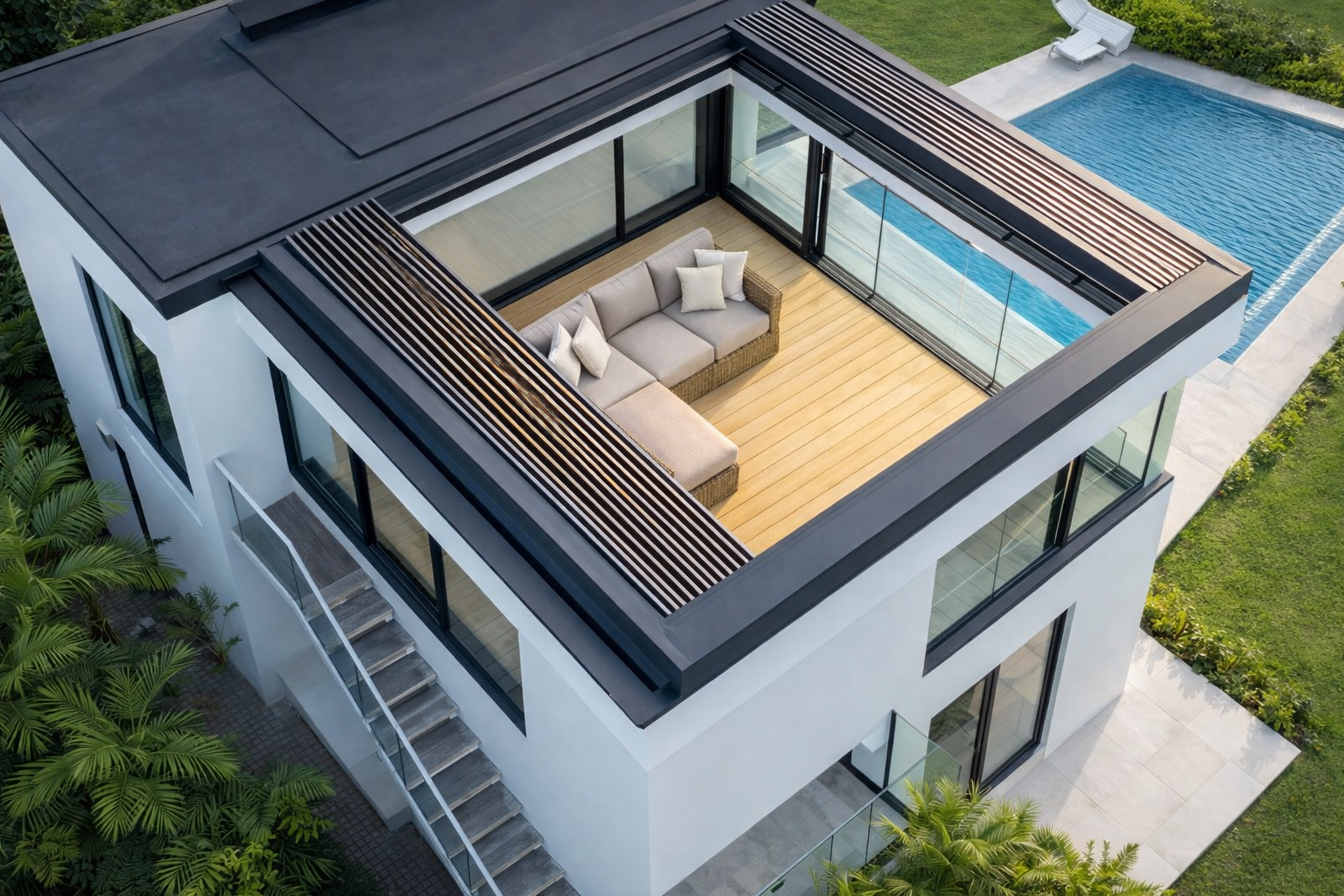

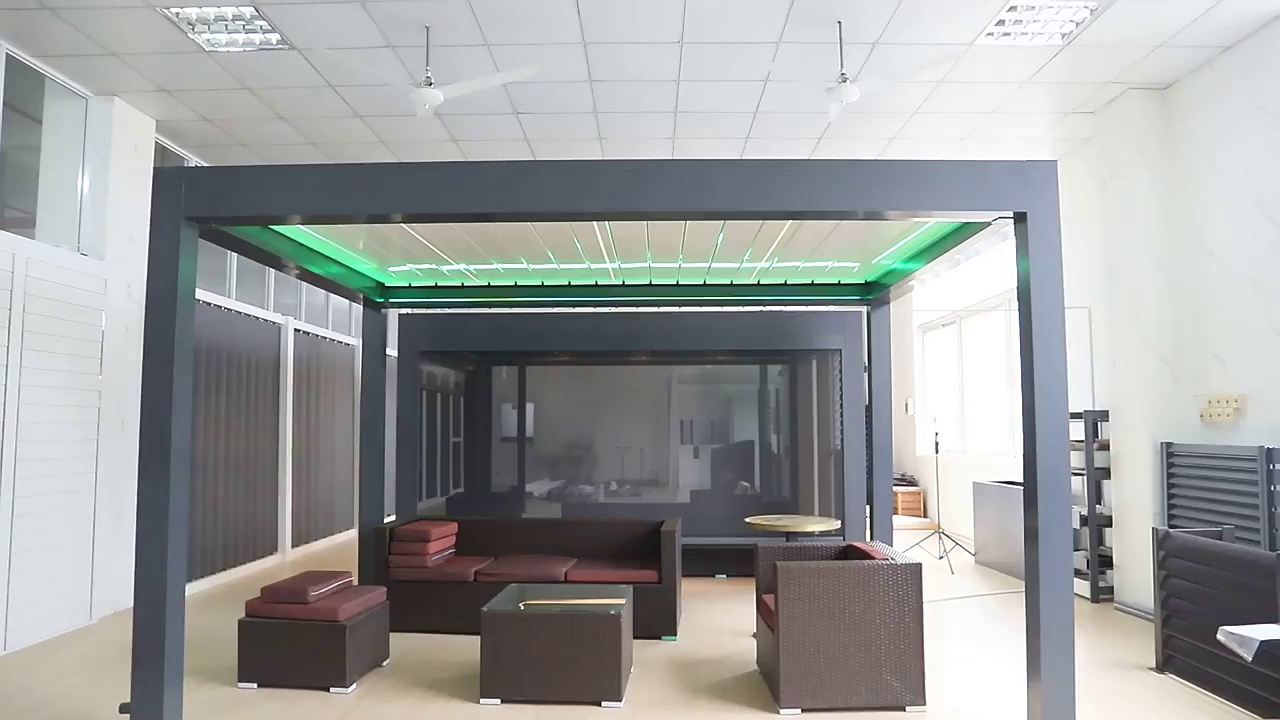

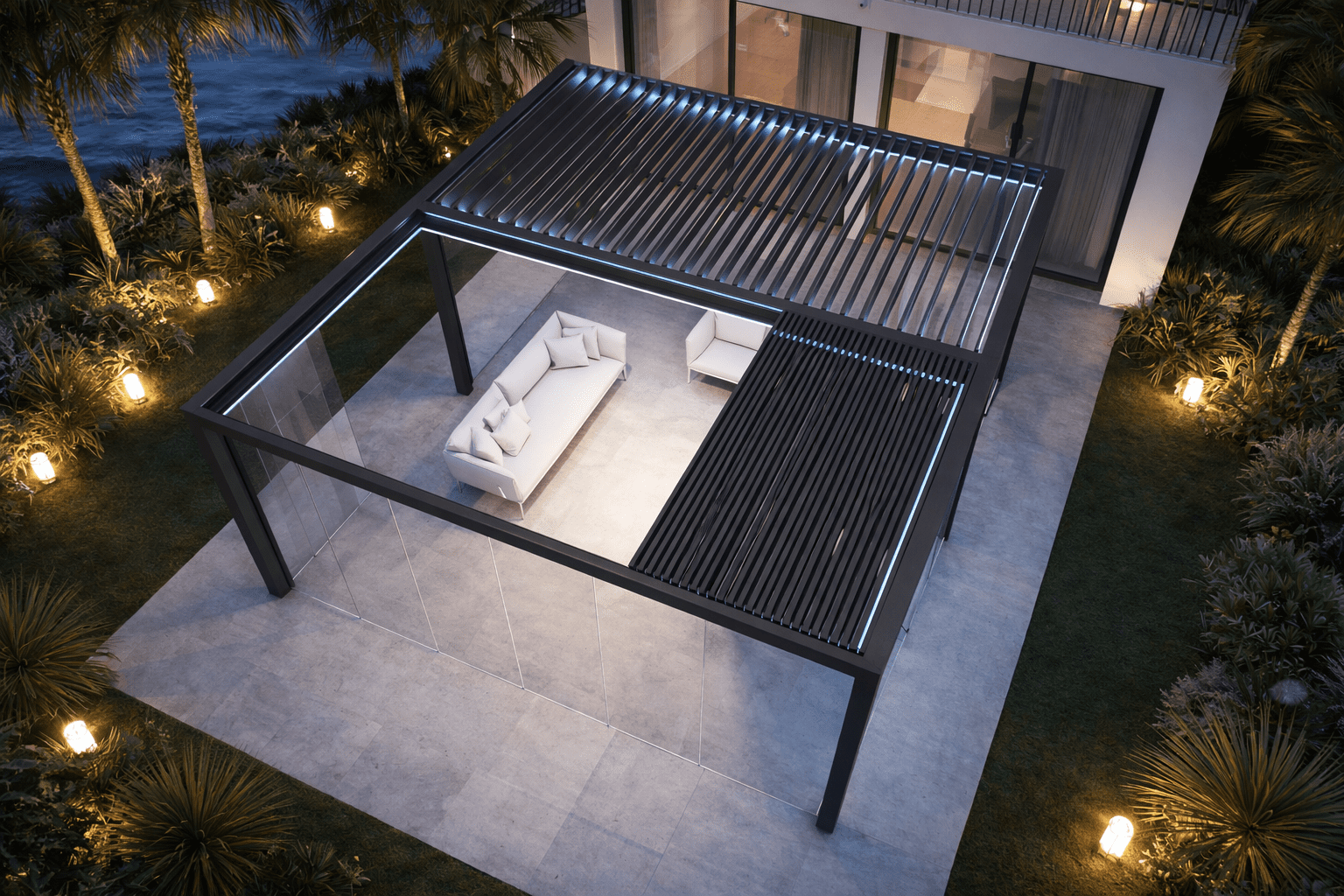

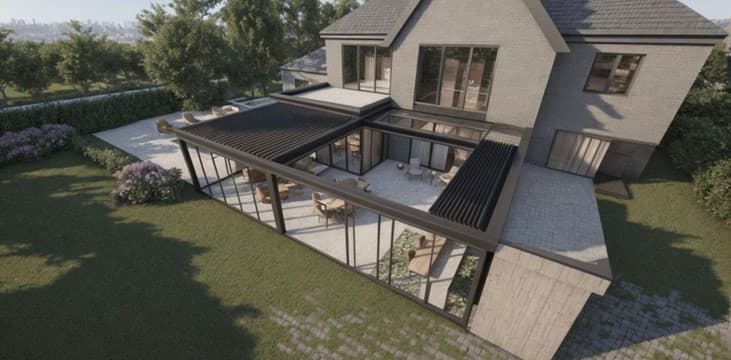

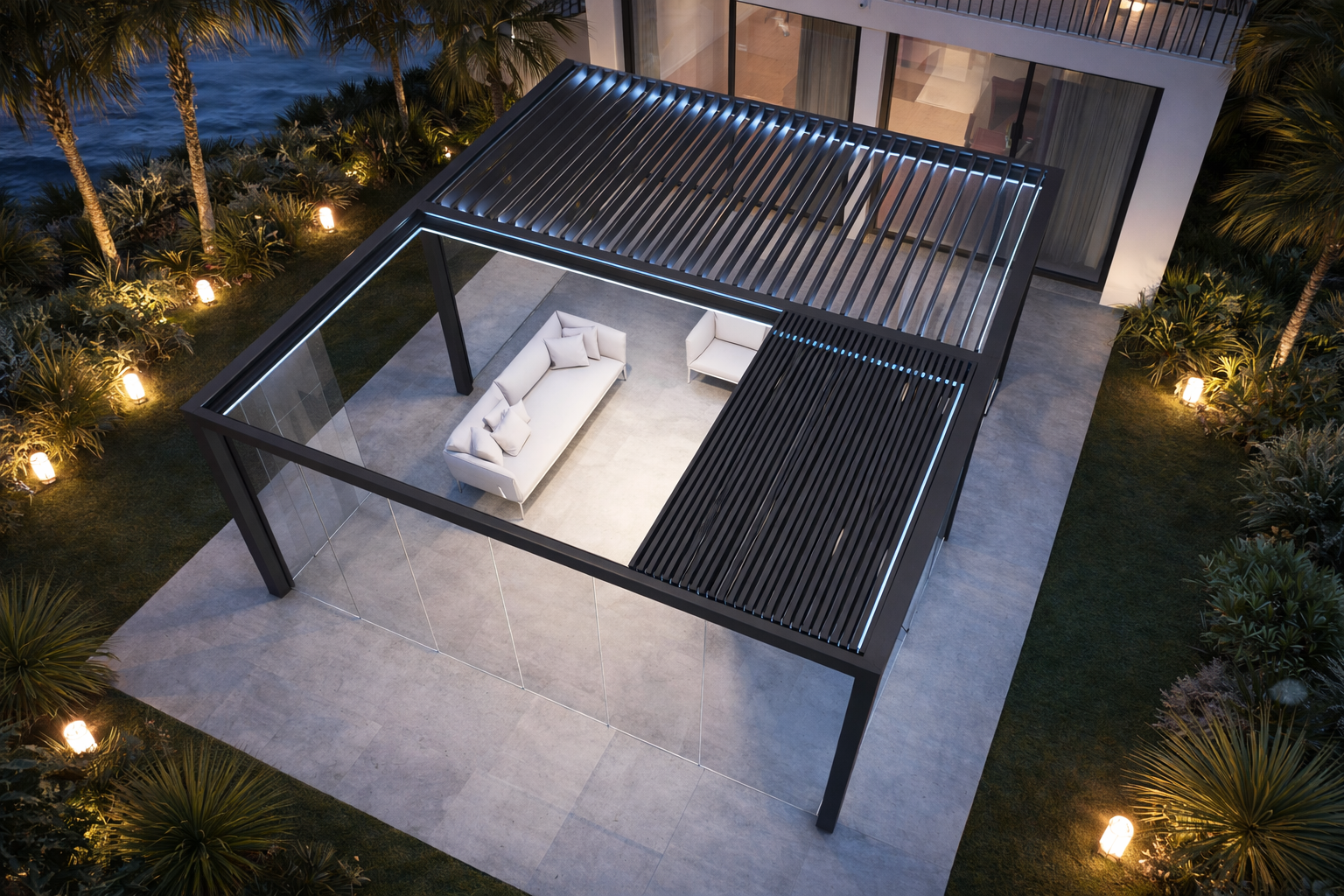

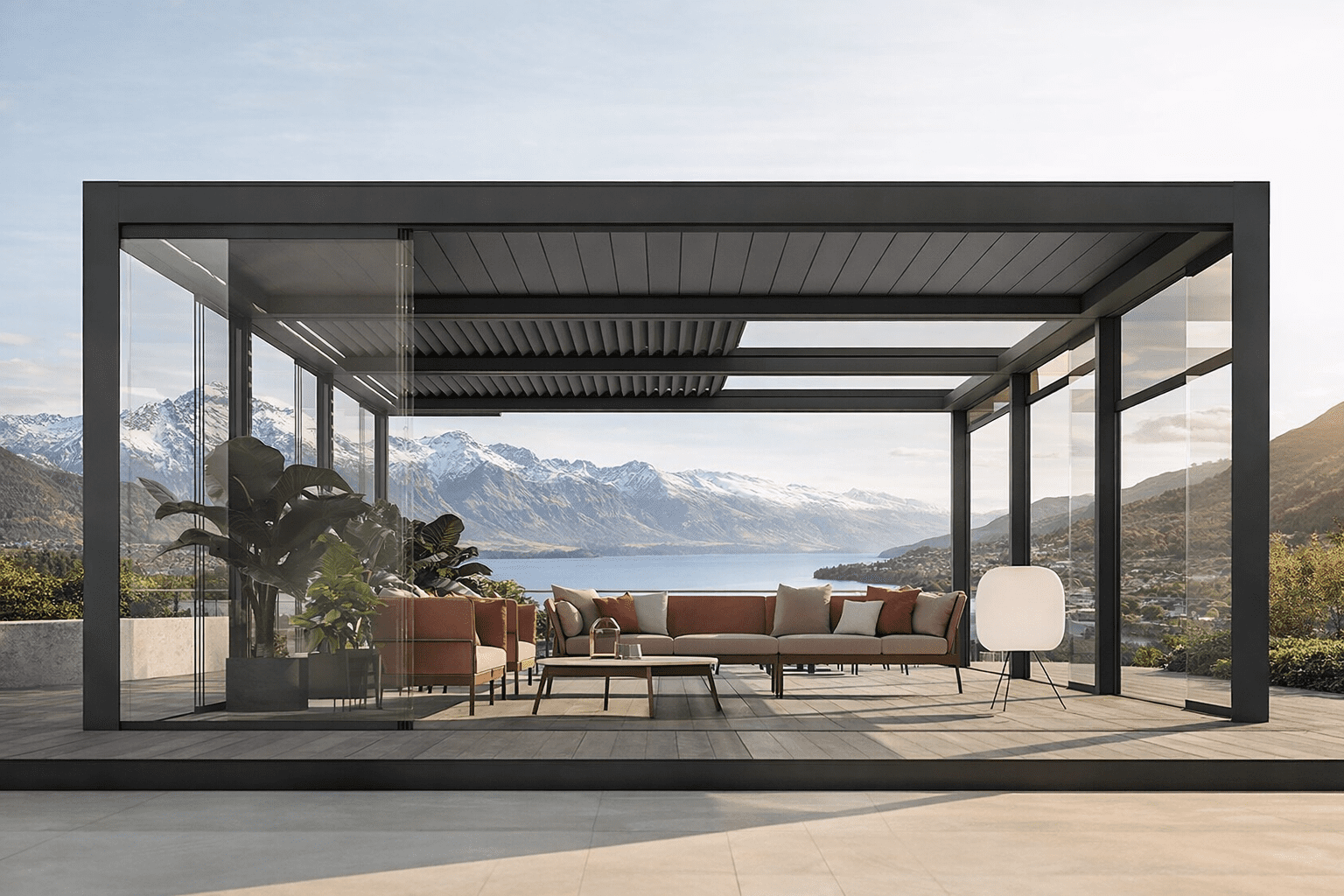

The Orion Apex is Apollo NZ’s premium retractable louvre solution, engineered for strength, durability, and smooth operation. Built on the trusted Orion platform, Apex delivers a larger retractable span with enhanced structural specifications—ideal for both residential and commercial outdoor spaces.
Key Features & Specifications
Aluminium Alloy 6063 T6
High-grade structural aluminium, providing excellent strength, corrosion resistance, and long-lasting durability in New Zealand’s diverse climates.

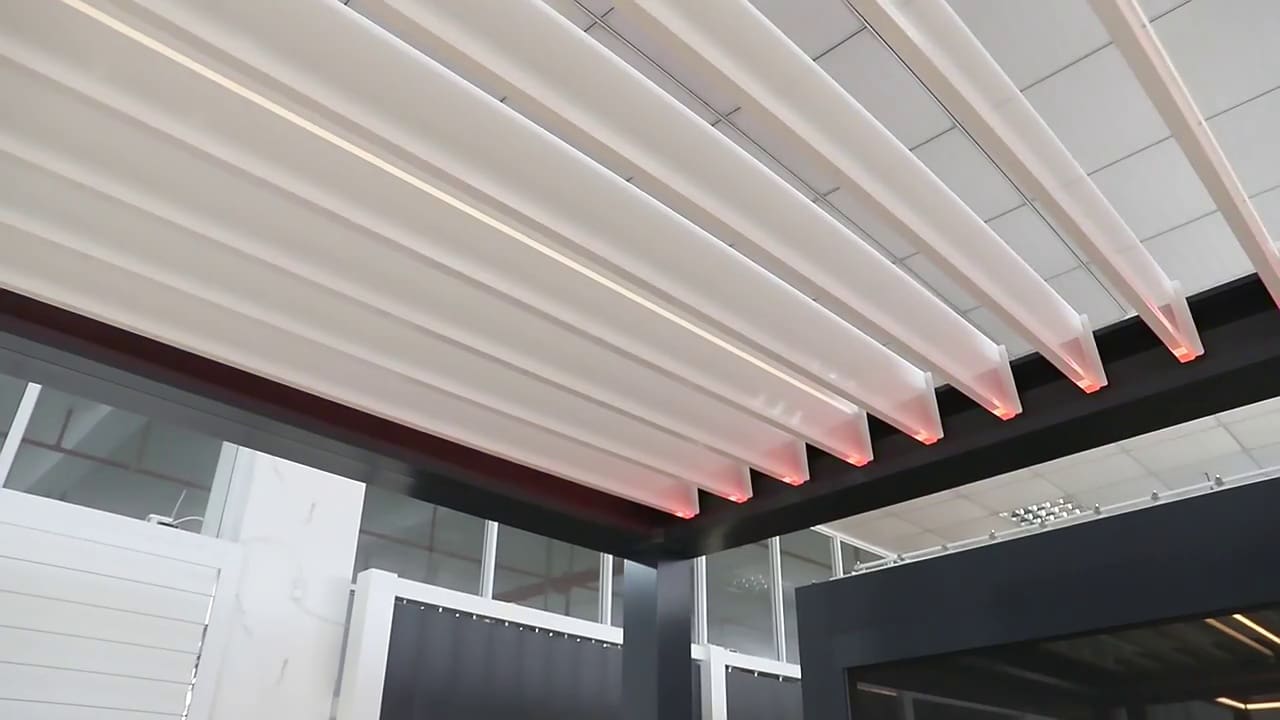

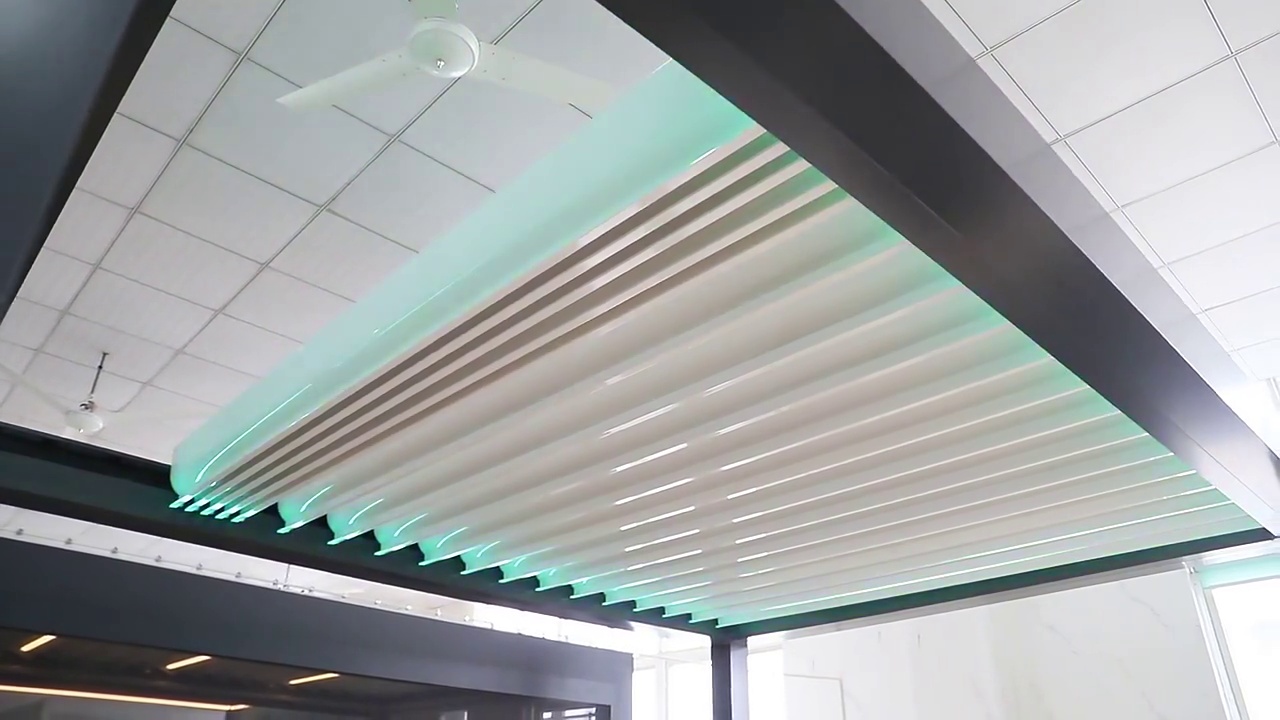

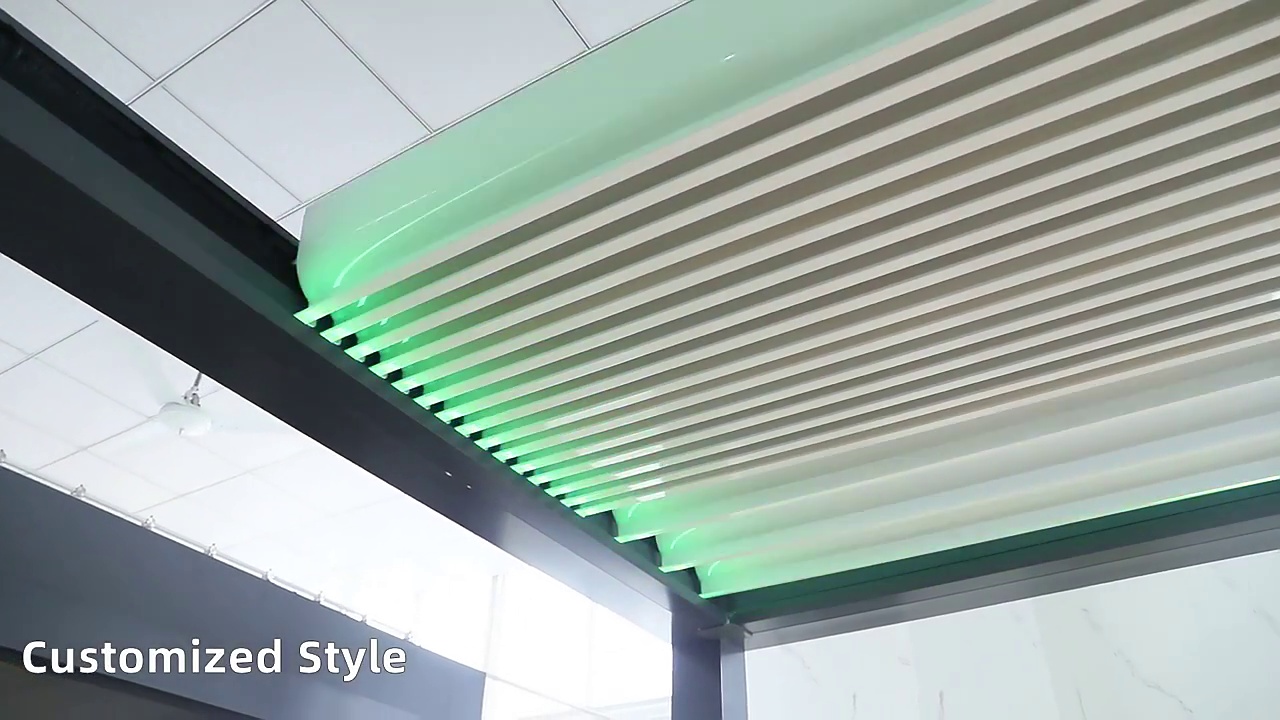

Double-Skin Louvre Blades
Size: 215 × 40 × 2.3mm
Maximum blade span: 4.5m

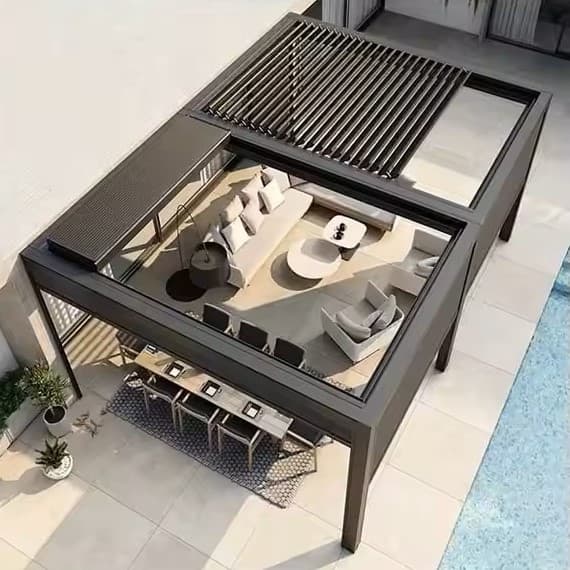

Retractable direction: up to 6.0m
Integrated Beam & Gutter System
Profile: 230 × 200mm
Thickness: 3.0mm & 3.5mm options for increased load-bearing capacity
Seamless design integrates structural support and drainage

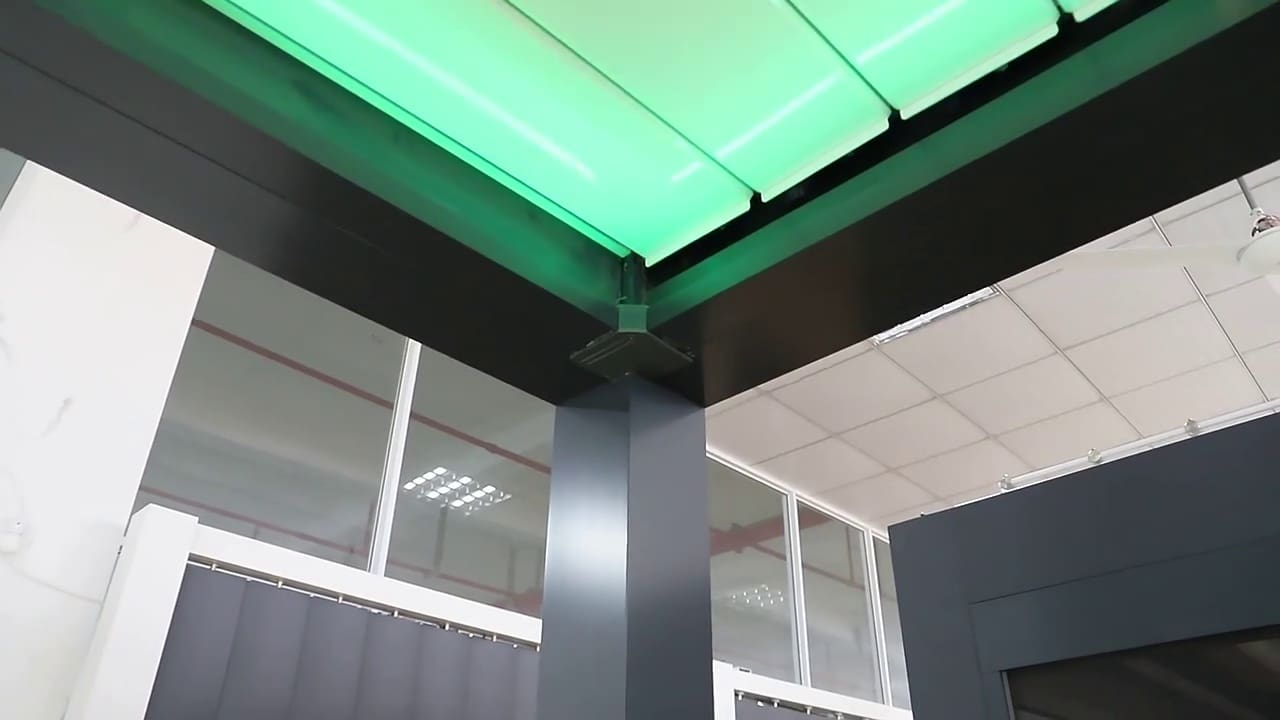

Posts
Dimensions: 150 × 150 × 3.0mm
Engineered for stability under New Zealand wind conditions
Colours & Finishes
Same standard and custom colours as the Orion Prime system
Durable powder-coat finishes designed for coastal and urban conditions
Product Sizing
Made-to-measure product
Maximum size: 30m²
Warranty
Structural: Lifetime
Powder-coating: 10 years
Motorisation & components: 3 years (replacement of part only)
(Aligned with Orion Prime warranties)
