Orion Prime Fixed Size Louvre Systems — Built for New Zealand’s Toughest Conditions
When it comes to premium louvre systems engineered for New Zealand’s demanding weather, Orion Prime by Apollo NZ stands in a class of its own. Now available in a range of fixed sizes, with both supply-only and installation options, Orion Prime delivers elite engineering, architectural aesthetics, and weather-defying performance — all backed by a lifetime structural warranty.
🎁 Limited-Time Bonus Offer
For a limited time only, every Orion Prime Fixed Size System comes with bonus add-ons at no extra cost:

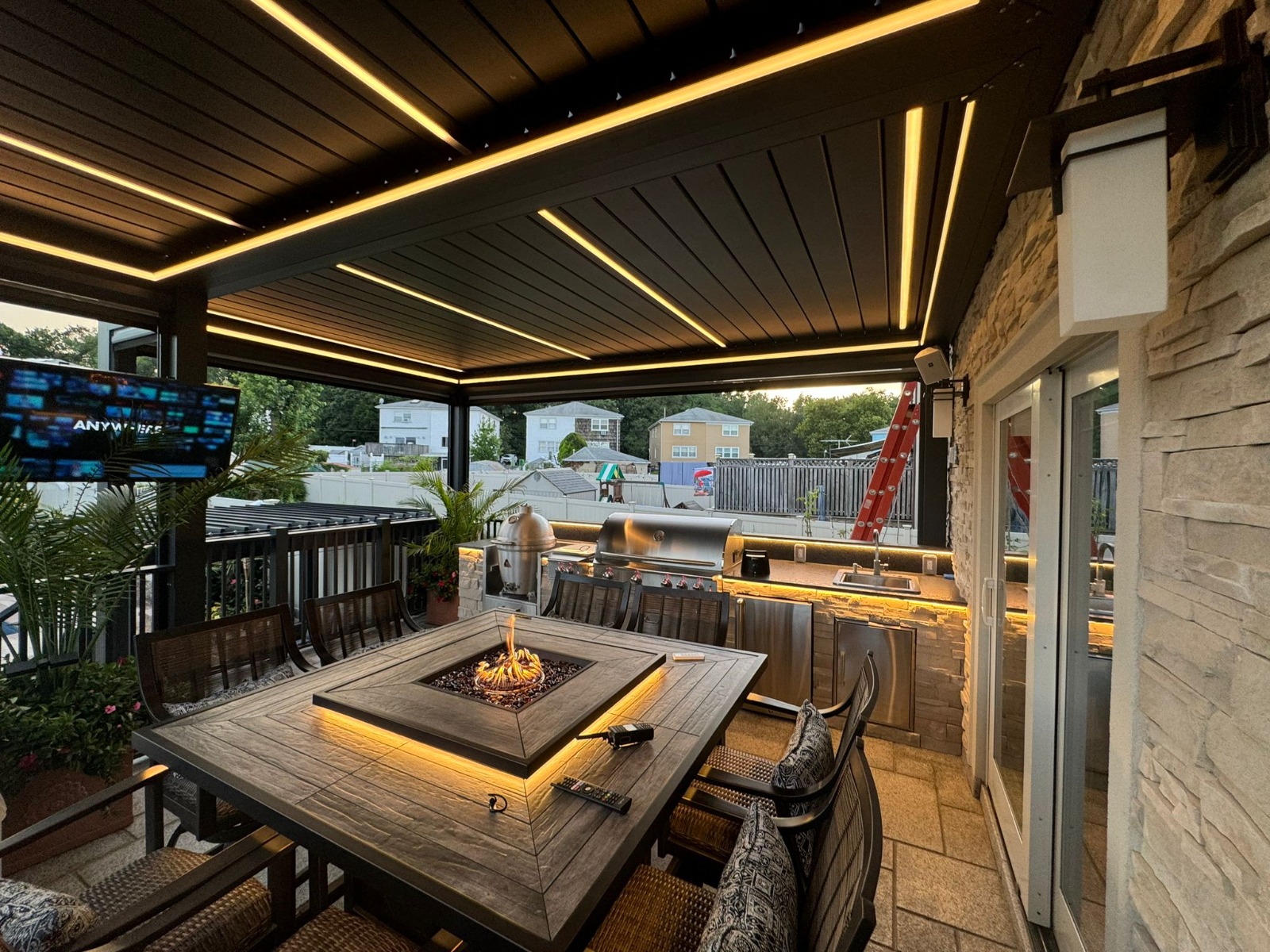

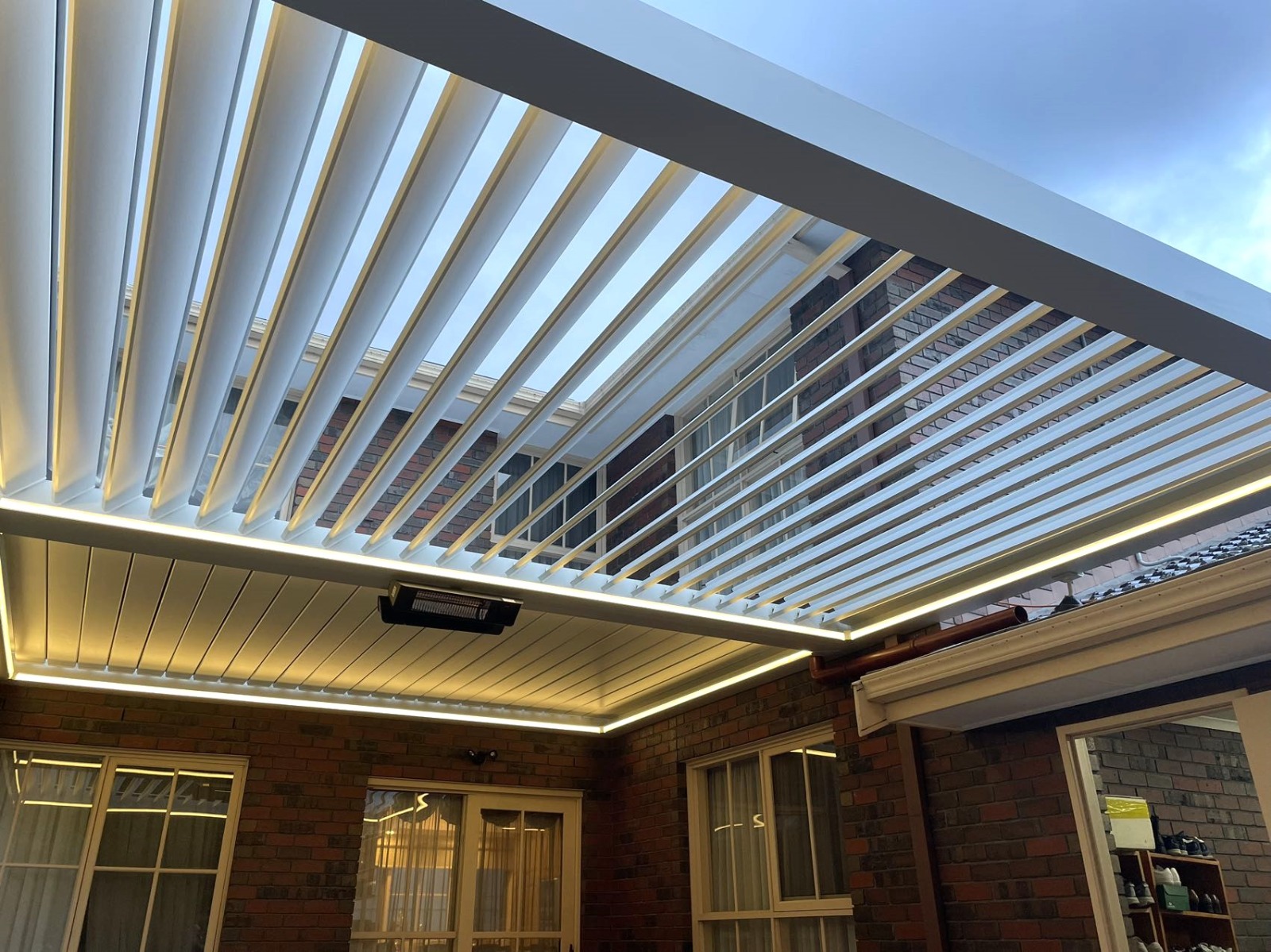

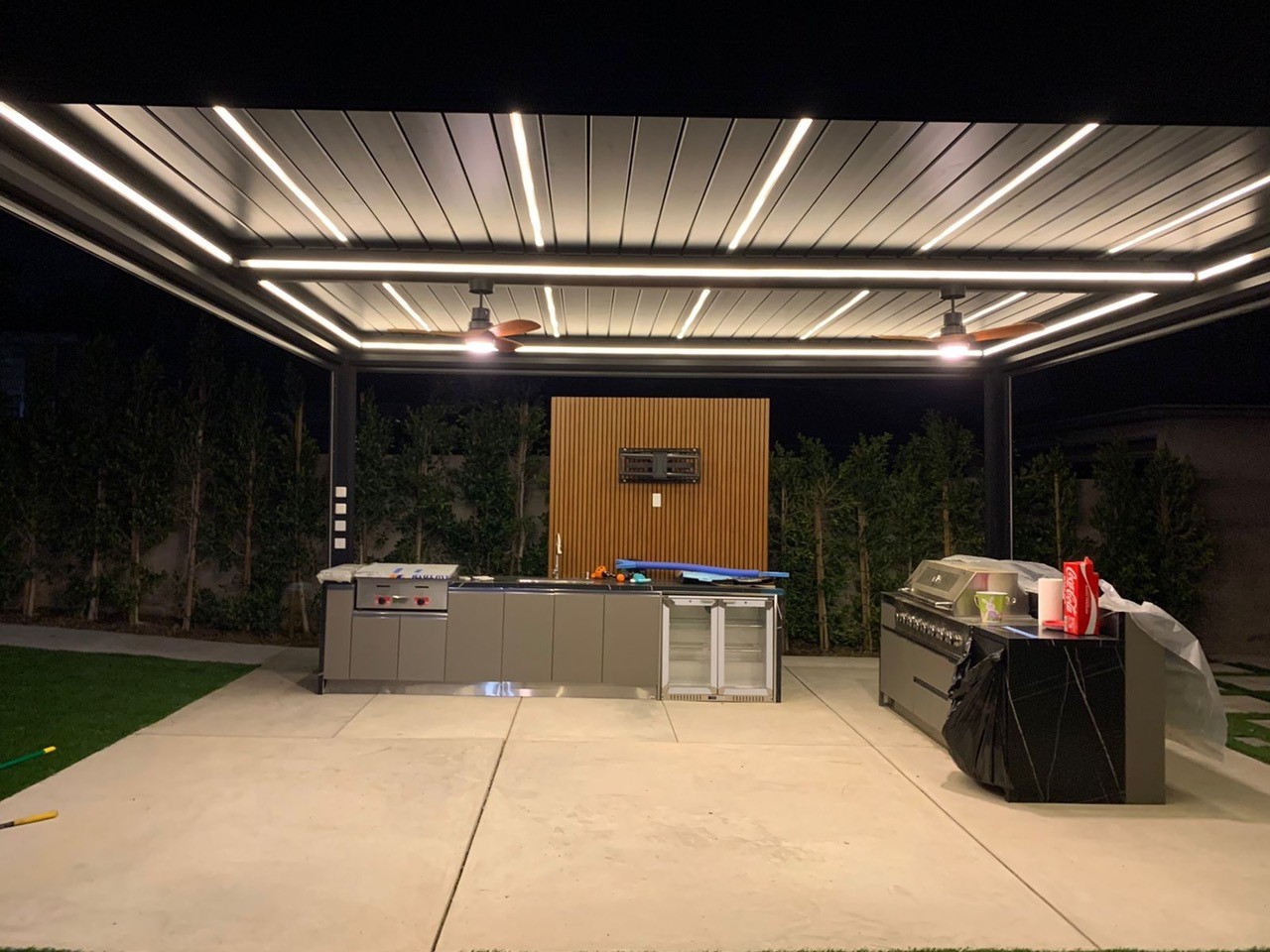

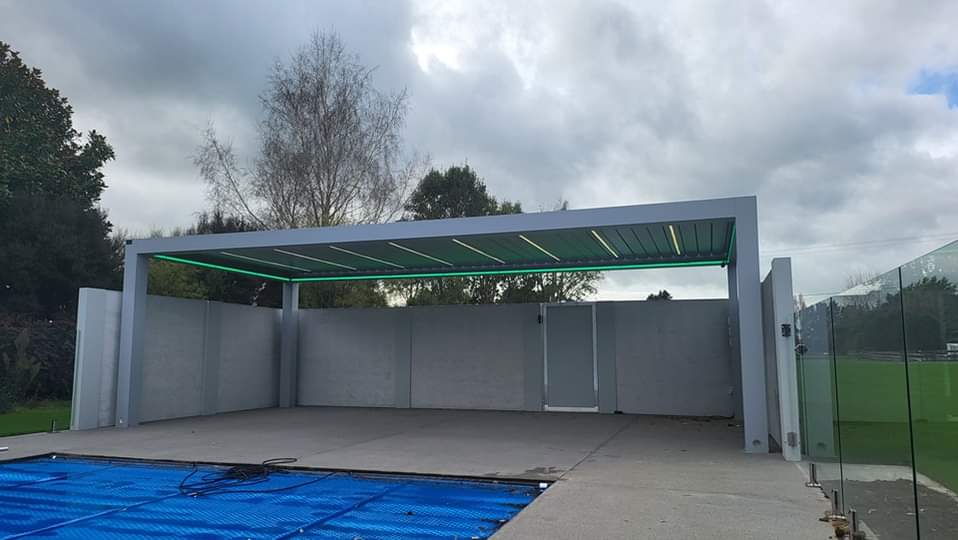

✅ Integrated LED Louvre Lighting
✅ 1 x Rain Sensor

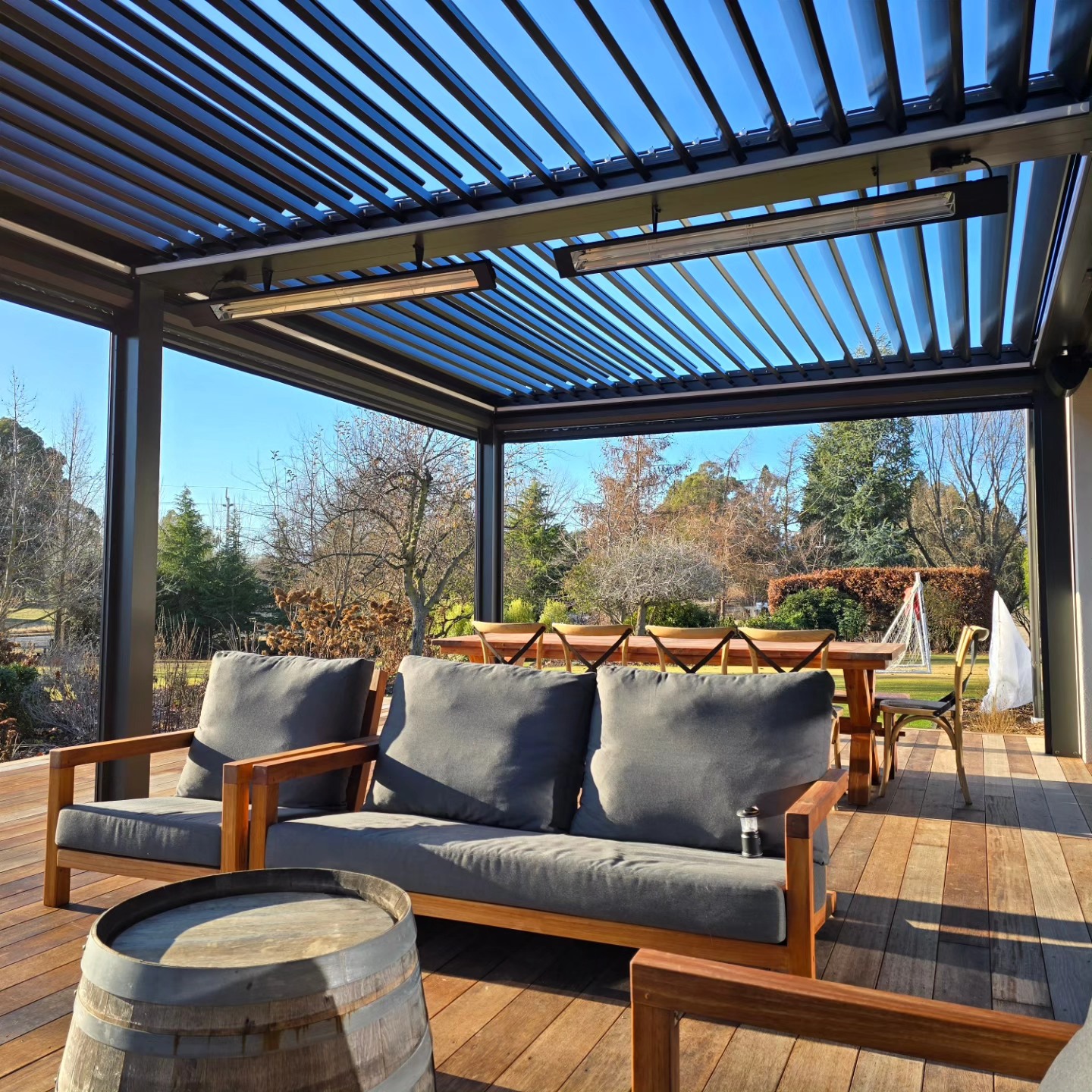

✅ 1 x Outdoor Heater
✅ For structures over 20m²: Louvre LED lights and LED surround lights included at no extra cost
This exclusive package is designed to enhance your outdoor experience with comfort, convenience, and functionality — all included free while the promotion lasts!
🔧 Why Choose Orion Prime?
The Orion Prime isn’t just another louvre roof system — it's a high-performance architectural structure designed to meet the most demanding standards, from coastal homes and alpine retreats to urban residences across Aotearoa.
Key Advantages Include:
Lifetime Structural Warranty
Brass H59 Internal Components
316 Stainless Steel Fasteners
Integrated Beam and Gutter System
Double Skin 6005 T6 Aluminium Blades
IP67 Waterproof Motor for ultimate reliability
🌪️ Built for High-Wind Zones
With an optional high-wind blade upgrade (232 x 50 x 2.3mm), the Orion Prime offers:
Increased Structural Strength
Cleaner, Longer Spans
Wind Ratings up to 234 km/h
🟡 Premium Internal Components
Unlike many louvre systems, the Orion Prime features:
Brass H59 for drive sleeves, pivot rings, and motor components
Self-Lubricating, corrosion-resistant properties
Superior hardness for longevity and durability
No plastic parts in mechanical components
🎨 Colour and Finish Flexibility
Whether blending into a natural setting or matching your home’s joinery, Orion Prime offers one of the widest standard colour ranges in the industry:
Anotec Mid-Bronze
Karaka
Appliance White
Ghost Grey
Lignite
Thunder Grey
Gull Grey
Grey Friars
Sandstone Grey
Flaxpod
Charcoal
Ironsand
Window Grey
Basalt Grey
Anthracite Grey
Jet Black
Traffic White
Custom RAL Colours and PVDF Coatings are also available on request — perfect for coastal, commercial, or custom design projects.
📐 Technical Specifications
| Component | Specification Options |
|---|---|
| Blades | 200x35x2.2mm (standard) or 232x50x2.3mm (high-wind) – Aluminium 6005 T6 |
| Beams | 200x70x3.0mm, 200x77.8x6.4mm, 300x70x3.5mm |
| Posts | 150x150x3.0mm, 155x155x6.4mm, 200x100x3.0mm, 200x200x3.0mm |
| Gutters | 120x65x2.2mm with integrated drainage |
| Motor | IP67 waterproof, concealed inside beam |
| Internal Parts | Brass H59 + 316 Stainless Steel |
📏 Fixed Size Options
| Size (m) | Supply Only (excl. GST) | With Install (excl. GST) |
|---|---|---|
| 3 x 3 | $8,500 | $10,350 |
| 4 x 3 | $11,400 | $13,800 |
| 4 x 4 | $15,200 | $18,400 |
| 5 x 3 | $14,250 | $17,250 |
| 5 x 4 | $19,000 | $23,000 |
| 5 x 5 | $23,750 | $28,750 |
| 6 x 3 | $17,000 | $20,700 |
| 6 x 4 | $22,800 | $27,600 |
| 6 x 5 | $28,500 | $34,500 |
| 8 x 3 | $22,800 | $27,600 |
| 8 x 4 | $30,400 | $36,800 |
| 9 x 3 | $25,650 | $31,550 |
| 10 x 3 | $28,500 | $34,500 |
| 10 x 4 | $38,000 | $46,000 |
| 10 x 5 | $47,500 | $57,500 |
📄 Important Notes
All prices exclude GST.
Beam size: 200x70x3.0mm
Post size: 150x150x3.0mm
Delivery to a local depot or Hiab delivery to site is additional.
Structures over 30m² will require consent — a PS1 (Producer Statement – Design) is available if required.
🛠️ Installation Available in Selected Regions
Apollo NZ provides professional installation services in:
Auckland
Waikato
Bay of Plenty
Taranaki
Coromandel
Christchurch
Installation covers labour only.
Travel, crate delivery, and crate/rubbish removal costs are additional and discussed directly with the contract installer.
Site Requirements: Clear access and a level foundation are required for a smooth installation.
⚙️ Built for New Zealand. Backed by Experience.
From marine-grade materials to precision engineering and smart, integrated features, the Orion Prime is the ultimate solution for those who demand outdoor living without compromise.
📦 Contact Apollo NZ today to secure your Orion Prime Fixed Size Louvre System — and enjoy limited-time bonus upgrades with your order.
