Pickleball is growing rapidly across New Zealand, creating demand for affordable courts that can be installed without the cost and disruption of traditional sports court construction.
For schools, sports clubs, retirement villages, community centres, commercial venues and homeowners, roll-out pickleball mats offer a practical way to convert suitable existing surfaces into dedicated or multi-use pickleball courts.
A pickleball court mat provides a consistent playing surface, clear court markings and faster installation than many traditional painted acrylic court systems. Depending on the project, the mat can be installed temporarily, semi-permanently or permanently.
This guide explains how pickleball mats work, where they can be installed, which surface is best and what New Zealand customers should consider before ordering.
What Is a Pickleball Court Mat?
A pickleball court mat is a specialised sports flooring system supplied in large rolls or sections.
Once positioned and joined together, the sections form a complete pickleball playing surface. Court lines may be incorporated into the material during production, reducing the need for on-site measuring and painting.
A quality pickleball mat is designed to provide:
- Consistent ball bounce
- Reliable player grip
- Clear court markings
- Improved playing comfort
- UV resistance for suitable outdoor models
- Faster installation
- Portable or permanent installation options
- A professional court appearance
Unlike loose household flooring or general-purpose rubber mats, pickleball court mats are manufactured specifically for sports use.
Why Are Pickleball Mats Becoming Popular in New Zealand?
Many New Zealand organisations want to add pickleball without constructing a completely new court.
Traditional court construction may involve excavation, drainage work, concrete pouring, curing, surface coating, line marking and significant disruption to the site.
Roll-out pickleball flooring can simplify the process where a suitable foundation already exists.
Pickleball mats are particularly useful for converting:
- Underused tennis courts
- School halls
- Indoor gymnasiums
- Community centres
- Bowls club facilities
- Recreation centres
- Warehouses
- Existing concrete areas
- Suitable asphalt courts
- Multi-purpose sports venues
The ability to install a court over an existing base makes roll-out flooring attractive to venues looking for a faster and more flexible solution.
What Is the Standard Pickleball Court Size?
The official pickleball playing area measures:
6.10 metres wide × 13.41 metres long
This is the marked court area only.
Additional space should be allowed around the outside of the court so players can safely move behind the baselines and beyond the sidelines.
For a comfortable recreational layout, an overall area of approximately:
9 metres wide × 18 metres long
is often recommended.
Where space is restricted, a smaller surrounding area may be possible. However, reducing the run-off area can affect player safety and the overall playing experience.
Before ordering a pickleball mat, the available space should be measured carefully.
Apollo NZ Roll-Out Pickleball Mat Options
Apollo NZ offers specialised pickleball mat systems suitable for different venues, player groups and installation requirements.
PM-T Acrylic Sand Pickleball Mat
The PM-T Acrylic Sand system is approximately 3.0 mm thick.
It provides a firm and responsive playing surface for customers wanting consistent ball performance and reliable traction.
The PM-T option is suited to:
- Schools
- Sports clubs
- Community facilities
- Multi-use venues
- Residential pickleball courts
- Portable installations
- Semi-permanent courts
Its acrylic sand-style surface provides a familiar sports court feel while allowing the convenience of a roll-out flooring system.
PM-S Pickle Sand Pickleball Mat
The PM-S Pickle Sand system is approximately 3.5 mm thick.
Its additional thickness can provide slightly greater cushioning underfoot, making it suitable for venues where player comfort and frequent use are important.
The PM-S option is well suited to:
- Retirement villages
- Pickleball clubs
- Indoor sports centres
- Commercial recreation venues
- Community facilities
- High-use courts
- Players seeking additional comfort
The thicker construction may help reduce the harsh feel associated with playing directly on concrete while maintaining the firmness required for consistent ball bounce.
Pickleball Mats Versus Traditional Acrylic Courts
Both systems can create a suitable pickleball playing surface, but they involve different installation processes.
Traditional Acrylic Court
A traditional acrylic court typically requires several coating layers to be applied directly to a prepared concrete or asphalt base.
This can provide an excellent permanent surface, but installation may depend on:
- Dry weather
- Surface curing
- Multiple coating stages
- Professional application
- On-site line marking
- Longer installation periods
Roll-Out Pickleball Mat
A roll-out court arrives as a manufactured sports surface.
Depending on the selected system, it can provide:
- Faster installation
- Factory-produced surface consistency
- Pre-marked pickleball lines
- Portable options
- Semi-permanent installation
- Reduced on-site coating work
- Easier future removal or replacement
A pickleball mat is not automatically better for every project. The correct choice depends on the existing base, venue use, budget, installation requirements and whether the court may need to be moved later.
Can Pickleball Mats Be Installed Outdoors?
Selected pickleball mats can be installed outdoors, provided both the flooring and installation system are suitable for exterior conditions.
An outdoor mat should be designed to handle:
- UV exposure
- Rain and moisture
- Temperature changes
- Regular player traffic
- Expansion and contraction
- Outdoor cleaning
- New Zealand weather conditions
The condition of the base remains extremely important.
A waterproof or UV-resistant mat will not correct poor drainage, major cracking or an uneven foundation underneath it.
Can Pickleball Mats Be Used Indoors?
Indoor pickleball mats are an excellent option for facilities that need to create courts inside existing buildings.
Suitable locations can include:
- School gymnasiums
- Community halls
- Indoor recreation centres
- Converted warehouses
- Commercial sports venues
- Multi-use event spaces
Portable indoor courts can be rolled out when required and stored when the space is needed for another activity.
The existing floor should be checked to ensure the mat and fixing method will not damage timber, vinyl, rubber or other finished surfaces.
What Is the Best Base for a Pickleball Mat?
The quality of the foundation has a major influence on the performance of the finished court.
Concrete
Concrete is generally the preferred base for a pickleball mat.
A suitable concrete surface provides:
- Strong support
- Predictable ball bounce
- Reduced movement
- Easier mat alignment
- Good long-term stability
A smooth broom-finished surface is usually preferable to highly polished concrete because it can provide better compatibility with tapes or adhesives.
The concrete should be fully cured, dry and free from major cracking.
Asphalt
Pickleball mats can also be installed over suitable asphalt.
The asphalt should be:
- Flat
- Stable
- Fully cured
- Free from loose stones
- Free from significant cracking
- Properly drained
- Clean before installation
Old or deteriorating asphalt may require repairs before the mat is installed.
Existing Indoor Sports Floors
Some pickleball mats can be positioned over existing indoor sports surfaces.
Compatibility should be confirmed before installation, particularly where tape or adhesive will be used.
Bases That Are Generally Unsuitable
Pickleball mats should not normally be placed directly over:
- Grass
- Soil
- Sand
- Loose gravel
- Uneven pavers
- Poorly compacted aggregate
- Soft or moving surfaces
Installing over an unstable base may cause wrinkles, movement, poor ball bounce and trip hazards.
Why Base Preparation Matters
A roll-out court follows the shape and condition of the surface beneath it.
Cracks, holes, raised joints and surface debris may become visible or noticeable through the mat.
Before installation, the base should be:
- Clean
- Dry
- Flat
- Level
- Structurally sound
- Free from dust
- Free from oil and grease
- Free from loose material
- Free from sharp edges
- Properly drained
Any necessary repairs should be completed before the flooring is installed.
A pickleball mat should not be used to conceal serious damage or structural movement in the existing court.

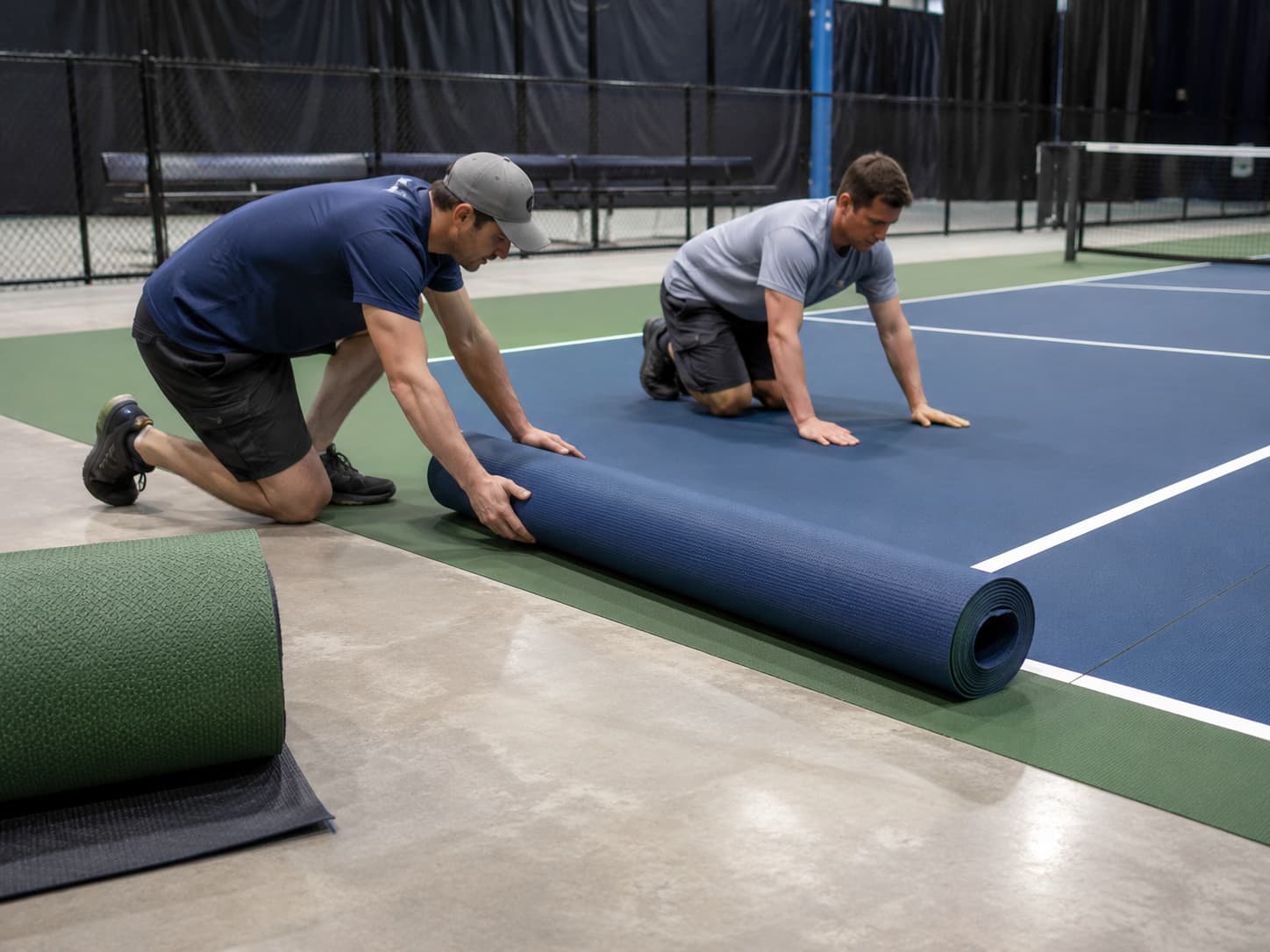

Portable Pickleball Court Installation
Portable pickleball mats are useful when a venue needs to remove the court after games, events or tournaments.
The court sections are rolled into position, aligned and secured using an appropriate temporary joining or tape system.
Portable courts are suitable for:
- School halls
- Temporary competitions
- Events
- Shared sports centres
- Seasonal pickleball programmes
- Multi-purpose community spaces
The flooring must be rolled and stored correctly after use to prevent creases or damage.
Semi-Permanent Pickleball Court Installation
A semi-permanent installation provides greater stability than a completely portable court while still allowing the surface to be removed in the future.
The sections may be secured using:
- Double-sided sports flooring tape
- Seam tape
- Removable adhesive
- Perimeter fixing systems
- Manufacturer-approved connectors
This installation method is often suitable for:
- Leased buildings
- Seasonal courts
- Shared sports facilities
- Community halls
- Temporary club locations
The correct tape or fixing system should be selected for both the mat and the base underneath it.
Permanent Pickleball Court Installation
For frequent or long-term use, the pickleball mat may be permanently bonded to a properly prepared base.
A permanent installation can provide:
- Reduced mat movement
- More secure seams
- Better long-term presentation
- Reduced risk of lifting edges
- Improved stability under regular use
Professional installation is recommended for permanently bonded courts.
The selected adhesive must be suitable for the flooring, the foundation and the environmental conditions.
How Many Rolls Are Needed for One Pickleball Court?
A complete pickleball court is normally supplied in several large rolls or sections.
Depending on the mat width and court design, approximately four to five rolls may be required for one court.
The exact quantity will depend on:
- Overall court dimensions
- Roll width
- Run-off space
- Seam positioning
- Court colour layout
- Custom markings
- Manufacturing requirements
A final production layout should be approved before ordering.
Each section may be numbered to make installation and future reassembly easier.
Are the Pickleball Court Lines Included?
Court lines can be incorporated into the roll-out flooring during production.
Pre-marked lines offer several advantages:
- Accurate positioning
- Consistent line width
- Faster installation
- No on-site line painting
- A cleaner finished appearance
- Reduced layout errors
For multi-sport venues, additional line colours may be included. However, pickleball markings should remain clearly distinguishable from other court lines.
Understanding the Pickleball Kitchen
The area immediately beside the net is known as the non-volley zone, or more commonly, the kitchen.
The kitchen extends 2.13 metres from the net on each side.
Players cannot volley the ball while standing inside this zone. They also cannot allow their momentum to carry them into the kitchen after completing a volley.
Clear kitchen markings are essential for both casual and competitive play.
Some venues choose a contrasting colour for the non-volley zone to make it easier for players to identify.
Pickleball Court Colours
Colour selection can influence both the appearance and usability of a pickleball court.
Popular combinations include:
- Blue court with a green surround
- Green court with a blue kitchen
- Grey surround with a blue playing area
- Red feature zones
- White court lines
- Yellow court lines
- Contrasting kitchen colours
Good contrast helps players track the ball and identify court boundaries.
Outdoor projects should also consider heat. Very dark surfaces may absorb more heat when exposed to direct sunlight.
The colour combination should suit the venue, surrounding environment and intended ball colour.
Ball Bounce and Court Performance
A properly installed pickleball mat should provide consistent ball response across the playing area.
Performance can be affected by:

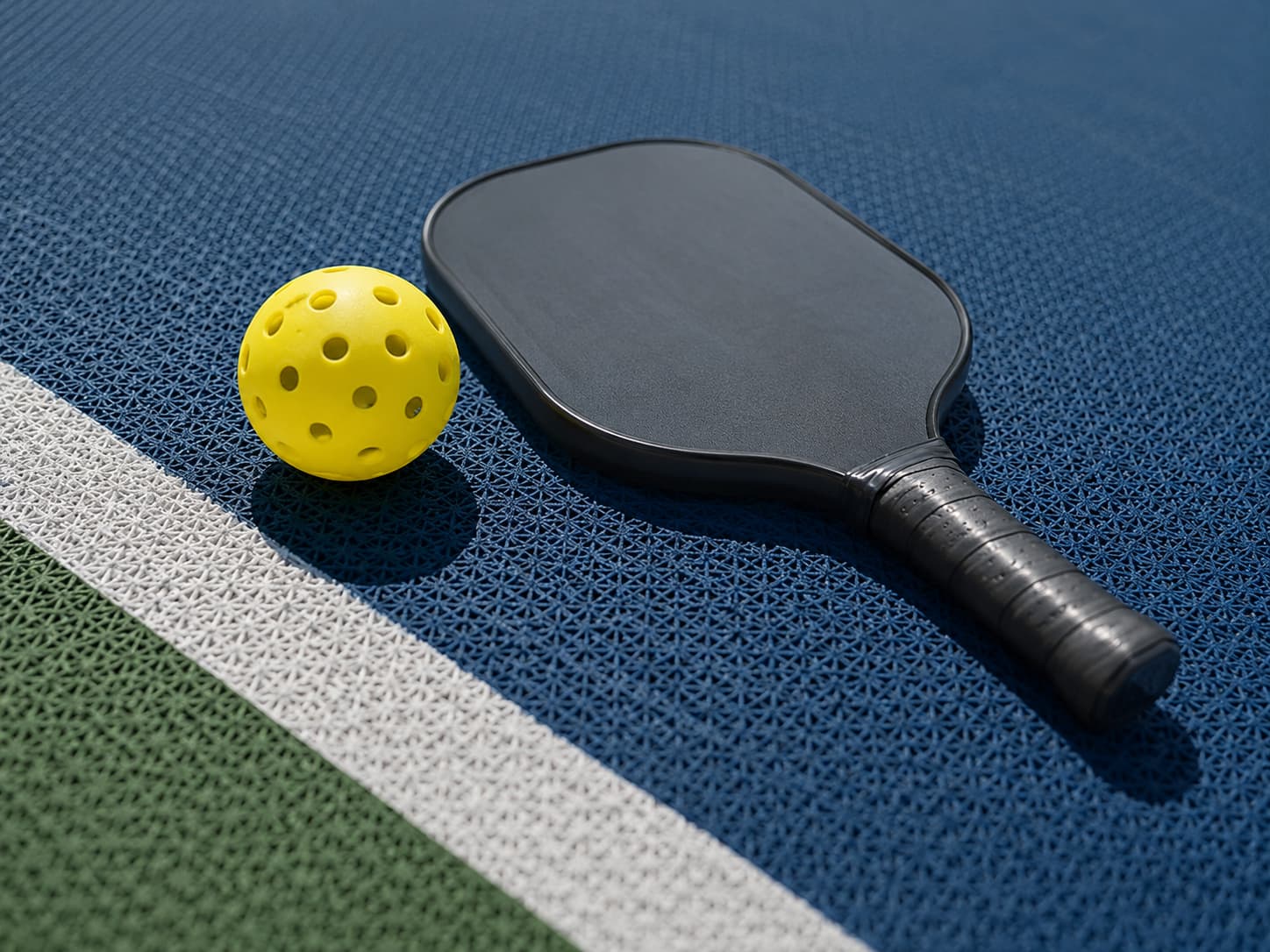

- Surface texture
- Mat thickness
- Base condition
- Seam quality
- Installation method
- Moisture underneath the mat
- Uneven areas in the foundation
A thicker mat does not automatically produce better performance. The flooring must still remain firm enough to support predictable pickleball bounce.
This is why sports-specific pickleball flooring should be used rather than general rubber or foam flooring.
Player Comfort
Pickleball involves frequent short movements, stops and changes of direction.
Playing directly on hard concrete can be uncomfortable, particularly during longer sessions.
A purpose-made pickleball mat may offer more comfort underfoot than an uncoated concrete surface.
This can be particularly valuable for:
- Older players
- Retirement village residents
- Social pickleball groups
- School students
- Frequent players
- Clubs running long sessions
- Indoor venues operating multiple games each day
Players should still use appropriate footwear with good support and non-marking soles where required.
Drainage for Outdoor Pickleball Mats
Outdoor drainage must be considered before installing the court.
The existing base should have a suitable fall that allows rainwater to move away from the playing surface.
Potential drainage problems include:
- Low points in concrete
- Standing water
- Blocked drains
- Water entering underneath the flooring
- Poorly sealed seams
- Water collecting around court edges
A pickleball mat does not create drainage beneath the court.
Any existing drainage problems should be corrected before installation.
Cleaning and Maintenance
Regular maintenance helps protect the appearance, grip and playing performance of the mat.
Recommended maintenance includes:
- Sweeping away dust and loose grit
- Removing leaves and organic material
- Cleaning spills promptly
- Using mild cleaning products
- Avoiding harsh solvents
- Checking seams and perimeter edges
- Removing standing water
- Inspecting for movement or lifting
- Keeping sharp equipment off the surface
- Using suitable sports footwear
Pressure washing should only be used where it is approved for the specific mat and installation method.
Aggressive water pressure may affect seams, adhesive or perimeter fixings.
How to Store a Portable Pickleball Court
Portable pickleball flooring should be rolled rather than folded.
Before storage, each section should be clean and completely dry.
Good storage practices include:
- Rolling sections in the correct direction
- Using storage cores where available
- Clearly labelling each section
- Protecting rolls from sharp objects
- Keeping the flooring away from moisture
- Storing rolls horizontally where recommended
- Avoiding heavy items placed on top
- Preventing tight folds or creases
Incorrect storage can permanently damage the playing surface.
Common Pickleball Mat Installation Mistakes
Installing Over an Uneven Base
Uneven concrete or asphalt can affect ball bounce and create noticeable high or low areas.
Ignoring Drainage
Water trapped underneath the court may affect seams, adhesives and long-term stability.
Using the Wrong Tape
General-purpose tape may not provide the required grip or may damage the existing floor.
Stretching the Mat During Installation
Pulling the flooring too tightly can create movement as the material settles or changes temperature.
Failing to Acclimatise the Material
Some flooring systems should be placed in the installation environment before final fitting.
Folding the Rolls
Folding can create creases that may be difficult or impossible to remove.
Installing Over Dust or Contamination
Dust, oil and loose material can interfere with tape and adhesive performance.
Ordering Without Confirming the Layout
The court dimensions, seam direction, colours and markings should be approved before production.
Are Pickleball Mats Suitable for Schools?
Pickleball mats can be an effective option for schools because they can make use of existing halls, gyms and concrete sports areas.
Benefits for schools include:
- Fast court conversion
- Pre-marked court lines
- Portable installation options
- Suitable for different age groups
- Easy introduction of pickleball programmes
- Flexible use of existing facilities
- Reduced need for new court construction
Portable courts may allow a school gymnasium to remain available for other sports and events.
Are Pickleball Mats Suitable for Retirement Villages?
Pickleball has become popular with older players because it is social, accessible and played on a smaller court than tennis.
A slightly cushioned roll-out surface may provide a more comfortable playing experience than bare concrete.
For retirement villages, important considerations include:
- Player comfort
- Safe run-off space
- Surface grip
- Clear court markings
- Easy access
- Suitable lighting
- Seating around the court
- Noise management
- Regular cleaning
The PM-S Pickle Sand mat may be particularly suitable where additional thickness and comfort are priorities.
Are Pickleball Mats Suitable for Tennis Clubs?
Tennis clubs can use pickleball mats to introduce pickleball without permanently converting every tennis court.
Depending on the available area, mats may be used for:
- Temporary pickleball events
- Dedicated club courts
- Indoor training spaces
- Seasonal competitions
- Social sessions
- Coaching programmes
- Trial courts before permanent development
Portable flooring can allow a club to test demand before committing to a larger court development.
Are Pickleball Mats Suitable for Bowls Clubs?
Bowls clubs often have clubrooms, halls, car parks or underused hard-surface areas that may be suitable for pickleball development.
Adding pickleball can help clubs:
- Attract new members
- Introduce younger participants
- Increase facility use
- Create new social sessions
- Generate additional court hire revenue
- Expand food and beverage activity
- Make better use of existing buildings
The proposed area must still have a suitable foundation and enough space for safe play.
Can Pickleball Mats Be Used for Commercial Venues?
Commercial pickleball centres need surfaces that can handle regular use and provide consistent performance.
A roll-out sports flooring system may be suitable for:
- Indoor pickleball centres
- Pay-to-play venues
- Entertainment facilities
- Fitness centres
- Holiday parks
- Sports tourism venues
- Corporate recreation areas
Commercial projects should consider:
- Daily player numbers
- Cleaning frequency
- Seam durability
- Court lighting
- Acoustic treatment
- Player circulation
- Spectator areas
- Equipment storage
- Long-term maintenance
Professional installation may be preferable for high-use commercial courts.
Key Benefits of Roll-Out Pickleball Mats
Pickleball court mats can provide:
- Faster installation
- A consistent manufactured surface
- Pre-marked court lines
- Portable options
- Semi-permanent options
- Permanent installation options
- Reduced on-site painting
- Good player traction
- Improved comfort compared with bare concrete
- Indoor and selected outdoor applications
- Easier removal than many permanent surfaces
- Efficient conversion of existing facilities
Important Limitations
A pickleball mat is only as good as the base beneath it.
Roll-out flooring will not permanently correct:
- Structural concrete failure
- Major cracking
- Poor drainage
- Ground movement
- Uneven asphalt
- Loose foundations
- Severe moisture problems
- Contaminated surfaces
Portable courts may also require regular checking and adjustment to keep seams and edges secure.
The area should be inspected before the final court system is selected.
Which Pickleball Mat Is Right for Your Project?
The PM-T Acrylic Sand and PM-S Pickle Sand systems are designed for different venue requirements.
Choose the PM-T Acrylic Sand Mat where priorities include:
- A firm court feel
- Responsive ball performance
- Portable or semi-permanent installation
- A practical sports flooring solution
- Schools and community use
Choose the PM-S Pickle Sand Mat where priorities include:
- Additional thickness
- Improved player comfort
- Frequent court use
- Retirement village applications
- Club or commercial facilities
The best surface will depend on the foundation, player group, installation method and intended court use.
Pickleball Mats Supplied Across New Zealand
Apollo NZ supplies roll-out pickleball court mats for residential, educational, community, club and commercial projects throughout New Zealand.
Each project should be assessed based on:
- Available dimensions
- Existing surface condition
- Indoor or outdoor use
- Drainage
- Installation method
- Player requirements
- Court colours
- Storage requirements
- Expected usage levels
Correct planning, base preparation and installation are essential for achieving a safe, stable and professional pickleball court.
Start Planning Your Pickleball Court
A roll-out pickleball mat can turn an existing concrete court, hall, gymnasium or recreation space into a dedicated pickleball facility without the need for a complete court rebuild.
Whether you are planning a single residential court, a school facility, a club conversion or a multi-court commercial venue, Apollo NZ can help you review the available area and select a suitable pickleball mat system.
