Description
Upgrade your outdoor space with the Terrasol Awnings—a premium full cassette electric awning system designed to blend modern style, durability, and intelligent function. Whether you're covering a patio, garden, balcony, or villa terrace, the Terrasol series offers the perfect combination of convenience and design flair.
✅ Key Features

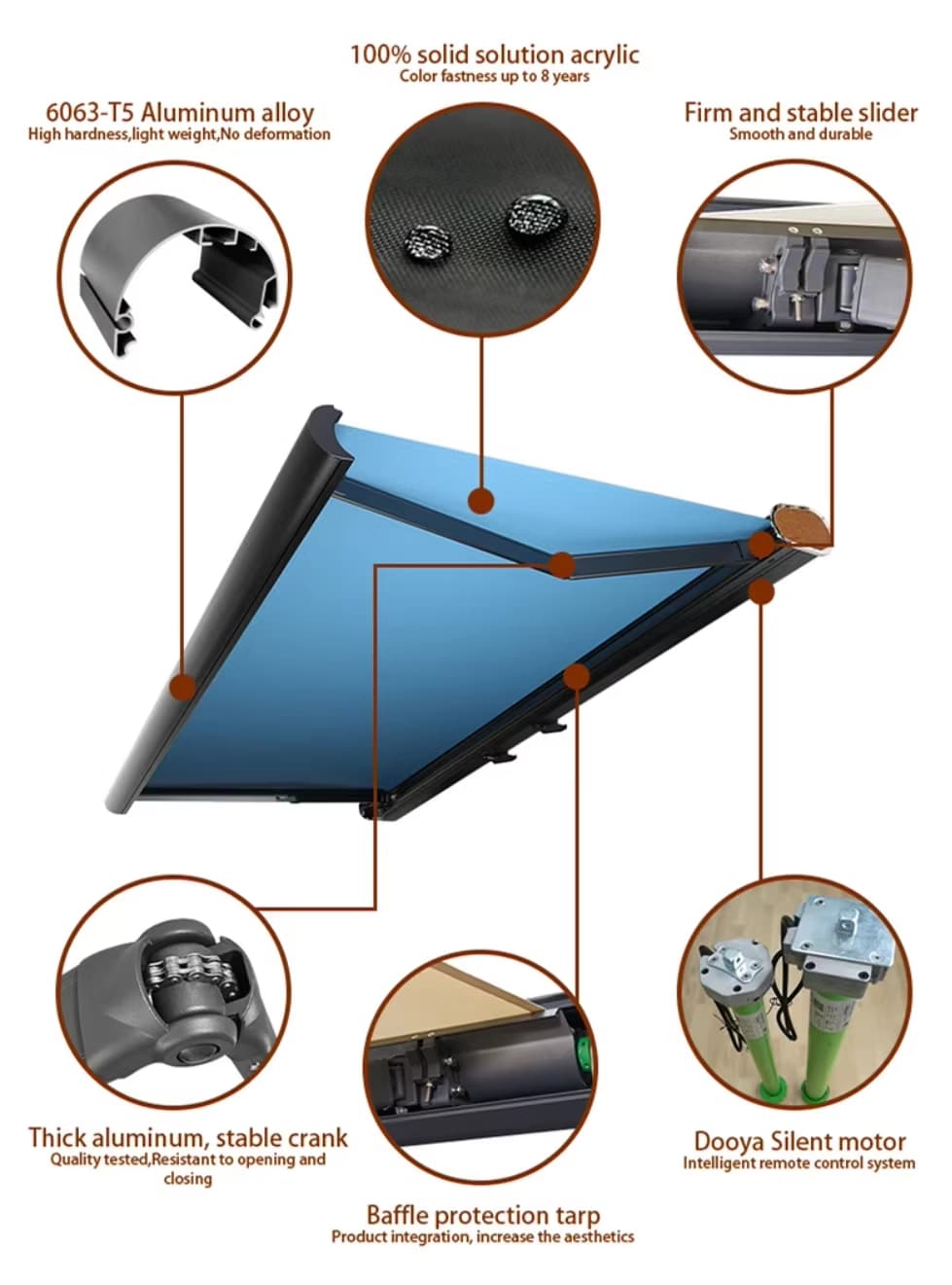

✔ Full Cassette Design
The full cassette construction fully encloses both the fabric and arms when retracted, protecting the entire system from dust, rain, and UV exposure—ensuring longer lifespan and minimal maintenance.
✔ Durable Aluminium Frame
Crafted from Aluminum Alloy 6063 T5, known for its structural strength and corrosion resistance. The frame is treated with a professional anti-corrosion powder coating, making it ideal for long-term outdoor use in diverse climates.
✔ Premium Acrylic Shade Cloth

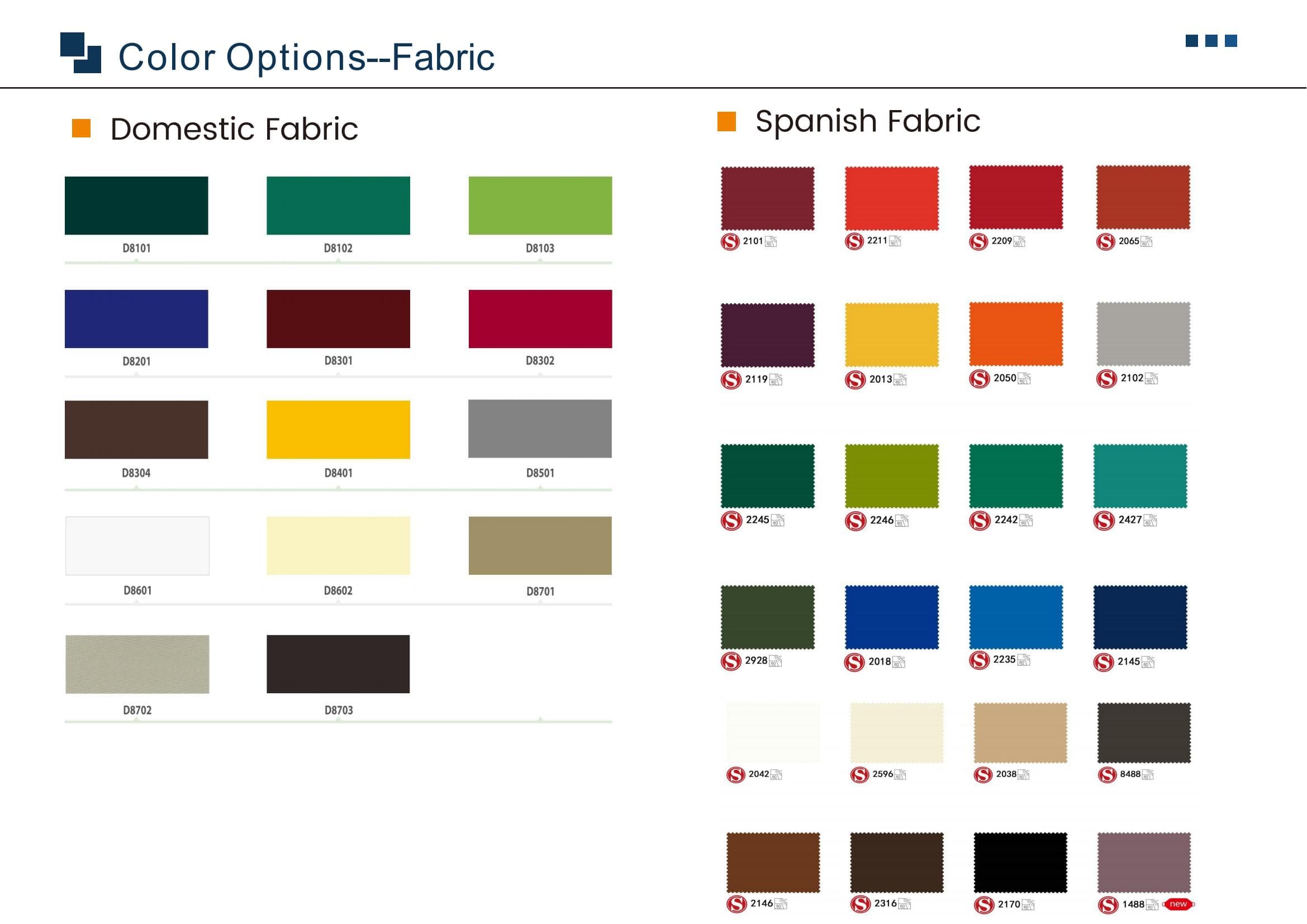

Features 100% solution-dyed acrylic fabric available in Chinese or imported Spanish material—providing excellent UV protection, colour retention, and weather resistance. Available in customizable colour options to suit your design vision.
✔ Intelligent Remote Control
Operate your awning effortlessly with a smart remote-control system, offering smooth extension and retraction at the touch of a button.
✔ RoHS Certified
Environmentally safe and compliant with the Restriction of Hazardous Substances (RoHS), ensuring market access and peace of mind.
📐 Specifications
| Specification | Details |
|---|---|
| Frame Material | Aluminum Alloy 6063 T5 |
| Surface Finish | Anti-corrosion powder-coated |
| Fabric Material | 100% solution-dyed acrylic |
| Fabric Origin Options | Chinese or Imported Spanish Material |

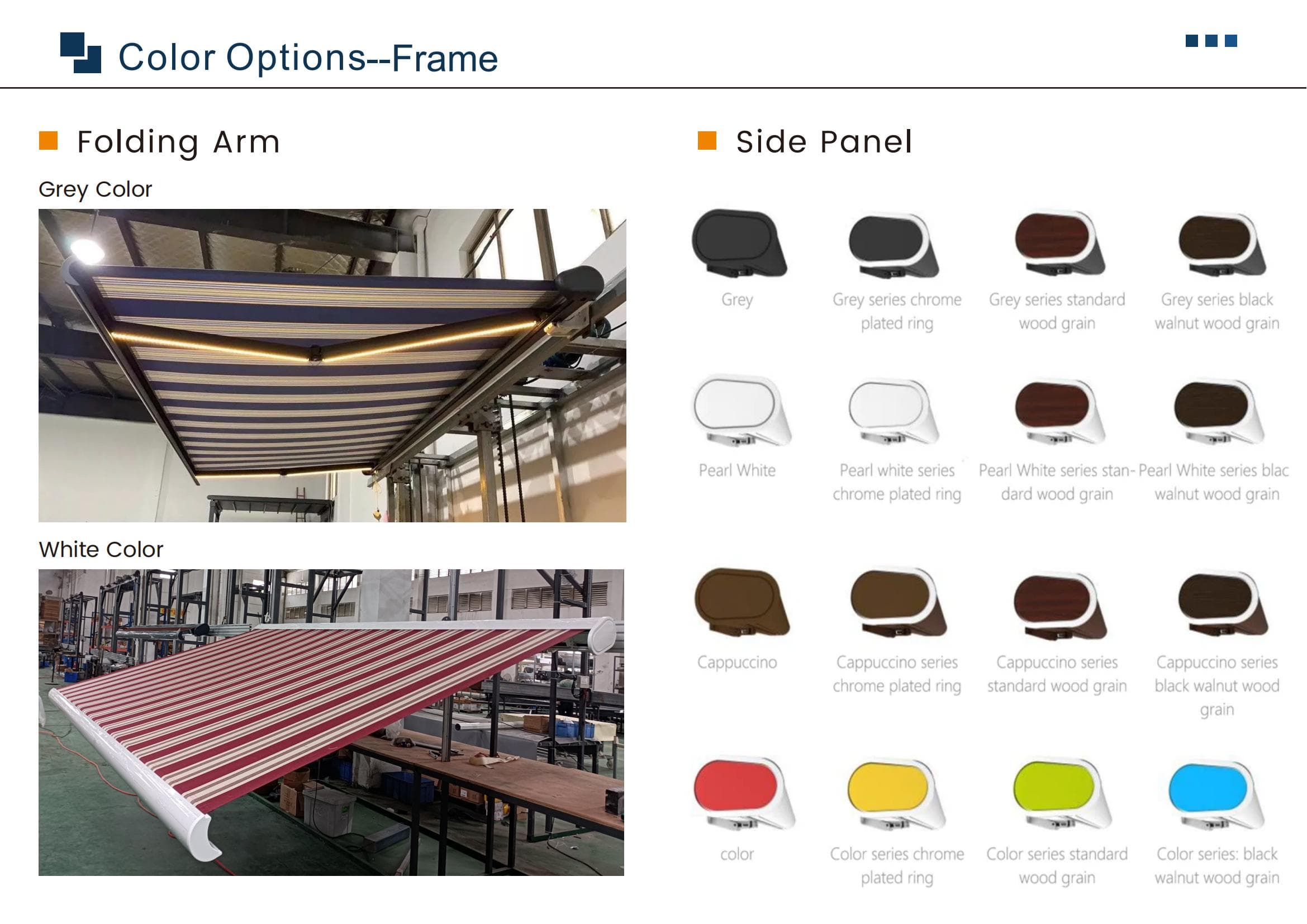

| Frame Colour Options | Dark Gray, White, Beige |
| Control | Intelligent remote-control system |
| Minimum Size | Width 6,000mm x Projection 3,500mm |
| Maximum Size | Width 10,000mm x Projection 1,000mm |
| Wind Resistance | Up to 50 km/h |
| Certification | RoHS Compliant |

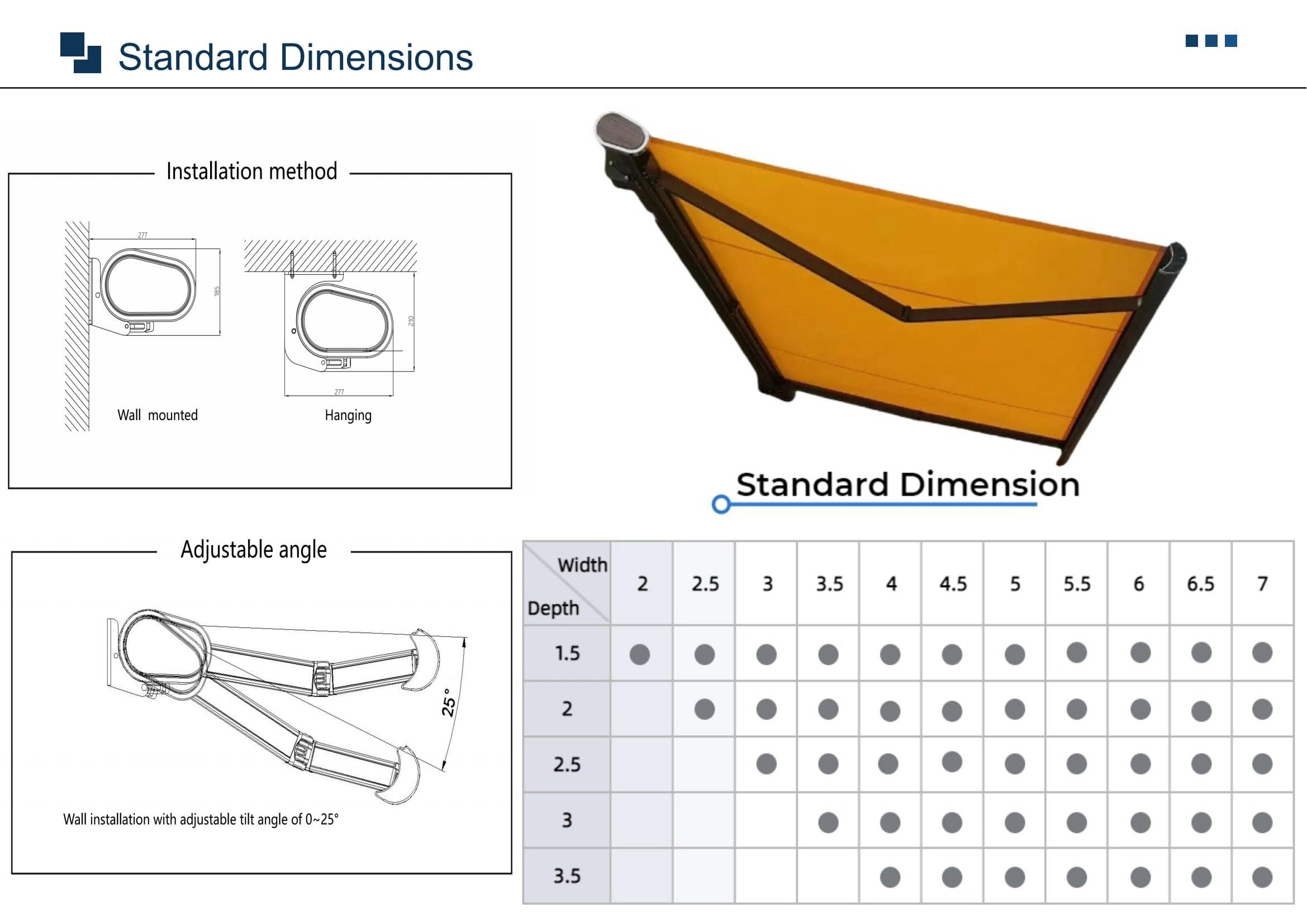

📏 Available Size Options
The Terrasol Awning system offers a wide variety of size combinations to suit different space requirements.
| Width (m) | Available Projections (m) |
|---|---|
| 2.05 | 1.5 |
| 2.5 | 1.5, 2 |
| 3 | 1.5, 2, 2.5 |
| 3.5 | 1.5, 2, 2.5, 3 |
| 4 | 1.5, 2, 2.5, 3 |
| 4.05 | 3.5 |
| 4.5 | 1.5, 2, 2.5, 3, 3.5 |
| 5 | 1.5, 2, 2.5, 3, 3.5 |
| 5.5 | 1.5, 2, 2.5, 3, 3.5 |
| 6 | 1.5, 2, 2.5, 3, 3.5 |
| 7 | 1.5, 2, 2.5, 3, 3.5 |
Whether you need a compact awning for a small balcony or a wide projection for full patio coverage, there’s a size configuration to match.

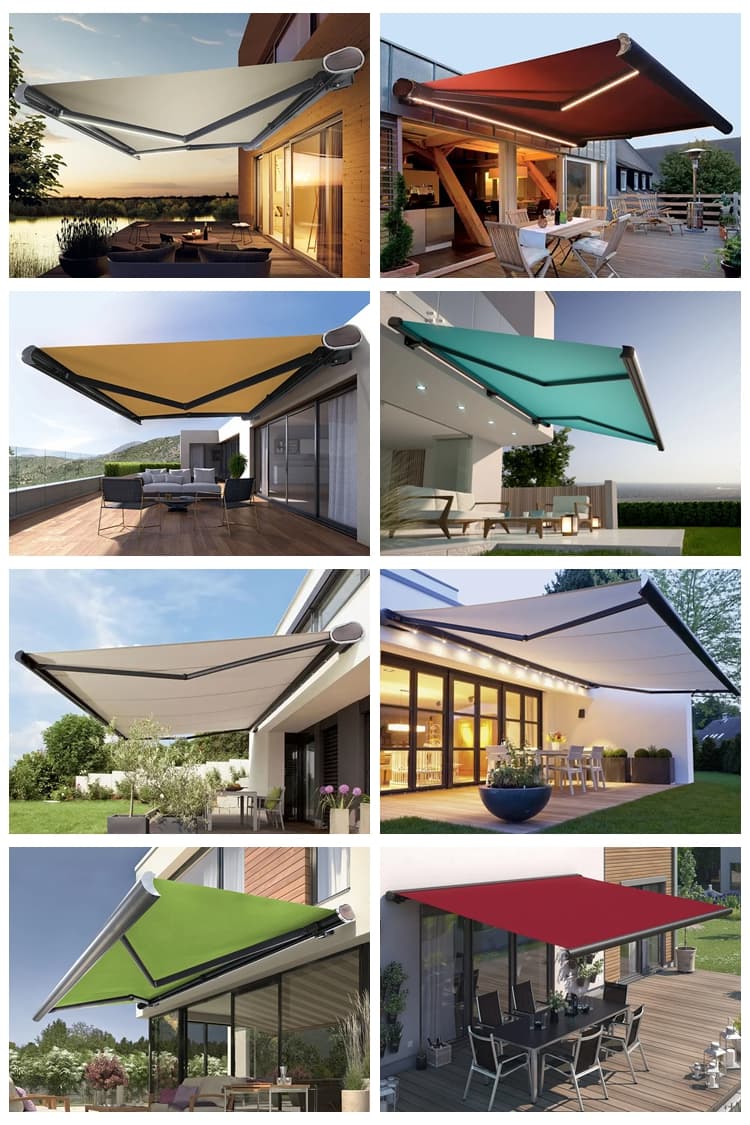

🏡 Ideal Applications
Residential patios and balconies
Garden seating areas and sun lounges
Villa terraces and courtyards
Café and hospitality outdoor dining spaces
🌟 Why Choose Terrasol?
Combines style, functionality, and smart technology
Tailored to New Zealand and international design needs
Custom colours and sizing available to match your outdoor architecture
Fabric choice between cost-effective Chinese material or premium imported Spanish fabric
