Description
When it comes to premium, made-to-measure louvre systems in New Zealand, the Orion Prime and Orion Neo from Apollo NZ set the standard for performance, aesthetics, and smart design. These two distinct systems have been engineered to deliver world-class quality — each tailored for different project requirements, budgets, and environmental conditions.
Whether you're creating an outdoor living area at home or specifying a large commercial build, the Orion range gives you the flexibility, confidence, and durability you need — all backed by expert design, a lifetime manufacturing warranty, and council-ready documentation where applicable.
Custom Made for Perfection
Unlike off-the-shelf kits, both the Orion Prime and Orion Neo are fully made-to-measure, designed and fabricated to fit your exact space. From the dimensions to the finish, every detail is tailored to your architectural vision and lifestyle needs.
For projects that require a faster turnaround, the Orion Neo also offers a selection of predefined standard sizes — allowing for quicker production and delivery while still maintaining the system’s premium look and performance.
Orion Prime – Strength, Style, and Mechanical Excellence
The Orion Prime represents the pinnacle of louvre roof system design — ideal for high-end residential builds, large-span commercial installations, and exposed coastal environments.
Key Features:
T6 Aluminium Frame and Louvres – Engineered for maximum strength and corrosion resistance
Post Sizes: 150x150x3.0mm, 155x155x6.4mm heavy-duty, or 200x100x3.0mm for wide spans
Beam Size: 200x68x2.3mm
Blade Size: 205mm double-skin airfoil blades
Integrated Drainage: Internal guttering hidden in posts
Operation: Motorised as standard with IP67 waterproof motors
Component Quality: 316 stainless steel fixings + Brass H59 drive components
Wind Rating: Up to 180km/h (closed)
Warranty: Lifetime structural, 5 years on motors
PS1 Certification: Supplied with PS1 (Producer Statement – Design), simplifying council consent for projects over 30m²
🟡 Brass H59: The Golden Standard for Operational Efficiency
The Orion Prime incorporates Brass H59 for all critical internal drive parts:
✔️ Drive sleeves
✔️ Pivot rings
✔️ Motor interfaces
Why Brass H59?
🔩 Superior hardness
🛠 Self-lubricating for smooth motion
🧪 Excellent corrosion resistance
🔧 Long-lasting — no warping, cracking, or degrading over time
This mechanical superiority ensures a maintenance-free experience and industry-leading reliability.
Orion Neo – Smart Engineering with Value in Mind
The Orion Neo delivers essential Orion performance in a more cost-efficient form. It’s perfect for residential and smaller-scale commercial projects where smart design, durability, and budget must align.
Key Features:
T6 Aluminium Frame and Louvres – High-performance, weather-resistant
Post Size: 150x150x3.0mm
Beam Size: 150x50x2.0mm
Blade Size: 200mm airfoil profile
Internal Components: High-quality plastic components with 304 stainless steel fixings
Operation: Manual or motorised
Wind Rating: Up to 160km/h (closed)
Warranty: Lifetime structural, 5 years on motors
PS1 Certification: Not available for this system at this stage
Standard Sizes Available: Pre-configured options available for faster turnaround and cost efficiency
Key Differences at a Glance
| Feature | Orion Prime | Orion Neo |
|---|---|---|
| Aluminium Grade | T6 | T6 |
| Post Options | 150x150, 155x155 HD, 200x100 | 150x150 |
| Beam Size | 200x68x2.3mm | 150x50x2.0mm |
| Blade Type | 205mm double-skin | 200mm airfoil |
| Internal Components | Brass H59 + 316 Stainless Steel | Plastic + 304 Stainless Steel |
| Operation | Motorised standard | Motorised or Manual |
| Wind Rating | Up to 180km/h | Up to 160km/h |
| PS1 Certification | ✅ Yes – Available | 🚫 Not Available |
| Warranty | Lifetime Manufacturing | Lifetime Manufacturing |
| Delivery Options | Fully custom | Custom or standard-size for speed |
Why Choose the Orion Louvre System?
✅ Made-to-Measure – Fully custom-sized
🌧️ Built for NZ Conditions – Wind, UV, and coastal ready
🏡 Architectural Design – Clean lines, hidden fasteners

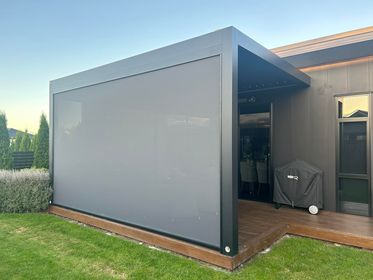

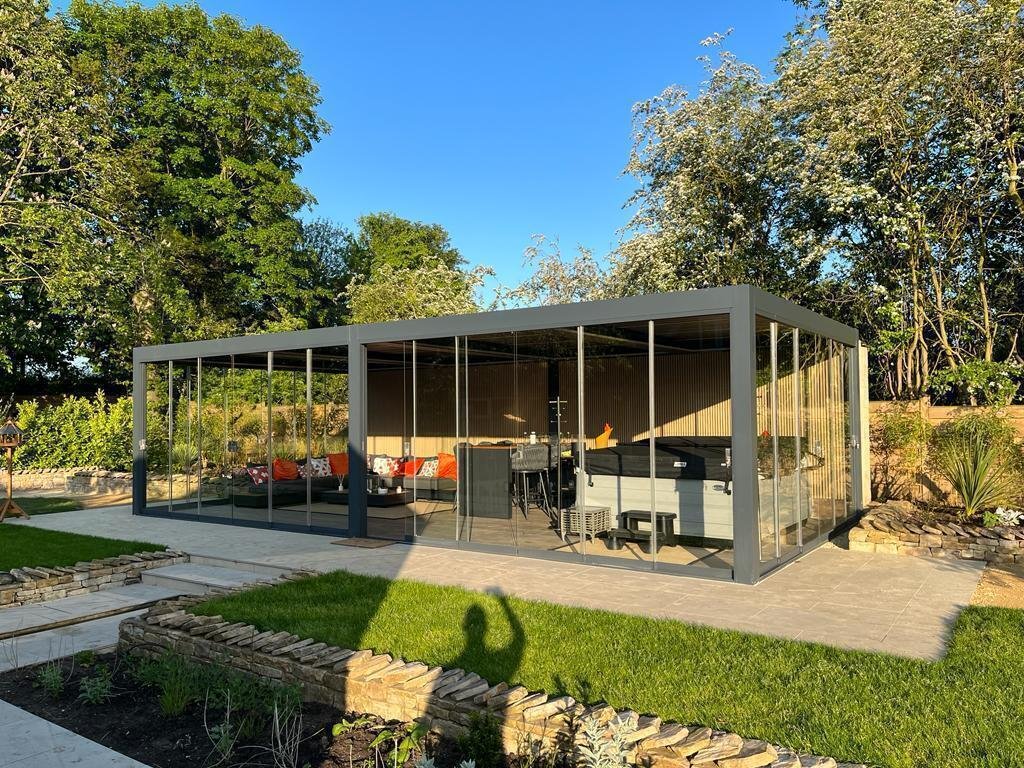

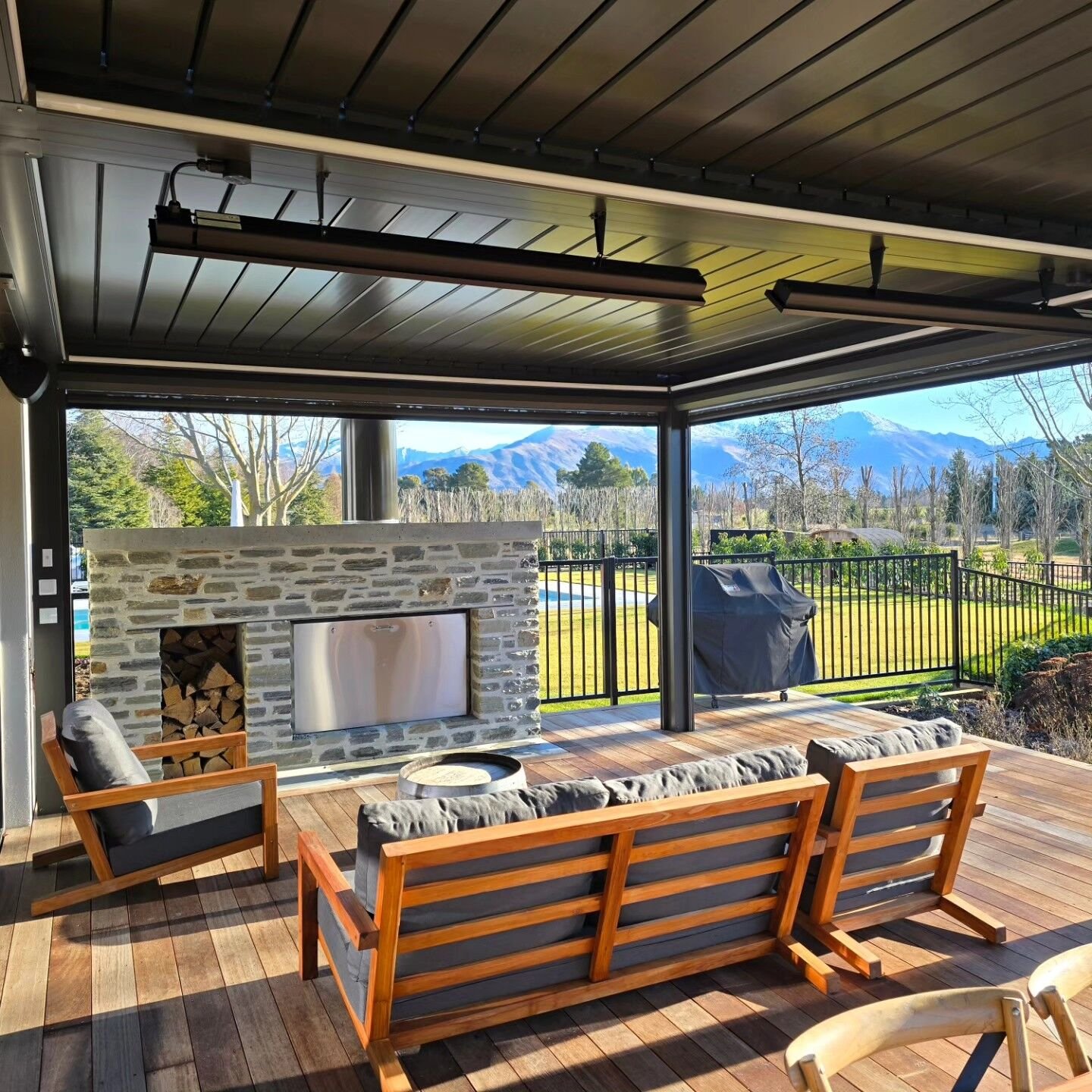

💡 Smart Add-ons – Compatible with blinds, heaters, lights, frameless glass
🎨 Colour Options – Dulux standard + custom powder coat
📃 PS1 Ready (Prime Only) – For projects over 30m²
🛠️ Lifetime Warranty – Applies to both systems' structural frames
Ready to Build Smarter Outdoors?
Whether you choose the high-performance Orion Prime or the value-driven Orion Neo, Apollo NZ delivers quality and innovation you can trust.
