Description
Orion Prime Roof System: Premium Design, Performance & Durability
Looking for a luxury louvre roof system that delivers not only in aesthetics, but also engineering excellence and long-term performance? Meet the Orion Prime Roof System — the flagship model from Apollo NZ, crafted for architects, design professionals, builders, and homeowners who accept no compromise when it comes to outdoor living solutions.
Whether you're designing a sleek residential patio or a high-end commercial alfresco environment, the Orion Prime offers unmatched flexibility, strength, and functionality — setting a new benchmark for architectural louvre roof systems across New Zealand and beyond.
🔍 Designed for Visionaries
No two outdoor spaces are the same — and Orion Prime thrives on that fact.
With custom design services, Apollo NZ ensures your louvre system fits your exact needs, whether it's for a coastal luxury villa or a multi-zone hospitality deck.
Every Orion Prime project includes:
✔️ 3D Rendered Design Consultations
✔️ Detailed CAD Drawings for architectural and building pre-approvals
✔️ Support for Complex Roof Pitches & Custom Angles
✔️ Custom Bracketry & Flashings to suit any wall type or cladding
✔️ On-site Measurement & Installation Support (available in select regions via contractors)
Simply send us your plans — and we’ll create a tailored solution that’s both practical and stunning.
🛠️ Built for Performance, Compliance, and Longevity
The Orion Prime Roof System isn’t just about looks — it's engineered for high performance, structural longevity, and regulatory compliance, all while ensuring a seamless architectural finish.
Key Structural Benefits:

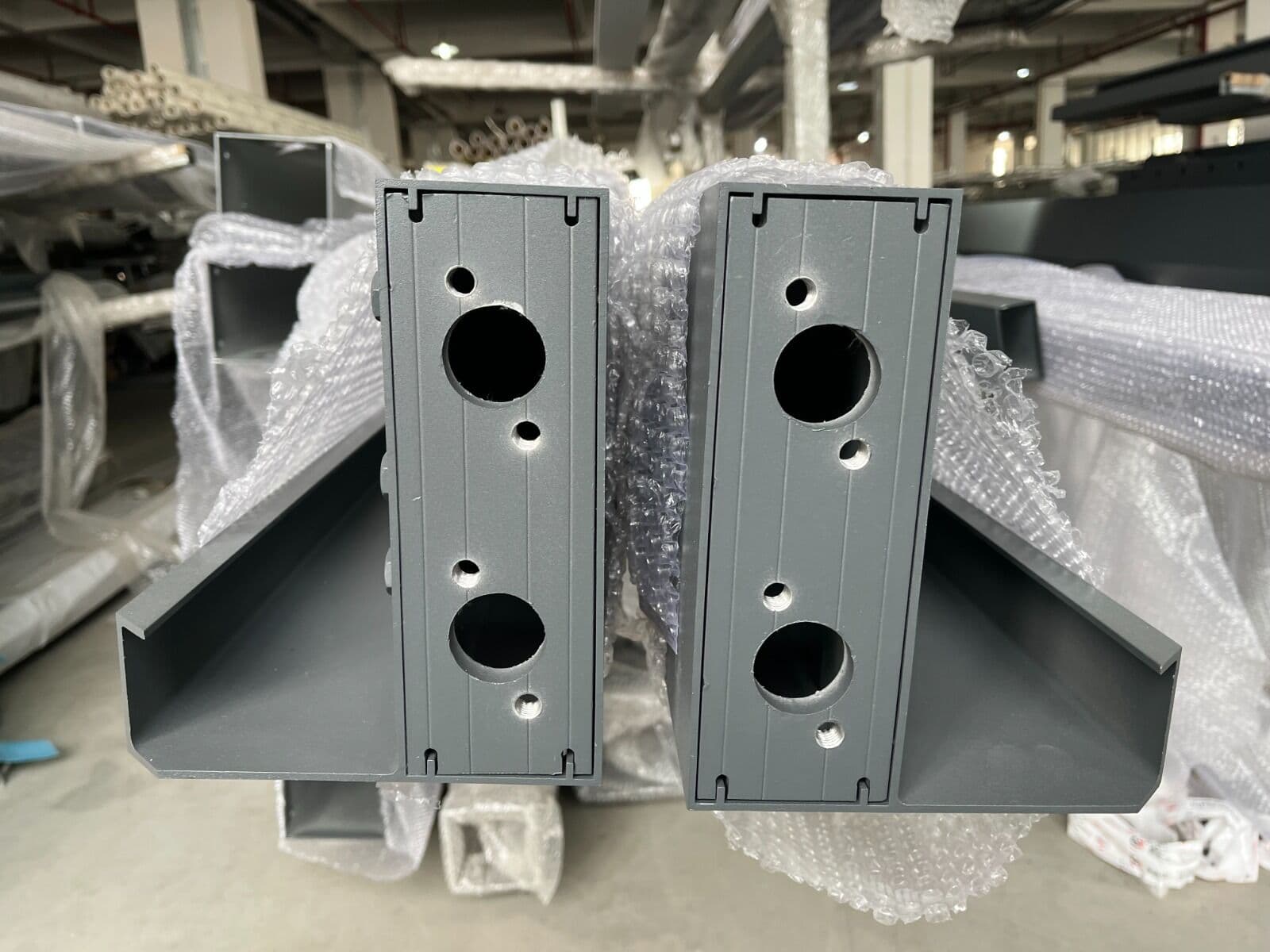

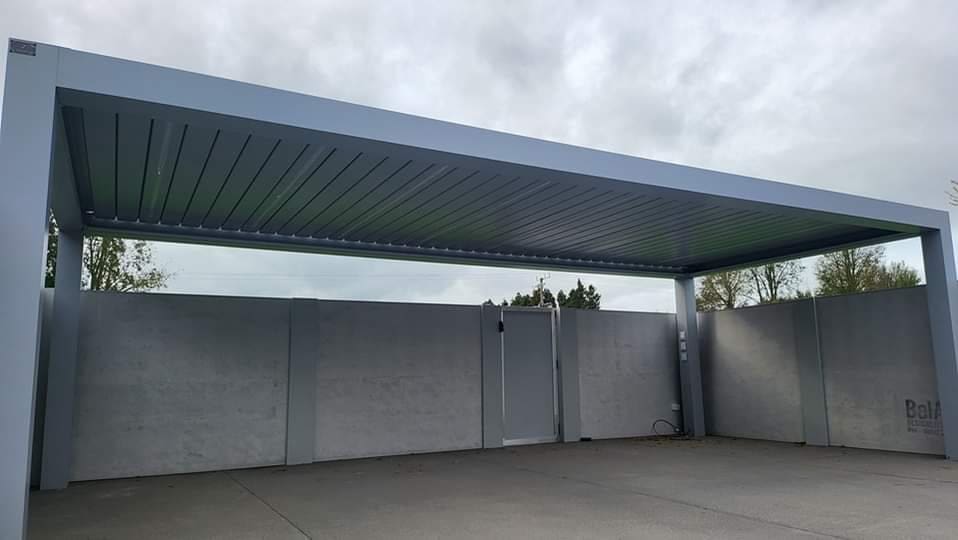

✔️ Integrated Beam & Gutter System
Engineered to span up to 8.4m with full drainage integration, allowing faster installs and cleaner visuals.

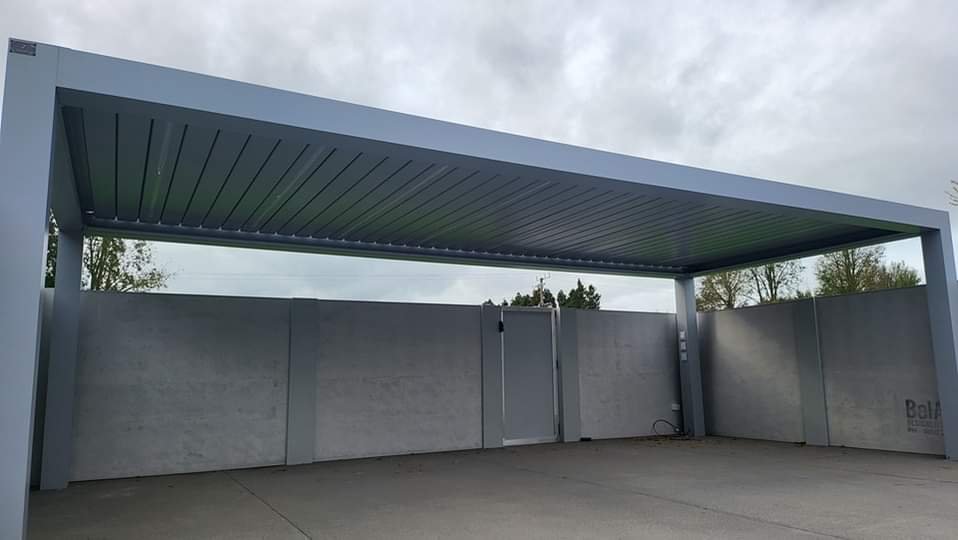

✔️ Heavy-Duty Spans for Uninterrupted Views:
Aluminium beams: Up to 8.4 metres without centre posts
Steel beams: Up to 12 metres in a single run

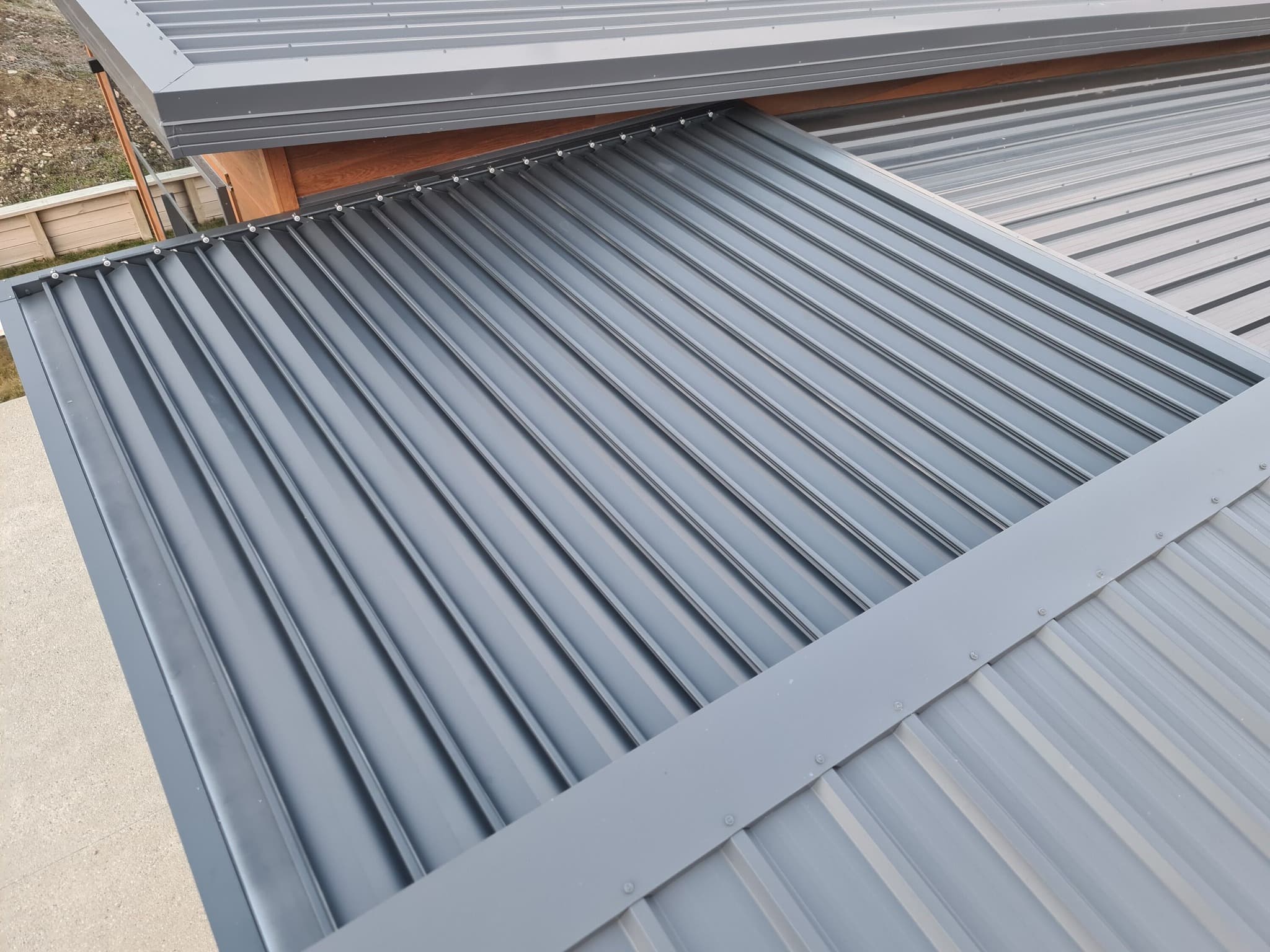

✔️ Seamless Blade Closure
Double-skin 6005 T6 aluminium blades with tight spacing ensure superior waterproofing
✔️ Hidden Components
All fasteners, motors, and brackets are completely concealed, delivering an architectural-grade finish from every angle.
🧾 Pre-Approved for Larger Projects — PS1 Included
For outdoor roof systems over 30m², most local councils in New Zealand require additional documentation to ensure structural integrity and compliance with the NZ Building Code.
To simplify the consent process and reduce delays, the Orion Prime system comes with a Producer Statement PS1 already in place for standard installations. This engineering-backed document provides:
🧱 Peace of mind for designers, architects, and building inspectors
📄 Pre-approved compliance with NZ structural code requirements
🏗️ A smoother and faster pathway for consents on large-scale residential or commercial projects
Whether you're working on a residential backyard extension or a large commercial louvre build, Orion Prime is ready to go — with the paperwork to match.
🧠 Smart Pergola Technology & Modern Add-Ons
The Orion Prime transforms into a fully smart outdoor living space with advanced integrations that suit both residential and commercial needs.
Upgrade Options:
📱 Smart App Control (via Tuya platform)

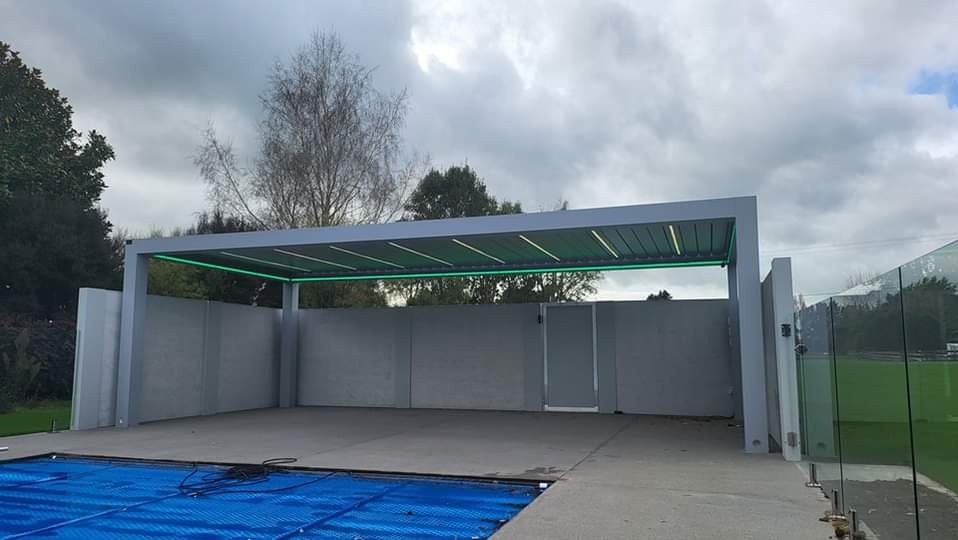

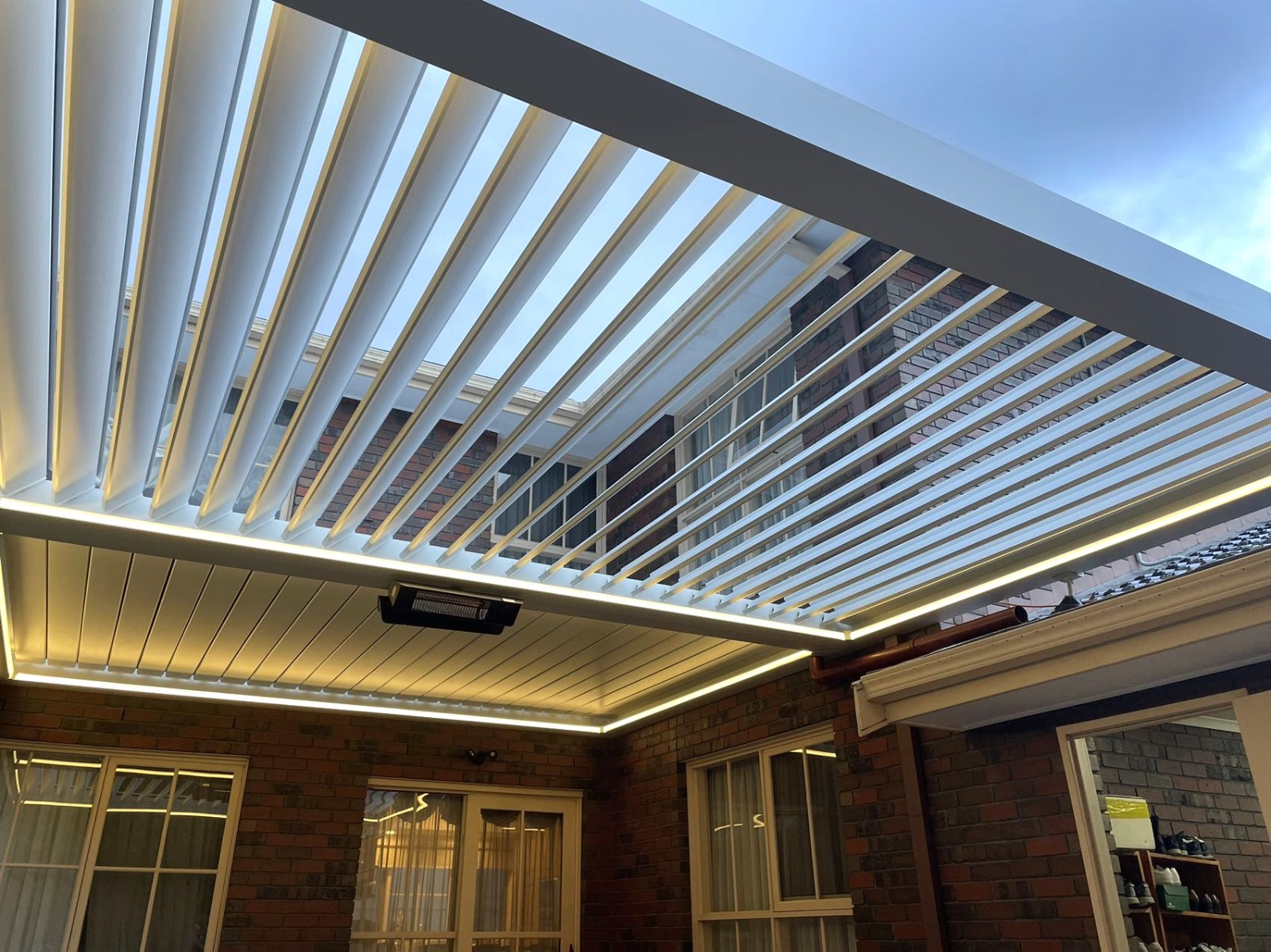

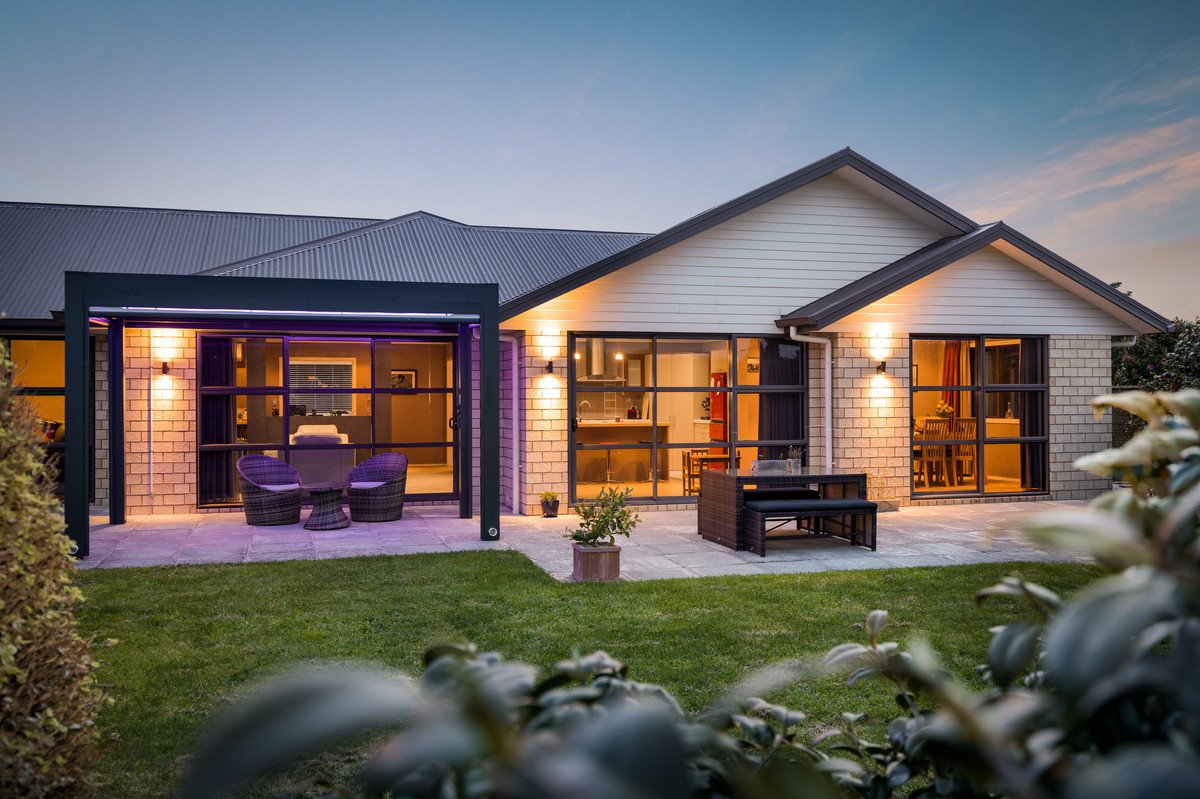

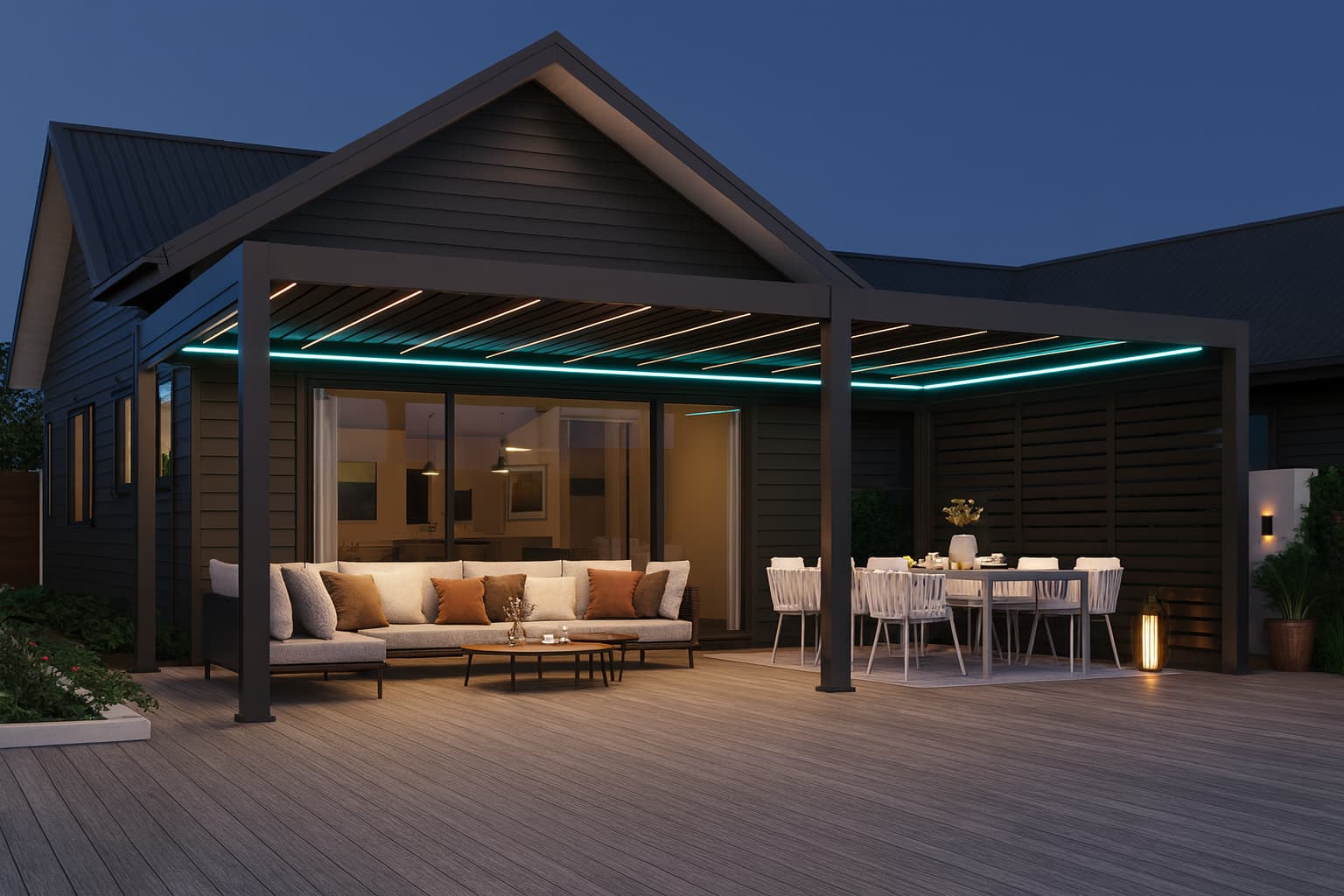

💡 LED Louvre & Surround Lighting in 4000K or 6000K

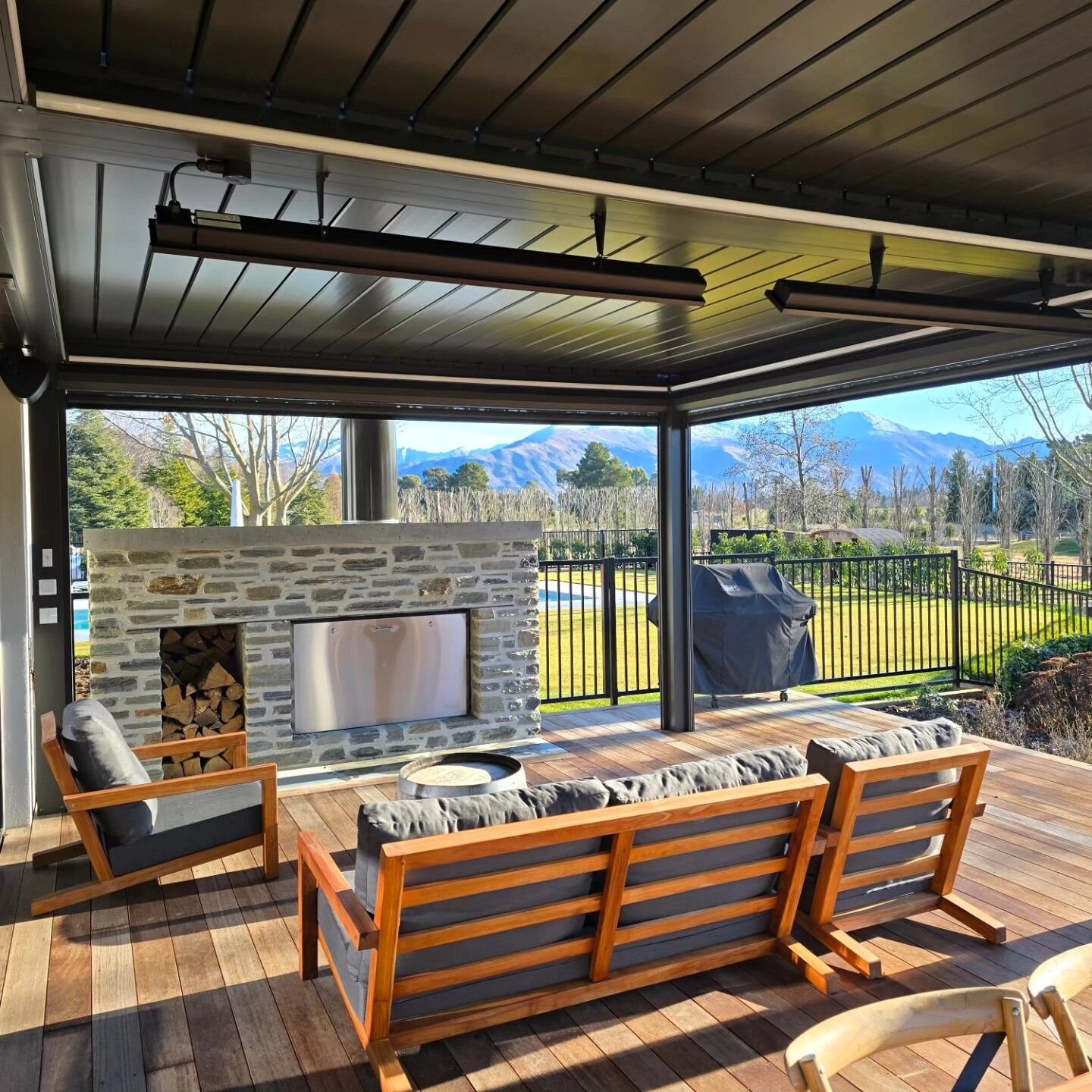

🔥 Integrated Outdoor Heaters

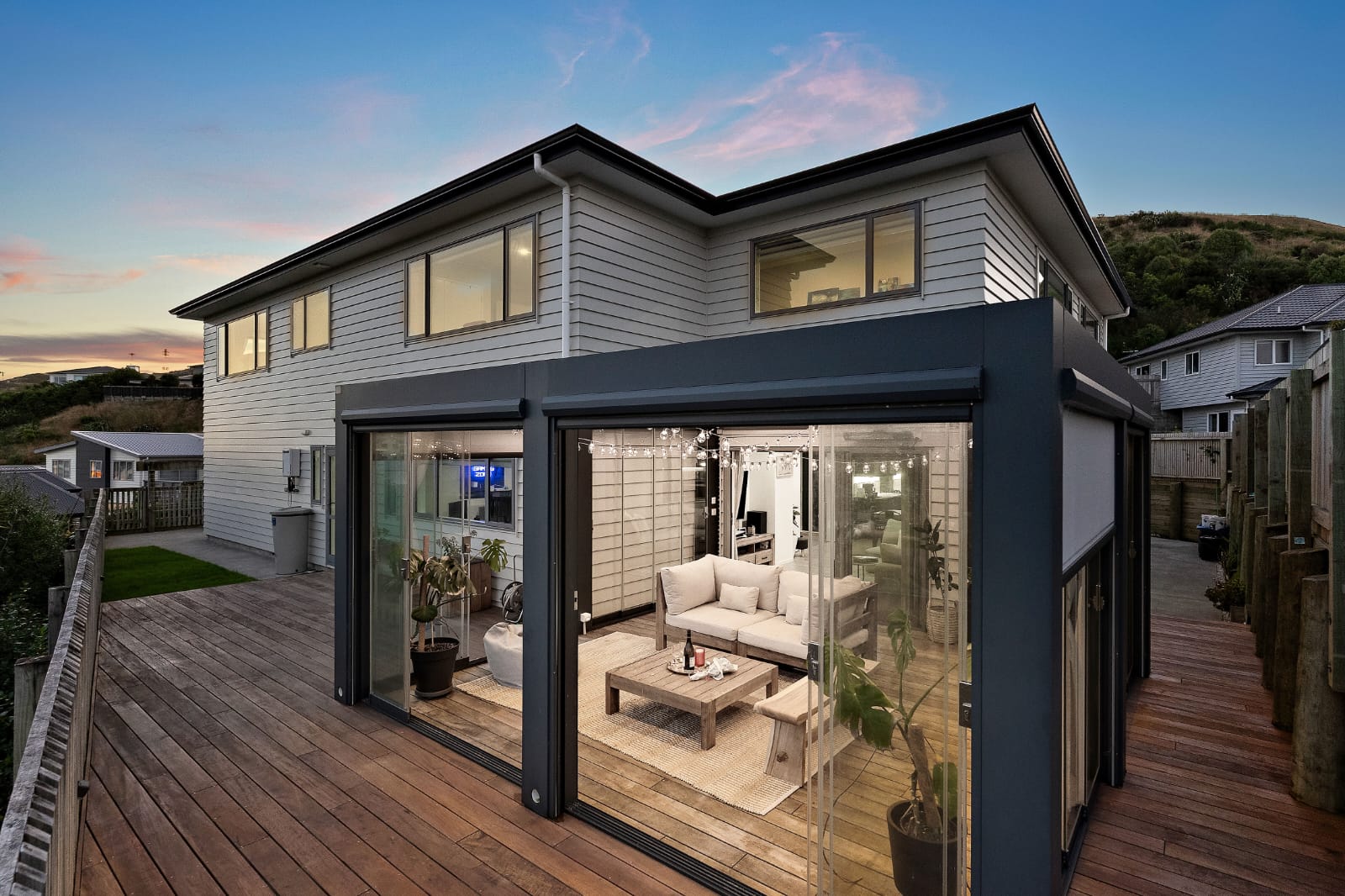

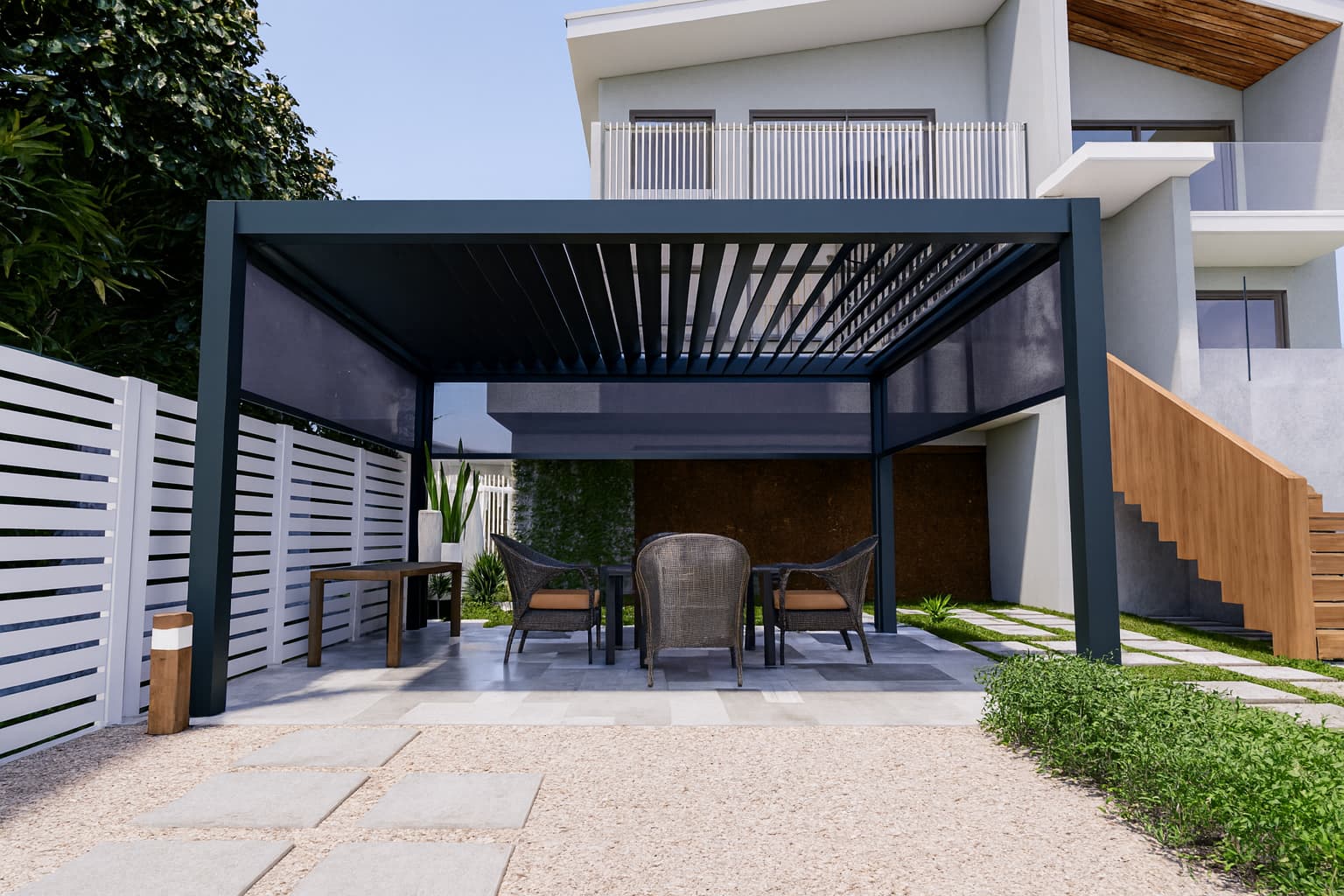

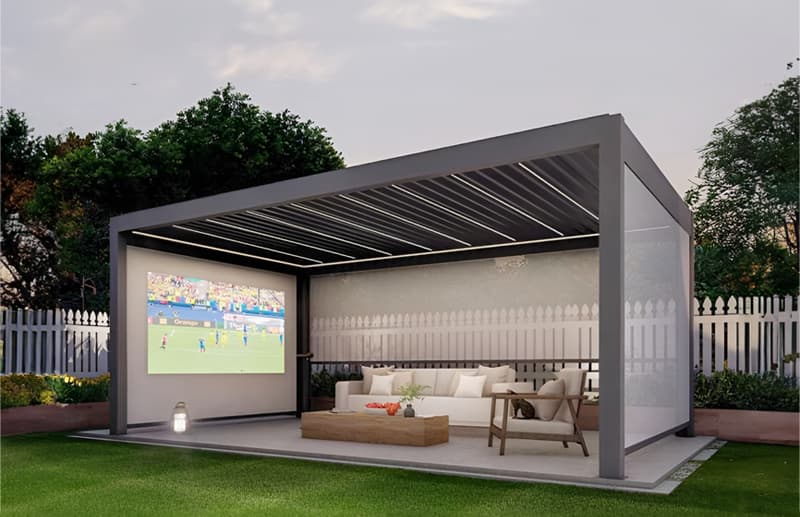

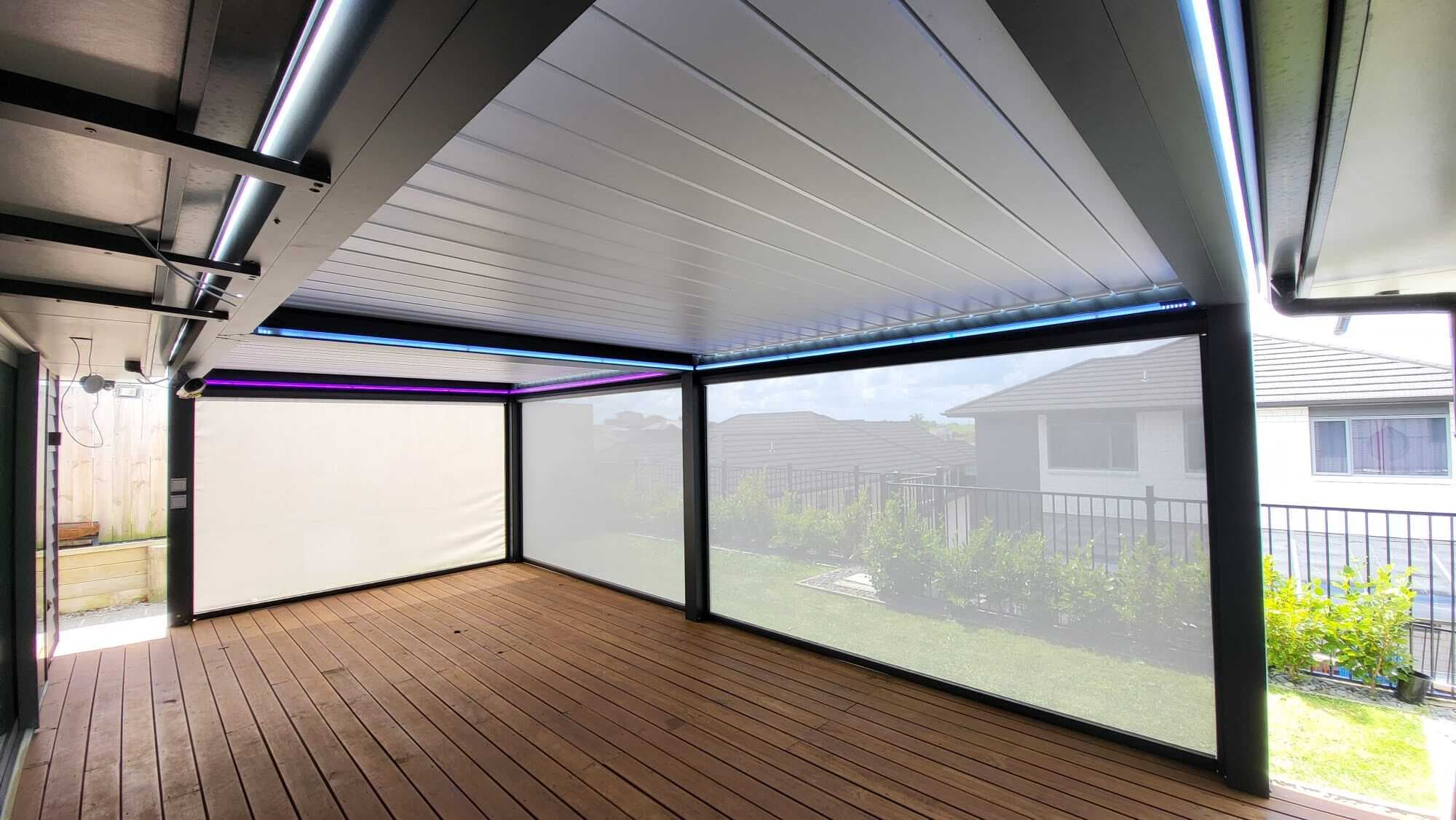

🌬 Motorised Track Blinds with wind sensor compatibility

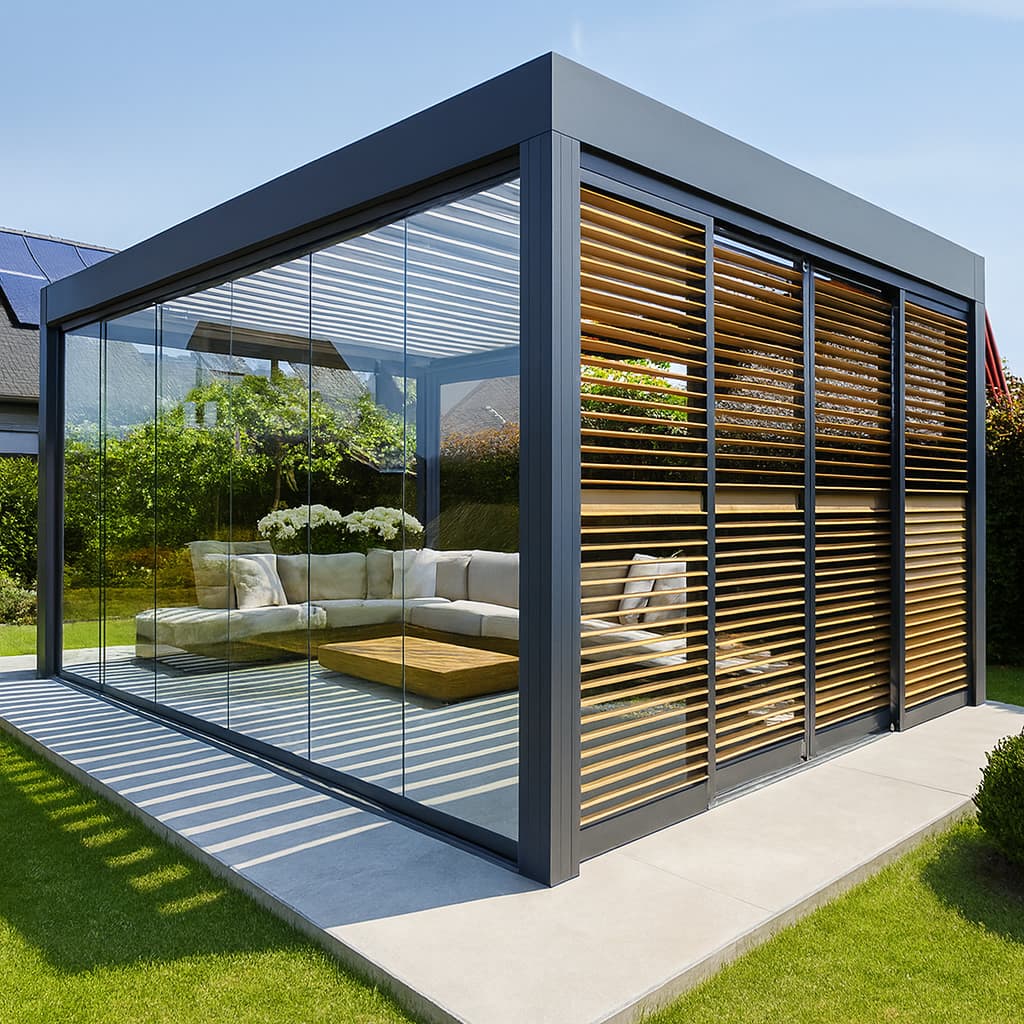

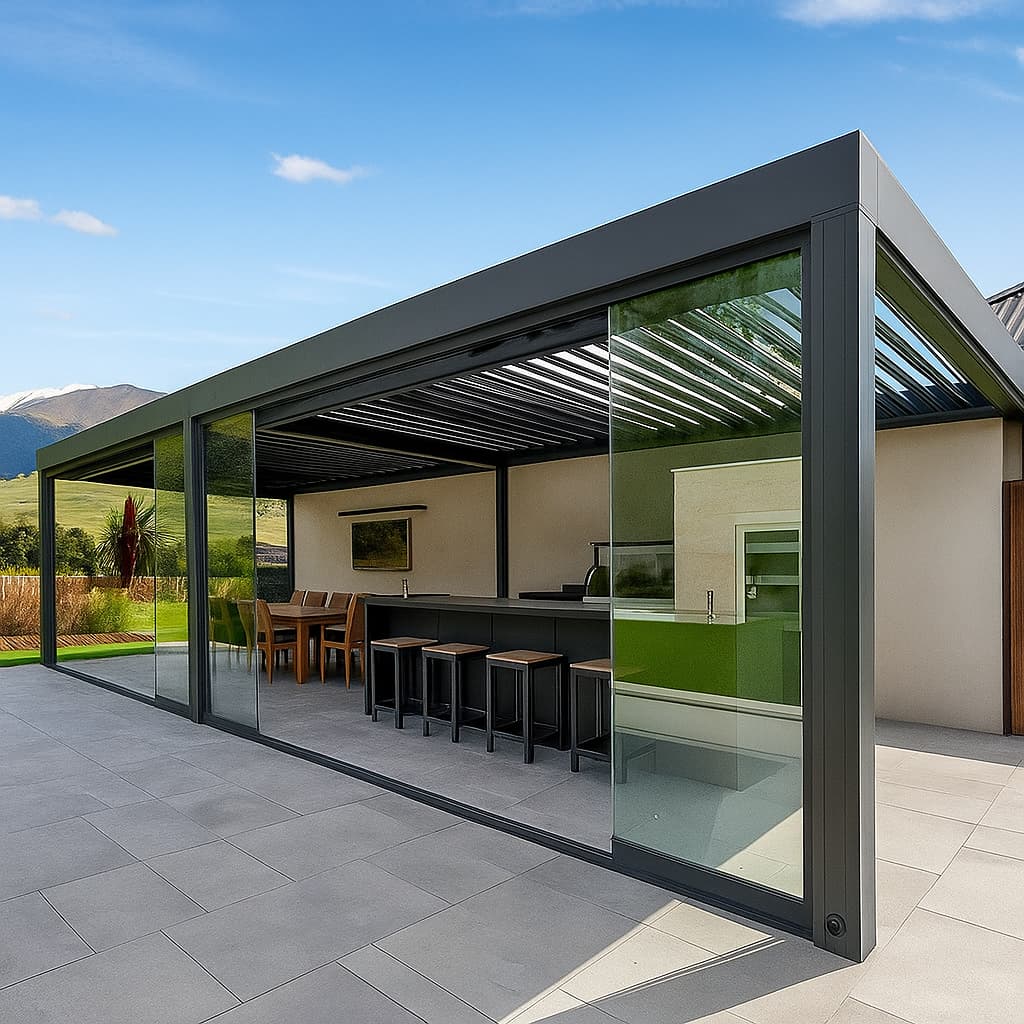

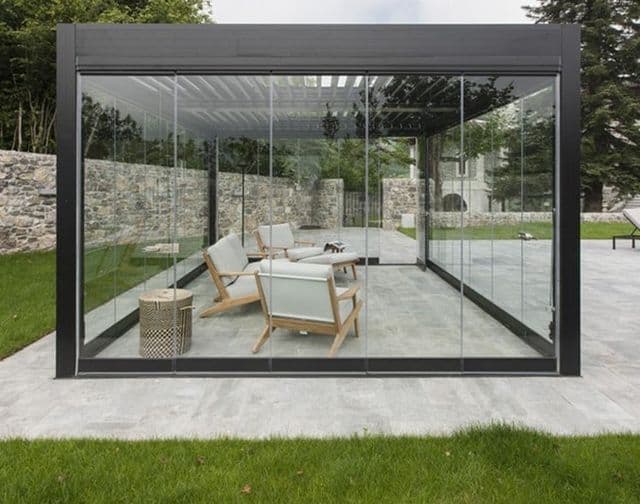

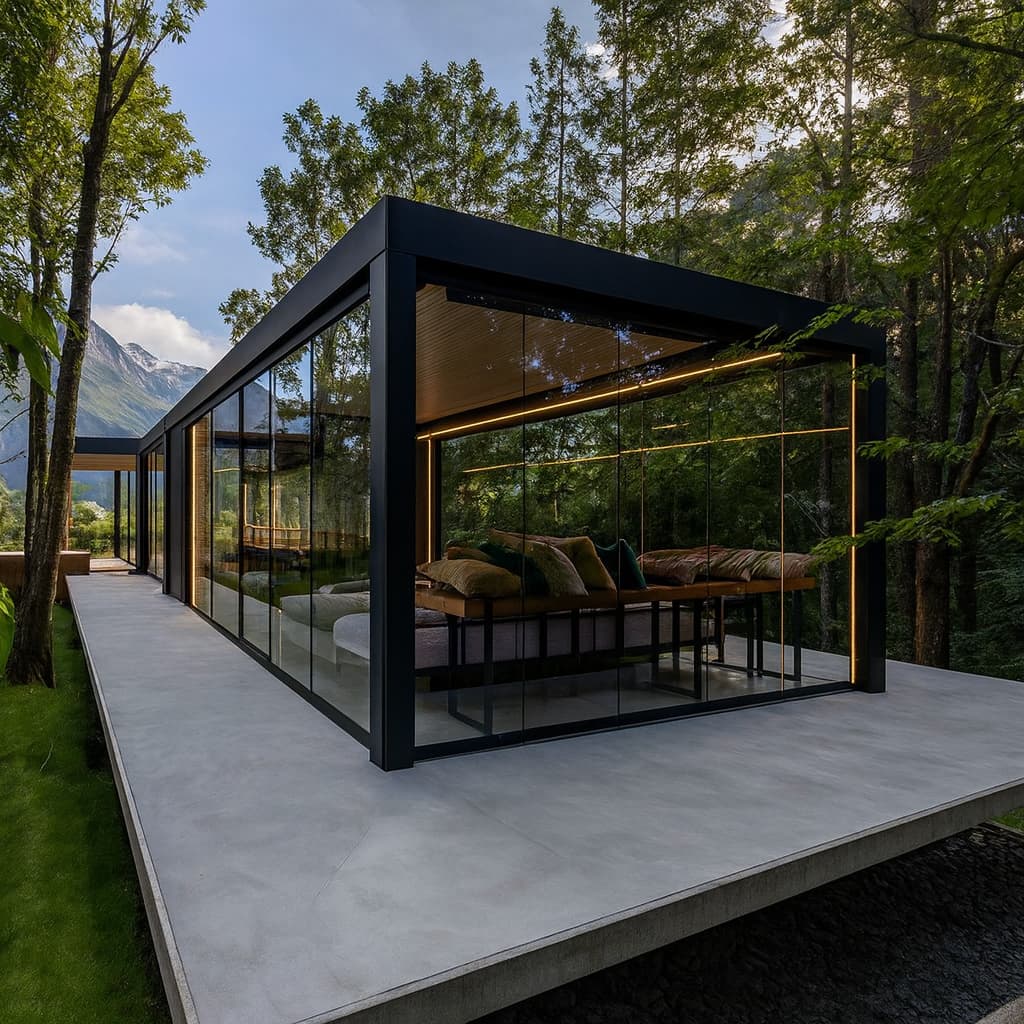

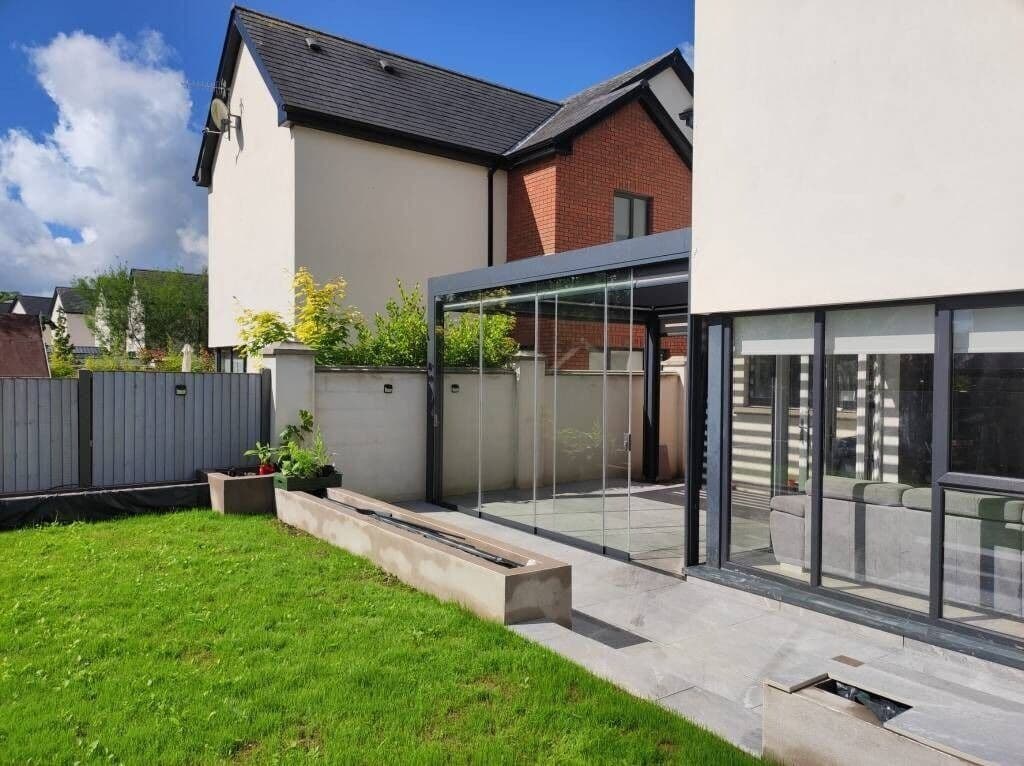

🪟 Frameless Sliding Glass Doors

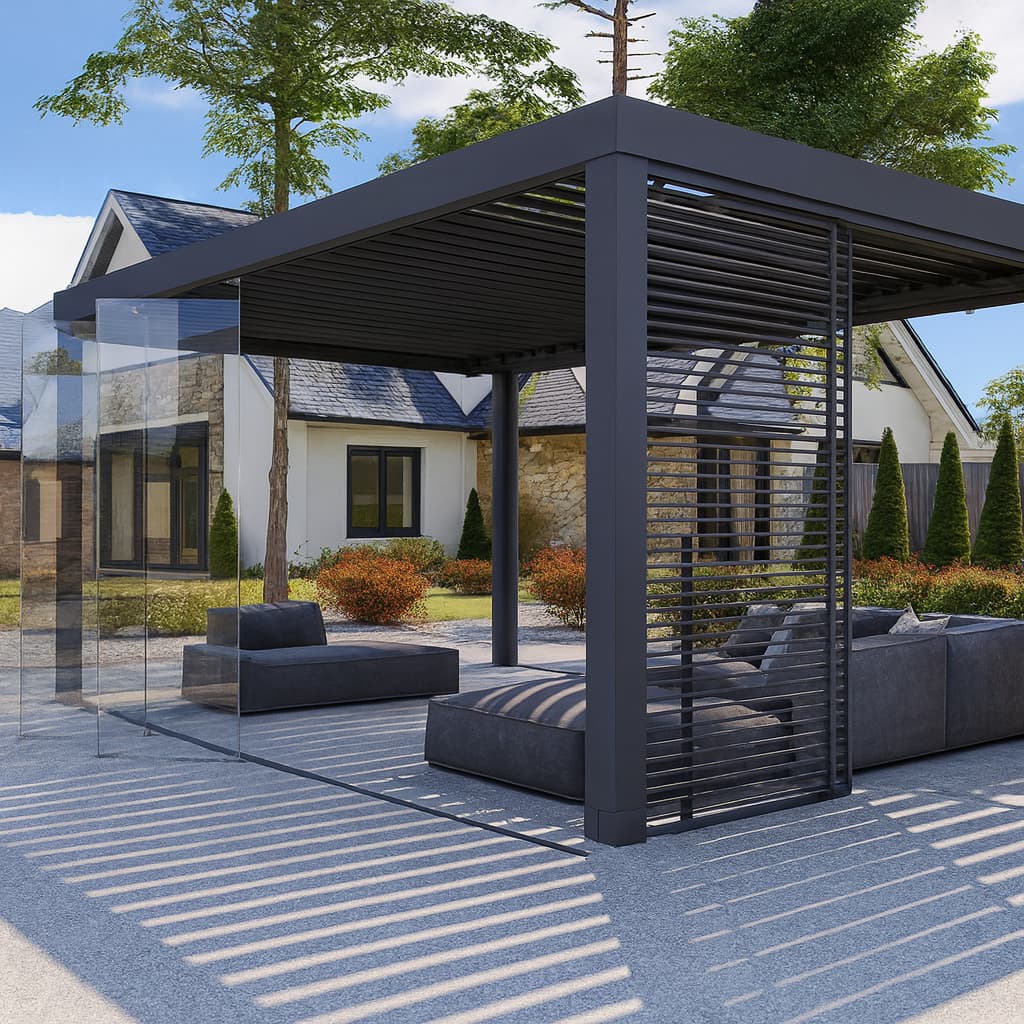

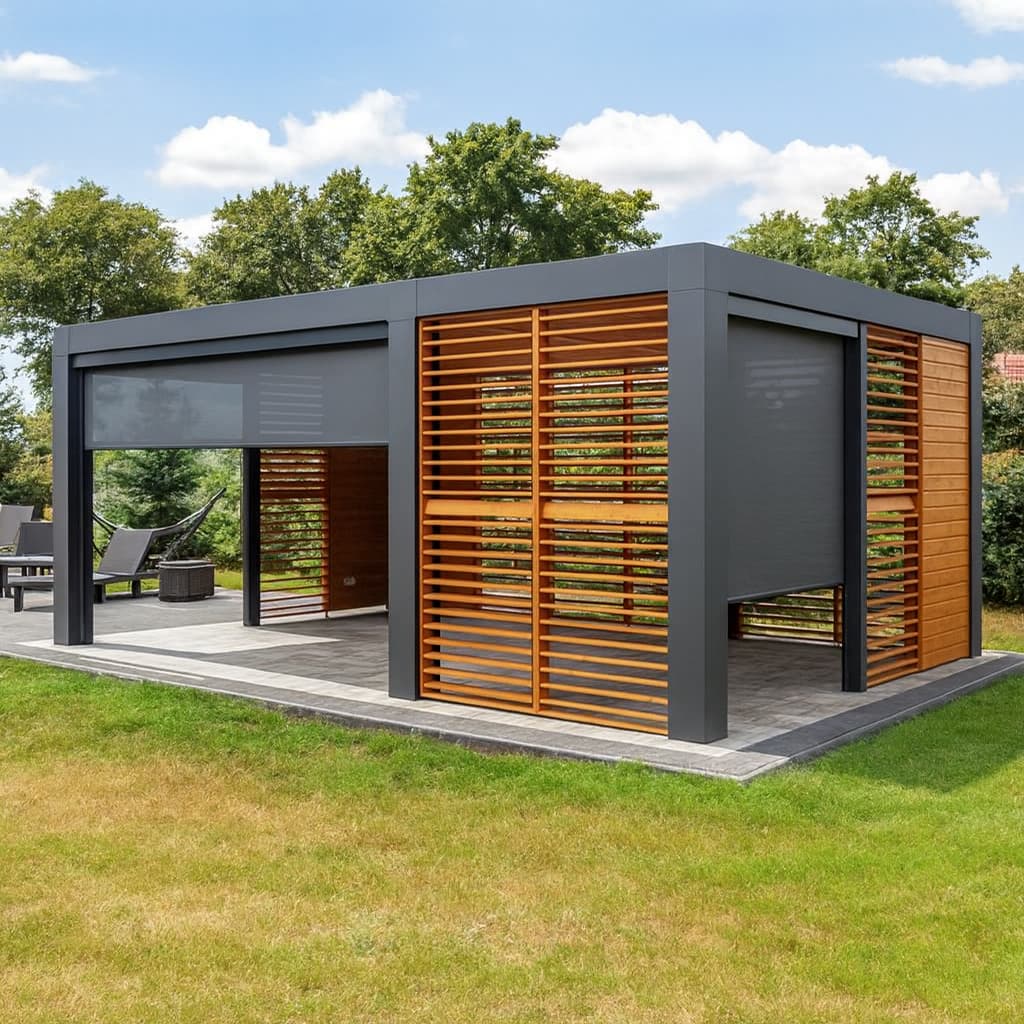

🛡️ Sliding Shutters & Fixed Louvre Panels
🧩 Slate Aluminium Sliding Panels for privacy and solar protection
Combine technology and elegance to build a space that responds to your lifestyle — all year round.
🌪️ High-Wind Zones? No Problem.
New Zealand’s harshest conditions call for high-performance systems.
That’s why Orion Prime offers an optional high-wind louvre blade, measuring 232 x 50 x 2.3mm, made from double-skin 6005 T6 aluminium.
High-Wind Blade Advantages:
➤ Extra strength for exposed coastal or elevated sites
➤ Reduced need for internal supports
➤ Cleaner design lines with longer spans
➤ Wind-rated up to 234 km/h
This blade option provides peace of mind without compromising on aesthetics.
💧 Superior Drainage Solutions
Water management is vital in outdoor design — and Orion Prime adapts to your site’s specific drainage needs.
Drainage Options:
➤ Front-exit drainage (ideal for patio or gravel areas)

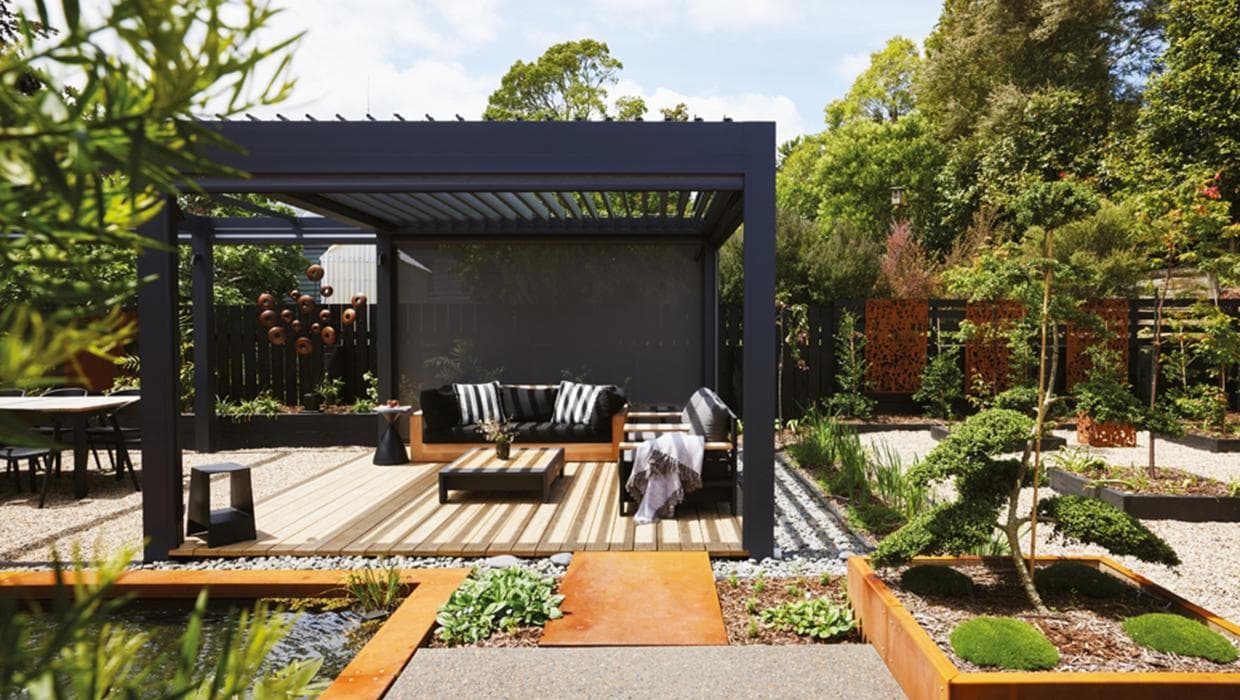

➤ Hidden base drainage (perfect for deck installations)
➤ Pipe-connected solutions for roof-only installations
➤ Rainwater harvesting via post-to-tank connections
🟡 Brass H59: The Golden Standard for Operational Efficiency
Behind every beautiful louvre roof system lies its mechanical core — the components that make it move smoothly, adjust precisely, and last reliably.
Apollo NZ uses Brass H59 for all major internal mechanisms such as:
✔️ Drive sleeves
✔️ Pivot rings
✔️ Motor interface components
Why Brass H59?
🔩 Superior Hardness: Maintains integrity under pressure and high-use scenarios
🛠 Self-Lubricating Properties: Reduces friction and wear
🧪 Excellent Corrosion Resistance: Ideal for coastal or high-moisture environments
🔧 Long-Term Durability: Far outlasts plastic alternatives and prevents degradation over time
While more costly than traditional materials, Brass H59 offers a premium, maintenance-free experience that reflects the long-term value of the Orion Prime System.
🎨 Custom Colours & Architectural Matching
Orion Prime is designed to blend seamlessly or stand out boldly — your choice.
✔️ Standard 17 RAL colours
✔️ Access to 200+ RAL Custom Colours
✔️ Match your joinery, cladding, or corporate branding
✔️ PVDF options for coastal and commercial-grade durability
No matter your project palette, Orion Prime is built to fit.
📐 Technical Specifications
| Component | Specifications |
|---|---|
| Blades | 200x35x2.2mm or 232x50x2.3mm (high-wind), Aluminium 6005 T6 |
| Beams | 200x70x3.0mm, 200x77.8x6.4mm, 200x150x3.0mm integrated beam and gutter300x70x3.5mm |
| Posts | 150x150x3.0mm, 155x155x6.4mm, 200x100x3.0mm, 200x200x3.0mm |
| Gutters | 120x65x2.2mm with integrated drainage |
| Motor | IP67 Waterproof, integrated inside beam |
| Internal Parts | Brass H59, Stainless Steel 316 (no plastic) |
Bring Natural Brightness Into Your Outdoor Space
The Aurea Louvre Blades, also known as Daylight Louvres, are an elegant innovation within the Orion Louvre Roof System by Apollo NZ, designed to introduce more daylight and openness beneath your pergola.
Even when the roof is fully closed, these specialised blades allow natural light to filter through, maintaining a bright and airy atmosphere. Positioned strategically, they enhance indoor illumination while ensuring your outdoor area retains a seamless, modern aesthetic.
Design & Integration
The Aurea Louvre Blades integrate seamlessly into the Orion framework, maintaining the same structural precision and architectural quality. Each blade is engineered for performance, ensuring your pergola looks cohesive, contemporary, and built to last.
Two Premium Options for Daylight Louvres
1. Fixed Glass Louvres
For those seeking a permanent source of daylight and a clean, minimalist look, Fixed Glass Louvres provide a sleek architectural feature.
Made from 6–8 mm toughened glass for durability and safety
Fixed in place — these blades do not open or close with the aluminium louvres
Best suited for creating a dedicated section within your roof for continuous daylight
Available in clear finish only for maximum brightness and clarity
2. Polycarbonate Louvres
For flexibility and control, Polycarbonate Louvres offer the perfect blend of function and aesthetics.
Fully operable, opening and closing in sync with the aluminium louvres
Made from high-grade UV-resistant polycarbonate for long-lasting transparency and protection
Available in clear or tinted finishes to balance natural light and shade preferences
A stylish and practical choice for homeowners who want adjustable daylight and year-round weather protection
Strength, Functionality & Customisation
Both options are designed for strength, clarity, and design versatility. Whether you choose glass or polycarbonate, the Aurea Louvre Blades integrate flawlessly into the Orion System’s robust aluminium structure, ensuring long-term reliability and architectural refinement.
Apollo NZ also offers custom configurations, allowing you to choose where to incorporate daylight sections to suit your space and design vision.
Why Choose Aurea Louvre Blades
Enhances natural daylight and brightens outdoor living areas
Seamlessly integrates with Orion’s premium louvre roof structure
Positioned to preference for balanced indoor and outdoor lighting
Adds both aesthetic and functional value to your home or commercial project
Applications
The Aurea Louvre Blades are ideal for:
Residential patios and courtyards
Commercial and hospitality settings
Homes seeking more natural daylight under covered outdoor areas
🏆 Warranties & Durability
Your investment in Orion Prime is protected by class-leading warranties:
🛡️ Lifetime Structural Warranty
🎨 10-Year Powder Coating Warranty
🧪 15-Year PVDF Coating Warranty
🌬️ Wind Rated up to 234 km/h
Motor Warranty: 2-Year Warranty with replacement of the unit only.
This is not just a pergola — it’s a long-term architectural solution.
🏡 Ideal for Residential & Commercial Applications
From stylish suburban decks to luxury hotels and dining terraces, Orion Prime is the louvre roof system trusted by professionals for:
High-end hospitality venues
Apartments & penthouses

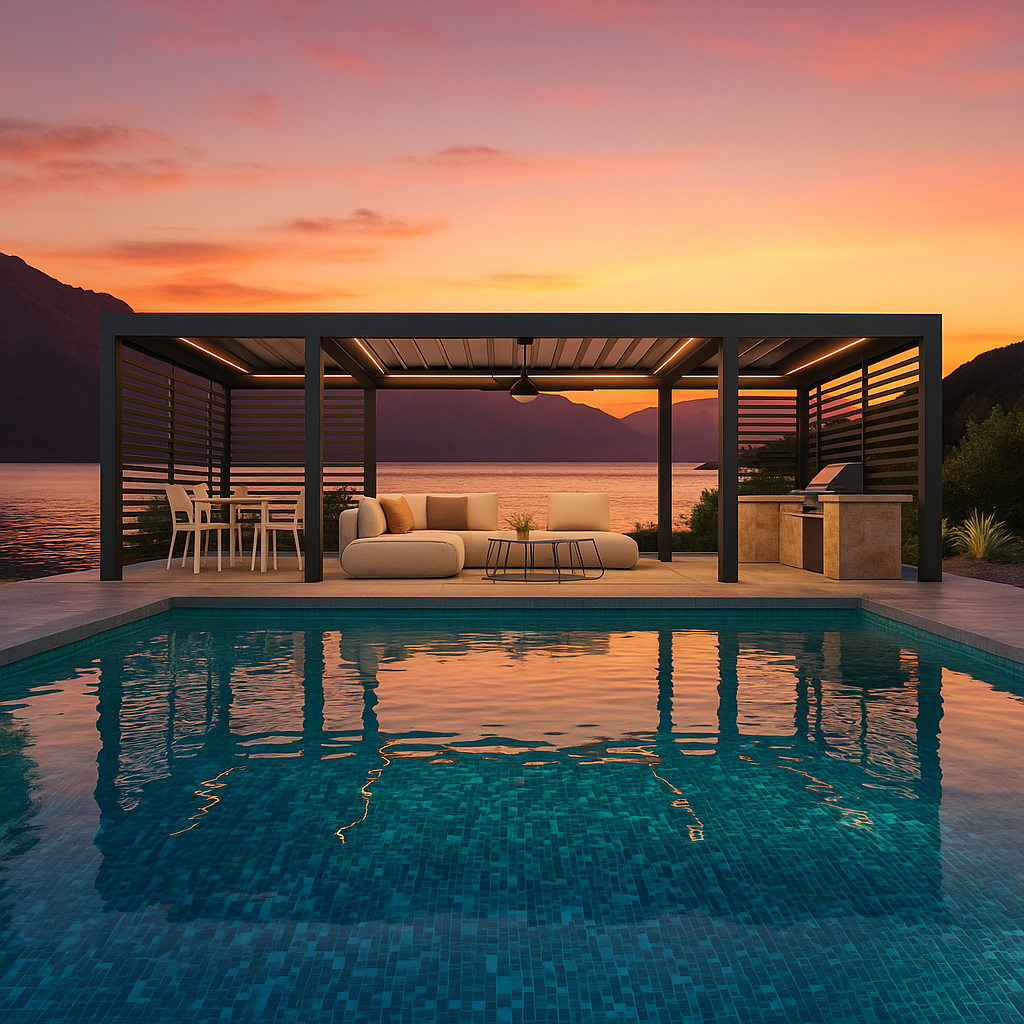

Poolsides & patios
Event venues & rooftop lounges
Architectural homes across New Zealand
📩 Ready to Transform Your Outdoor Space?
Let’s bring your vision to life.
📐 Send us your plans for a free concept layout and design advice
🧱 Custom-built in New Zealand, tailored to your site
🛠 Installation support and nationwide logistics available
📄 PS1 already available for standard builds over 30m²
Contact Apollo NZ today to begin your Orion Prime journey.
Orion Prime System Warranty & Maintenance Guide
The Orion Prime System from Apollo NZ is built to last—with robust materials, precision engineering, and architectural-grade finishes. To ensure ongoing performance and maintain your warranty coverage, scheduled maintenance must be carried out, with a record kept.
🔐 Warranty Coverage:
Structural/Manufacturing Warranty: Lifetime
Motor (if applicable): 2 Years (Replacement of the unit only)
Switches & Electronics: 3 Years
Powder Coating: 10 Years
Important:
The warranty applies to the original purchaser of the system.
However, the warranty can be transferred to a new owner upon request, provided a complete maintenance schedule record is supplied and approved by Apollo NZ.
Regular maintenance must be performed to keep the warranty valid.
