Description
Modern Outdoor Living, Redefined

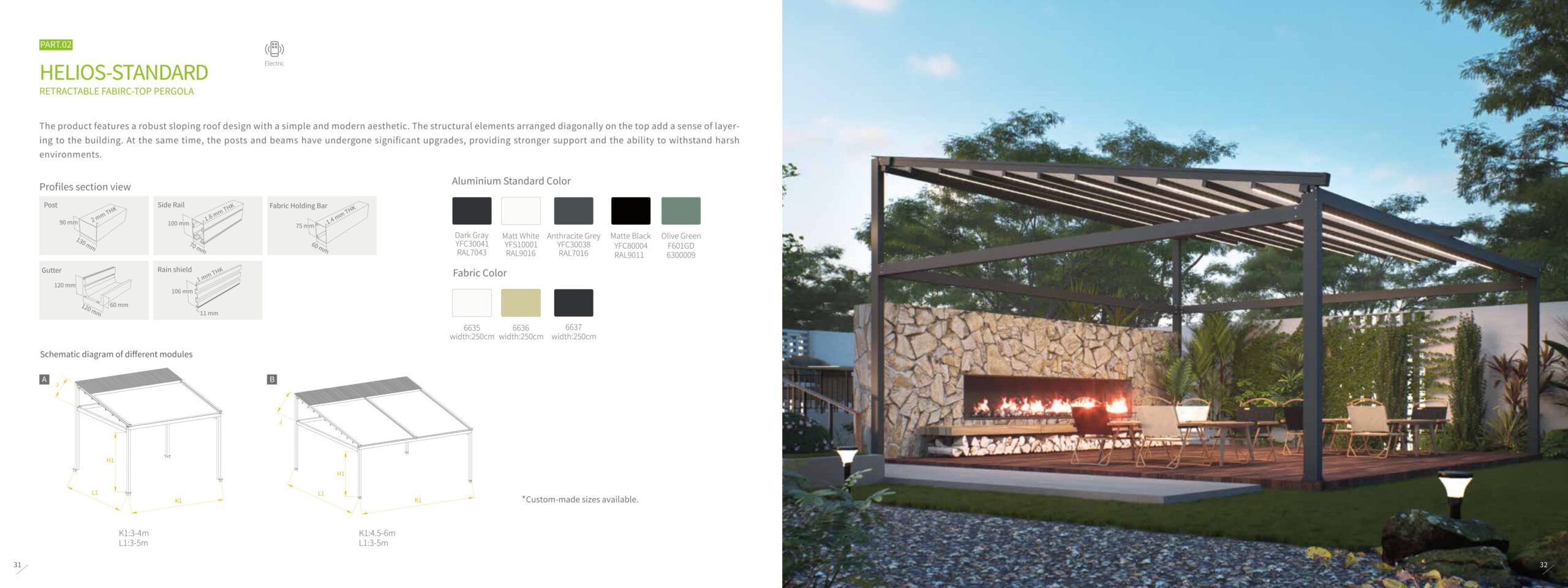

The Ventara Series Helios Standard is a retractable fabric-top pergola system designed to combine modern aesthetics with engineered durability. Its diagonal structural layout delivers both architectural appeal and functional performance — ideal for New Zealand’s diverse climate conditions.
Built with precision-engineered aluminium and upgraded load-bearing beams, this pergola provides stronger support, smooth electric retraction, and exceptional weather resistance, making it perfect for residential, commercial, or hospitality spaces.
Key Features
Retractable Fabric Roof System – Electric operation for effortless control of sun and shade.
Durable Frame Construction – Reinforced aluminium profiles with advanced powder coating for long-term protection.
Modern Sloping Roof Design – Offers excellent rainwater management and a sleek, layered look.
Custom-Made Options – Tailor the size, frame colour, and fabric shade to your project’s unique requirements.
Integrated Rain Shield & Gutters – Channel water efficiently through built-in drainage profiles.
Technical Specifications
| Component | Dimensions (mm) | Thickness |
|---|---|---|
| Post | 90 × 130 | 2.0 mm |
| Side Rail | 100 × 130 | 1.8 mm |
| Fabric Holding Bar | 75 × 60 | 1.4 mm |
| Gutter | 120 × 120 | 2.0 mm |
| Rain Shield | 106 × 60 | 1.1 mm |
Available Configurations
| Type | Width (K) | Length (L) | Description |
|---|---|---|---|
| A | 3–4 m | 3–5 m | Single module |
| B | 4.5–6 m | 3–5 m | Double module |
Custom-made sizes available.
Colour Options
Aluminium Frame Colours
Dark Grey (YFC30041 / RAL7043)
Matt White (YFS10001 / RAL9016)
Anthracite Grey (YFC30038 / RAL7016)
Matte Black (YFC80004 / RAL9011)
Olive Green (F0610LD / 6300009)
Fabric Colours
White 6635 (Width: 250 cm)
Sand Beige 6636 (Width: 250 cm)
Charcoal Grey 6637 (Width: 250 cm)
Why Choose the Ventara Series
Engineered for all-season performance
Elegant design for modern outdoor areas
Compatible with lighting and heating upgrades
Perfect for patios, cafés, and outdoor lounges
