Description
Premium Electric Fabric-Top Pergola for Modern Outdoor Living
The Ventara Series Selene-Binding Pergola offers a sleek, modern design with enhanced structural integrity and refined aesthetics.
Built for both residential and commercial spaces, this electric retractable pergola combines durability, weather protection, and architectural appeal — making it an ideal choice for patios, gardens, and outdoor entertainment areas.
🏗 Superior Design and Structure
Compared to the Lite version, the Binding version features an aluminium frame wrapped around all four sides of the top, creating a clean and strong architectural outline.
It also includes reinforced beams and posts for greater stability and long-term durability — perfect for all-season use.

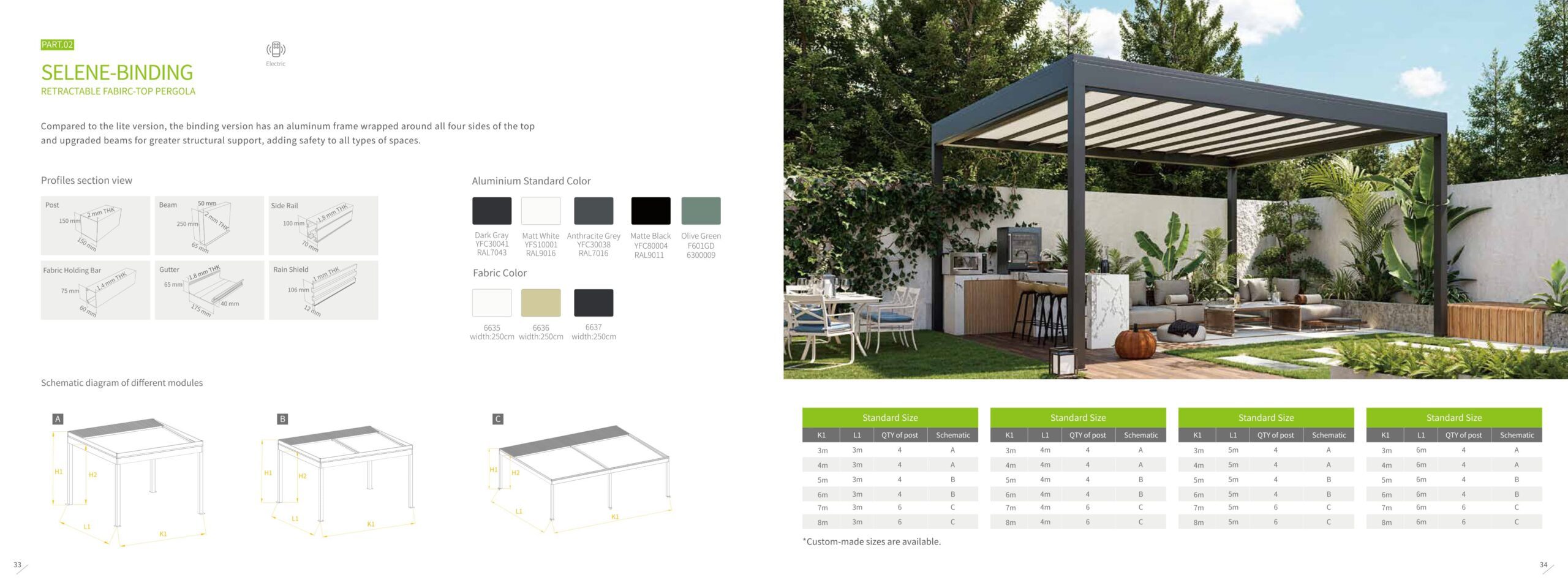

Profile Specifications
| Component | Dimension | Thickness |
|---|---|---|
| Post | 150 × 150 mm | 1.8 mm |
| Beam | 250 × 150 mm | 1.8 mm |
| Side Rail | 100 × 70 mm | 1.8 mm |
| Fabric Holding Bar | 75 × 65 mm | 1.8 mm |
| Gutter | 65 × 173 × 40 mm | 1.8 mm |
| Rain Shield | 106 × 121 mm | 1.8 mm |
🌦 Built for New Zealand Conditions
Engineered with high-grade aluminium and integrated water-management systems, the Ventara Series provides reliable protection from sun and rain.
The gutter and rain-shield system ensures efficient drainage, keeping your outdoor space usable even in wet conditions.
🎨 Colour Options
Aluminium Frame Colours
Dark Gray – RAL 7043
Matt White – RAL 9016
Anthracite Grey – RAL 7016
Matte Black – RAL 9011
Olive Green – Code 63000099
Fabric Colours
White 6635 (250 cm width)
Beige 6636 (250 cm width)
Charcoal 6637 (250 cm width)
These options allow full coordination with surrounding architecture, from coastal retreats to modern urban courtyards.
📏 Standard Sizes
| Width (K1) | Projection (L1) | Qty of Posts |
|---|---|---|
| 3 m | 3 m | 4 |
| 4 m | 3 m | 4 |
| 5 m | 3 m | 4 |
| 6 m | 3 m | 4 |
| 7 m | 3 m | 6 |
| 8 m | 3 m | 6 |
| 3 m | 4 m | 4 |
| 4 m | 4 m | 4 |
| 5 m | 4 m | 4 |
| 6 m | 4 m | 4 |
| 7 m | 4 m | 6 |
| 8 m | 4 m | 6 |
| 3 m | 5 m | 4 |
| 4 m | 5 m | 4 |
| 5 m | 5 m | 4 |
| 6 m | 5 m | 4 |
| 7 m | 5 m | 6 |
| 8 m | 5 m | 6 |
| 3 m | 6 m | 4 |
| 4 m | 6 m | 4 |
| 5 m | 6 m | 4 |
| 6 m | 6 m | 4 |
| 7 m | 6 m | 6 |
| 8 m | 6 m | 6 |
Custom-made sizes are available upon request.
⚡ Key Features
Electric retractable operation for effortless use.
Fully enclosed aluminium frame for premium aesthetics.
Enhanced beam and post structure for superior strength.
Integrated gutter and rain-shield system for all-weather protection.
Choice of five frame colours and three fabric tones.
Custom sizing available to fit any space or layout.
- Standalone or Attached to wall option.
