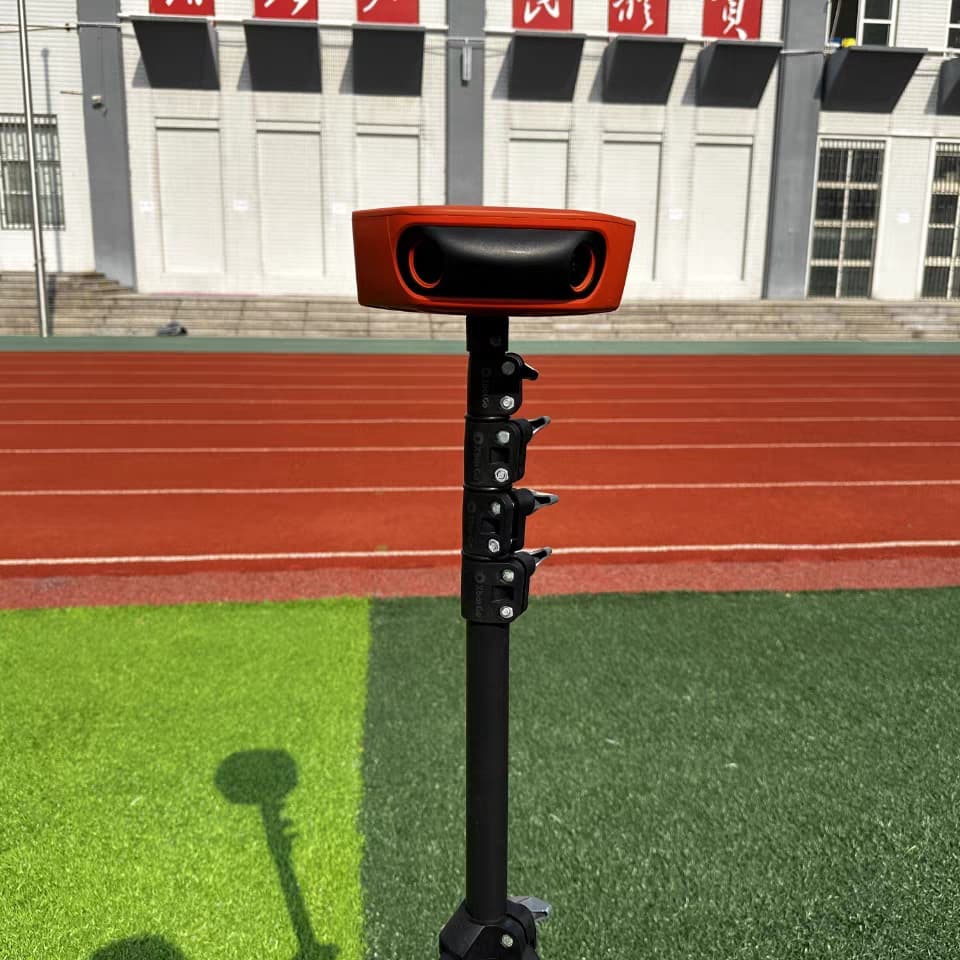

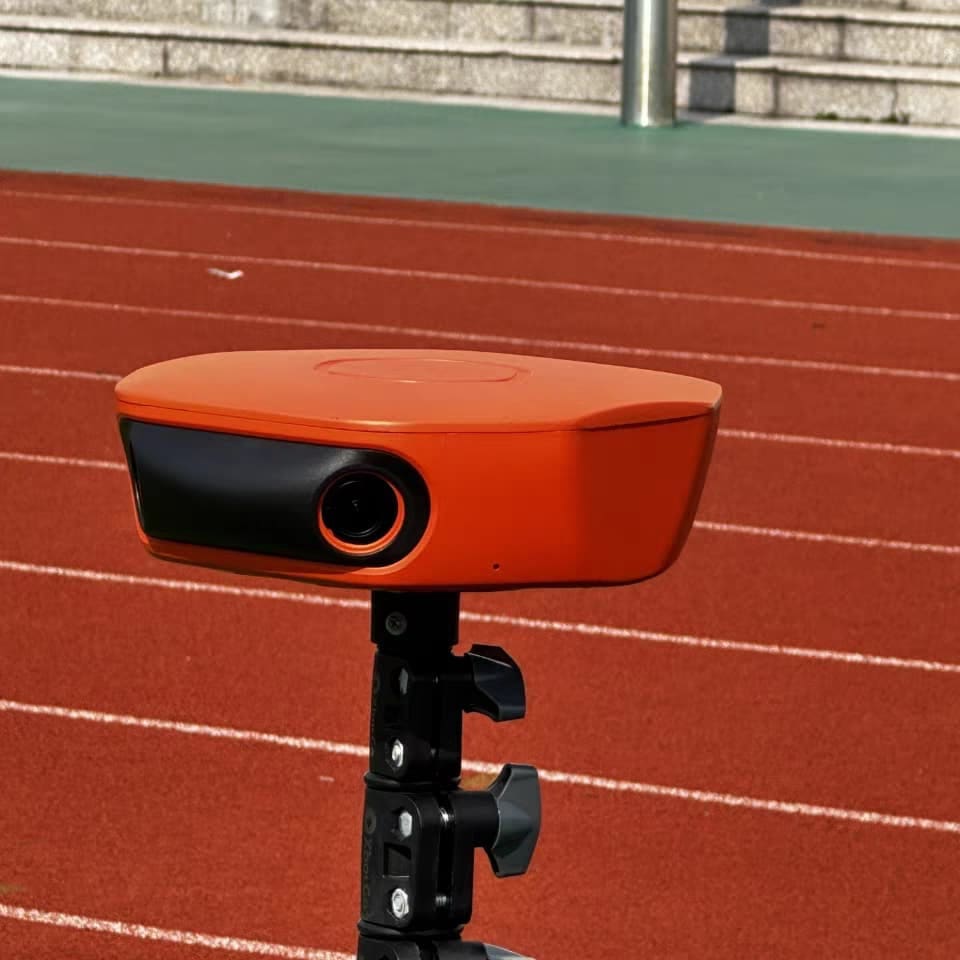

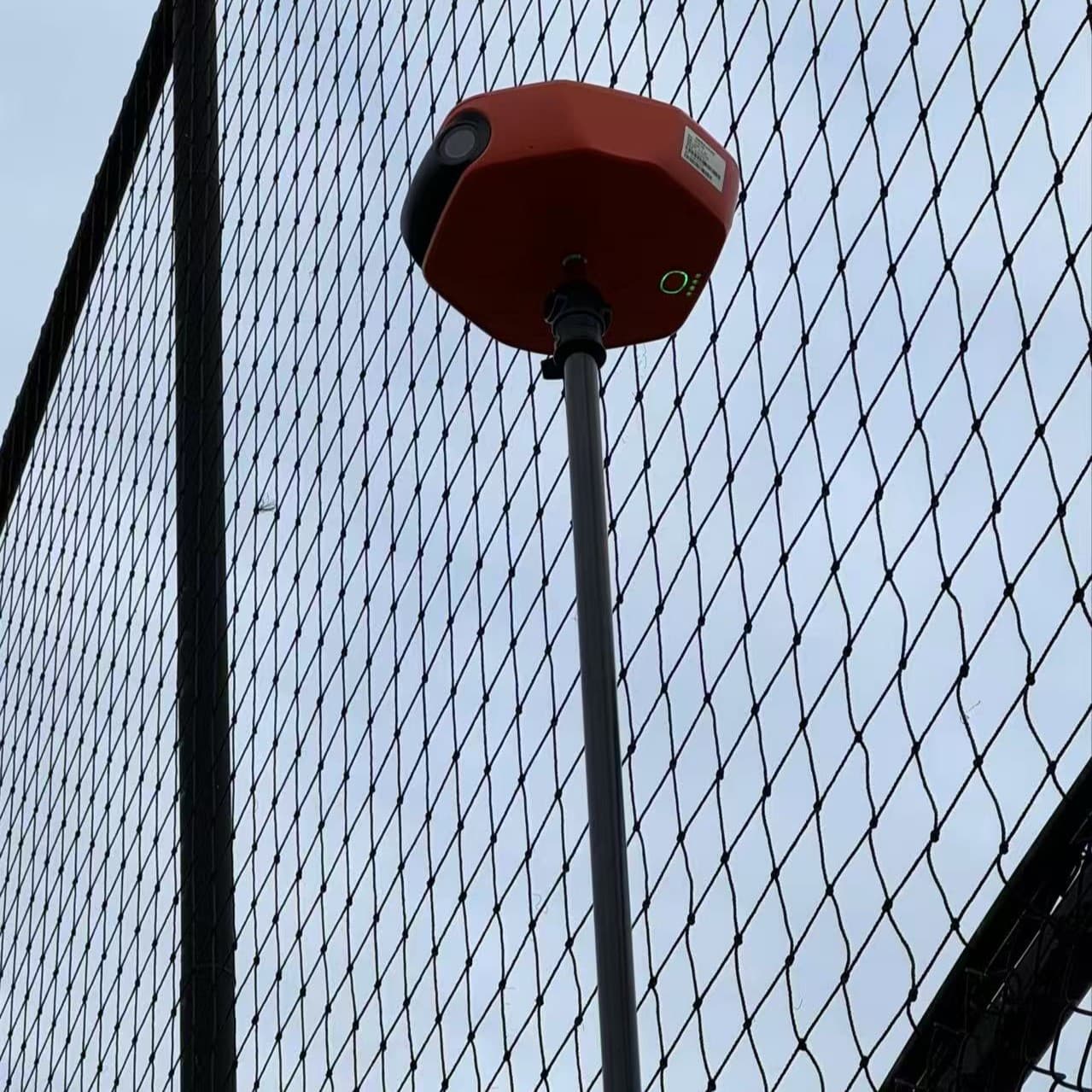

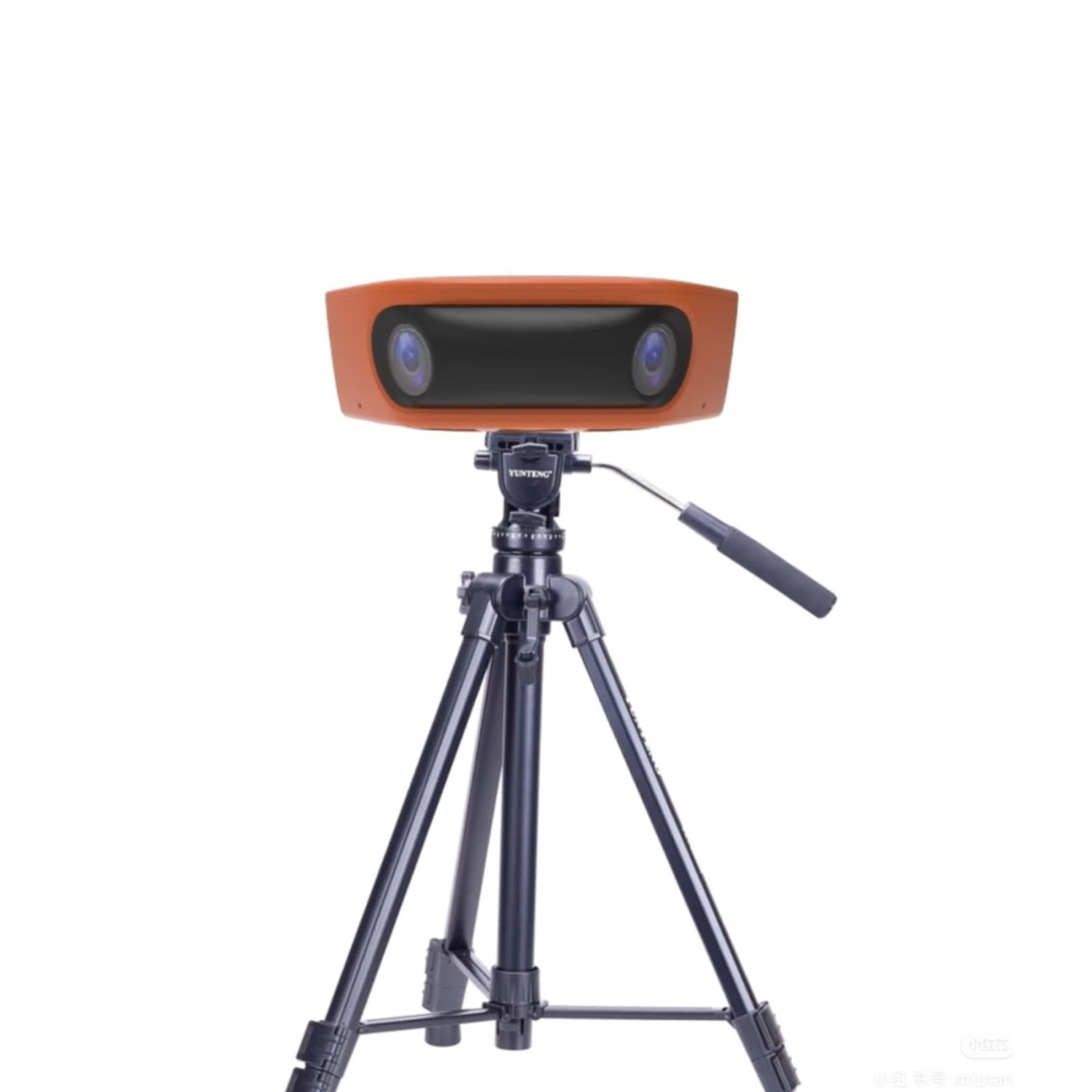

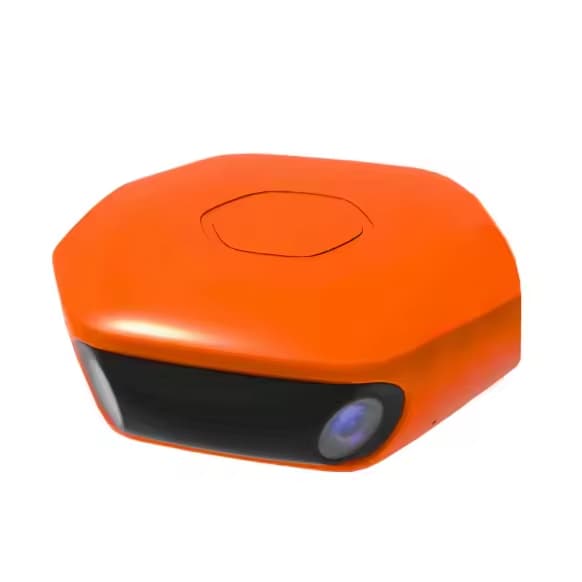

VisionPlay AI 180 – 4K Sports Live Camera (Motion)
The VisionPlay AI 180 – 4K Sports Live Camera (Motion) is an advanced, unmanned sports camera system designed to deliver professional-level live streaming and recording without the need for a camera operator. Using intelligent AI tracking and dual-lens 180° panoramic technology, it captures the entire field of play in stunning clarity.
Designed for schools, clubs, academies, indoor arenas, and outdoor venues, it balances performance, automation, and cost — making high-quality sports broadcasting accessible at every level.
Pricing & Lead Time
Limited Time Price: $4,500 + GST
Includes freight to door
• Allow 12–15 days for delivery
• Tracking information provided before dispatch
Ultra-High Definition 4K Panoramic Imaging
VisionPlay AI 180 uses dual-lens 4K stitching technology to deliver panoramic footage with up to 16 million pixels, ensuring full-field clarity.
• 4K panoramic recording output (recommended install height up to 5m)
• Simultaneous FHD 1080P live streaming
• Dual 4K stitched panoramic imaging
• Clear balance between detail and streaming performance
• Suitable for both large stadiums and compact indoor venues
180° Ultra-Wide Field Coverage
With a full 180° horizontal field of view, the system captures the entire playing area from a single position.
• Full-court / full-field visibility
• No blind spots or missed transitions
• Ideal for indoor and outdoor environments
• Covers basketball, football, rugby, hockey, and more
AI-Powered Shooting & Tracking
Built-in AI enables automated operation without the need for a camera operator.
• AI ball and player tracking algorithms
• Automatic zoom (push-in / pull-out)
• Camera movement tracking
• Reduced labour and production costs
Preloaded Sports Modes
Optimised out of the box for multiple sports:
• Rugby
• Basketball
• Football (Soccer)
• Volleyball
• Tennis
• Badminton
• Table Tennis
• Curling
• Pickleball
• Frisbee
• Ice Hockey
Other sports can be recorded just won't have ball tracking.

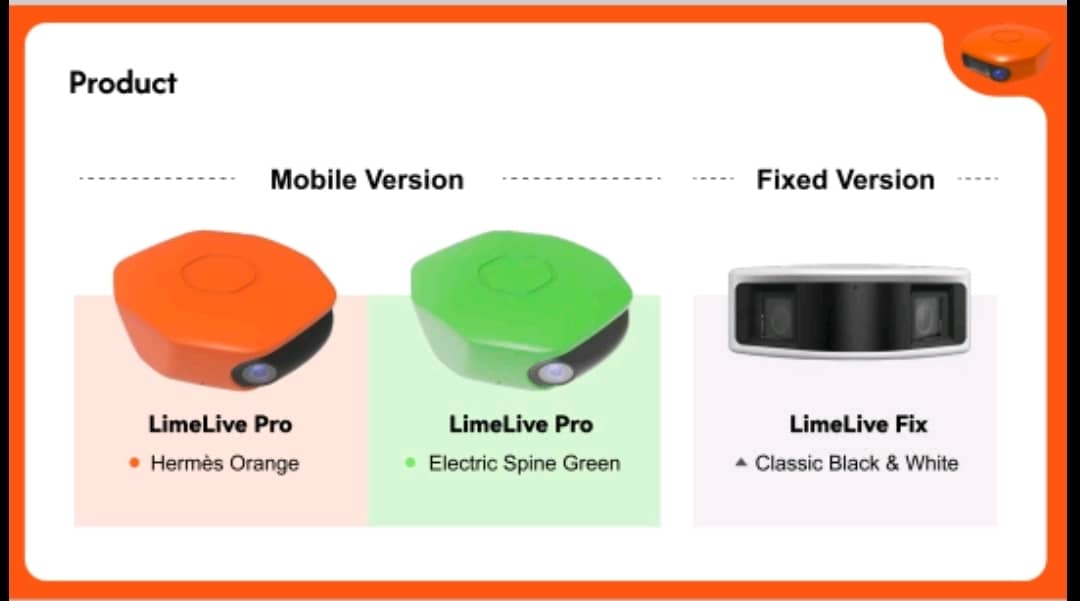

Colour Range (Stock Dependent)
• White
• Orange
• Blue
High-Fidelity Audio
• Dual built-in microphones
• Noise reduction technology
• Captures on-field communication and crowd atmosphere
• Suitable for commentary and playback
Live Streaming & Recording Modes
• Full 180° panoramic live streaming
• Image-corrected display modes
• Instant record or stream functionality
• No complex setup required
Automatic Highlight Generation
• Goal and key event detection
• Auto-generated highlight clips
• No manual editing required
• Ideal for social media and post-match review
Multi-Platform Software Support
• Mobile and PC compatibility
• Remote control for recording and streaming
• Scoreboards, overlays, and commentary integration
• Third-party streaming compatibility
Connectivity & Network
• Ethernet (RJ45 10/100M)
• Wi-Fi 6
• Bluetooth 5.2
• 5G support (PRO version – Nano SIM)
Power, Storage & Portability
• Built-in lithium battery (11.1V 8000mAh / 88.8Wh)
• Up to 10 hours runtime
• 64GB internal storage
• Local playback and download
• Power consumption ≤15W
No Subscription Required – Full Ownership
• No ongoing fees
• No locked features
• No forced cloud system
• Full functionality available permanently
You own the system. You control the workflow.
System Comparison – VisionPlay vs Typical AI Tracking Cameras
| Attribute | Typical AI Tracking Cameras | VisionPlay AI 180 |
|---|---|---|
| Core Concept | AI follows action | Full-field capture |
| Video Output | 1080P processed | 4K panoramic |
| Coverage | Cropped view | Full 180° |
| Tracking | AI-dependent | No tracking required |
| Workflow | Upload + process | Instant record/stream |
| Live Streaming | Add-ons required | Built-in |
| Software | Cloud dependent | Minimal |
| Subscription | Required | None |
| Setup | Calibration needed | Plug-and-play |
| Reliability | Can miss action | Consistent capture |
Technical Specifications
Core System
• Product Model: WA100-PRO / WA100-AIR
• Sensor: 1/1.8" 4K Progressive Scan CMOS
• Memory: 8GB DDR4
• Storage: 64GB EMMC
• Minimum Illumination: 0.001 Lux (0 Lux with IR)
Imaging & Optics
• Lens: 2.8mm fixed focus
• Dual lens system (2 lenses)
• Field of View:
– Horizontal: 180°
– Vertical: 59°
• Max Resolution: 16 million pixels
• Panoramic Output: Dual 4K stitched image
• Live Output: 1080P HD
AI & Shooting Functions
• Supports tracking algorithms for:
– Basketball
– Football
– Rugby
– Ice Hockey
– Frisbee
• Shooting modes:
– Camera movement tracking
– Push-in / pull-out zoom
Interfaces
• USB Type-C charging
• Reset button (long-press)
• Power button with multi-colour LED indicator
• 4-level battery indicator LEDs
• Built-in microphone
Environmental Ratings
• Operating Temp: -10°C to +50°C
• Storage Temp: 0°C to +60°C
• Humidity: ≤95% RH
• Protection Rating: IP54
Build & Physical
• Material: PC + Metal
• Dimensions: 198 × 210 × 66 mm
• Weight:
– 1.4kg (device)
– 2kg (with packaging)
Ideal Applications
• Schools and academies

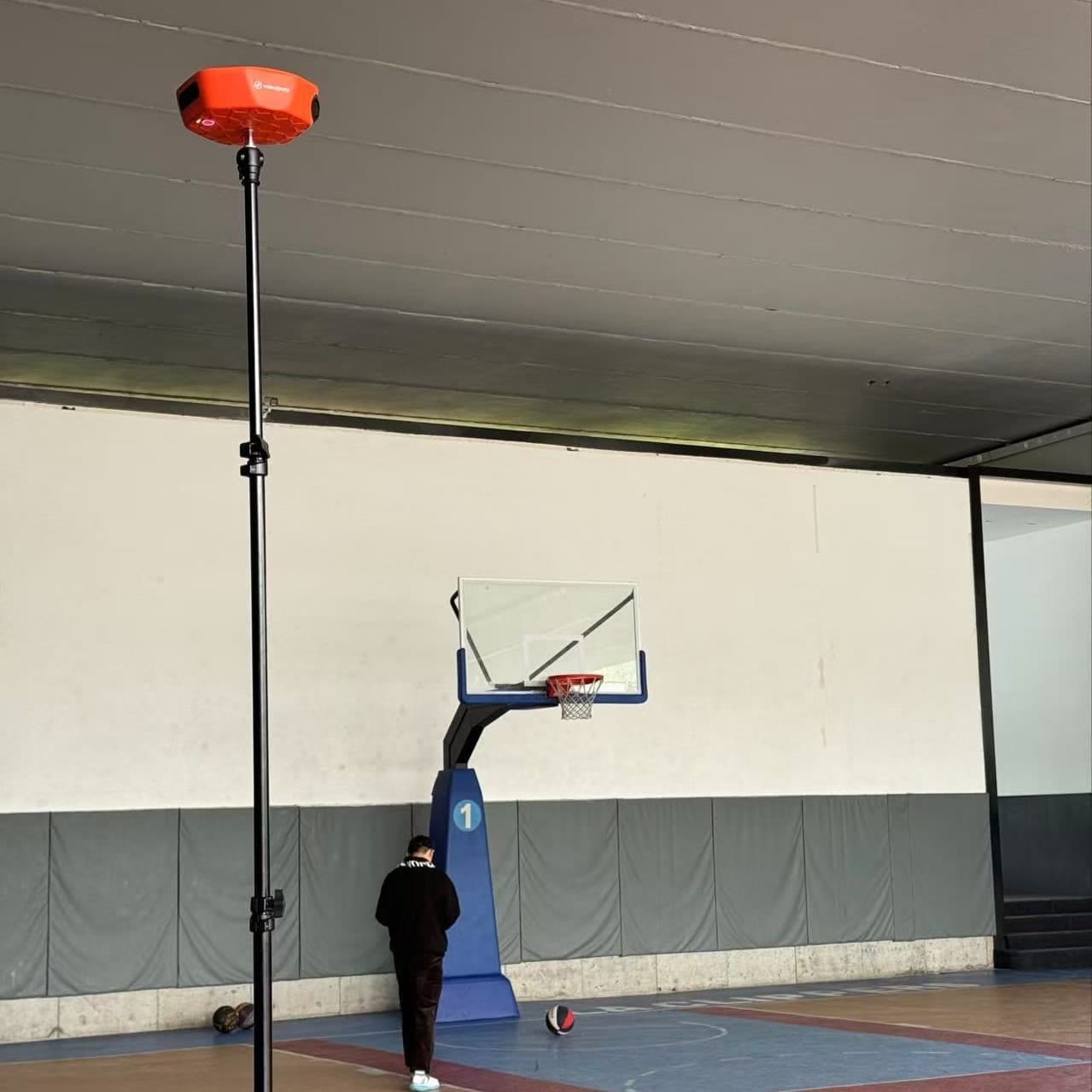

• Indoor stadiums and gyms

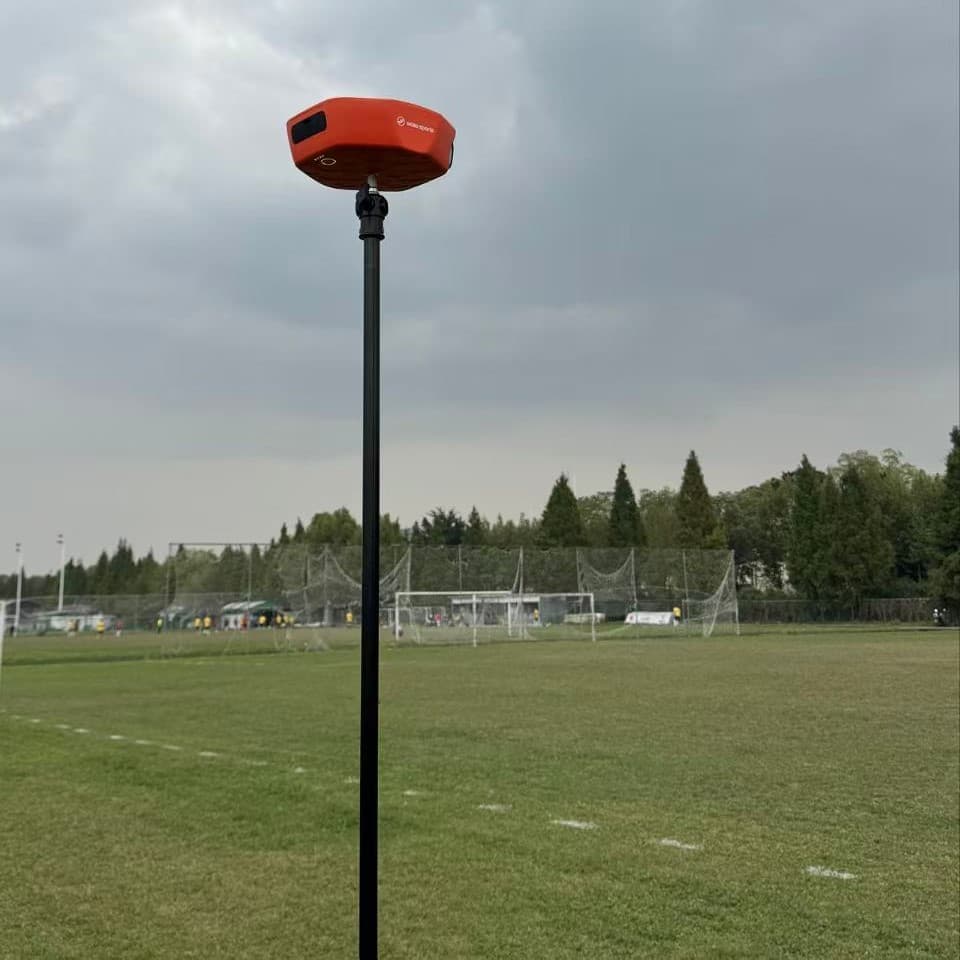

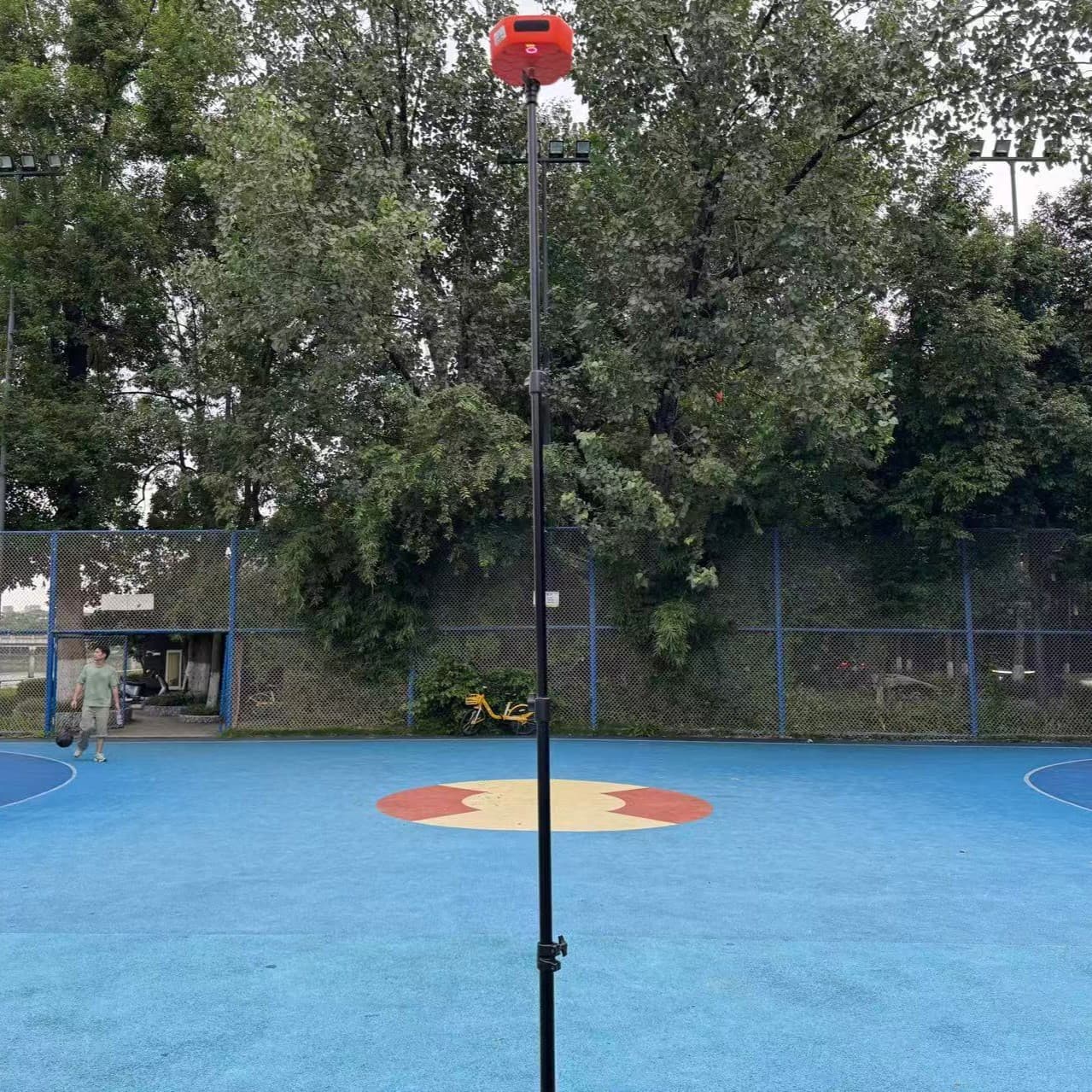

• Outdoor sports fields
• Coaching and performance analysis
• Live streaming events
• Social media content creation
Performance Outcome
• Broadcast-level video quality
• Reduced staffing costs
• Faster content turnaround
• Increased exposure for teams and organisations
